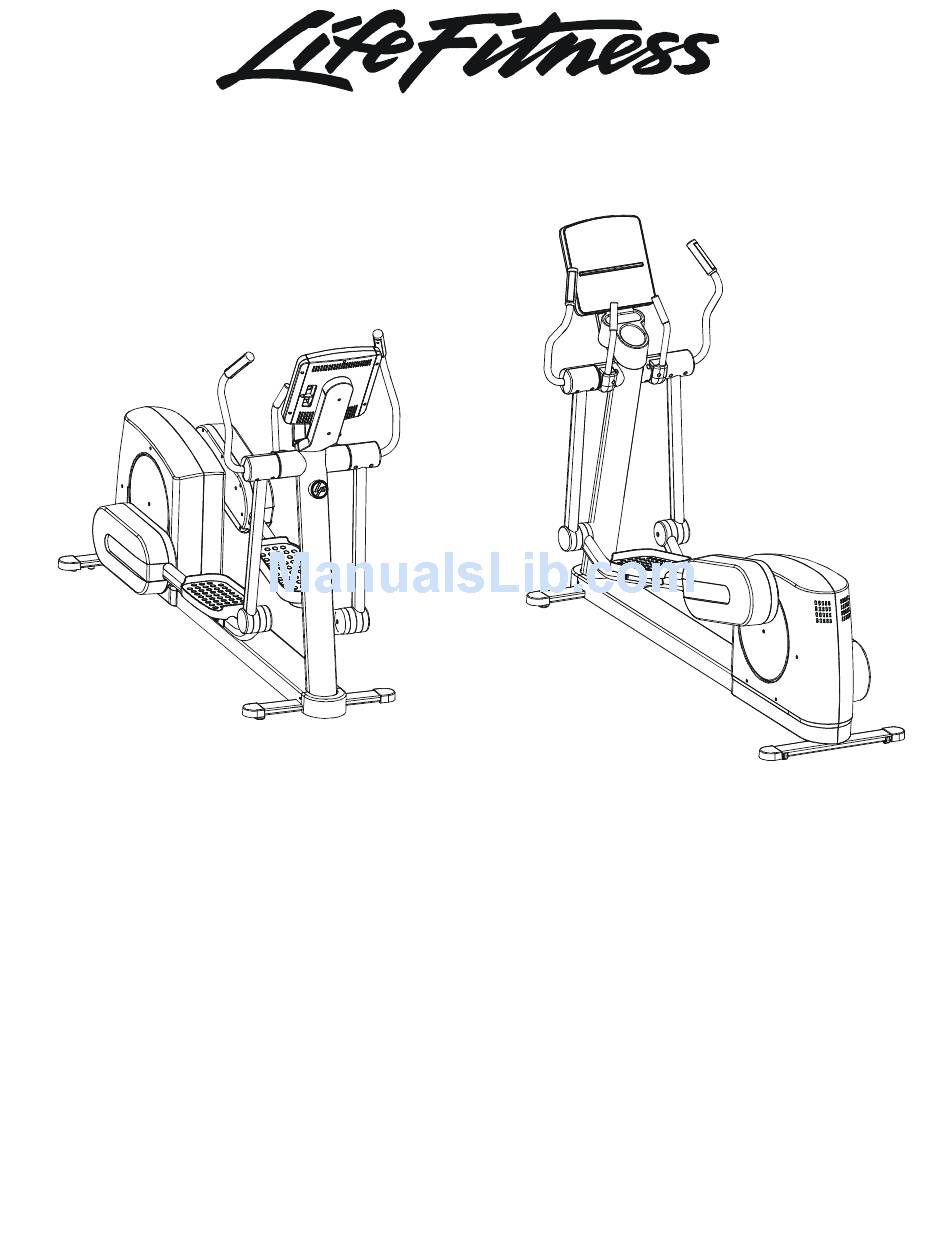

- Page 1 ARCTIC SILVER CROSS-TRAINER 90X-0XXX-02 Customer Support Services PARTS MANUAL rev. 21 MAR 2007...
- Page 2 ARCTIC SILVER 90X REFERENCES OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN OPTIONAL TELEMETRY KIT CRANKSHAFT W/BEARINGS KIT HARDWARE BAG PLUG IN OPTION KIT – 120/60 PLUG IN OPTION KIT – 240/50 UK PLUG IN OPTION KIT –...
-
Page 3: Table Of Contents
ARCTIC SILVER 90X 90X-0XXX-02 CONTENTS S/N AWD100000 and UP Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10 PEDAL LEVER COMPONENTS ...11 DRIVE MODULE COMPONENTS ...12... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER 90X Console Support & Deadshaft Covers Console Support AK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 S/N AWD100000 and UP Right Bullhorn Cover 0K62-01007-0001 Left Bullhorn Cover 0K62-01008-0001... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER 90X Handlebars and Bullhorns Right Handlebar AK62-00090-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0000 NOTE: The Right Bullhorn Assembly consists of: AK62-00057-0001 Bullhorn, 0K62-01136-0000 Grip, and 0K62-01199-0000 Gasket. NOTE: The Left Bullhorn Assembly consists of: AK62-00058-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0000 Gasket S/N AWD100000 and UP Right Bullhorn (See Note) AK62-00053-0001... -
Page 6: Console And Related Components
ARCTIC SILVER 90X Console & Related components PCB mounting Screws (5) 0017-00101-1650 Programmed PCB A084-92220-A008 CONSOLE AK62-00151-0001 AK62-00151-0002 AK62-00151-0003 AK62-00151-0004 AK62-00151-0006 AK62-00151-0007 AK62-00151-0008 AK62-00151-0009 AK62-00151-0010 Console Case Screws (6) 0017-00101-1242 Overlay/Bezel/Switch (see chart below) OVERLAY/BEZEL/SWITCH AK62-00189-0001 AK62-00189-0001 AK62-00189-0003 AK62-00189-0004 AK62-00189-0006 AK62-00189-0007 AK62-00189-0008 AK62-00189-0009... -
Page 7: Upper Frame Hardware
ARCTIC SILVER 90X Upper Frame Hardware Items Not Shown Accessory Tray Accessory Tray Mounting Screws (2) Console Mounting Screws (4) 0017-00101-1796 Console Support Mounting Screws (6) 0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) S/N AWD100000 and UP 0K62-01022-0000 0017-00101-1846... -
Page 8: Rocker Arms And Pedal Levers
ARCTIC SILVER 90X Rocker Arms & Pedal Levers LF Bug Medallion Assembly AK58-00245-0000 Rocker Arms AK62-00062-0001 Shaft Collar w/Screws 0K61-01259-0000 Washer 0017-00104-0418 Retaining Ring 0017-00100-0178 Right Pedal Lever Assembly AK62-00236-0000 Page 8 of 14 90X-0XXX-02 S/N AWD100000 and UP Left Pedal Lever Assembly AK62-00235-0000... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER 90X Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (2) (Located on front sides of Ladder Frame Cover) 0017-00101-1795 S/N AWD100000 and UP Stabilizer Caps (4) 0K62-01003-0000 Page 9 of 14 90X-0XXX-02 Crank Cover 0K61-03100-0002 Mounting screws (2) 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
ARCTIC SILVER 90X Lower Frame Shrouds & Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting Screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01038-0000 Right Inside Lever Joint Cover 0K62-01040-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting Screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit (includes clip &... -
Page 11: Pedal Lever Assembly Components
ARCTIC SILVER 90X Pedal Lever Assembly Components E-Ring 0017-00100-0107 Thrust Washer 0K47-01105-0000 Brass Washer 0K47-01104-0000 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 Left Pedal 0K62-01005-0000 Pedal Mounting Right Pedal Hardware Screws (4) 0K62-01006-0000 0017-00101-1805 Washer (4) 0017-00104-0469 Tie Rod Extension Right Inside Pedal Cover Assembly 0K62-01015-0000... -
Page 12: Drive Module Components
ARCTIC SILVER 90X Drive Module Components FLEXONIC Belt J8 0K62-01134-0000 Metric Poly-V Pulley 0K35-01186-0007 Resistor w/Harness Assembly AK62-00171-0000 Right Crankarm AK62-00204-0000 Poly-V Crank Pulley 0K61-02409-0000 Left Crank Arm Weld Assembly Order Kit GK62-00002-0027 Magnet/Standoff Assembly AK62-00186-0000 Crankshaft Plate 0K61-02302-0001 Battery 0017-00003-0685 Crossover Shaft and Bearings... -
Page 13: Drive Module Hardware
ARCTIC SILVER 90X Drive Module Hardware Alternator Mounting Bolt 0017-00101-0986 Resistor Mounting Rod 0K63-01166-0000 Cable Mounting Screws 0017-00101-1839 Cable Mounting Nuts 0017-00103-0159 Screw 0017-00101-1836 Washer 0017-00104-0465 Crankarm Nut Machine Key 0017-00103-0334 0K53-01183-0000 Crankarm Mounting Bolt Set Screws 0017-00101-1849 0017-00101-1833 Thrust Washer 0K47-01104-0000 S/N AWD100000 and UP Plastic Grommet (4) -
Page 14: Cables
ARCTIC SILVER 90X Cables Power Control Cable AK62-00092-0000 S/N AWD100000 and UP Power Control Board B084-92218-D000 Console PCB A084-92220-A008 Page 14 of 14 90X-0XXX-02 Main Cable AK62-00093-0000...
