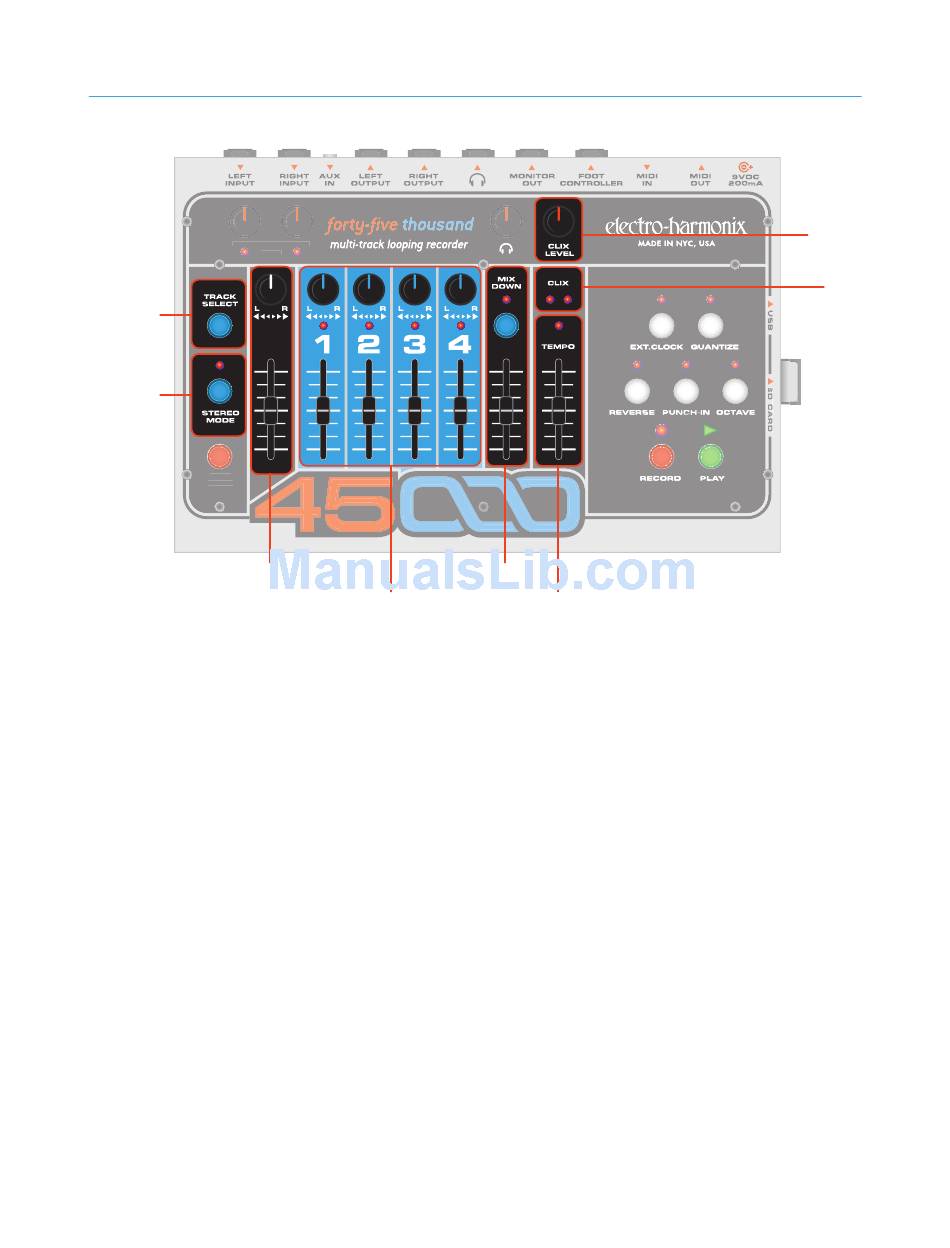

Tracks, Track Selection and Mixdown
11
12
9. DRY OUT
The DRY OUT Fader and pan knob allow you to monitor your
instrument when recording or to play along with a loop you
have already recorded. Adjust the output volume of your
instrument using the DRY OUT Fader. Use its pan knob to
direct the Left and Right Inputs to the Left and Right Outputs.
When pan is set to the full CCW position, the Left Input is
monitored at the Left Output and the Right Input is monitored
at the Right Output. When pan is set to the full CW position,
the Left Input is monitored at the Right Output and the Right
Input is monitored at the Left Output. When pan is set to the
middle, both Inputs are mixed to both Outputs. The settings
of the DRY OUT Fader and the pan pot have no influence on
the signal that is recorded. Please Note: when recording in
mono, both inputs are summed together and recorded onto
the same track. When recording in stereo the two inputs
remain separate: the LEFT input sent to the odd numbered
tracks and the RIGHT input sent to the even numbered tracks.
10.

RECORD TRACKS

There are 4 tracks available for you to record your instruments
onto. You can record at most 2 tracks simultaneously. Each
of the 4 tracks contains a pan knob and a volume fader allow-
ing you to balance your levels as well as locate your tracks
within the stereo spectrum. Each track also contains an acti-
vation LED above the track number. When the LED is lit, that
particular track is enabled for recording. When you press the
RECORD button, the enabled track will be recorded or over-
dubbed onto.
7
L L L L L L L L L INPUT INPUT INPUT INPUT INPUT INPUT INPUT INPUT INPUT R R R R R R R R R
CLIP CLIP CLIP CLIP CLIP CLIP CLIP CLIP CLIP
DRY DRY DRY DRY DRY DRY DRY DRY DRY
OUT OUT OUT OUT OUT OUT OUT OUT OUT
NEW NEW NEW NEW NEW NEW NEW NEW NEW
LOOP LOOP LOOP LOOP LOOP LOOP LOOP LOOP LOOP
9
10
Fader and Pan Pot
13
14
The tracks are available in mono or stereo pairs (1 & 2 or 3 &
4). The recording levels are set with the INPUT knobs.
10. TRACK Faders
The 4 track faders serve a dual purpose: during Playback they
are the volume control for each track, during Overdubbing
they act like a Feedback control as seen on a delay effect. So
when you are Overdubbing, the level of the previously record-
ed audio on the active track is multiplied by the position of
the track's fader. If the fader is set to 100%, the previously
recorded audio will remain at the volume it was recorded at. If
the fader is set anywhere below 100%, with each pass of the
loop, the volume of the previously recorded audio will attenu-
ate according to the setting of the fader. Using this function,
it is possible to use the 45000 as a very long delay pedal.
11. TRACK SELECT
This button is used to select the active track for recording
and overdubbing. Pressing the TRACK SELECT button cycles
through the 4 tracks.
12. STEREO MODE
This button toggles the 45000 in/out of Stereo Mode. When
the STEREO MODE LED is lit, you are in Stereo Mode, when it
is off, you are in Mono Mode. When Stereo Mode is activated,
the stereo pairs (1 & 2 or 3 & 4) will be recorded simultane-
ously. The LEFT Input will always be sent to Tracks 1 or 3. The
RIGHT Input goes to Tracks 2 or 4.
16
15
Button
Button and LED
