Signal Path Diagram - Electro-Harmonix Forty-five thousand User's Reference Manual

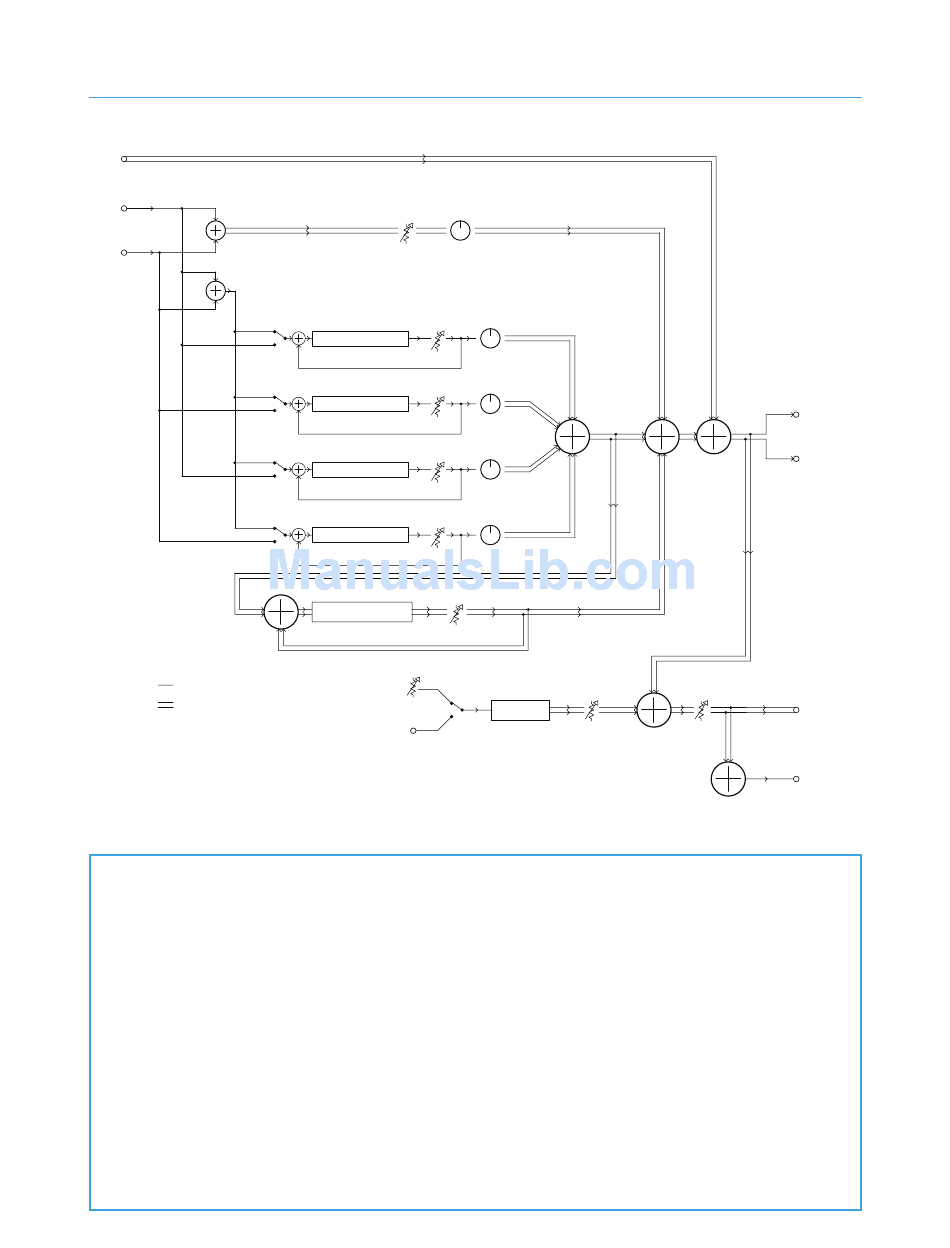

Signal Path Diagram

Aux In
Left Input
Right Input
denotes Mono signal path
denotes Stereo signal path
Please register online at www.ehx.com/product-registration or complete and return the enclosed warranty card
within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to oper-
ate due to defects in materials or workmanship for a period of one year from date of purchase. This applies only
to original purchasers who have bought their product from an authorized Electro-Harmonix retailer. Repaired or
replaced units will then be warranted for the unexpired portion of the original warranty term. If you should need
to return your unit for service within the warranty period, please include a brief description of the problem as
well as your name, address, telephone number, copy of your receipt, and a check or money order.
Shipping and handling costs are as follows:
United States: $12
Canada: $15
Europe and other countries: $25
Please make checks/money orders payable
to New Sensor Corporation.
21
Dry Out Fader
Mono
SD Card LoopXX Track 1
Stereo
Track 1 Fader
Mono
SD Card LoopXX Track 2
Stereo
Track 2 Fader
Mono
SD Card LoopXX Track 3
Stereo
Track 3 Fader
Mono
SD Card LoopXX Track 4
Stereo
Track 4 Fader
SD Card LoopXX Track M
Mixdown Track Fader
Tempo Slider
MIDI In
WARRANTY INFORMATION
For more information visit www.ehx.com, or email info@ehx.com.
L R
Dry Out Pan
L R
Track 1 Pan
L R
Track 2 Pan
L R
Track 3 Pan
L R
Track 4 Pan
Clix Generator
Clix Level Knob
Ext.Clock
Ship to:
Electro-Harmonix
C/O New Sensor Corporation
55-01 2nd Street
Long Island City, NY 11101
Attn: Service Department
Left Output
Right Output
Headphone
Headphone
Output
Level Knob
Monitor
Output
