Summary of Contents for CDI Commrider 7050
-
Page 2: Product Instructions

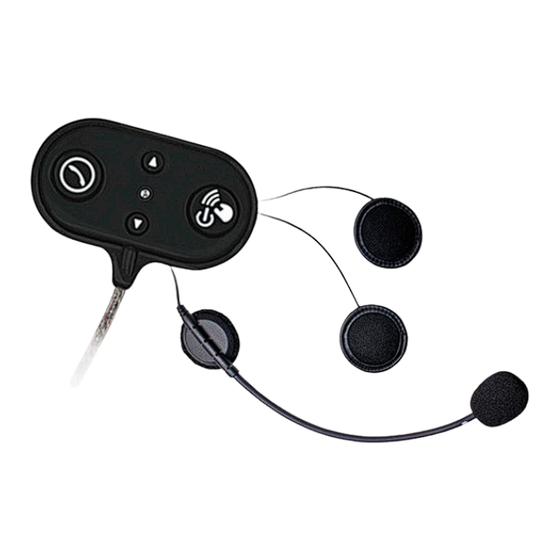

Without mobile phone you can also have crystal clear full-duplex driver to passenger (driver to driver) voice inter-communication. The Commrider 7050 box with all included elements. 1- MFB : Multi «Function» button Click once to answer incoming call and again to terminate the call. -
Page 3: Main Features
Main Features Mobile phone functions • Bluetooth® Hands-free. Automatically switch seamlessly among Bluetooth® mobile phone, Intercom and stereo sources • Support voice dial • Support the last number redial • Call Answer, reject and hang up functions supported • Hands-free Volume Control •... -
Page 4: Power On/Off
Power On/Off Power on the Bluetooth headset In power off state, press Control Button and hold it for about 2 seconds, until hear a “di” tone, release the button, blue indicator will flash to indicate power on successfully.. Power off the Bluetooth headset In power on state, press Control Button and hold it for about 8 seconds, until hear a long “di”... - Page 5 Blue/Red flashing state simultaneously, and shift to only Blue LED flashing state same time. Note : The Commrider 7050 Bluetooth headset can only assure to successfully pair with the same series product of CDI Inc. Bluetooth headset turn to intercom state automatically after the first pairing succeed.
-
Page 6: Last Number Redial
Commrider7050 Phone call operation Answering incoming calls When there is an incoming phone call, short press MFB button to manual answer the call. Automatically answer incoming calls The Bluetooth Helmet headset has the automatically answer function, after 2 incoming call ring ones played (about 8 seconds), and if there is not any operations on the head set, the Bluetooth Helmet headset will answer the phone call automatically. - Page 7 Intercom operation 1- Turn on Bluetooth Intercom talking function Commrider7050 Bluetooth Intercom headset has memory function. When they paired successfully once, they will remember each other. Just short press either of MFB Button while in power on state, the Intercom Function will be activated. 2- Turn off Bluetooth Intercom talking function Either of Bluetooth Helmet Intercom headset users want to turn off the Intercom talking function, just short press MFB Button, then the Intercom call can be ended.
-
Page 8: Fm Radio Operation
Stereo Music Operation Play/Forward Short Press the VOL - Button to select next music Play/Backward Short Press the VOL + Button to select previous music or song playback Note : above functions require the mobile phone to support the Bluetooth A2DP and AVRCP protocol. Volume control To adjusting voice volume during the phone call state, Music playing state and FM radio playing state ,Press and hold VOL + Button to turn up the volume;... -
Page 9: Aux-In Operation
AUX-IN Operation Plug in/pull out AUX During none phone call and duplex talkback state, just connect the Bluetooth and AUX with cable to play, it will turn automatically to play A2DP music( being silence if A2DP unconnected) Manual switchover the AUX-IN function Double click MFB to switchover among FM radio, AUX-IN, and mobile music play. - Page 10 Commrider7050 Bluetooth Helmet Headset LED Indicator Function LED light Indicator LED indicator flash mode State of indication LED indicators off Power off Blue LED indicator flashes once shortly every 3sec Standby Blue LED indicator flashes once long every 3sec Connected Blue/red LED indicators flash alternately Pairing mode Red Led flash 2 times every 60 minutes...
- Page 11 FAQ : Can not power on It might be low battery. Please try again after charging the battery for 3 hours No sound Physically check out whether the speakers and microphone have been connected right? Have you turned down the volume too low? Speakers have after sound (echo) Maybe they are too close to the microphone.
- Page 12 Abnormal indication of charging indicator 1- When the headset haven’t been used for a long time or overused, it need to be pre-charge for an hour, then pull out and in the charger, it will indicate normal charging. Please don’t count the pre-charging time into the normal charging time. 2- Try another charging line or charger.
