AEROBIC TRAINER
INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LifeCycle 9100R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness LifeCycle 9100R

Summary of Contents for Life Fitness LifeCycle 9100R

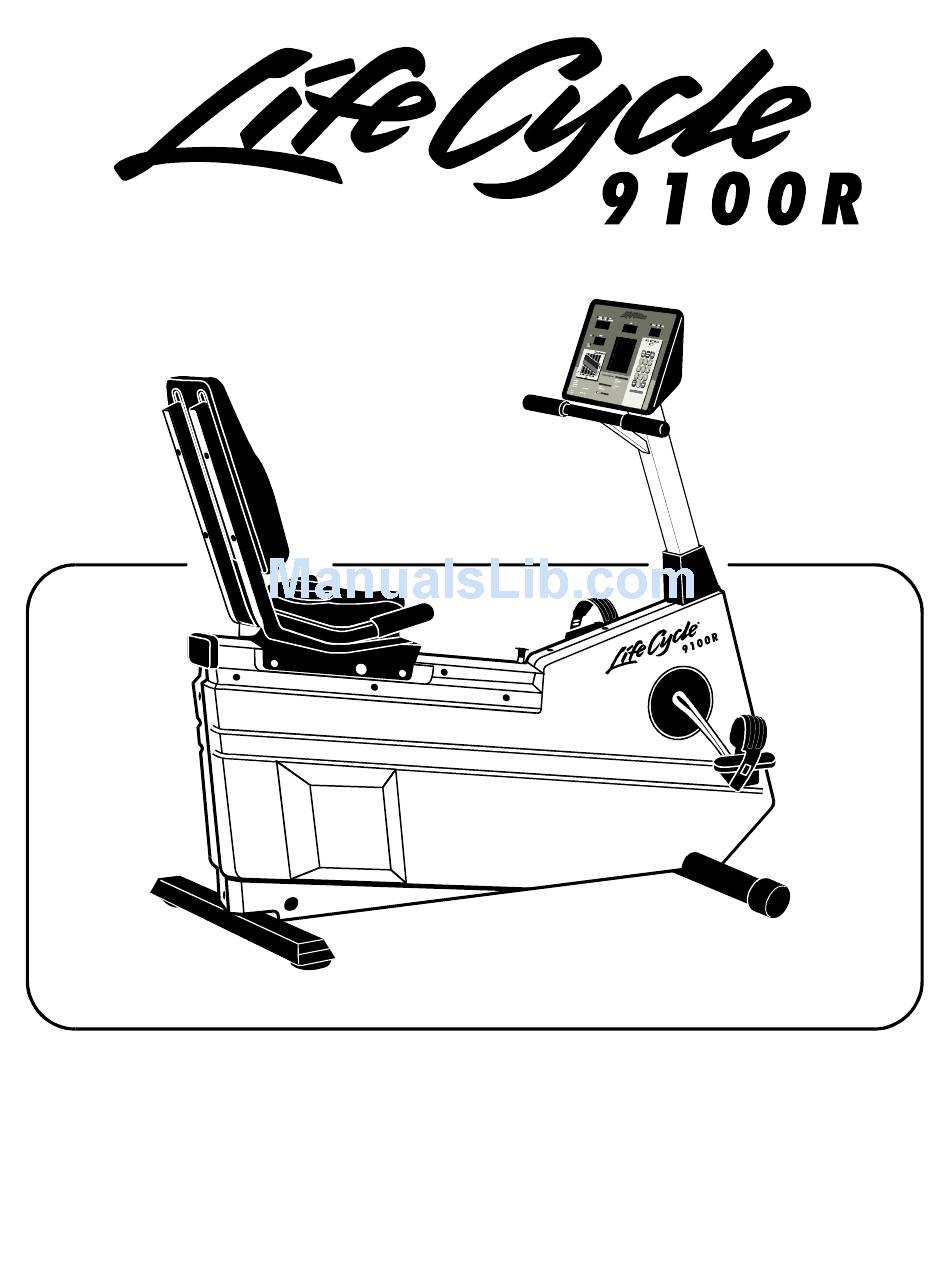

  • Page 1 AEROBIC TRAINER INSTALLATION INSTRUCTIONS...
  • Page 2 Congratulations... and welcome to the world of and the Lifecycle 9100R aerobic trainer. The following Parts Identification Listing and the step by step installation procedures have been assembled to make the set-up of your aerobic trainer as quick and easy as possible.
  • Page 3 Installation Instruction Guide. DO NOT locate the Lifecycle 9100R aerobic trainer any closer than 30 inches ( 76 cm ) to a television set. keep the area around your Lifecycle 9100R aerobic trainer clear of any obstructions, including walls and furniture.
  • Page 4 OOLS EQUIRED FOR SSEMBLY Seat Back Screw 0017-00101-1131 Handlebar Bolt 0017-00101-0986 Seat Back 0K19-01078-0000 Handlebar Assembly AK19-00035-0000 9V Alkaline Battery 0017-00003-0573 ... Phillips screwdriver, 1/2” wrench, 5/32” hex key wrench ARTS ESCRIPTION Qty. 4 Qty. 2 Qty. 1 Qty. 1 Qty.
  • Page 6 Step 1 Align the four holes in the SEAT BACK (#5) with those in the SEAT BACK POSTS. Insert the four SCREWS (#1) and WASHERS (#2) through the backside of the SEAT BACK POSTS and into the SEAT BACK. Tighten the four SCREWS with a hex key wrench.
  • Page 7 Step 8 To install the 9-VOLT ALKALINE BATTERY (#9) found in the parts bag use a Phillips screwdriver to remove the screw from the back door. Gently pull the BATTERY WIRES from the back of the DISPLAY CONSOLE and connect them to the 9-VOLT ALKALINE BATTERY.

  • Page 8: English/Metric Default Setting Toggle

    Copyright 1996 Life Fitness. All rights reserved. The Life Fitness trademark is registered in the U.S. Patent and Trademark Office, Certificate No. 1,400,502 issued July 8, 1986. Lifepulse and Zone Trainer are registered trademarks of Life Fitness. Any use of these trademarks, without the express written consent of Life Fitness is forbidden.
