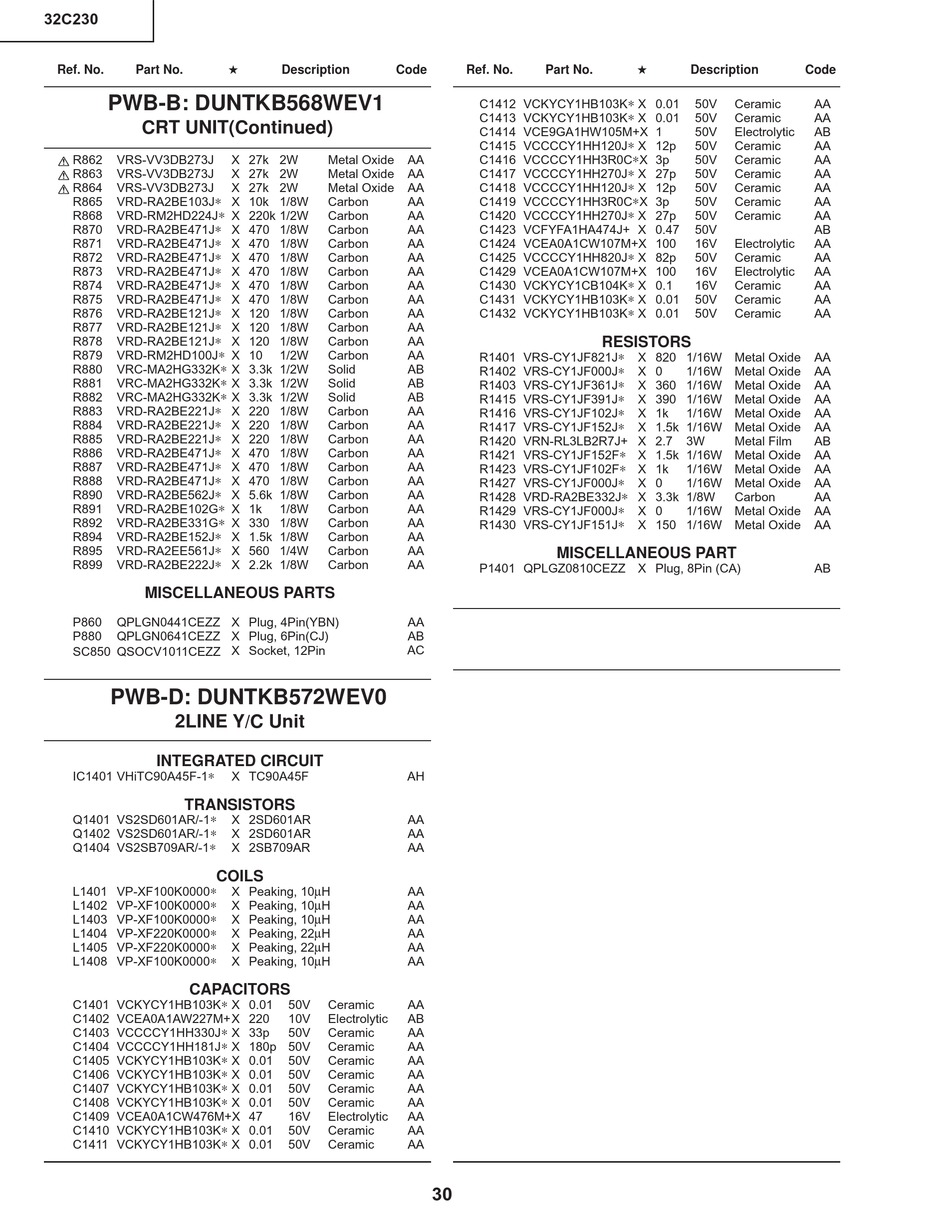

Sharp 32C230 Service Manual page 30

32C230
Ref. No. Part No.
PWB-B: DUNTKB568WEV1
CRT UNIT(Continued)
R862 VRS-VV3DB273J
å
R863 VRS-VV3DB273J
å
R864 VRS-VV3DB273J
å
∗
R865 VRD-RA2BE103J
∗
R868 VRD-RM2HD224J
∗
R870 VRD-RA2BE471J
∗
R871 VRD-RA2BE471J
∗
R872 VRD-RA2BE471J
∗
R873 VRD-RA2BE471J
∗
R874 VRD-RA2BE471J
∗
R875 VRD-RA2BE471J
∗
R876 VRD-RA2BE121J
∗
R877 VRD-RA2BE121J
∗
R878 VRD-RA2BE121J
∗
R879 VRD-RM2HD100J
∗
R880 VRC-MA2HG332K
∗
R881 VRC-MA2HG332K
∗
R882 VRC-MA2HG332K
∗
R883 VRD-RA2BE221J
∗
R884 VRD-RA2BE221J
∗
R885 VRD-RA2BE221J
∗
R886 VRD-RA2BE471J
∗
R887 VRD-RA2BE471J
∗
R888 VRD-RA2BE471J
∗
R890 VRD-RA2BE562J
∗
R891 VRD-RA2BE102G
∗
R892 VRD-RA2BE331G
∗
R894 VRD-RA2BE152J
∗
R895 VRD-RA2EE561J
∗
R899 VRD-RA2BE222J
MISCELLANEOUS PARTS
P860 QPLGN0441CEZZ X Plug, 4Pin(YBN)
P880 QPLGN0641CEZZ X Plug, 6Pin(CJ)
SC850 QSOCV1011CEZZ X Socket, 12Pin
PWB-D: DUNTKB572WEV0
2LINE Y/C Unit
INTEGRATED CIRCUIT
∗
IC1401 VHiTC90A45F-1
TRANSISTORS
∗
Q1401 VS2SD601AR/-1
∗
Q1402 VS2SD601AR/-1
∗
Q1404 VS2SB709AR/-1
COILS
∗
L1401 VP-XF100K0000
∗
L1402 VP-XF100K0000
∗
L1403 VP-XF100K0000
∗
L1404 VP-XF220K0000
∗
L1405 VP-XF220K0000
∗
L1408 VP-XF100K0000
CAPACITORS
∗
C1401 VCKYCY1HB103K
C1402 VCEA0A1AW227M+X 220
∗
C1403 VCCCCY1HH330J
∗
C1404 VCCCCY1HH181J
∗
C1405 VCKYCY1HB103K
∗
C1406 VCKYCY1HB103K
∗
C1407 VCKYCY1HB103K
∗
C1408 VCKYCY1HB103K
C1409 VCEA0A1CW476M+X 47
∗
C1410 VCKYCY1HB103K
∗
C1411 VCKYCY1HB103K
Description Code
X 27k 2W Metal Oxide AA
X 27k 2W Metal Oxide AA
X 27k 2W Metal Oxide AA
X 10k 1/8W Carbon AA
X 220k 1/2W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 120 1/8W Carbon AA
X 120 1/8W Carbon AA
X 120 1/8W Carbon AA
X 10 1/2W Carbon AA
X 3.3k 1/2W Solid AB
X 3.3k 1/2W Solid AB
X 3.3k 1/2W Solid AB
X 220 1/8W Carbon AA
X 220 1/8W Carbon AA
X 220 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 470 1/8W Carbon AA
X 5.6k 1/8W Carbon AA
X 1k 1/8W Carbon AA
X 330 1/8W Carbon AA
X 1.5k 1/8W Carbon AA
X 560 1/4W Carbon AA
X 2.2k 1/8W Carbon AA
AA
AB
AC
X TC90A45F AH
X 2SD601AR AA
X 2SD601AR AA
X 2SB709AR AA
X Peaking, 10µH AA
X Peaking, 10µH AA
X Peaking, 10µH AA
X Peaking, 22µH AA
X Peaking, 22µH AA
X Peaking, 10µH AA
X 0.01 50V Ceramic AA
10V Electrolytic AB
X 33p 50V Ceramic AA
X 180p 50V Ceramic AA
X 0.01 50V Ceramic AA
X 0.01 50V Ceramic AA
X 0.01 50V Ceramic AA
X 0.01 50V Ceramic AA
16V Electrolytic AA
X 0.01 50V Ceramic AA
X 0.01 50V Ceramic AA
Ref. No. Part No.
C1412 VCKYCY1HB103K
C1413 VCKYCY1HB103K
C1414 VCE9GA1HW105M+X 1
C1415 VCCCCY1HH120J
C1416 VCCCCY1HH3R0C
C1417 VCCCCY1HH270J
C1418 VCCCCY1HH120J
C1419 VCCCCY1HH3R0C
C1420 VCCCCY1HH270J
C1423 VCFYFA1HA474J+ X 0.47
C1424 VCEA0A1CW107M+X 100
C1425 VCCCCY1HH820J
C1429 VCEA0A1CW107M+X 100
C1430 VCKYCY1CB104K
C1431 VCKYCY1HB103K
C1432 VCKYCY1HB103K
RESISTORS
R1401 VRS-CY1JF821J
R1402 VRS-CY1JF000J
R1403 VRS-CY1JF361J
R1415 VRS-CY1JF391J
R1416 VRS-CY1JF102J
R1417 VRS-CY1JF152J
R1420 VRN-RL3LB2R7J+ X 2.7
R1421 VRS-CY1JF152F
R1423 VRS-CY1JF102F
R1427 VRS-CY1JF000J
R1428 VRD-RA2BE332J
R1429 VRS-CY1JF000J
R1430 VRS-CY1JF151J
MISCELLANEOUS PART
P1401 QPLGZ0810CEZZ X Plug, 8Pin (CA)
30
Description
∗
X 0.01 50V Ceramic
∗
X 0.01 50V Ceramic
50V Electrolytic
∗
X 12p 50V Ceramic
∗
X 3p 50V Ceramic
∗
X 27p 50V Ceramic
∗
X 12p 50V Ceramic
∗
X 3p 50V Ceramic
∗
X 27p 50V Ceramic
50V
16V Electrolytic
∗
X 82p 50V Ceramic
16V Electrolytic
∗
X 0.1 16V Ceramic
∗
X 0.01 50V Ceramic
∗
X 0.01 50V Ceramic
∗
X 820 1/16W Metal Oxide
∗
X 0 1/16W Metal Oxide
∗
X 360 1/16W Metal Oxide
∗
X 390 1/16W Metal Oxide
∗
X 1k 1/16W Metal Oxide
∗
X 1.5k 1/16W Metal Oxide
3W Metal Film
∗
X 1.5k 1/16W Metal Oxide
∗
X 1k 1/16W Metal Oxide
∗
X 0 1/16W Metal Oxide
∗
X 3.3k 1/8W Carbon
∗
X 0 1/16W Metal Oxide
∗
X 150 1/16W Metal Oxide
Code
AA
AA
AB
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AB
