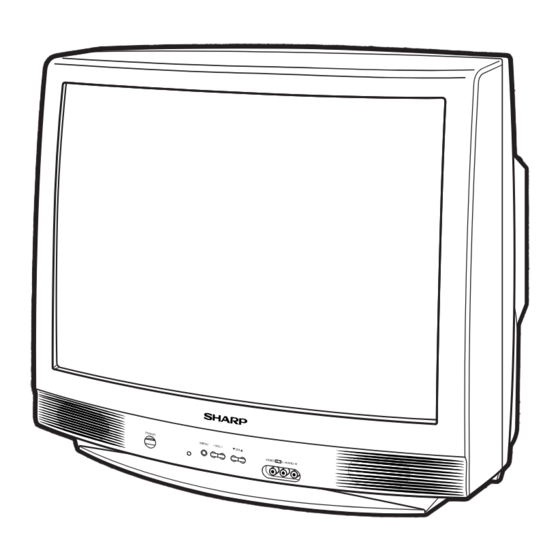

Sharp 32C241 Operation Manual

Sharp color television 32c241 operation manual

Hide thumbs Also See for 32C241:

Service manual (34 pages)

Table of Contents

Quick Links

Summary of Contents for Sharp 32C241

Page 1: Table Of Contents
This operation manual includes basic operating instructions in Spanish and French. SPANISH is on page 37–41. FRENCH is on page 42–46. COLOR TELEVISION MODEL 32C241 H OPERATION MANUAL H PAGE • Closed Caption ... 14 • Parent Control ... 15–25 V-CHIP Operation ... 15–22 VIEW TIMER ...
Page 2: Important Information/Important Safeguards
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color Television – built for outstanding quality, reliability and performance. Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed through the most stringent quality control tests at the factory.
Page 3: Important Safeguards
IMPORTANT INFORMATION CAUTION: • Do not place the AC power cord under the TV set or other heavy items. • To prevent fire, never place any type of candle or naked flames on the top or near the TV set. •...
Page 4 IMPORTANT SAFEGUARDS 13. Follow all warnings and instructions marked on the television equipment. 14. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements...
Page 5: Supplied Accessories
Supplied Accessories Infrared Remote Control RRMCG1324CESC Before Operating Your Television Location • For normal operation, your TV should be located in an area of the room where cool adequate ventilation is provided. Do not place the back of the television set in a place where free airflow will be restricted. •...
Page 6: Antenna Connections
“B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/ RF switch (not supplied) Note: • Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that might be required. B. Separate VHF/UHF Antenna...
Page 7: Quick Reference Control Operation
Quick Reference Control Operation Quick Reference Control Operation • Part Names Front Panel POWER Press → On. Press again → Off. MENU Press → Accesses MAIN MENU. Press again → Exits MAIN MENU. Basic Remote Control Functions POWER Press → On. Press again →...
Page 8: Ez Setup During First Use
EZ SETUP during First Use • When you turn on the TV for the first time, it will automatically memorize the broadcasting channels. Please perform the following instructions before pressing the POWER button. (1) Insert the batteries into the remote control. (See page 5) (2) Connect the antenna cable to the TV set.
Page 9: Demo Mode
MAIN MENU screen by pressing MENU on the TV set. • Some features of your TV set are not accessible without the Remote Control. If you lost your Remote Control, contact a Sharp Service Center for a replacement.
Page 10: Language
Language • The language for the ON SCREEN DISPLAY can be set to ENGLISH, SPANISH or FRENCH. Press MENU to access the MAIN MENU screen. Press CH a/s to move the “E” mark to “SET UP”. Press VOL k/l to access the SET UP screen, then press CH a/s to move the “E”...
Page 11: Video Adjust
TINT To make skin tones greenish COLOR To increase color intensity BRIGHT To increase brightness SHARP To increase sharpness COLOR TEMP. To choose a LOW, ML, MH or HIGH color tone. RESET To return all adjustments to factory preset levels.
Page 12: Audio Select
Audio Select H MTS (Multichannel TV Sound) This function allows reception of stereo or bilingual TV sound. • You can enjoy Hi-Fi stereo sound or SAP broadcasts where available. Stereo broadcasts Live television broadcasts of sports, shows, concerts, etc. can be received in dynamic stereo sound. SAP broadcasts Television broadcast can be received with either MAIN or SAP sound.
Page 13: Audio Adjust
Audio Select (Continued) H AUDIO ADJUST When the “E” mark is at “AUDIO ADJUST”, press VOL k/l to access the AUDIO ADJUST screen. To access the desired item, press CH a/s. To adjust the audio setting, press VOL k/l. TREBLE BASS Selected item VOL k button...
Page 14: Closed Caption
Closed Caption • How to set CLOSED CAPTION • Your TV is equipped with an internal Closed Caption decoder. “Closed Caption” is a system which allows conversations, narration, and sound effects in TV programs and home videos to appear as captions on the TV screen (see the illustration).
Page 15: Parent Control
Parent Control (V-CHIP Operation) H V-CHIP • This function allows you to restrict TV programs and also allows you to control TV usage based on FCC data. This function is to prevent your children from watching violence or sexual scenes that may be harmful.
Page 16 Parent Control (V-CHIP Operation) (Continued) • TV PARENTAL GUIDELINES (Example) Example 1.1 : Age Based setting Clear s (block) from each "AGE" box for all ratings. This will automatically unblock everything. Example 1.2 : Age Based setting For “TV-G” put a in the "AGE"...
Page 17 Parent Control (V-CHIP Operation) (Continued) • How to set V-CHIP [1] MPAA RATING Press MENU to access the MAIN MENU screen. Press CH a/s to move the “E” mark to “PARENT CONTROL”. Press VOL k/l to access the PARENT CONTROL screen. Press VOL k/l to access the V-CHIP select screen.
Page 18 Parent Control (V-CHIP Operation) (Continued) Press MENU, then “INPUT SECRET No.” will be displayed. Note: • If SECRET No. is already set, skip to step 9. Enter a 4-digit SECRET No. using the REMOTE KEYPAD. When done, press MENU to exit. Note: •...
Page 19 Parent Control (V-CHIP Operation) (Continued) Parent Control (V-CHIP Operation Continued) [3] Downloading additional rating mode There will be an additional new rating system. In that case, please set up as follows. Subsequently the new rating system will set up automatically. Repeat steps 1 to 4 of [1] MPAA RATING.
Page 20 Parent Control (V-CHIP Operation) (Continued) • How to set additional rating mode (Example) Once downloading is complete, you can set the blocking pattern as follows. Repeat steps 1 to 4 of [1] MPAA RATING. Press CH a/s to move the “E” mark to “Cdn. English Ratings”, then press VOL k/l.
Page 21 Parent Control (V-CHIP Operation) (Continued) • Activating the V-CHIP BLOCK Repeat steps 1 to 4 of [1] MPAA RATING. Press CH a/s to move the “E” mark to “STATUS”. Press VOL k/l to activate the V-CHIP BLOCK. (If STATUS is OFF, V- CHIP BLOCK will not operate.) Press MENU, then “INPUT SECRET No.”...
Page 22 Parent Control (V-CHIP Operation) (Continued) • To change the V-CHIP BLOCK after registering a secret No. Repeat steps 1 to 4 of [1] MPAA RATING, then “INPUT SECRET No.” will be displayed. Enter the 4-digit secret No. using the REMOTE KEYPAD and the V-CHIP select screen will be displayed.
Page 23: View Timer
Parent Control (VIEW TIMER) H VIEW TIMER This function allows you to restrict TV viewing time and also allows you to control TV usage. This function is to prevent your children from watching too much TV. VIEWING TIME (an accumulative timer: counts only the time duration while the TV power is on.) •...
Page 24 Parent Control (VIEW TIMER) (Continued) Enter the 4-digit secret No. using the REMOTE KEYPAD. Press MENU, and secret No. is registered. Example: • To restrict anybody from watching TV for more than 5 hours, after watching the TV for 2 hours, your settings would look like the one on the right. •...
Page 25 Parent Control (VIEW TIMER) (Continued) • To cancel the VIEW TIMER setting or change the secret No. (If you forget the SECRET No.) Repeat steps 1 to 4 of How to set VIEW TIMER. Press VOL k/l, and “INPUT SECRET No.” will be displayed.
Page 26: Energy Save
Energy Save • This feature lets you lower the power consumption of your TV set which in turn saves you money and minimizes the impact on the environment. When this feature is turned on, it reduces the brightness of the TV to a level that consumes approximately 20 percent less energy than when the feature is turned off.
Page 27: Set Up
Set Up H EZ Setup By operating the channel preset functions, you can preset your TV to the desired channels for viewing. Press MENU to access the MAIN MENU screen. Press CH a/s to move the “E” mark to “SET UP”. Press VOL k/l to access the SET UP screen, then press CH a/s to move the “E”...
Page 28: Channel Setting
Set Up (Continued) H Channel Setting If EZ SETUP does not memorize all the channels in your region, follow the instructions below to manually memorize the channel. Press MENU to access the MAIN MENU screen. Press CH a/s to move the “E” mark to “SET UP”. Press VOL k/l to access the SET UP screen.
Page 29 Set Up (Continued) • Saving broadcast TV channels into memory Press MENU to access the MAIN MENU screen, then press CH a/s to move the “E” mark to “SET UP”. Press VOL k/l to access the SET UP screen, then press CH a/s to move the “E” mark to “CH SETTING”.
Page 30: Blue Screen
Set Up (Continued) Press VOL k to add a channel to the TV memory or press VOL l to erase a channel from the TV memory. To add channel 10 to MEMORY the TV memory A I R ERASE To erase channel 10 from (CH MEMORY the TV memory unmemorized channel)
Page 31: Blue Screen
Set Up (Continued) Press MENU to exit. When the BLUE SCREEN is set to “ON” No signal Note: • Poor reception due to weak signals, or too much noise might activate the BLUE SCREEN function despite the presence of a broadcast signal. To continue watching TV under these conditions, switch the BLUE SCREEN “OFF”.
Page 32: Auto Input
Auto Input • The unit is preset to switch to the INPUT 2 screen automatically when VIDEO equipment is connected to the INPUT 2 terminal. Do the following to switch this feature off: Press MENU to access the MAIN MENU screen. Press CH a/s to move the “E”...
Page 33: Using The Video And Audio Input Terminals
Using the Video and Audio Input Terminals • Connecting video equipment for playback of video material. • To view video material from external video equipment, make sure to connect the equipment properly to the input terminals on the TV set. Connecting video device equipped with video output terminals CONNECTIONS VIDEO EQUIPMENT...
Page 34: Using The Video And Audio Input Terminals
VIDEO terminal (IN 1), unplug equipment connected to the S-VIDEO terminal. • It is the intent of SHARP that this product be used in full compliance with the copyright law of the United States and that prior permission be obtained from copyright owners whenever necessary.
Page 35: Before Calling For Service
Should this occur, switch the Closed Caption mode to “OFF”. Calling for Service For location of the nearest Sharp Authorized Servicer, or to obtain product literature accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. X X X...
Page 36: Specifications
Screen Size Terminals Sound Output Power Source Power Consumption Dimensions Weight (approx.) • Design and specifications are subject to change without notice. 32C241 NTSC MTS/SAP 2-13 ch 14-69 ch 1-125 ch 181-channel Reception PLL tuning system VHF/UHF 75 ohm Unbalanced 32˝...
Page 37 Con el fin de garantizar al cliente la recepción puntual de cualquier notificación de seguridad sobre inspección, modificación o cancelación que se le pueda solicitar a SHARP bajo el Acta de seguridad de productos de consumidor de 1972. LEA CUIDADOSAMENTE LA CLÁUSULA “GARANTÍA LIMITADA” DE LA ÚLTIMA PÁGINA.
Page 38 INFORMACIÓN IMPORTANTE PRECAUCIÓN: • No coloque el cable de alimentación de CA debajo del televisor u otro elemento pesado. • Para impedir un incendio, no ponga nunca ningún tipo de vela o llama al descubierto encima o cerca del televisor. •...
Page 39 MEDIDAS DE SEGURIDAD IMPORTANTES Cumpla con todos los avisos y las instrucciones marcados en el televisor. Si se conecta una antena exterior al televisor, asegúrese de que el sistema de antena esté conectado a tierra para obtener cierta protección ante los aumentos de voltaje y la acumulación de cargas estáticas. La sección 810 del Código Eléctrico Nacional ofrece información relacionada con la conexión a tierra correcta del poste y la estructura de apoyo, la conexión a tierra del cable de entrada a una unidad de descarga, el tamaño de los conductores de conexión a tierra, la ubicación de la unidad de descarga de...
Page 40 Referencia rápida de los controles de operación • Nombres de los componentes Panel Delantero ALIMENTACION (POWER) Pulsando → Enciende (On). Pulsando nuevamente → Apaga (Off). MENU (MENU) Pulsando → Accede al MENU PRINCIPAL. Pulsando nuevamente → Sale del MENU PRINCIPAL. Funciones Básicas Del Control Remoto ALIMENTACION (POWER) Pulsando →...
Page 41 CLOSED CAPTION en OFF. Solicitud de servicio técnico Para la localización del Servicio Técnico Autorizado de Sharp más próximo o para conseguir material de información, repuestos o asistencia técnica, llame a 1-800-BE-SHARP. X X X X X X X X X X X...
Page 42 Grâce à elle, vous recevrez rapidement un avis de sécurité lors du contrôle, de la modification ou du rappel de votre produit que SHARP peut être amené à fournir conformément à la loi de 1972 sur la sécurité du produit de consommation.
Page 43 INFORMATIONS IMPORTANTES ATTENTION: • Ne placez pas le cordon d’alimentation sous le téléviseur ou sous tout autre objet lourd. • Ne placez pas de bougies ni de flammes nues sur le téléviseur ou à sa proximité, afin d’éviter les incendies. •...
Page 44 PRÉCAUTIONS IMPORTANTES Respectez tous les avertissements et instructions mentionnés sur la télévision. Si une antenne extérieure est raccordée à la télévision, veillez à ce que le système d’antenne soit relié à la terre de façon à fournir une protection vis-à-vis des poussées de tension et des charges électrostatiques accumulées.
Page 45: Panneau Avant
Référence rapide sur les commandes • Nomenclature Panneau Avant ALIMENTATION (POWER) Appuyer → Pour mettre sous tension. Appuyer de nouveau → Pour mettre hors tension. RÈGLAGE (MENU) Appuyer → Pour mettre sous tension. Appuyer de nouveau → Pour mettre hors tension. Fonctions de base de la télécommande ALIMENTATION (POWER) Appuyer →...
Page 46 Sous-titrage hors service. Appel au service après-vente Pour connaître l’emplacement du centre de service après-vente agréé Sharp le plus proche ou pour obtenir de la documentation sur les produits, des accessoires, des consommables ou une aide au consommateur, appelez le 1-800-BE-SHARP.
Page 47: Limited Warranty
Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer.
