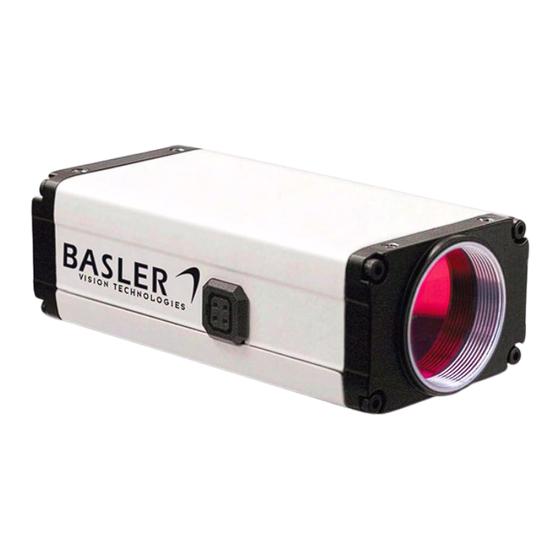

Basler IP Camera
User's Manual
Document Number: AW000721
Version: 04
Language: 000 (English)
Release Date: 8 April 2009
