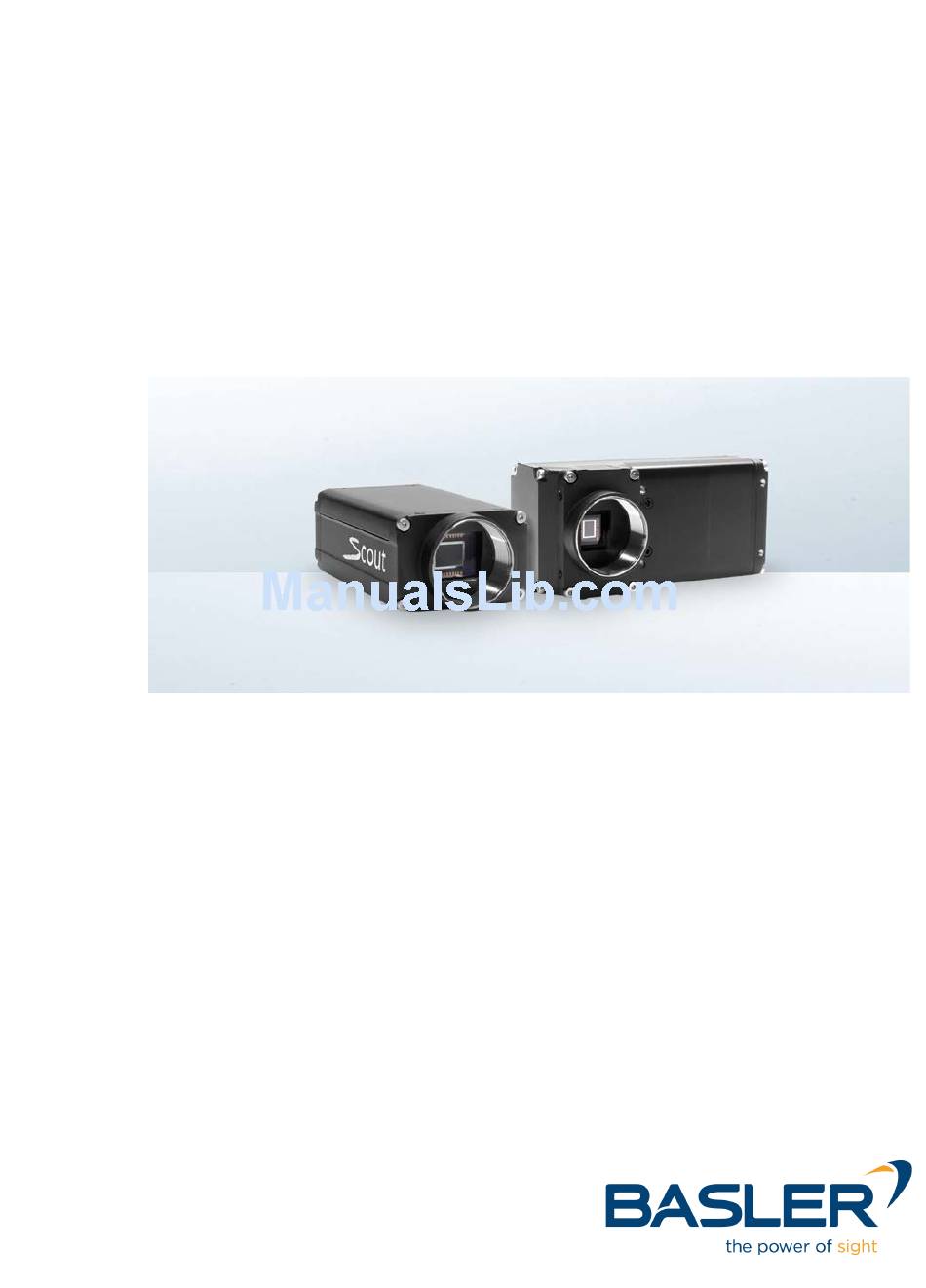

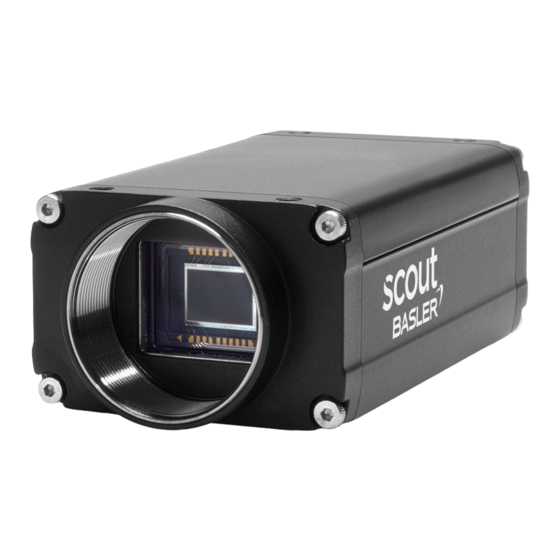

USER'S MANUAL FOR GigE VISION CAMERAS
Document Number: AW000119
Version: 16 Language: 000 (English)
Release Date: 14 December 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the scout GigE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Basler scout GigE

Summary of Contents for Basler scout GigE

  • Page 1 Basler scout USER’S MANUAL FOR GigE VISION CAMERAS Document Number: AW000119 Version: 16 Language: 000 (English) Release Date: 14 December 2012...
  • Page 2 Basler customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Basler for any damages resulting from such improper use or sale. Warranty Note Do not open the housing of the camera.
  • Page 3 Contacting Basler Support Worldwide Europe: Basler AG An der Strusbek 60 - 62 22926 Ahrensburg Germany Tel.: +49-4102-463-515 Fax.: +49-4102-463-599 bc.support.europe@baslerweb.com Americas: Basler, Inc. 855 Springdale Drive, Suite 203 Exton, PA 19341 U.S.A. Tel.: +1-610-280-0171 Fax.: +1-610-280-7608 bc.support.usa@baslerweb.com Asia: Basler Asia Pte. Ltd...

  • Page 5: Table Of Contents

    The pylon API ............44 4 Basler Network Drivers and Parameters ......45 The Basler Filter Driver .
  • Page 6 Image Acquisition Control Modes: Legacy and Standard..... . 103 Means for Controlling Image Acquisition in Standard Mode....105 Basler scout GigE...
  • Page 7 Acquisition Start Trigger Delay ......138 9.6.3.4 Setting the Parameters Related to Hardware Acquisition Start Triggering and Applying a Hardware Trigger Signal ... 139 Basler scout GigE...
  • Page 8 11.3.4 Bayer BG 12 Packed Format ........211 Basler scout GigE...
  • Page 9 12.13 Trigger Delay ............306 Basler scout GigE...
  • Page 10 14.2 Obtaining an RMA Number ..........345 14.3 Before Contacting Basler Technical Support ....... 346 Revision History .

  • Page 11: Specifications, Requirements, And Precautions

    We strongly recommend that you read and follow the precautions. Models The current Basler scout GigE Vision camera models are listed in the top row of the specification tables on the next pages of this manual. The camera models are differentiated by their sensor size, their maximum frame rate at full resolution, and whether the camera’s sensor is mono or color.

  • Page 12: General Specifications

    +12 VDC (-5 %) to +24 VDC (+5 %), < 1% ripple Requirements 3.0 W @ 12 V 3.5 W @ 12 V I/O Ports 2 opto-isolated input ports and 4 opto-isolated output ports Lens Adapter C-mount (CS-mount optional) Basler scout GigE...
  • Page 13 91.65 mm x 44 mm x 29 mm (without connectors and front module) 97 mm x 44 mm x 41.8 mm (with connectors and front module) Weight (standard housing) 160 g (typical) (90° head housing) 180 g (typical) Conformity CE, FCC, GenICam, GigE Vision, IP30 Table 1: General Specifications Basler scout GigE...
  • Page 14 +12 VDC (-5 %) to +24 VDC (+5 %), < 1% ripple Requirements 2.5 W @ 12 V 3.0 W @ 12 V I/O Ports 2 opto-isolated input ports and 4 opto-isolated output ports Lens Adapter C-mount (CS-mount optional) Basler scout GigE...
  • Page 15 91.65 mm x 44 mm x 29 mm (without front module and connectors) 97 mm x 44 mm x 41.8 mm (with front module and connectors) Weight (standard housing) 160 g (typical) (90° head housing) 180 g (typical) Conformity CE, FCC, GenICam, GigE Vision, IP30 Table 2: General Specifications Basler scout GigE...
  • Page 16 +12 VDC (-5 %) to +24 VDC (+5 %), < 1% ripple Requirements 3.0 W @ 12 V 3.5 W @ 12 V 3.5 W @ 12 V I/O Ports 2 opto-isolated input ports and 4 opto-isolated output ports Lens Adapter C-mount (CS-mount optional) Basler scout GigE...
  • Page 17 (with connectors and front module) module) Weight (standard housing) 160 g (typical) 160 g (typical) 160 g (typical) (90° head housing) 180 g (typical) Not applicable 180 g (typical) Conformity CE, FCC, GenICam, GigE Vision, IP30 Table 3: General Specifications Basler scout GigE...
  • Page 18 +12 VDC (-5 %) to +24 VDC (+5 %), < 1% ripple Requirements 3.5 W @ 12 V 4.2 W @ 12 V 3.5 W @ 12 V I/O Ports 2 opto-isolated input ports and 4 opto-isolated output ports Lens Adapter C-mount (CS-mount optional) Basler scout GigE...
  • Page 19 97 mm x 44 mm x 41.8 mm (with connectors and front module) Weight (standard housing) 170 g (typical) 170 g (typical) 160 g (typical) (90° head housing) 190 g (typical) 190 g (typical) 180 g (typical) Conformity CE, FCC, GenICam, GigE Vision, IP30 Table 4: General Specifications Basler scout GigE...
  • Page 20 Programmable via the camera API Camera Power +12 VDC (-5 %) to +24 VDC (+5 %), < 1% ripple Requirements 4.3 W @ 12 V I/O Ports 2 opto-isolated input ports and 4 opto-isolated output ports Lens Adapter C-mount (CS-mount optional) Basler scout GigE...
  • Page 21 91.65 mm x 44 mm x 29 mm (without connectors and front module) 97 mm x 44 mm x 41.8 mm (with connectors and front module) Weight (standard housing) 170 g (typical) (90° head housing) 190 g (typical) Conformity CE, FCC, GenICam, GigE Vision, IP30 Table 5: General Specifications Basler scout GigE...

  • Page 22: Spectral Response For Mono Cameras

    Spectral Response for Mono Cameras The following graphs show the spectral response for each available monochrome camera model. The spectral response curves excludes lens characteristics and light source characteristics. Wave Length (nm) Fig. 1: scA640-70gm Spectral Response Spectral Response Basler scout GigE...
  • Page 23 AW00011916000 Specifications, Requirements, and Precautions Wave Length (nm) Fig. 2: scA640-74gm Spectral Response Wave Length (nm) Fig. 3: scA640-120gm Spectral Response Basler scout GigE...
  • Page 24 Specifications, Requirements, and Precautions AW00011916000 Wave Length (nm) Fig. 4: scA750-60gm Spectral Response Wave Length (nm) Fig. 5: scA780-54gm Spectral Response Basler scout GigE...
  • Page 25 AW00011916000 Specifications, Requirements, and Precautions Wave Length (nm) Fig. 6: scA1000-30gm Spectral Response 1000 Wave Length (nm) Fig. 7: scA1300-32 gm Spectral Response Basler scout GigE...
  • Page 26 Specifications, Requirements, and Precautions AW00011916000 Wave Length (nm) Fig. 8: scA1390-17gm Spectral Response Wave Length (nm) Fig. 9: scA1400-17gm and scA1400-30gm Spectral Response Basler scout GigE...
  • Page 27 AW00011916000 Specifications, Requirements, and Precautions Wave Length (nm) Fig. 10: scA1600-14gm and scA1600-28 gm Spectral Response Basler scout GigE...

  • Page 28: Spectral Response For Color Cameras

    A suitable IR cut filter is included in the standard C-mount lens adapter on color models of the camera. (An IR cut filter is not included in the optional CS-mount adapter). Blue Green Wave Length (nm) Fig. 11: scA640-70gc Spectral Response Basler scout GigE...
  • Page 29 AW00011916000 Specifications, Requirements, and Precautions Blue Green Wave Length (nm) Fig. 12: scA640-74gc Spectral Response Blue Green Wave Length (nm) Fig. 13: scA640-120gc Spectral Response Basler scout GigE...
  • Page 30 Specifications, Requirements, and Precautions AW00011916000 Blue Green (B) Green (R) Wave Length (nm) Fig. 14: scA750-60gc Spectral Response Blue Green Wave Length (nm) Fig. 15: scA780-54gc Spectral Response Basler scout GigE...
  • Page 31 AW00011916000 Specifications, Requirements, and Precautions Blue Green Wave Length (nm) Fig. 16: scA1000-30gc Spectral Response Blue Green 4 00 5 00 60 0 Wave Length (nm) Fig. 17: scA1300-32gc Spectral Response Basler scout GigE...
  • Page 32 Specifications, Requirements, and Precautions AW00011916000 Blue Green Wave Length (nm) Fig. 18: scA1390-17gc Spectral Response Blue Green Wave Length (nm) Fig. 19: scA1400-17gc and scA1400-30gc Spectral Response Basler scout GigE...
  • Page 33 AW00011916000 Specifications, Requirements, and Precautions Blue Green Wave Length (nm) Fig. 20: scA1600-14gc and scA1600-28gc Spectral Response Basler scout GigE...

  • Page 34: Mechanical Specifications

    The dimensions in millimeters for cameras equipped with a standard C-mount lens adapter are as shown in Figure 21. The dimensions for cameras equipped with an optional CS-mount lens adapter are as shown in Figure 22. Basler scout GigE...
  • Page 35 2x M2; 4.5 deep 6.45 72.3 13.5 73.7 85.5 17.5 2x M3; 3.5 deep Photosensitive surface of the sensor 2x M3; 4.5 deep 67.2 Fig. 21: Mechanical Dimensions (in mm) for Cameras with the Standard C-mount Lens Adapter Basler scout GigE...
  • Page 36 2x M2; 4.5 deep 1.45 72.3 13.5 73.7 80.5 12.5 2x M3; 3.5 deep Photosensitive surface of the sensor 2x M3; 4.5 deep 67.2 Fig. 22: Mechanical Dimensions (in mm) for Cameras with an Optional CS-mount Lens Adapter Basler scout GigE...

  • Page 37: Sensor Positioning Accuracy

    0.62 0.83 scA1400-17gm/gc 0.25 0.34 scA750-60gm/gc 0.51 0.80 scA1400-30gm/gc 0.25 0.34 scA780-54gm/gc 0.35 0.47 scA1600-14gm/gc 0.34 0.52 scA1000-30gm/gc 0.46 0.63 scA1600-28gm/gc 0.34 0.52 Fig. 23: Sensor Positioning Accuracy for Cameras with the Standard C-mount Lens Adapter Basler scout GigE...
  • Page 38 0.34 scA750-60gm/gc 0.51 0.80 scA1400-30gm/gc 0.25 0.34 scA780-54gm/gc 0.35 0.47 scA1600-14gm/gc 0.34 0.52 scA1000-30gm/gc 0.46 0.63 scA1600-28gm/gc 0.34 0.52 Fig. 24: Sensor Positioning Accuracy for Cameras with an Optional CS-mount Lens Adapter (in mm unless otherwise noted) Basler scout GigE...

  • Page 39: 90° Head Housing

    In addition, there are four mounting holes in the front module (4x M3; 4.5 mm deep). For optimum accuracy in the positioning of the camera's optical axis, we recommend using the front module reference plane (see the figure in the Sensor Positioning Accuracy section) as mounting surface. Basler scout GigE...
  • Page 40 2 x M3; 4.5 deep 72.65 Photosensitive 28.5 surface of the Ø sensor 3.25 86.3 2 x M3; 4.5 deep 2 x M3; 3.5 deep Fig. 25: Mechanical Dimensions (in mm) for Cameras (90° Head) with the Standard C-mount Lens Adapter Basler scout GigE...

  • Page 41: Sensor Positioning Accuracy

    Note that this tolerance and the sensor tilt tolerance (see above) must be combined to obtain the total tolerance for every point on the photosensitive surface.) Fig. 26: Sensor Positioning Accuracy for Cameras (90° Head) with the Standard C-mount Lens Adapter (in mm unless otherwise noted) Basler scout GigE...

  • Page 42: Maximum Thread Length On Color Cameras

    C-mount color cameras that do not include an internal IR cut filter are available on request. Monochrome cameras are not normally equipped with an internal IR cut filter, however, they can be equipped with an internal filter on request. Basler scout GigE...

  • Page 43: Mechanical Stress Test Results

    The mechanical stress tests were performed with a dummy lens connected to a C-mount. The dummy lens was 35 mm long and had a mass of 66 g. Using a heavier or longer lens requires an additional support for the lens. Basler scout GigE...

  • Page 44: Software Licensing Information

    PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Basler scout GigE...

  • Page 45: Avoiding Emi And Esd Problems

    Control the humidity in your environment. Low humidity can cause ESD problems.  The Basler application note called Avoiding EMI and ESD in Basler Camera Installations provides much more detail about avoiding EMI and ESD. This application note can be obtained from the Downloads section of our website: www.baslerweb.com...

  • Page 46: Environmental Requirements

    Allow sufficient air circulation around the camera to prevent internal heat build-up in your system and to keep the camera’s housing temperature below 50 °C. Additional cooling devices such as fans or heat sinks are not normally required, but should be provided if necessary. Basler scout GigE...

  • Page 47: Precautions

    The plug on the cable that you attach to the camera’s 12-pin connector must have 12 pins. Use of a smaller plug, such as one with 10 pins or 8 pins, can damage the pins in the camera’s 12-pin connector. CAUTION Basler scout GigE...
  • Page 48 The code snippets in this manual are written in C++. Other programming languages can also be used to write code for use with Basler pylon. When writing code, you should use a programming language that is both compatible with pylon and appropriate for your application.
  • Page 49 Do not use solvents or thinners to clean the housing; they can damage the surface finish. Read the manual Read the manual carefully before using the camera! Basler scout GigE...
  • Page 50 Specifications, Requirements, and Precautions AW00011916000 Basler scout GigE...

  • Page 51: Installation

    The information you will need to install and operate the camera is included in the Installation and Setup Guide for Cameras Used with Basler’s pylon API (AW000611xx000). You can download the Installation and Setup Guide for Cameras Used with Basler’s pylon API from the Basler website: www.baslerweb.com...
  • Page 52 Installation AW00011916000 Basler scout GigE...

  • Page 53: Tools For Changing Camera Parameters

    The Basler IP Configuration Tool is a standalone application that lets you change the IP configuration of the camera via a GUI. The tool will detect all Basler GigE cameras attached to your network and let you make changes to a selected camera.

  • Page 54: The Pylon Api

    API. The programmer’s guide and API reference are included in the pylon SDK. The Basler pylon Software Development Kit (SDK) includes a set of sample programs that illustrate how to use the pylon API to parameterize and operate the camera. These samples include ®...

  • Page 55: Basler Network Drivers And Parameters

    Two network drivers are available for the network adapter used with your GigE cameras: The Basler filter driver is a basic GigE Vision network driver that is compatible with all  network adapters. The advantage of this driver is its extensive compatibility.

  • Page 56: The Basler Filter Driver

    AW00011916000 The Basler Filter Driver The Basler filter driver is a basic driver GigE Vision network driver. It is designed to be compatible with most network adapter cards. The functionality of the filter driver is relatively simple. For each frame, the driver checks the order of the incoming packets.

  • Page 57: The Basler Performance Driver

    The Basler performance driver uses a "receive window" to check the status of packets. The check for missing packets is made as packets enter the receive window. If a packet arrives from higher in the sequence of packets than expected, the preceding skipped packet or packets are detected as missing.
  • Page 58 Basler Network Drivers and Parameters AW00011916000 General Parameters Enable Resend - Enables the packet resend mechanisms. If the Enable Resend parameter is set to false, the resend mechanisms are disabled. The performance driver will not check for missing packets and will not send resend requests to the camera.
  • Page 59 AW00011916000 Basler Network Drivers and Parameters Resend Request Threshold - This parameter determines the location of the resend request threshold within the receive window as shown in Figure 28. The parameter value is in per cent of the width of the receive window. In Figure 28 the resend request threshold is set at 33.33% of the width of the receive window.
  • Page 60 Basler Network Drivers and Parameters AW00011916000 Timeout Resend Mechanism Parameters The timeout resend mechanism is illustrated in Figure 29 where the following assumptions are made: The frame includes 3000 packets.  Packet 1002 is missing within the stream of packets and has not been recovered.
  • Page 61 AW00011916000 Basler Network Drivers and Parameters Maximum Number Resend Requests - The Maximum Number Resend Requests parameter sets the maximum number of resend requests the performance driver will send to the camera for each missing packet. Resend Timeout - The Resend Timeout parameter defines how long (in milliseconds) the performance driver will wait after detecting that a packet is missing before sending a resend request to the camera.
  • Page 62 Basler Network Drivers and Parameters AW00011916000 Threshold and Timeout Resend Mechanisms Combined Figure 30 illustrates the combined action of the threshold and the timeout resend mechanisms where the following assumptions are made: All parameters set to default.  The frame includes 3000 packets.
  • Page 63 (12) Interval defined by the Packet Timeout parameter. You can set the performance driver parameter values from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to read and write the parameter values: // Get the Stream Parameters object Camera_t::StreamGrabber_t StreamGrabber( Camera.GetStreamGrabber(0) );...
  • Page 64 AW00011916000 Adapter Properties When the Basler Performance driver is installed, it adds a set of "advanced" properties to the network adapter. These properties include: Max Packet Latency - A value in microseconds that defines how long the adapter will wait after it receives a packet before it generates a packet received interrupt.

  • Page 65: Transport Layer Parameters

    You can set the driver related transport layer parameter values from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to read and write the parameter values: // Read/Write Timeout Camera_t::TlParams_t TlParams( Camera.GetTLNodeMap() );...
  • Page 66 Basler Network Drivers and Parameters AW00011916000 Basler scout GigE...

  • Page 67: Network Related Camera Parameters And Managing Bandwidth

    The value is in bytes. The value does not affect the leader and trailer size, which use a total of 36 bytes, and the last data packet may be a smaller size. The payload size will be packet size minus 36 bytes. Basler scout GigE...
  • Page 68 Used to reserve a portion of the assigned bandwidth for packet resends and for the transmission of control data between the camera and the host PC. The setting is expressed as a percentage of the Bandwidth Assigned parameter. For example, if the Bandwidth Assigned parameter indicates that Basler scout GigE...
  • Page 69 The example also assumes that the camera is operating in a poor environment, so many packets are lost and many resends are required. The numbered text is keyed to the time periods in the chart. Basler scout GigE...
  • Page 70 15 resends would be required from the accumulator pool, but the pool only has 9 resends. So the 9 resends in the pool are used and 6 resend requests are answered with a "packet unavailable" error code. The accumulator pool is reduced to 0. Basler scout GigE...
  • Page 71 If software or hardware triggering is being used to control the camera’s frame rate, the maximum frame rate allowed with the current camera settings will be used to calculate the device max throughput. Basler scout GigE...
  • Page 72 You can read or set the camera’s network related parameter values from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter values: // Payload Size int64_t payloadSize = Camera.PayloadSize.GetValue();...
  • Page 73 = Camera.GevSCDMT.GetValue(); // Device Current Throughput int64_t currentThroughput = Camera.GevSCDCT.GetValue(); // Resulting Framerate double resultingFps = Camera.ResultingFrameRateAbs.GetValue(); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. Basler scout GigE...

  • Page 74: Managing Bandwidth When Multiple Cameras Share A Single Network Path

    If the sum of the bandwidth assigned values is less than 125 MByte/s, the cameras should be able to operate simultaneously without problems. If it is greater, you must lower the data output rate of one or more of the cameras. Basler scout GigE...

  • Page 75: A Procedure For Managing Bandwidth

    If you use the Basler filter driver and have already set network parameters for your network adapter during the installation of the Basler pylon software, continue with step two. Otherwise, open the...
  • Page 76 Unless you have already set the packet size for your network adapter during the installation of the Basler pylon software, check the documentation for your adapter to determine the maximum packet size (sometimes called “frame” size) that the adapter can handle. Many adapters can handle what is known as “jumbo packets”...
  • Page 77 To determine the “data bandwidth assigned,” you must subtract out the reserve. Basler scout GigE...
  • Page 78 If the sum of the Bandwidth Assigned values is greater than 125 MByte/s for a GigE network or 12.5 M/Byte/s for a 100 Bit/s network, the cameras need more bandwidth than is available and you must make adjustments. In essence, you must lower the data bandwidth needed by one or more of the Basler scout GigE...
  • Page 79 AOI settings on the cameras, you should repeat steps 2 through 6. For more information about the camera’s maximum allowed frame transmission rate, see Section 9.13 on page 167. For more information about the AOI, see Section 12.4 on page 238. Basler scout GigE...
  • Page 80 Network Related Camera Parameters and Managing Bandwidth AW00011916000 Basler scout GigE...

  • Page 81: Camera Functional Description

    Exposure start and exposure time can be controlled by parameters transmitted to the camera via the Basler pylon API and the GigE interface. There are also parameters available to set the camera for single frame acquisition or continuous frame acquisition.
  • Page 82 ExTrig Image Buffer e.g. ExpActive, TrigRdy Image Image Data Data Ethernet Ethernet FPGA Sensor Network Controller Image Image Data Data Control Data Control Micro- Controller Control Control: Data AOI, Gain, Black Level Fig. 33: Camera Block Diagram Basler scout GigE...

  • Page 83: Overview (Sca750-60 Only)

    Exposure start, exposure time, and charge readout can be controlled by parameters transmitted to the camera via the Basler pylon API and the GigE interface. There are also parameters available to set the camera for single frame acquisition or continuous frame acquisition.
  • Page 84 24 MB ExTrig Image Buffer e.g. ExpActive, TrigRdy Image Image Data Data Ethernet Ethernet FPGA Sensor Network Controller Image Image Data Data Control Data Control: Control Gain Black Level Micro- Controller Control Data Fig. 35: Camera Block Diagram Basler scout GigE...

  • Page 85: Physical Interface

    A 12-pin receptacle used to provide access to the camera’s I/O lines and to provide power to  the camera. The drawing below shows the location of the two connectors and the LEDs. 12-pin Receptacle 8-pin RJ-45 Jack Green LED Yellow LED Fig. 36: Camera Connectors and LED Basler scout GigE...

  • Page 86: Connector Pin Assignments And Numbering

    8 and 9 on the camera. We also recommend that you provide camera power ground through separate wires between your power supply and pins 1 and 2 on the camera. Basler scout GigE...

  • Page 87: Jack Pin Assignments

    AW00011916000 Physical Interface 7.2.2 RJ-45 Jack Pin Assignments The 8-pin RJ-45 jack provides Ethernet access to the camera. Pin assignments adhere to the Ethernet standard. 7.2.3 Pin Numbering Fig. 37: Pin Numbering for the 12-pin Receptacle Basler scout GigE...

  • Page 88: Connector Types

    The 8-pin jack for the camera’s Ethernet connection is a standard RJ-45 connector. The recommended mating connector is any standard 8-pin RJ-45 plug. Cables terminated with screw-lock connectors are available from Basler. Contact your Basler sales representative to order cable assemblies.

  • Page 89: Cabling Requirements

    The maximum length of the standard power and I/O cable is at least 10 meters. The cable must be shielded and must be constructed with twisted pair wire. Use of twisted pair wire is essential to ensure that input signals are correctly received. Close proximity to strong magnetic fields should be avoided. Basler scout GigE...
  • Page 90 Physical Interface AW00011916000 The required 12-pin Hirose plug is available from Basler. Basler also offers a cable assembly that is terminated with a 12-pin Hirose plug on one end and unterminated on the other. Contact your Basler sales representative to order connectors or cables.

  • Page 91: Plc Power And I/O Cable

    PLC device, if power for the I/O input is supplied with 24 VDC. Basler offers PLC power and I/O cables with 3 m and 10 m lengths. Each cable is terminated with a 12-pin Hirose plug (HR10A-10P-12S) on the end that connects to the camera. The other end is unterminated.

  • Page 92: Camera Power

    Table 8: Voltage Requirements for the Camera Power VCC For more information about the 12-pin connector and the power and I/O cables see Section 7.2 on page 76, Section 7.3 on page 78, and Section 7.4 on page Basler scout GigE...

  • Page 93: Ethernet Gige Device Information

    AW00011916000 Physical Interface Ethernet GigE Device Information The camera uses a standard Ethernet GigE transceiver. The transceiver is fully 100/1000 Base-T 802.3 compliant. Basler scout GigE...

  • Page 94: Input And Output Lines

    Region where the transition threshold occurs; the logical state is not defined in this region. > +2.2 VDC The voltage indicates a logical 1. Table 9: Voltage Requirements for the I/O Input When Using the Standard Power and I/O Cable Basler scout GigE...
  • Page 95 > +8.4 to +10.4 VDC Region where the transition threshold occurs; the logical state is not defined in this region. > +10.4 VDC The voltage indicates a logical 1. Table 10: Voltage Requirements for the I/O Input When Using a PLC Power and I/O Cable Basler scout GigE...

  • Page 96: Line Schematic

    For more information about how to use an ExTrig signal to control image acquisition, see Section 9.4.5 on page 116, Section 9.5.3 on page 124 and Section 9.6.3 on page 135. For more information about configuring the input lines, see Section 8.1 on page Basler scout GigE...

  • Page 97: Output Lines

    Resistance I/O_Out_VCC Camera Your Gnd 12-Pin Receptacle Fig. 40: Typical Voltage Output Circuit By default, the camera’s exposure active (ExpAc) signal is assigned to Output Line 1. The exposure active signal indicates when exposure is taking place. Basler scout GigE...
  • Page 98 For more information about the trigger ready signal, see Section Section 9.11.3 on page 157 Section 9.11.4 on page 159. For more information about assigning camera output signals to physical output lines, see Section 8.2.1 on page Basler scout GigE...

  • Page 99: Output Line Response Time

    As an example, t and t were measured for a specific camera, for load currents of 5 mA and on90 off10 50 mA, and voltages between 3.3 V and 24 V. The results are shown on the figure below. Basler scout GigE...
  • Page 100  off10 increases as the voltage and the load current increase  on90 The effects due to different voltages and load currents are more pronounced on t than on  off1 on90 Basler scout GigE...

  • Page 101: O Control

    Legacy mode:  By default, physical input line 1 is assigned to receive the ExTrig signal to serve as the acquisition start trigger. You can assign only one line to receive the ExTrig input signal. Basler scout GigE...

  • Page 102: Using An Unassigned Input Line To Receive A User Input Signal

    // Enable the inverter on line 1 Camera.LineSelector.SetValue( LineSelector_Line1 ); Camera.LineInverter.SetValue( true ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 103: Configuring Output Lines

    Camera.LineSource.SetValue( LineSource_ExposureActive ); Camera.LineSelector.SetValue( LineSelector_Out2 ); Camera.LineSource.SetValue( LineSource_TriggerReady ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 104: Setting The State Of User Settable Output Lines

    Camera.UserOutputValue.SetValue( true ); bool currentUserOutput3State = Camera.UserOutputValue.GetValue( ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 105: Setting An Output Line For Invert

    // Enable the inverter on output line 1 Camera.LineSelector.SetValue( LineSelector_Out1 ); Camera.LineInverter.SetValue( true ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 106: Working With Timers

    If the set minimum output signal width is smaller than the timer duration setting the Minimum Output Pulse Width feature will have no effect. For more information about the Minimum Output Pulse Width feature, see Section 12.12 on page 304. Basler scout GigE...

  • Page 107: Setting The Trigger Source For A Timer

    Camera.TimerSelector.SetValue( TimerSelector_Timer1 ); Camera.TimerTriggerSource.SetValue( TimerTriggerSource_ExposureStart ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 108 I/O Control AW00011916000 For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. Changing the Delay Time Base By default, the Timer Delay Time Base is fixed at 1 µs (minimum value), and the timer delay is...

  • Page 109: Setting A Timer Duration Time

    Camera.TimerSelector.SetValue( TimerSelector_Timer1 ); Camera.TimerDurationRaw.SetValue( 100 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 110 Duration Abs parameter will indicate the current duration time setting. You should also be aware that if you change the duration time using the raw settings, the Timer Duration Abs parameter will automatically be updated to reflect the new duration time. Basler scout GigE...

  • Page 111: Checking The State Of The I/O Lines

    Camera.LineSelector.SetValue( LineSelector_Out2 ); bool outputLine2State = Camera.LineStatus.GetValue( ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 112 Indicates output line 4 state Indicates output line 3 state Indicates output line 2 state Indicates input line 2 state Indicates output line 1 state Indicates input line 1 state Fig. 45: Line Status All Parameter Bits Basler scout GigE...

  • Page 113: Image Acquisition Control

    Legacy and Standard Two different image acquisition control modes are available: the legacy mode and the standard mode. Previous Basler scout cameras with firmware version 3.2 and below only operate according to the legacy mode. The legacy mode differs from the standard mode in only two respects: the acquisition start trigger of the standard mode is not available in the legacy mode.
  • Page 114 For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the image acquisition control mode. For more information about the pylon Viewer, see Section 3.1 on...

  • Page 115: Means For Controlling Image Acquisition In Standard Mode

    Section 9.8 on page 144. These diagrams present the material related to the acquisition start and stop commands, the acquisition mode, the acquisition start trigger, and the frame start trigger in a graphical format. Basler scout GigE...
  • Page 116 "waiting for acquisition start trigger" acquisition status and enter a "waiting for frame start trigger" acquisition status. Applying a frame start trigger signal to the camera at this point will exit the camera from the "waiting for frame start trigger" acquisition status and will begin the Basler scout GigE...
  • Page 117 "waiting for frame start trigger" status Acquisition Frame Count parameter setting = 3 Acquisition Acquisition Start Stop Command Command Executed Executed Acquisition Start Trigger Signal Frame Start Trigger Signal Time Fig. 46: Acquisition Start and Frame Start Triggering Basler scout GigE...
  • Page 118 But in Basler pylon there is a single parameter, the Trigger Mode parameter, that is used to set the mode for both of these triggers. Also, the Trigger Software command mentioned earlier can be executed for either the acquisition start trigger or the frame start trigger.

  • Page 119: Acquisition Start And Stop Commands And The Acquisition Mode (Legacy And Standard Mode)

    You can set the Acquisition Mode parameter value and you can execute Acquisition Start or Acquisition Stop commands from within your application software by using the Basler pylon API. The code snippet below illustrates using the API to set the Acquisition Mode parameter value and to execute an Acquisition Start command.
  • Page 120 Image Acquisition Control AW00011916000 Camera.AcquisitionStart.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page When the camera's acquisition mode is set to single frame, the maximum possible acquisition frame rate for a given AOI cannot be achieved.

  • Page 121: The Acquisition Start Trigger In Standard Mode

    "waiting for acquisition start trigger" status. Note that this feature only applies when the Trigger Mode parameter for the acquisition start trigger is set to on. This feature is explained in greater detail in the following sections. Basler scout GigE...

  • Page 122: Acquisition Start Trigger Mode (Standard Mode)

    Rising Edge - specifies that a rising edge of the electrical signal will act as the acquisition start  trigger. Falling Edge - specifies that a falling edge of the electrical signal will act as the acquisition start  trigger. Basler scout GigE...

  • Page 123: Acquisition Frame Count (Standard Mode)

    "waiting for acquisition start trigger" acquisition status. At that point, you must apply a new acquisition start trigger signal to exit the camera from the "waiting for acquisition start trigger" acquisition status. For more information about the pylon Viewer, see Section 3.1 on page Basler scout GigE...

  • Page 124: Setting The Acquisition Start Trigger Mode And Related Parameters (Standard Mode)

    Camera.TriggerActivation.SetValue( TriggerActivation_RisingEdge ); // Set the acquisition frame count Camera.AcquisitionFrameCount.SetValue( 5 ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page Basler scout GigE...

  • Page 125: Using A Software Acquisition Start Trigger (Standard Mode)

    You can set all of the parameters needed to perform software acquisition start triggering from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values and to execute the commands related to software acquisition...

  • Page 126: Using A Hardware Acquisition Start Trigger (Standard Mode)

    // Note: as long as the Trigger Selector is set to Acquisition Start, executing // a Trigger Software command will apply a software acquisition start trigger // signal to the camera You can also use the Basler pylon Viewer application to easily set the parameters. 9.4.5 Using a Hardware Acquisition Start Trigger (Standard Mode) 9.4.5.1...

  • Page 127: Setting The Parameters Related To Hardware Acquisition Start Triggering And Applying A Hardware Trigger Signal

    You can set all of the parameters needed to perform hardware acquisition start triggering from within your application by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values required to enable rising edge hardware acquisition start triggering with...

  • Page 128: The Frame Start Trigger In Standard Mode

    For more information about the acquisition start trigger, and about the acquisition status, see Section 9.2 on page 105 and Section 9.4 on page 111. Referring to the use case diagrams that appear in Section 9.8 on page 144 can help you understand the explanations of the frame start trigger. Basler scout GigE...

  • Page 129: Frame Start Trigger Mode (Standard Mode)

    Keep in mind that the camera will only react to frame start triggers when it is in a "waiting for frame start trigger" acquisition status. For more information about the acquisition status, see Section 9.2 on page 105 and Section 9.4 on page 111. Basler scout GigE...

  • Page 130: Frame Start Trigger Mode = On

    Keep in mind that the camera will only react to frame start triggers when it is in a "waiting for frame start trigger" acquisition status. For more information about the acquisition status, see Section 9.2 on page 105 and Section 9.4 on page 111. Basler scout GigE...

  • Page 131: Setting The Frame Start Trigger Mode And Related Parameters

    You can set the Trigger Mode and related parameter values for the frame start trigger from within your application software by using the Basler pylon API. If your settings make it necessary, you can also set the Trigger Source parameter.

  • Page 132: Using A Software Frame Start Trigger (Standard Mode)

    Image Acquisition Control AW00011916000 Camera.AcquisitionStart.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page 9.5.2 Using a Software Frame Start Trigger (Standard Mode) 9.5.2.1...

  • Page 133: Setting The Parameters Related To Software Frame Start Triggering And Applying A Software Trigger Signal

    You can set all of the parameters needed to perform software frame start triggering from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values and to execute the commands related to software frame start triggering with the camera set for continuous frame acquisition mode.

  • Page 134: Using A Hardware Frame Start Trigger (Standard Mode)

    // a Trigger Software command will apply a software frame start trigger // signal to the camera You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page 9.5.3...

  • Page 135: Exposure Modes

    Fig. 48: Timed Exposure with Rising Edge Triggering Note that if you attempt to trigger a new exposure start while the previous exposure is still in progress, the trigger signal will be ignored, and a Frame Start Overtrigger event will be generated. Basler scout GigE...
  • Page 136 3000 µs. For more information about the Trigger Ready signal, see Section 9.11.3 on page 157 Section 9.11.4 on page 159. For more information about the camera’s exposure time parameters, see Section 9.7 on page 141. Basler scout GigE...

  • Page 137: Frame Start Trigger Delay

    You can set all of the parameters needed to perform hardware frame start triggering from within your application by using the Basler pylon API. The following code snippet illustrates using the API to set the camera for single frame acquisition mode with the trigger mode for the acquisition start trigger set to off.
  • Page 138 // frame start trigger signal (ExFSTrig signal)goes high // Retrieve the captured frames Camera.AcquisitionStop.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page...

  • Page 139: The Acquisition Start Trigger In Legacy Mode

    Remember, however, that the diagrams apply to the standard mode. Accordingly, the acquisition start trigger shown in the diagrams is not available in legacy mode and the frame start trigger shown is equivalent to the acquisition start trigger in legacy mode. Basler scout GigE...

  • Page 140: Acquisition Start Trigger Mode (Legacy Mode)

    When the Trigger Mode parameter for the acquisition start trigger is set to off, the exposure time for each frame acquisition is determined by the camera’s exposure time parameters. For more information about the camera’s exposure time parameters, see Section 9.7 on page 141. Basler scout GigE...

  • Page 141: Acquisition Start Trigger Mode = On

    For more information about controlling exposure time when using a software trigger, see Section 9.4.4 on page 115. For more information about controlling exposure time when using a hardware trigger, see Section 9.4.5 on page 116. For more information about exposure time parameters, see Section 9.7 on page 141. Basler scout GigE...

  • Page 142: Setting The Acquisition Start Trigger Mode And Related Parameters

    You can set the Trigger Mode and related parameter values for the frame start trigger from within your application software by using the Basler pylon API. If your settings make it necessary, you can also set the Trigger Source parameter.

  • Page 143: Using A Software Acquisition Start Trigger (Legacy Mode)

    Section 9.5.2.2 on page 123 includes more detailed information about applying a software acquisition start trigger to the camera using Basler pylon. For more information about determining the maximum allowed frame rate, see Section 9.13 on page 167 and Section 9.14 on page 171.

  • Page 144: Setting The Parameters Related To Software Acquisition Start Triggering And Applying A Software Trigger Signal

    You can set all of the parameters needed to perform software acquisition start triggering from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values and to execute the commands related to software acquisition...

  • Page 145: Using A Hardware Acquisition Start Trigger (Legacy Mode)

    For more information about setting the camera for hardware acquisition start triggering and selecting the input line to receive the ExASTrig signal, see Section 9.6.3.4 on page 139. Basler scout GigE...

  • Page 146: Exposure Modes

    This situation is illustrated below for rising edge triggering. This rise in the trigger signal will be ignored, and an Acquisition Start Overtrigger event will be generated ExASTrig Signal Exposure (duration determined by the exposure time parameters) Fig. 53: Overtriggering with Timed Exposure Basler scout GigE...
  • Page 147 On the second cycle of the ExASTrig signal shown in the figure, the signal rises during previous frame readout, but falls after the readout is complete. This is a normal situation and exposure would be determined by the high time of the ExASTrig signal as you would expect. Basler scout GigE...

  • Page 148: Acquisition Start Trigger Delay

    // set for the width exposure mode, set minimum exposure time to 3000 µs Camera.ExposureMode.SetValue( ExposureMode_TriggerWidth ); Camera.ExposureTimeAbs.SetValue( 3000 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 149: Setting The Parameters Related To Hardware Acquisition Start Triggering And Applying A Hardware Trigger Signal

    You can set all of the parameters needed to perform hardware acquisition start triggering from within your application by using the Basler pylon API. The following code snippet illustrates using the API to set the camera for single frame acquisition mode.
  • Page 150 // acquisition start trigger signal (ExASTrig signal)goes high // Retrieve the captured frames Camera.AcquisitionStop.Execute( ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 151: Exposure Time Parameters

    For more information about auto functions, see Section 12.9.1 on page 287. For more information about the Exposure Auto function, see Section 12.9.3 on page 296. For information about parameter settings for obtaining the maximum possible exposure time, see Section 9.7.1 on page 142. Basler scout GigE...

  • Page 152: Setting The Exposure Time Using "Raw" Settings

    You can set the Exposure Time Raw and Exposure Time Base Abs parameter values from within your application software by using the pylon API. The following code snippet illustrates using the API to set the parameter values: Camera.ExposureMode.SetValue( ExposureMode_Timed ); Camera.ExposureTimeRaw.SetValue( 100 ); Camera.ExposureTimeBaseAbs.SetValue( 186 ); Basler scout GigE...

  • Page 153: Setting The Exposure Time Using "Absolute" Settings

    AW00011916000 Image Acquisition Control For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on page 9.7.2...

  • Page 154: Use Case Diagrams

    In each use case diagram, the black box in the upper left corner indicates how the parameters are set. The use case diagrams are representational. They are not drawn to scale and are not designed to accurately describe precise camera timings. Basler scout GigE...
  • Page 155 The images can then be used for a variety of purposes including vegetation coverage estimates, archaeological site identification, etc. For more information about the Acquisition Frame Rate Abs parameter, see Section 9.5.1.1 on page 119 and for information about setting the parameter, see Section 9.5.1.3 on page 121. Basler scout GigE...
  • Page 156 = frame exposure and readout = frame transmission Acquisition Acquisition Start Stop Command Command Executed Executed Acquisition Start Trigger Signal Frame Start Trigger Signal Time Fig. 56: Use Case 1 - Acquisition Start Trigger Off and Frame Start Trigger Off Basler scout GigE...
  • Page 157 When the electrical signal is received on line 1, it serves as a frame start trigger signal and initiates a frame acquisition. The frame acquired by the camera is forwarded to an image processing system, which will inspect the image and determine if there are any defects in the plywood’s surface. Basler scout GigE...
  • Page 158 = frame transmission Acquisition Acquisition Start Stop Command Command Executed Executed Acquisition Start Trigger Signal Frame Start Trigger Signal (applied to line 1) Time Fig. 57: Use Case 2 - Acquisition Start Trigger Off and Frame Start Trigger On Basler scout GigE...
  • Page 159 (this avoids the need to store images of an empty toll booth area.) For more information about the Acquisition Frame Rate Abs parameter, see Section 9.5.1.1 on page 119 and for information about setting the parameter, see Section 9.5.1.3 on page 121. Basler scout GigE...
  • Page 160 = frame transmission Acquisition Acquisition Start Stop Command Command Executed Executed Acquisition Start Trigger Signal (applied to line 1) Frame Start Trigger Signal Time Fig. 58: Use Case 3 - Acquisition Start Trigger On and Frame Start Trigger Off Basler scout GigE...
  • Page 161 (Transmitting images of the "space" between the objects would be a waste of bandwidth and processing them would be a waste of processor resources.) Basler scout GigE...
  • Page 162 Acquisition Start Stop Command Command Executed Executed Acquisition Start Trigger Software Command Executed Frame Start Trigger Signal (applied to line 1) Time Fig. 59: Use Case 4 - Acquisition Start Trigger On and Frame Start Trigger On Basler scout GigE...

  • Page 163: Overlapping Exposure And Sensor Readout (All Models Except Sca750-60)

    This situation is illustrated in Figure 61 and is known as operating the camera with “overlapped” exposure. As you can see, running the camera with readout and exposure overlapped can allow higher acquisition frame rates because the camera is performing two processes at once. Basler scout GigE...

  • Page 164: Guidelines For Overlapped Operation

    For more information about using the Trigger Ready signal with all camera models except the scA750-60 gm/gc, see Section 9.11.3 on page 157. Basler scout GigE...

  • Page 165: Exposure Must Not Overlap Sensor Readout (Sca750-60 Only)

    "Using a Specific External Trigger Signal with Overlapped Exposure" (AW000565xx000). The application notes are available in the downloads section of the Basler website: www.baslerweb.com. 9.10 Exposure Must Not Overlap Sensor...

  • Page 166: Acquisition Monitoring Tools

     You can set the Line Selector and the Line Source parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter value:...

  • Page 167: Acquisition Status Indicator

    Image Acquisition Control Camera.LineSelector.SetValue( LineSelector_Out1 ); Camera.LineSource.SetValue( LineSource_ExposureActive ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about changing the assignment of camera output signals to physical output lines, see Section 8.2.1 on page For more information about the electrical characteristics of the camera’s output lines, see...
  • Page 168 The trigger ready signal will only be available when hardware triggering is enabled. By default, the trigger ready signal is assigned to physical output line 2 on the camera. However, the assignment of the trigger signal to a physical output line can be changed. Basler scout GigE...

  • Page 169: Trigger Ready Signal (Sca750-60 Only)

     You can set the Line Selector and the Line Source parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter value: Camera.LineSelector.SetValue( LineSelector_Out1 );...
  • Page 170 For more information about changing the assignment of camera output signals to physical output lines, see Section 8.2.1 on page For more information about the electrical characteristics of the camera’s output lines, see Section 7.7.2 on page Basler scout GigE...
  • Page 171  You can set the Line Selector and the Line Source parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter value: Camera.LineSelector.SetValue( LineSelector_Out1 );...

  • Page 172: Acquisition Trigger Wait Signal (Standard Mode Only)

    Figure 66 illustrates the Acquisition Trigger Wait signal with the Acquisition Frame Count parameter set to 3 and with exposure and readout overlapped. The figure assumes that the trigger mode for the frame start trigger is set to off, so the camera is internally generating frame start trigger signals. Basler scout GigE...
  • Page 173 Frame Acquisition Exp. Readout Time = Camera is in a "waiting for acquisition start trigger" status Fig. 66: Acquisition Trigger Wait Signal The acquisition trigger wait signal will only be available when hardware acquisition start triggering is enabled. Basler scout GigE...

  • Page 174: Camera Events

     You can set the Line Selector and the Line Source parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter value: Camera.LineSelector.SetValue( LineSelector_Out1 );...

  • Page 175: Acquisition Timing Chart

    34.14 µs scA640-74gm/gc 30.05 µs scA1390-17gm/gc 65.31 µs scA640-120gm/gc 19.34 µs scA1400-17gm/gc 63.17 µs scA750-60 gm/gc 180.0 µs scA1400-30gm/gc 36.94 µs scA780-54gm/gc 35.94 µs scA1600-14gm/gc 63.53 µs scA1000-30gm/gc 47.23 µs scA1600-28gm/gc 32 µs Table 13: Exposure Start Delays Basler scout GigE...
  • Page 176 Also note that the frame transmission cannot be less than the frame readout time. So if the frame transmission time formula returns a value that is less than the readout time, the approximate frame transmission time will be equal to the readout time. Basler scout GigE...

  • Page 177: Maximum Allowed Acquisition Frame Rate (All Models Except Sca750-60)

    Resulting Frame Rate parameter. This parameter indicates the camera’s current maximum allowed frame rate taking the AOI, exposure time, and bandwidth settings into account. For more information about the acquisition mode, see Section 9.2 on page 105 and Section 9.3 on page 109. Basler scout GigE...
  • Page 178 (AOI Height + 1) C Where: AOI Height = the height of the acquired frames as determined by the AOI Height settings. The constants C and C depend on the camera model as shown in the table below: Basler scout GigE...
  • Page 179 For more information about setting the exposure time, see Section 9.7 on page 141. Formula 3: Calculates the maximum frame rate based on the frame transmission time: Device Current Throughput Parameter Value Max. Frames/s ------------------------------------------------------------------------------------------------------------------------ Payload Size Parameter Value Basler scout GigE...
  • Page 180 240000 Max Frames/s = 458.3 frames/s Formula one returns the lowest value. So in this case, the limiting factor is the sensor readout time, and the maximum allowed acquisition frame rate would be 84.4 frames per second. Basler scout GigE...

  • Page 181: Maximum Allowed Acquisition Frame Rate (Sca750-60 Only)

    AOI, exposure time, and bandwidth settings into account. For more information about AOI settings, see Section 12.4 on page 238. For more information about the Resulting Frame Rate parameter, see Section 5.1 on page Basler scout GigE...
  • Page 182 AOI Height = the height of the acquired frames as determined by the AOI Height settings. The constants C and C depend on the camera model as shown in the table below: scA750-60 gm/gc 30.99 µs 185.93 µs For more information about setting the exposure time, see Section 9.7 on page 141. Basler scout GigE...
  • Page 183 Formula one returns the lowest value. So in this case, the limiting factor is the sum of the exposure time plus the sensor readout time and the maximum allowed acquisition frame rate would be 68.4 frames per second. Basler scout GigE...
  • Page 184 Image Acquisition Control AW00011916000 Basler scout GigE...

  • Page 185: Color Creation And Enhancement

    "BG" filter alignment). As the figure illustrates, within each square of four pixels, one pixel sees only red light, one sees only blue light, and two pixels see only green light. (This combination mimics the human eye’s sensitivity to color.) Basler scout GigE...
  • Page 186 Color Creation and Enhancement AW00011916000 Sensor Pixels Fig. 68: Bayer Filter Pattern Basler scout GigE...

  • Page 187: Bayer Color Filter Alignment

    You can tell how the current AOI is aligned to the Bayer filter by reading the value of the Pixel Color Filter parameter. For more information about the camera’s AOI feature, see Section 12.4 on page 238. Basler scout GigE...

  • Page 188: Pixel Data Formats Available On Cameras With A Bayer Filter

    U = - 0.17 R - 0.33 G + 0.50 B 0.50 R - 0.41 G - 0.09 B Once the conversion to a YUV color model is complete, the pixel data is transmitted to the host PC. Basler scout GigE...
  • Page 189 Mono 8, it outputs an 8 bit monochrome image. (This type of output is sometimes referred to as "Y Mono 8".) For complete details of the Mono 8 format, see Section 11.3 on page 205. Basler scout GigE...

  • Page 190: Integrated Ir Cut Filter (All Color Models)

    If a lens with a very long thread length is used, the IR cut filter will be damaged or destroyed and the camera will no longer operate. CAUTION For more information about the location of the IR cut filter, see Section 1.5.3 on page Basler scout GigE...

  • Page 191: Color Enhancement Features

    For this reason, we don’t normally recommend setting a balance ratio less than 1 unless you want to correct for the strong predominance of one color. Basler scout GigE...
  • Page 192 You can set the Balance Ratio Selector and the Balance Ratio Abs parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector and the parameter value: Camera.BalanceRatioSelector.SetValue( BalanceRatioSelector_Green );...

  • Page 193: Gamma Correction

    You can enable or disable the gamma correction feature by setting the value of the Gamma Enable parameter. You can use the Gamma Selector to select either sRGB or user gamma correction. If you select user gamma correction, you can use the Gamma parameter to set the gamma correction value. Basler scout GigE...
  • Page 194 You can set the Gamma Enable parameter, use the Gamma Selector, and set Gamma parameter values from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values for sRGB type correction: // Enable the Gamma feature Camera.GammaEnable.SetValue( true );...

  • Page 195: Matrix Color Transformation On All Color Models

    Tungsten - This setting will automatically populate the matrix with a pre-selected set of values  that will make appropriate corrections for images captured with tungsten lighting that has a color temperature of about 2500K to 3000K. When you select this setting, the camera will also Basler scout GigE...
  • Page 196 You can set the Processed Raw Enable, Color Transformation Selector and Light Source Selector parameter values from within your application software by using the Basler pylon API. In this example, we assume that you want to set your camera for Bayer BG 8 output, and therefore you must set the Processed Raw Enable parameter value to enabled.

  • Page 197: The Custom Light Source Setting

    ( LightSourceSelector_Daylight6500K ); // Set the matrix correction factor Camera.ColorTransformationMatrixFactor.SetValue( 0.50 ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon API and the pylon Viewer, see Section 3 on page 10.3.3.1 The Custom Light Source Setting...
  • Page 198 // Select a position in the matrix Camera.ColorTransformationValueSelector.SetValue ( ColorTransformationValueSelector_Gain12 ); // Set the value for the selected position as an integer value Camera.ColorTransformationValueRaw.SetValue( 135 ); You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 199: Color Adjustment

    For ease of imagination, the color cube can be projected onto a plane (as shown in Figure 69) such that a color hexagon is formed. The primary and secondary colors define the corners of the color Basler scout GigE...
  • Page 200  present. At minimum saturation, no "color" but only some shade of gray (including black and white) is present. White Black Fig. 69: RGB Color Cube With YCM Secondary Colors, Black, and White, Projected On a Plane Basler scout GigE...
  • Page 201 For example, if saturation for red is increased, the colorfulness of red colors in the image will increase. If red is set to minimum saturation, red will be replaced by gray for "red" colors in the image. Basler scout GigE...
  • Page 202 Adjustment Saturation Raw parameter values from within your application software by using the Basler pylon API. In this example, we assume that you want to set your camera for Bayer BG 8 output, and therefore you must set the Processed Raw Enable parameter value to enabled.
  • Page 203 // Set the cyan saturation as an integer value Camera.ColorAdjustmentSaturationRaw.SetValue( 176 ); You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon API and the pylon Viewer, see Section 3 on...

  • Page 204: A Procedure For Setting The Color Enhancements

    Since it makes changing camera parameters quick and easy, we also recommend using the Basler pylon Viewer software when you are making adjustments. 1. Arrange your camera so that it is viewing a scene similar to what it will view during actual oper- ation.

  • Page 205: The "Color" Factory Setup

    For more information about the factory setups and about selecting and loading configuration sets, see Section 12.18 on page 319. Basler scout GigE...
  • Page 206 Color Creation and Enhancement AW00011916000 Basler scout GigE...

  • Page 207: Pixel Data Formats

         scA1400-17      scA1400-30      scA1600-14      scA1600-28 • Table 15: Pixel Formats Available on Monochrome Cameras ( = format available) Basler scout GigE...
  • Page 208 Camera.PixelFormat.SetValue( PixelFormat_BayerBG8 ); Camera.PixelFormat.SetValue( PixelFormat_BayerBG16 ); Camera.PixelFormat.SetValue( PixelFormat_RGB8Packed ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 209: Pixel Data Formats For Mono Cameras

    This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0xFF 0xFE       0x01 0x00 Basler scout GigE...

  • Page 210: Mono 16 Format (Equivalent To Dcam Mono 16)

    Low byte of brightness value for P High byte of brightness value for P Low byte of brightness value for P High byte of brightness value for P Low byte of brightness value for P High byte of brightness value for P Basler scout GigE...
  • Page 211 0x0FFE 4094       0x0001 0x0000 When a camera that is set for Mono 16 has only 12 bits effective, the leader of transmitted frames will indicate Mono 12 as the pixel format. Basler scout GigE...

  • Page 212: Mono 12 Packed Format

         bits 11 ... 4 bits 3 ... 0 bits 3 ... 0 bits 11 ... 4 bits 11 ... 4 bits 3 ... 0 bits 3 ... 0 bits 11 ... 4 Basler scout GigE...
  • Page 213 “unsigned” type. The available range of data values and the corresponding indicated signal levels are as shown in the table below. This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0x0FFF 4095 0x0FFE 4094       0x0001 0x0000 Basler scout GigE...

  • Page 214: Yuv 4:2:2 Packed Format (Equivalent To Dcam Yuv 4:2:2)

    The order of the pixel data for a received frame in the image buffer in your PC is similar to the order of YUV 4:2:2 (YUYV) Packed output from a color camera. For more information about the YUV 4:2:2 (YUYV) Packed format on color cameras, see Section 11.3.7 on page 217. Basler scout GigE...

  • Page 215: Pixel Data Output Formats For Color Cameras

    Green value for P Green value for P Red value for P   ² ²   ² ²   ² ² Blue value for P Green value for P Green value for P Red value for P Basler scout GigE...
  • Page 216 The available range of data values and the corresponding indicated signal levels are as shown in the table below. This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0xFF 0xFE       0x01 0x00 Basler scout GigE...

  • Page 217: Bayer Rg 8 Format (Equivalent To Dcam Raw 8)

    Green value for P Blue value for P Red value for P Green value for P Green value for P Blue value for P Red value for P Green value for P Green value for P Blue value for P Basler scout GigE...
  • Page 218 The available range of data values and the corresponding indicated signal levels are as shown in the table below. This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0xFF 0xFE       0x01 0x00 Basler scout GigE...

  • Page 219: Bayer Bg 16 Format (Equivalent To Dcam Raw 16)

             Low byte of blue value for P Low byte of green value for P High byte of blue value for P High byte of green value for P Basler scout GigE...
  • Page 220       0x0001 0x0000 When a camera that is set for Bayer BG 16 has only 12 bits effective, the leader of transmitted frames will indicate Bayer BG 12 as the pixel format. Basler scout GigE...

  • Page 221: Bayer Bg 12 Packed Format

    Green value for P bits 11 ... 4 Blue value for P bits 11 ... 4 Green value for P bits 3 ... 0 Blue value for P bits 3 ... 0 Green value for P bits 11 ... 4 Basler scout GigE...
  • Page 222 “unsigned” type. The available range of data values and the corresponding indicated signal levels are as shown in the table below. This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0x0FFF 4095 0x0FFE 4094       0x0001 0x0000 Basler scout GigE...

  • Page 223: Rgb 8 Packed Format

    The available range of data values and the corresponding indicated signal levels are as shown in the table below. This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0xFF 0xFE       0x01 0x00 Basler scout GigE...

  • Page 224: Yuv 4:2:2 Packed Format (Equivalent To Dcam Yuv 4:2:2)

    = the last pixel transmitted by the camera = the first byte in the buffer = the last byte in the buffer Byte Data U value for P Y value for P V Value for P Y value for P Basler scout GigE...
  • Page 225 The pixel data output for the U component or the V component is 8 bit data of the “straight binary” type. The range of data values for a U or a V component and the corresponding indicated signal levels are shown below. Basler scout GigE...
  • Page 226 0x01 -127 0x00 -128 The signal level of a U component or a V component can range from -128 to +127 (decimal). Notice that the data values have been arranged to represent the full signal level range. Basler scout GigE...

  • Page 227: Yuv 4:2:2 (Yuyv) Packed Format

         Y value for P U value for P Y value for P V value for P Y value for P U value for P Y value for P V value for P Basler scout GigE...
  • Page 228 0x01 -127 0x00 -128 The signal level of a U component or a V component can range from -128 to +127 (decimal). Notice that the data values have been arranged to represent the full signal level range. Basler scout GigE...

  • Page 229: Mono 8 Format (Equivalent To Dcam Mono 8)

    Y value for P Y value for P Y value for P Y value for P       Y value for P Y value for P Y value for P Y value for P Basler scout GigE...
  • Page 230 This Data Value Indicates This Signal Level (Hexadecimal) (Decimal) 0xFF 0xFE       0x01 0x00 Basler scout GigE...

  • Page 231: Pixel Transmission Sequence

    The columns are numbered 0 through m from the left side to the right side of the sensor The rows are numbered 0 through n from the top to the bottom of the sensor The sequence assumes that the camera is set for full resolution. Basler scout GigE...
  • Page 232 Pixel Data Formats AW00011916000 Basler scout GigE...

  • Page 233: Standard Features

    Fig. 71: Gain in dB output by the camera were no higher than 127 (in an 8 bit mode), you could increase the gain to 6 dB (an amplification factor of 2) and thus reach gray values of 254. Basler scout GigE...
  • Page 234 Max Setting with Vertical (8 bit depth) (16 bit depth) Binning scA640-70 1023 scA640-74 1023 scA640-120 scA780-54 1023 scA1000-30 1023 scA1300-32 scA1390-17 1023 scA1400-17 1023 scA1400-30 scA1600-14 1023 scA1600-28 Table 17: Minimum and Maximum Allowed Gain Raw Settings Basler scout GigE...
  • Page 235 Camera.GainSelector.SetValue( GainSelector_All ); Camera.GainRaw.SetValue( 400 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 236 500. Calculating the gain is a two step process: Step 1:    0.0359 5.385 dB Step 2:    – Gain 0.0359 5.385 dB Gain 12.57 dB Table 18 shows the minimum and maximum gain in dB for each camera model. Basler scout GigE...
  • Page 237 (16 bit depth) scA640-70 scA640-74 28.3 10.1 scA640-120 23.34 8.98 scA780-54 25.9 scA1000-30 25.5 scA1300-32 19.75 3.59 scA1390-17 25.5 scA1400-17 31.0 12.8 scA1400-30 25.13 scA1600-14 25.9 scA1600-28 20.29 4.13 Table 18: Minimum and Maximum dB of Gain Basler scout GigE...
  • Page 238 Camera.GainSelector.SetValue( GainSelector_All ); Camera.GainRaw.SetValue( 20 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 239 ------- -   Gain 12.0 dB Table 19 shows the dB of gain that will be achieved at various Gain Raw settings. Gain Setting dB Gain 10.9 12.7 13.4 Table 19: dB of Gain at Various Settings Basler scout GigE...

  • Page 240: Black Level

    1 in the digital values output for the pixels. A decrease of 4 in the setting will result in a negative offset of 1 in the digital values output for the pixels. Basler scout GigE...
  • Page 241 Camera.BlackLevelSelector.SetValue ( BlackLevelSelector_All ); Camera.BlackLevelRaw.SetValue( 32 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 242: Digital Shift

    When the camera is set to shift by 1, the least significant bit output from the camera for each pixel value will be 0. This means that no odd gray values can be output and that the gray value scale will Basler scout GigE...
  • Page 243 1, we recommend not using shift by 3. If you do nonetheless, all bits output from the camera will automatically be set to 1. Therefore, you should only use the shift by 3 setting when your pixel readings with a 12 bit pixel format selected and with digital shift disabled are all less than 512. Basler scout GigE...

  • Page 244: Digital Shift With 8 Bit Pixel Formats

    Shifted Once conditions the reading for the brightest pixel is 10. If you changed the digital shift setting to shift by 1, the reading would increase to 20. Basler scout GigE...
  • Page 245 8, bit 9, bit 10, or bit Shifted Four Times 11 to 1, we recommend not using shift by 4. If you do nonetheless, all bits output from the camera will Basler scout GigE...

  • Page 246: Precautions When Using Digital Shift

    If all of the readings are below 32, you can safely use the shift by 1, 2, or 3 settings.  If all of the readings are below 16, you can safely use the shift by 1, 2, 3, or 4 settings.  Basler scout GigE...

  • Page 247: Enabling And Setting Digital Shift

    3, or 4, digital shift will be set to shift by 1, shift by 2, shift by 3, or shift by 4 respectively. You can set the Digital Shift parameter values from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values: // Disable digital shift Camera.DigitalShift.SetValue( 0 );...

  • Page 248: Area Of Interest (Aoi)

    One of the main advantages of the AOI feature is that decreasing the height of the AOI can increase the camera’s maximum allowed acquisition frame rate. For more information about how changing the AOI height effects the maximum allowed frame rate, see Section 9.13 on page 167. Basler scout GigE...
  • Page 249 Normally, the X Offset, Y Offset, Width, and Height parameter settings refer to the physical columns and rows in the sensor. But if binning is enabled, these parameters are set in terms of "virtual" columns and rows. For more information, see Section 12.6 on page 275. Basler scout GigE...

  • Page 250: Changing Aoi Parameters "On-The-Fly

    You can set the X Offset, Y Offset, Width, and Height parameter values from within your application software by using the Basler pylon API. The following code snippets illustrate using the API to get the maximum allowed settings and the increments for the Width and Height parameters. They also illustrate setting the X Offset, Y Offset, Width, and Height parameter values int64_t widthMax = Camera.Width.GetMax( );...

  • Page 251: Sequencer

    The values of the sequence parameters, however, can be set very quickly by using sequence sets: Because the sequence sets reside in the camera, you can replace the values in the active set with values from one of the sequence sets almost Basler scout GigE...
  • Page 252 Sequence Parameters, Set by the Current Set Sequence Enable Load / Store Sequence Set 0 Sequence Set 1 Sequence Set 2 Sequence Set N Sequence Sequence Set Advance Mode Index Number Fig. 73: Sequence Feature Block Diagram Basler scout GigE...
  • Page 253 Viewer. Only those sequence parameter values will be displayed that were active before the sequencer was enabled. You will not be able to "see" the parameter values set by the current set. Make sure the sequencer feature is disabled when configuring sequence sets. Basler scout GigE...
  • Page 254 "sychronous restart" because the checking of the states of an input line is always linked to a frame trigger signal. Advance or restart controlled by a software command are also called "asychronous advance" and "asychronous restart" because they are not linked to a frame start trigger signal. Basler scout GigE...
  • Page 255 Accordingly, the number of image acquisitions that may occur between sending the command and it becoming effective can not be predicted. The Sequence Set Load command is therefore not suitable for real-time applications, it may, however, be useful for testing purposes. Basler scout GigE...

  • Page 256: Auto Sequence Advance Mode

    // Load the sequence parameter values from the sequence set into the active set Camera.SequenceSetLoad.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. Use Case Diagrams Illustrating Sequencer Operation The sections below explain the sequence advance modes in detail. Use case descriptions and diagrams are designed to illustrate how the sequence advance modes work in some common situations and with some common combinations of parameter settings.
  • Page 257 Executions parameter value. Because the Sequence Set Executions parameter was set to 2 for sequence set 5, this sequence set is used a second time: The parameter values of sequence set 5 are used for the image acquisition. Basler scout GigE...
  • Page 258 (the sequence set index number is indicated) = frame exposure and readout = frame transmission Sequencer Sequence Set Cycle Sequencer Enabled Starts Again Disabled Frame Start Trigger Signal Time Fig. 74: Sequencer in Auto Sequence Advance Mode Basler scout GigE...
  • Page 259 Camera.SequenceEnable.SetValue( true ); // Disable the sequencer feature Camera.SequenceEnable.SetValue( false ); You can also use the Basler pylon Viewer application to easily set the parameters. Configuring Sequence Sets Use the following procedure for populating sequence sets and making the related settings: 1.
  • Page 260 // Set the number of sequence set uses Camera.SequenceSetExecutions.SetValue( 4 ); // Store the sequence parameter values from the active set in the selected sequence // set Camera.SequenceSetStore.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 261: Controlled Sequence Advance Mode

    Disabled: The advance from one sequence set to the next is only controlled by AsyncAdvance  software commands. The Sequence Set Total Number parameter specifies the total number of different sequence sets that are available and included within a sequence set cycle. The maximum number is 64. Basler scout GigE...

  • Page 262: Operation With The "Always Active" Sequence Control Source

    0 is used. After the sequencer feature is disabled, the cycling through sequence sets is terminated. The  sequencer parameter values in the active set return to the values that existed before the sequencer feature was enabled. Basler scout GigE...
  • Page 263 When a frame start trigger is received, the camera automatically advances to the next sequence set: The parameter values of sequence set 1 are loaded into the active set and are used for the Basler scout GigE...
  • Page 264 When the next frame start triggers were received, the camera advances to the next sequence  sets and uses them for image acquisition in accord with the Always Active sequence control source and as described in the previous use case. Basler scout GigE...
  • Page 265 Sequence Set Cycle Sequence Set Cycle (Restart) Starts Again Starts Again Frame Start Trigger Signal Time Fig. 76: Sequencer in Controlled Sequence Advance Mode with Always Active as the Sequence Control Source and Synchronous Restart Controlled by Line 1 Basler scout GigE...

  • Page 266: Operation With An Input Line As Sequence Control Source

    Also, maintain the states of the input lines at least for one microsecond after the frame start trigger signal has risen. Basler scout GigE...
  • Page 267 Input line 1 is found to be high and therefore the parameter values of the next sequence set are loaded into the active set. The parameter values of sequence set 0 are used for the image acquisition. Basler scout GigE...
  • Page 268 In the following use case (see also Figure 78), the same settings were made as in the previous use case: The Sequence Set Total Number parameter was set to six. Accordingly, the sequence set index numbers range from 0 through 5. The frame start trigger is set for rising edge triggering. Basler scout GigE...
  • Page 269 Note also that the camera briefly exits the "waiting for frame start trigger" status while an input line changes its state. This happened, for example, when input line 2 changed its state before the fourth frame start trigger was received (see also Figure 78). Basler scout GigE...
  • Page 270 1. Input line 2 is found to be low and therefore the sequence cycle is not restarted. Input line 1 is found to be low and therefore no new sequence parameter values are loaded into the active set. The parameter values of sequence set 1 are used for the image acquisition. Basler scout GigE...
  • Page 271 Sequence Set Cycle (Advance) Starts Again Starts Again Frame Start Trigger Signal Time Fig. 78: Sequencer in Controlled Sequence Advance Mode with Line 1 as the Sequence Control Source and Syn- chronous Restart Controlled by Line 2 Basler scout GigE...

  • Page 272: Operation With The "Disabled" Sequence Control Source

    When the next frame start trigger is received, the camera checks the active set and uses it for  the image acquisition. The parameter values of sequence set 0 are used. The AsyncAdvance command has not yet become effective because of the assumed associ- Basler scout GigE...
  • Page 273 The parameter values of sequence set 0 are loaded into the active set. Note that the camera briefly exits the "waiting for frame start trigger" status while the parameter values of sequence set 1 are loaded into the active set (see also Figure 79). Basler scout GigE...
  • Page 274 While frame exposure and readout are in progress, the sequencer feature is disabled. The  complete frame is transmitted and the cycling through sequence sets is terminated. The sequencer parameter values in the active set return to the values that existed before the sequencer feature was enabled. Basler scout GigE...
  • Page 275 = frame exposure and readout = frame transmission Sequencer Sequencer Enabled Disabled Sequence Set Cycle Starts Again Time Fig. 79: Sequencer in Controlled Sequence Advance Mode with Disabled as the Sequence Control Source and Asynchronous Advance and Restart Basler scout GigE...

  • Page 276: Configuration

    Camera.SequenceEnable.SetValue( true ); // Disable the sequencer feature Camera.SequenceEnable.SetValue( false ); You can also use the Basler pylon Viewer application to easily set the parameters. 12.5.2.4 Configuration Configuring Sequence Sets and Advance Control Use the following procedure for populating sequence sets and setting the sources for sequence set advance and sequence cycle restart: Make sure that the sequencer feature is disabled.
  • Page 277 For information about setting the input line for invert, see Section 8.1.3 on page Configuring Sequence Sets and Advance Control Using Basler pylon You can use the pylon API to set the parameters for configuring sequence sets from within your application software.
  • Page 278 // Select sequence set with index number 0 Camera.SequenceSetIndex.SetValue( 0 ); // Load the sequence parameter values from the sequence set into the active set Camera.SequenceSetLoad.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 279: Free Selection Sequence Advance Mode

    Note also that the camera briefly exits the "waiting for frame start trigger" status while an input line changes its state. This happened, for example, when input line 1 changed its state before the first frame start trigger was received (see also Figure 80). Basler scout GigE...
  • Page 280 While frame exposure and readout for the fifth frame start trigger are in progress, the  sequencer feature is disabled. The complete frame is transmitted. The sequencer parameter values in the active set return to the values that existed before the sequencer feature was enabled. Basler scout GigE...
  • Page 281 Trigger Signal Time Fig. 80: Sequencer in Free Selection Mode Operating the Sequencer Using Basler pylon You can use the pylon API to set the parameters for operating the sequencer in Free Selection sequence advance mode from within your application software.
  • Page 282 // Disable the sequencer feature Camera.SequenceEnable.SetValue( false ); You can also use the Basler pylon Viewer application to easily set the parameters. Selecting Sequence Sets Each sequence set is identified by a sequence set index number, starting from zero. The states of the input lines select between the sequence sets by setting the (big endian) sequence set addresses.

  • Page 283: Configuration

    9. Repeat the above steps for the other sequence sets, starting from step 5. Configuring Sequence Sets and Sequence Set Advance Using Basler pylon You can use the pylon API to set the parameters for configuring sequence sets from within your application software and make settings for their selection when images are acquired.
  • Page 284 // adjust the camera parameters for the best image quality. // Store the sequence parameter values from the active set in the selected // sequence set Camera.SequenceSetStore.Execute( ); You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 285: Binning (All Models Except Sca750-60)

    With horizontal binning, adjacent pixels from 2 columns, 3 columns, or a maximum of 4 columns are summed and are reported out of the camera as a single pixel. Figure 82 illustrates horizontal bin- ning. Horizontal Binning by 2 Horizontal Binning by 3 Horizontal Binning by 4 Fig. 82: Horizontal Binning Basler scout GigE...

  • Page 286: Considerations When Using Binning

    4 respectively. Setting the parameter’s value to 1 disables horizontal binning. You can set the Binning Vertical or the Binning Horizontal parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter values: // Enable vertical binning by 2 Camera.BinningVertical.SetValue( 2 );...
  • Page 287 If binning is enabled, however, you must use the concept of a "virtual" sensor as described above and the height of the AOI that you use in the formulas would be in terms of virtual sensor lines. The affected formulas appear on page 166, page 168 and. Basler scout GigE...

  • Page 288: Reverse X

    AOI relative to the sensor remains the same regardless of whether or not the reverse X feature is enabled. As a consequence, an AOI will display different images depending on whether or not the reverse X feature is enabled. Basler scout GigE...
  • Page 289 Auto Function AOI will refer to different image contents. The positions of the AOIs relative to the sensor will not change.  For more information about auto functions, see Section 12.9 on page 287. Basler scout GigE...
  • Page 290 You can enable or disable the reverse X feature by setting the ReverseX parameter value. You can set the parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter value: // Enable reverse X Camera.ReverseX.SetValue(true);...

  • Page 291: Luminance Lookup Table

    Another thing to keep in mind about the table is that location 4088 is the last location that will have a defined 12 bit value associated with it. (Locations 4089 through 4095 are not used.) If the sensor reports a value above 4088, the camera will not be able to perform an interpolation. In cases where Basler scout GigE...
  • Page 292 Fig. 85: Lookup Table with Values Mapped in a Linear Fashion 4095 3072 12 Bit Camera Output 2048 1024 1024 2048 3072 4095 12 Bit Sensor Reading Fig. 86: Lookup Table with Values Mapped for Higher Camera Output at Low Sensor Readings Basler scout GigE...
  • Page 293 // Enable the lookup table Camera.LUTEnable.SetValue( true ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 294: Lookup Table (Sca750-60 Only)

    1022 in the table. The advantage of the luminance lookup table feature is that it allows a user to customize the response curve of the camera. The graphs on the next page show the effect of two typical lookup Basler scout GigE...
  • Page 295 10 Bit Sensor Reading Fig. 87: Lookup Table with Values Mapped in a Linear Fashion 1023 10 Bit Mapped Value 1023 10 Bit Sensor Reading Fig. 88: Lookup Table with Values Mapped for Higher Camera Output at Low Sensor Readings Basler scout GigE...
  • Page 296 // Enable the lookup table Camera.LUTEnable.SetValue( true ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 297: Auto Functions

    For example, with a short exposure time, insufficient illumination, and a low setting for the upper limit of the gain parameter value, the Gain Auto function may not be able to achieve the current target average gray value setting for the image. Basler scout GigE...

  • Page 298: Modes Of Operation

    When an auto function is set to "off", the parameter value resulting from the latest automatic  adjustment will operate, unless the parameter is manually adjusted. You can enable auto functions and change their settings while the camera is capturing images ("on the fly"). Basler scout GigE...

  • Page 299: Auto Function Aoi

    2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Offset Auto Function Height Area of Interest Image Area of Interest X Offset Width Fig. 89: Auto Function Area of Interest and Image Area of Interest Basler scout GigE...
  • Page 300 You can use auto functions when also using the reverse X feature. For information about the behavior and roles of Auto Function AOI and Image AOI when also using the reverse X feature, see the "Reverse X" section. Basler scout GigE...
  • Page 301 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Auto Function AOI Image AOI Fig. 90: Various Degrees of Overlap Between the Auto Function AOI and the Image AOI Basler scout GigE...
  • Page 302 You can select an Auto Function AOI and set the X Offset, Y Offset, Width, and Height parameter values for the Auto Function AOI from within your application software by using the Basler pylon API. The following code snippets illustrate using the API to select an Auto Function AOI and to get the maximum allowed settings for the Width and Height parameters.

  • Page 303: Using An Auto Function

    Camera.AutoFunctionAOIOffsetY.SetValue( 0 ); Camera.AutoFunctionAOIWidth.SetValue( Camera.AutoFunctionAOIWidth.GetMax() ); Camera.AutoFunctionAOIHeight.SetValue( Camera.AutoFunctionAOIHeight.GetMax() ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 304: Gain Auto

    Setting the target average gray value. A medium gray value is chosen as an example  Enabling the gain auto function and selecting, for example, the "once" mode of operation  Basler scout GigE...
  • Page 305 // Set mode of operation for gain auto function Camera.GainAuto.SetValue( GainAuto_Once ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 306: Exposure Auto

    7. Enable the exposure auto function by setting it to "once" or "continuous". You must choose the "continuous" setting when using the auto function profile. The settable limits for the Exposure Time Abs parameter value are limited by the minimum allowed and maximum possible exposure time of the camera model. Basler scout GigE...
  • Page 307 // Set mode of operation for exposure auto function Camera.ExposureAuto.SetValue( ExposureAuto_Continuous ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 308: Auto Function Profile

    3. Set the exposure auto function to the "continuous" mode of operation. You can set the auto function profile from within your application software by using the Basler pylon API. The following code snippets illustrate using the API to set the auto function profile. As an...

  • Page 309: Balance White Auto

    3. Enable the balance white auto function by setting it to "once". You can carry out steps 1 to 3 from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to use the auto function: Selecting and setting Auto Function AOI2: See the "Auto Function AOI"...
  • Page 310 Standard Features AW00011916000 For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. For general information about auto functions, see Section 12.9 on page 287.

  • Page 311: Disable Parameter Limits

    Typically, the range of the extended limits is dictated by the physical restrictions of the camera’s electronic devices, such as the absolute limits of the camera’s variable gain control. The values for the extended limits can be seen using the Basler pylon Viewer or from within your application via the pylon API.

  • Page 312: Debouncer

    The diagram also illustrates how the debouncer delays a valid signal. Unfiltered arriving signals Debouncer debouncer value Transferred valid signal delay TIMING CHARTS ARE NOT DRAWN TO SCALE Fig. 91: Filtering of Input Signals by the Debouncer Basler scout GigE...
  • Page 313 // Set the parameter value to 100 microseconds Camera.LineDebouncerTimeAbs.SetValue( 100 ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 314: Minimum Output Pulse Width

    You can set the Line Selector and the value of the MinOutPulseWidthAbs parameter from within your application software by using the pylon API. The following code snippet illustrates using the API to set the selector and the parameter value: Basler scout GigE...
  • Page 315 // Set the parameter value to 10.0 microseconds Camera.MinOutPulseWidthAbs.SetValue(10.0); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 316: Trigger Delay

    API. The following code snippets illustrate using the API to set the parameter values: Standard mode: // Select the acquisition start trigger Camera.TriggerSelector.SetValue( TriggerSelector_Acquisition Start ); // Trigger delay double TriggerDelay_us = 1000.0 // 1000us == 1ms == 0.001s; Camera.TriggerDelayAbs.SetValue( TriggerDelay_us ); // Select the frame start trigger Basler scout GigE...
  • Page 317 // 1000us == 1ms == 0.001s; Camera.TriggerDelayAbs.SetValue( TriggerDelay_us ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 318: Acquisition Status

    IsWaitingForFrameTrigger = Camera.AcquisitionStatus.GetValue(); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the Acquisition Status Selector. Basler scout GigE...
  • Page 319 AW00011916000 Standard Features For more information about the pylon Viewer, see Section 3.1 on page For more information about the standard and legacy image acquisition control modes, see Section 9.1 on page 103. Basler scout GigE...

  • Page 320: Event Reporting

    During the time that the camera is waiting for an acknowledgement, no new event messages can be transmitted. 4. Event Reporting involves some further software-related steps and settings to be made. For more information, see the "Camera Events" code sample included with the pylon software development kit. Basler scout GigE...
  • Page 321 4. As soon as transmission time is available, an event message containing the event overrun event will be transmitted to the PC. The event overrun event is simply a warning that events are being dropped. The notification contains no specific information about how many or which events have been dropped. Basler scout GigE...
  • Page 322 API. For more information, see the "Camera Events" code sample included with the pylon software development kit. For more detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference.

  • Page 323: Test Images

    Test Image Selector to one of the test images or to "test image off". You can set the Test Image Selector from within your application software by using the Basler pylon API. The following code snippets illustrate using the API to set the selector: // set for no test image Camera.TestImageSelector.SetValue( TestImageSelector_Off );...
  • Page 324 The image moves by one pixel from right to left whenever a new image acquisition is initiated. The test pattern uses a counter that increments by one for each new image acquisition. The mathematical expression for this test image is: Gray Value = [column number + row number + counter] MOD 256 Basler scout GigE...
  • Page 325 10 bit output mode available, use of test image 5 on scA750-60 cameras is not normally recommended. However, one situation where test image 5 is useful on scA750-60 cameras is to check the effect of the luminance lookup table. Basler scout GigE...
  • Page 326 The image moves by one pixel from right to left whenever you signal the camera to capture a new image. To display this test pattern on a monitor, you must convert the YUV output from the camera to 8 bit RGB. Fig. 94: Test Image Six Basler scout GigE...

  • Page 327: Device Information Parameters

    Device User ID (read / write) - is used to assign a user defined name to a device. This name  will be displayed in the Basler pylon Viewer and the Basler pylon IP Configuration Tool. The name will also be visible in the "friendly name" field of the device information objects returned by pylon’s device enumeration procedure.
  • Page 328 For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily read the parameters and to read or write the Device User ID.

  • Page 329: Configuration Sets

    "startup" set, i.e., the set that will be loaded into the active set whenever the camera is powered on or reset. Instructions for loading the default set into the active set and for designating which set will be the startup set appear later in the Configuration Sets section. Basler scout GigE...

  • Page 330: Saving User Sets

    Execute a User Set Save command to save the active set to the selected user set.  Saving an active set to a user set in the camera’s non-volatile memory will overwrite any parameters that were previously saved in that user set. Basler scout GigE...

  • Page 331: Selecting A Factory Setup As The Default Set

     Functions Factory Setup or Color Factory Setup. You can set the Default Set Selector from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the selector: If you want to select the Standard Factory Setup: Camera.DefaultSetSelector.SetValue(DefaultSetSelector_Standard);...
  • Page 332 The standard factory setup is optimized for use in typical situations and will provide good camera performance in most cases. Basler scout GigE...

  • Page 333: Loading A Saved Set Or The Default Set Into The Active Set

    The standard factory setup is optimized for use in typical situations and will provide good camera performance in most cases. Basler scout GigE...

  • Page 334: Selecting The Startup Set

    Set the User Set Default Selector to User Set 1, User Set 2, User Set 3 or Default.  You can set the User Set Default Selector from within your application software by using the pylon API. The following code snippet illustrates using the API to set the selector: Camera.UserSetDefaultSelector.SetValue( UserSetDefaultSelector_Default ); Basler scout GigE...

  • Page 335: Camera Feature Set

    The camera description file is included in the camera and describes the camera features in accord with the GenICam specification. scout GigE cameras include two camera description files that are used alternatively. The camera description files represent partially different combinations of features (feature sets).
  • Page 336 CEnumerationPtr ptrFeatureSet( Camera.GetNodeMap().GetNode("FeatureSet")); ptrFeatureSet->FromString("Full"); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameter. For more information about the pylon Viewer, see Section 3.1 on...

  • Page 337: Chunk Features

    The features that add chunks to the acquired images are referred to as “chunk” features. Before you can use any of the features that add chunks to the image, you must make the chunk mode active. Making the chunk mode active is described in the next section. Basler scout GigE...

  • Page 338: Making The "Chunk Mode" Active And Enabling The Extended Data Stamp

    Set the Chunk Mode Active parameter to true.  You can set the Chunk Mode Active parameter value from within your application software by using the Basler pylon API. The following code snippet illustrates using the API to set the parameter value: Camera.ChunkModeActive.SetValue( true );...
  • Page 339 = Camera.ChunkHeight.GetValue(); int64_t dynamicRangeMin = Camera.ChunkDynamicRangeMin.GetValue(); int64_t dynamicRangeMax = Camera.ChunkDynamicRangeMax.GetValue(); ChunkPixelFormatEnums pixelFormat = Camera.ChunkPixelFormat.GetValue(); For more information about using the chunk parser, see the sample code that is included with the Basler pylon Software Development Kit (SDK). Basler scout GigE...

  • Page 340: Frame Counter

    You can set the Chunk Selector and Chunk Enable parameter value from within your application software by using the Basler pylon API. You can also run the parser and retrieve the chunk data. The following code snippets illustrate using the API to activate the chunk mode, enable the frame...
  • Page 341 You can set the frame counter reset parameter values from within your application software by using the Basler pylon API. The following code snippets illustrate using the API to configure and set the frame counter reset and to execute a reset via software.
  • Page 342 Camera.CounterReset.Execute(); // disable reset Camera.CounterResetSource.SetValue( CounterResetSource_Off ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 343: Time Stamp

    // make chunk mode active and enable Time Stamp chunk Camera.ChunkModeActive.SetValue( true ); Camera.ChunkSelector.SetValue( ChunkSelector_Timestamp ); Camera.ChunkEnable.SetValue( true ); // retrieve data from the chunk IChunkParser &ChunkParser = *Camera.CreateChunkParser(); GrabResult Result; StreamGrabber.RetrieveResult( Result ); ChunkParser.AttachBuffer( (unsigned char*) Result.Buffer(), Result.GetPayloadSize() ); int64_t timeStamp = Camera.ChunkTimestamp.GetValue(); Basler scout GigE...
  • Page 344 Chunk Features AW00011916000 For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. For more information about the pylon Viewer, see Section 3.1 on...

  • Page 345: Trigger Input Counter

    // make chunk mode active and enable Trigger Input Counter chunk Camera.ChunkModeActive.SetValue( true ); Camera.ChunkSelector.SetValue( ChunkSelector_Triggerinputcounter ); Camera.ChunkEnable.SetValue( true ); // retrieve data from the chunk IChunkParser &ChunkParser = *Camera.CreateChunkParser(); GrabResult Result; StreamGrabber.RetrieveResult( Result ); Basler scout GigE...
  • Page 346 ChunkParser.AttachBuffer( (unsigned char*) Result.Buffer(), Result.GetPayloadSize() ); int64_t triggerinputCounter = Camera.ChunkTriggerinputcounter.GetValue(); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.
  • Page 347 Camera.CounterReset.Execute(); // disable reset Camera.CounterResetSource.SetValue( CounterResetSource_Off ); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...

  • Page 348: Line Status All

    API to activate the chunk mode, enable the line status all chunk, run the parser, and retrieve the line status all chunk data: // make chunk mode active and enable Line Status All chunk Camera.ChunkModeActive.SetValue( true ); Camera.ChunkSelector.SetValue( ChunkSelector_LineStatusAll ); Camera.ChunkEnable.SetValue( true ); Basler scout GigE...
  • Page 349 ChunkParser.AttachBuffer( (unsigned char*) Result.Buffer(), Result.GetPayloadSize() ); int64_t lineStatusAll = Camera.ChunkLineStatusAll.GetValue(); For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 350: Crc Checksum

    You can set the Chunk Selector and Chunk Enable parameter value from within your application software by using the Basler pylon API. You can also run the parser and retrieve the chunk data. The following code snippets illustrate using the API to activate the chunk mode, enable the time...
  • Page 351 ( ChunkParser.HasCRC() && ! ChunkParser.CheckCRC() ) cerr << "Image corrupted!" << endl; For detailed information about using the pylon API, refer to the Basler pylon Programmer’s Guide and API Reference. You can also use the Basler pylon Viewer application to easily set the parameters.

  • Page 352: Sequence Set Index

    You can set the Chunk Selector and Chunk Enable parameter value from within your application software by using the Basler pylon API. You can also run the parser and retrieve the chunk data. The following code snippets illustrate using the API to activate the chunk mode, enable the time...
  • Page 353 AW00011916000 Chunk Features Result.GetPayloadSize() ); int64_t timeStamp = Camera.ChunkSequenceSetIndex.GetValue(); You can also use the Basler pylon Viewer application to easily set the parameters. Basler scout GigE...
  • Page 354 Chunk Features AW00011916000 Basler scout GigE...

  • Page 355: Troubleshooting And Support

    If you do decide to contact Basler technical support, please take a look at the form that appears on the last two pages of this section before you call. Filling out this form will help make sure that you have all of the information the Basler technical support team needs to help you with your problem.

  • Page 356: Before Contacting Basler Technical Support

    14.3 Before Contacting Basler Technical Support To help you as quickly and efficiently as possible when you have a problem with a Basler camera, it is important that you collect several pieces of information before you contact Basler technical support.
  • Page 357 Parameter set It is very important for Basler technical support to get a copy of the exact camera parameters that you were using when the problem occurred. To make note of the parameters, use Basler’s pylon Viewer tool.
  • Page 358 Troubleshooting and Support AW00011916000 Basler scout GigE...

  • Page 359: Revision History

    Added Section 1.5 on page 24 with information on mechanical stress test results. Modified Section for the installation of the Basler pylon software, version 1.0. Added information on the 8 bits effective pixel data: Section 11.2.1 on page 199, Section 11.2.4 on page 204, Section 11.2.5 on...
  • Page 360 Added guidelines for avoiding EMI and ESD problems in Section 2.3.1 on page Replaced recommendations of individual adapters by a reference to Basler technical support in Section 4.1 on page 67.. Removed web link for further information on APIPA in Section 5.3 on page Corrected the voltage ranges relating to logic 0 and logic 1 in Section 7.7.1...
  • Page 361 Included the warning related to code snippets in Section 1.9 on page Transferred the following sections to the "Installation and Setup Guide for Cameras Used with Basler’s pylon API" (AW000611xx000): "Software and Hardware Installation", "Network Recommendations", and "Camera and Network Adapter IP Configuration".
  • Page 362 Section 2 on page 41 and Section 3 on page 43 has been revised to reflect that the pylon driver package is now downloadable from the website. Added Section 13.2 on page 245 describing how to obtain an RMA number. Basler scout GigE...
  • Page 363 Section 13.3 on page 330. Corrected the maximum value for the frame counter in Section 13.3 on page 330. Added the trigger input counter feature in Section 13.5 on page 335. Basler scout GigE...
  • Page 364 Added events and parameter names in Section 12.15 on page 310, and removed some descriptions for transfer to the "Camera Events" code sample. Rearranged sequence of sections 8 through 11. Removed the feedback page. Basler scout GigE...
  • Page 365 Removed the "Typical LED Output Signal..." figure from Section 7.7.2.2 on page Simplified the definition of response times, removed ranges of response time values, included a measured example, indicated general dependences of response times, and removed the "I/O Line Schematic" figure in Section 7.7.3 on page Basler scout GigE...
  • Page 366 Date Changes AW00011916000 14 Dec 2012 Indicated Basler AG as bearer of the copyright on the second page. Added information about the 90° head housing model for the scA1600- 28gm/gc in Section 1.2 on page 2 and Section 1.5.2.2 on page Removed abs.
  • Page 367 AW00011916000 Revision History Basler scout GigE...
  • Page 368 Revision History AW00011916000 Basler scout GigE...

  • Page 369: Index

    ......288 camera power requirements ....... auto function AOI ...........2 explained .........287 chunk dynamic range max parameter .. 329 setting ..........292 chunk dynamic range min parameter ... 329 auto function profile .......298 chunk enable parameter ............330 Basler scout GigE...
  • Page 370 ....142 default configuration set ......319 extended image data chunk ....328 device current throughput parameter ..62 device firmware version parameter ..317 device ID parameter ......317 device manufacturer info parameter ..317 Basler scout GigE...
  • Page 371 ..........256 heartbeat timer ........55 line status all chunk ......338 high gain factory setup ....319 line status parameter ......101 horizontal binning ........275 lookup table ........281 horizontal mirror image ......278 luminance lookup table ....281 housing Basler scout GigE...
  • Page 372 ..........95 resend request batching parameter ..49 response time ........89 resend request response timeout voltage requirements ......87 parameter ..........51 over triggering .......125 resend request threshold parameter ..49 overlapped exposure ....153 resend timeout parameter ...... 51 Basler scout GigE...
  • Page 373 .......122 use case diagrams ......144 – spectral response ......12 user configuration set ......320 speed and duplex mode parameter ..66 user output selector ........ 94 squence set user output value parameter ....94 address ...........269 Basler scout GigE...
  • Page 374 ........3 white balance ........181 setting ..........181 white balance auto see balance white auto write timeout parameter ......55 YUV 422 (YUYV) packed pixel format ...............204 YUV 422 data range ......215 YUV 422 packed pixel format ..204 Basler scout GigE...

Table of Contents
