Basler BIP2-DXXXXc-dn User Manual

Ip fixed dome cameras
Hide thumbs Also See for BIP2-DXXXXc-dn:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Basler IP Fixed Dome Cameras

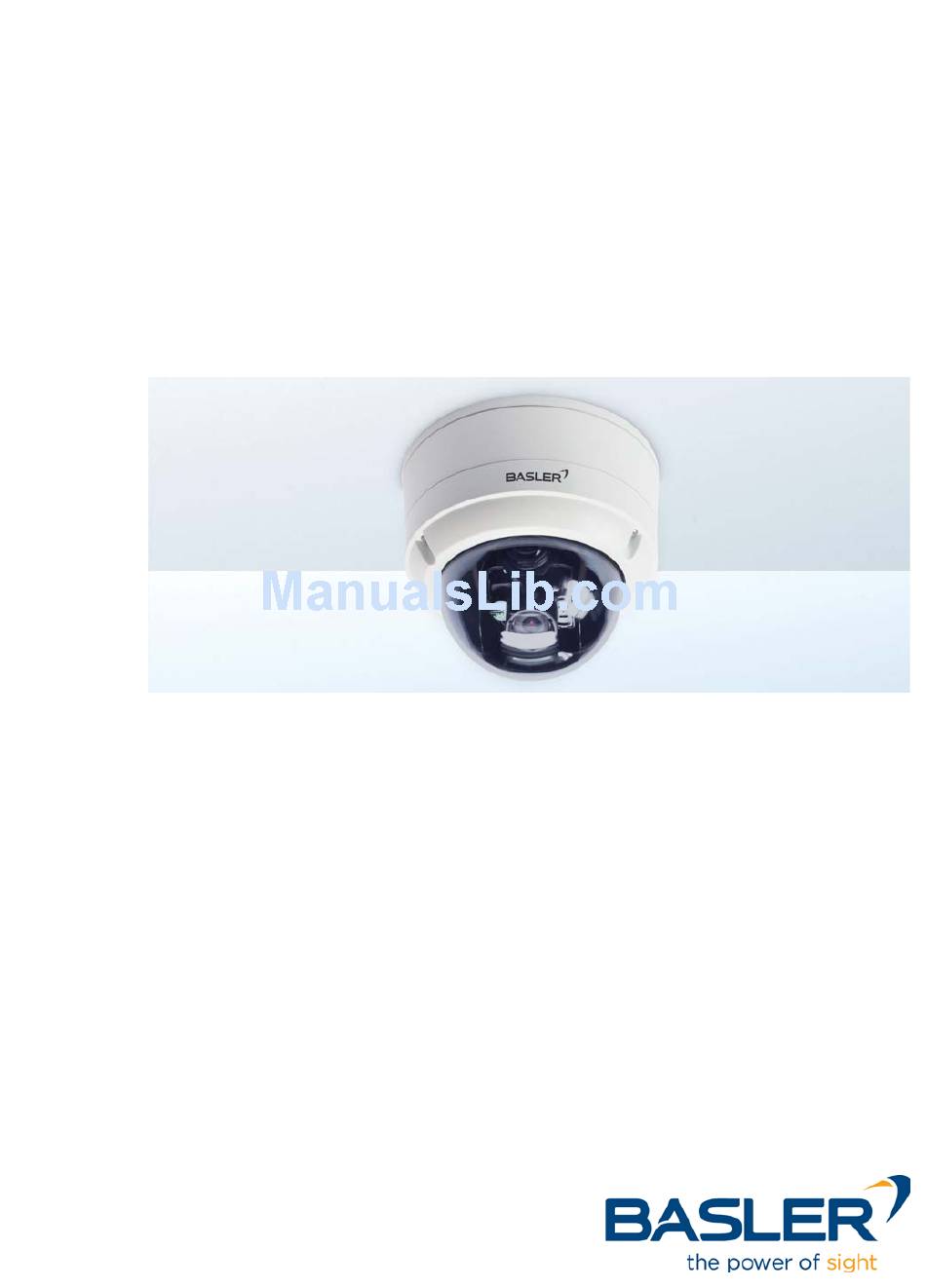

User's Manual for BIP2-DXXXXc-dn Models
Document Number: AW001015
Version: 10 Language: 000 (English)
Release Date: 13 January 2016
