Elikon EVD2-10KIT User Manual

2-wire video intercom system

Advertisement

Quick Links

Read this manual carefully before using the product, and keep it well for future use.
EVD2-10KIT
2-Wire
Video Intercom
System
USER
MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for Elikon EVD2-10KIT

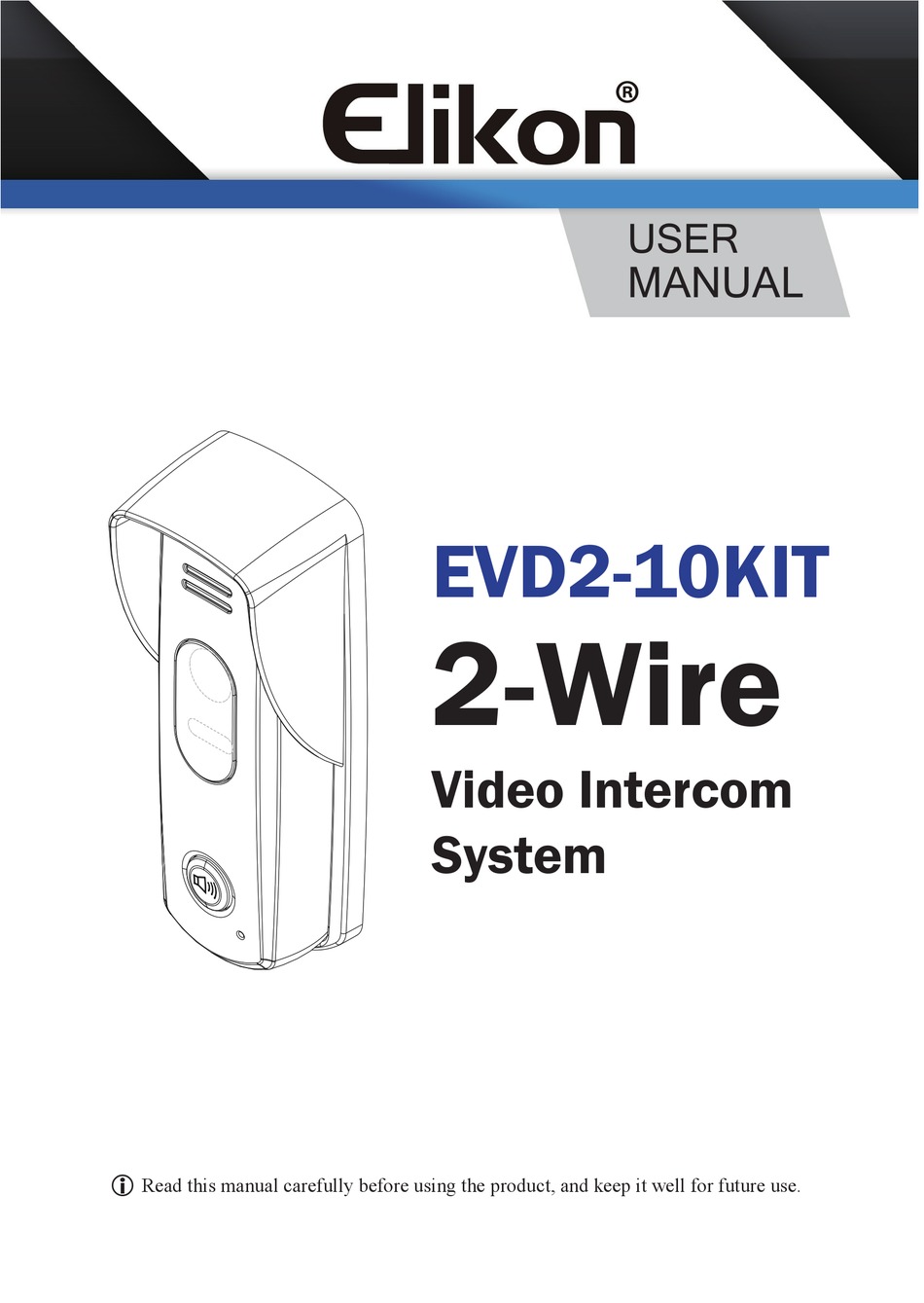

  • Page 1 USER MANUAL EVD2-10KIT 2-Wire Video Intercom System  Read this manual carefully before using the product, and keep it well for future use.
  • Page 3: Parts And Function

    Parts and Function The door station is an audio door station without camera,which is designed for DT 2-wire system. The front panel is made of zinc alloy for better protection against vandalism & cauterization, and the call button is also made of zinc alloy with blue backlight for auxiliary illumination, the unlock and talking LED indicator guarantee the door station working efficiently.
  • Page 4 please refer to DT-CAM user instructions in details. PL(White): external lock power input, connect to the power positive(power +). S1+(Yellow): lock power(+) output. S1-(Black): lock power(-) output. Unit Mounting The location of outdoor station should keep away from snow,rain,and intensity light. Accessory contents: Accessories include a screwdriver T20, one M4X10 screw, two PA4X25 screws,three PA3x25 screws,three PM3x12 screws,and five screw stoppers Φ6X30.
  • Page 5: Multi Monitors Connection

    Multi Door Station Connection 4# Camera 3# Camera 2# Camera 1# Camera ID=11 ID=01 ID=10 ID=00 Monitors Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- Bus PL S2+ S1+ S1- DIP=on,off,off A B C D DBC-4S Impedance Switch...
  • Page 6 With DBC-4S Wiring Mode monitor monitor 3 4 5 6 3 4 5 6 Impedance OFF ON switch Code=15, DIP-6=on Code=14, DIP-6=on DIP=on,off,off monitor monitor 3 4 5 6 3 4 5 6 Code=12, DIP-6=on Code=13, DIP-6=on monitor monitor 3 4 5 6 3 4 5 6 Code=3, DIP-6=on Code=2, DIP-6=on...
  • Page 7 With DT-CAM wiring mode The audio door station DT595A can be extended an additional CCTV camera to be a video door station. For more details about the camera, please refer to DT-CAM user instructions. DT-CAM Monitor Bus PL S2+ S1+ S1- DT595A Electric Lock Connection Door Lock Controlled with Internal Power...
  • Page 8: Dip Switch Setting

    DIP Switch Setting The DIP switch is designed to set the code for door station and monitor, there are two states for each DIP switch, please refer to the following sketch map. ON(1) OFF(0) Door station DIP setting Total 3 bits can be configured, bit-1 and bit-2 are used to assign ID code for door station, bit-3 is used to match the video impedance.The switches can be modified either before or after installation.
  • Page 9: Specification

    Bit state User code Bit state User code Bit state User code code=0 code=6 code=11 3 4 5 3 4 5 3 4 5 code=1 code=7 code=12 3 4 5 3 4 5 3 4 5 code=2 code=8 code=13 3 4 5 3 4 5 3 4 5 code=3...
  • Page 10 Cable Requirements The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the maximum distance which the system can reach. The farest monitor monitor with two or four monitors monitor monitor DBC-4S -10- When Monitor quantity <...
  • Page 12 EVD2-10KIT The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
