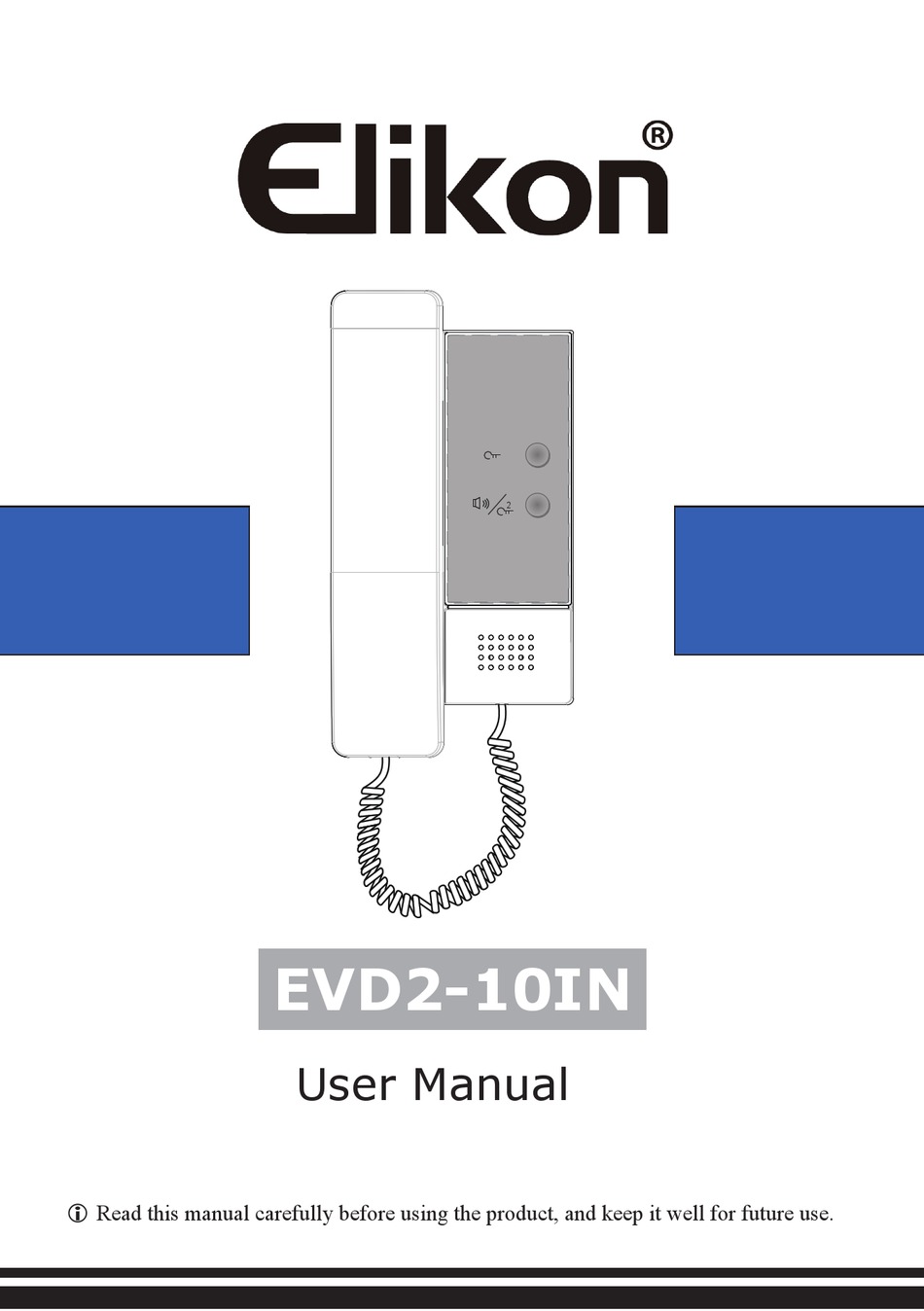

- Page 1 EVD2-10IN User Manual Read this manual carefully before using the product, and keep it well for future use. ...
- Page 3 EVD2-10IN 1. Parts and Functions Handset Unlock button Call button/Unlock 2nd button Speaker handset curve Side View Key functions Handset Pick up to communicate with visitor. Handset curve Connect handset with monitor. Unlock button Press to release the door. In standby mode, pick up handset, then press Call button to Call button/Unlock activate the inner call;...
- Page 4 EVD2-10IN 2. Terminal Descriptions SW+,SW- L1, L2 DIP2 DIP1 SW+,SW-:Door bell call button connection port. L1,L2:Bus terminal. K4:Used to Ring Tone setting. K3:Used to Ring Volume setting. DIP1(Bit1~6):Used to User Code setting. DIP2(Bit1~3):Used to Slave Monitor Address or Extended Address setting.
- Page 5 EVD2-10IN 4. Operation Instructions 1) Door release function: When visitor calls from outdoor station, the monitor rings, pick up handset to talk with the visitor, then press the Unlock button to open the door. If the system connect 2 locks,press Unlock 2nd button to open the second door.
- Page 6 EVD2-10IN Bit state User Code Bit state User Code Bit state User Code Code=6 Code=17 Code=28 3 4 5 3 4 5 3 4 5 Code=7 Code=18 Code=29 3 4 5 3 4 5 3 4 5 Code=8 Code=19 Code=30...
- Page 7 EVD2-10IN 5.2.2 When Bit-3 of DIP2 set to ON, the Bit-1~2 of DIP2 and Bit-1~5 of DIP1 are used to extended address setting: DIP2 state DIP1 state User Code DIP2 state DIP1 state User Code Code=1 Code=65 3 4 5...
- Page 8 EVD2-10IN 2). Pick up handset in standby mode, each time you press K4 to replace a group of ring tones. Four groups ring tones cycle: press K4 press K4 press K4 Group1 Group2 Group3 Group4. press K4 3). Put down handset to exit the setting.
