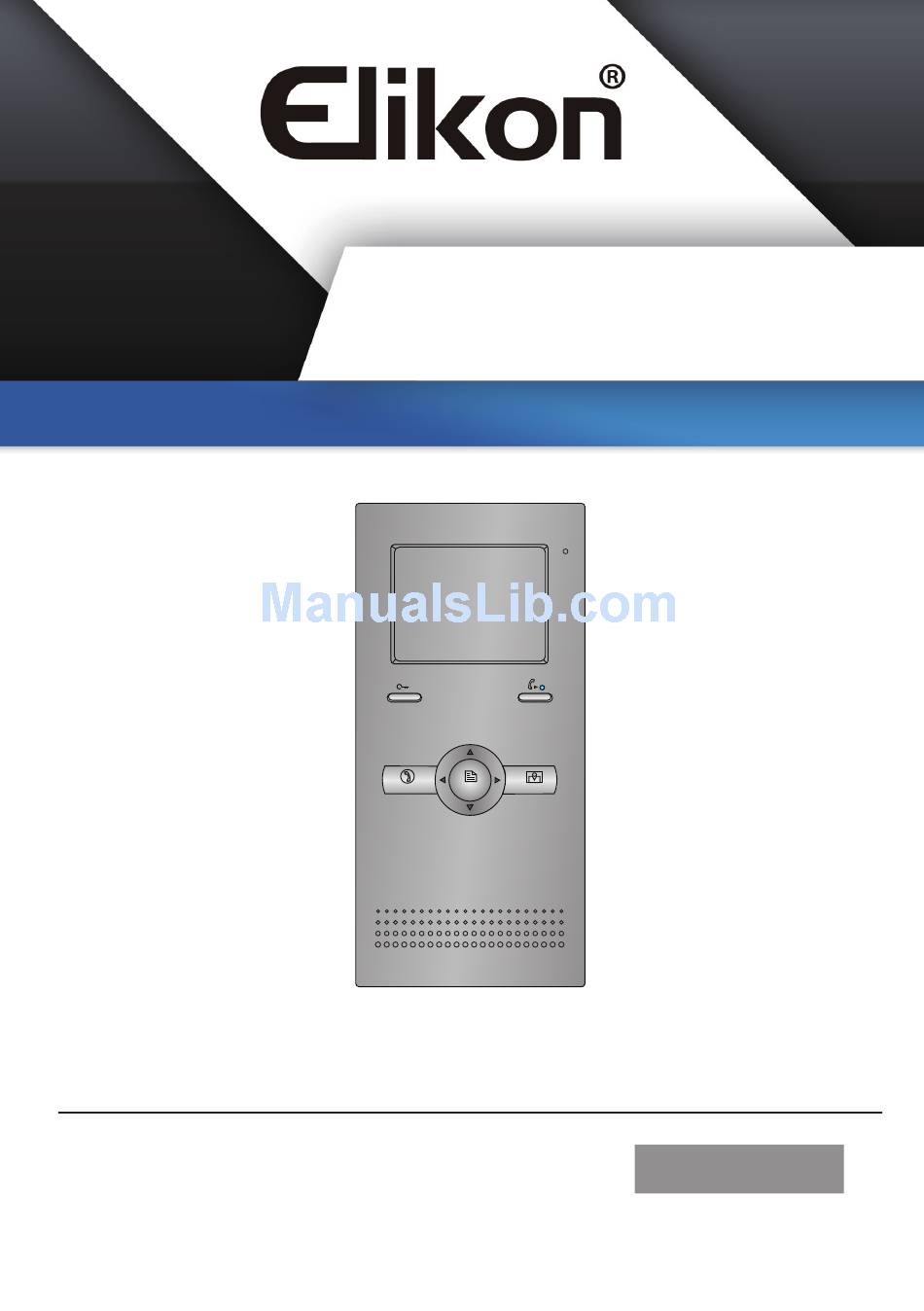

- Page 1 EVD2-30KIT 2-WIRE INTERCOM SYSTEM USER MANUAL TALK MONITOR MENU ENGLISH...
-
Page 2: Parts And Functions
1.Parts and Functions Microphone LCD Screen Mounting Hook LED Indicator UNLOCK Button CALL Button Connection Port Extend Port DIP Switches TALK Button MONITOR Button 1 2 3 4 5 6 TALK MENU MONITOR MENU Button Direction Button Speaker 2.Monitor Mounting 1. Use the screws to fix the Mounting Bracket on the mounting box.(fitting accesories includes a Bracket (Two pieces of 4X25 screws are needed for fastening the Mounting Bracket), Special 2 wire cables to connect with Monitor) -
Page 3: Basic Door Release Operation
3. Basic Door Release Operation , the Monitor 1. Press CALL button on outdoor station rings, at the same time, the screen displays the visitor image. 2. Press TALK Button on monitor, you can communicate hands free with the visitor for 90 seconds.After finishing communication,press "TALK" button again to end the communication. If nobody answers the phone, the screen will be turned off automatically after 40 seconds. 3. During talking state, Press UNLOCK Button to open the door for the visitor. 4. When the monitor is in standby mode, press MONITOR Button(or select Monitor item on main menu page), The screen will show the icon , if multi door stations are ▼ installed.press ▲ button to choose the first camera,the screen will display the image from the first door camera.Similarly, Press button to choose the second one,Press ▼ button to choose the third one, Press button to choose the fourth one. Press"MONITOR" button again to end monitoring. -
Page 4: Monitor Function
Inner Call : If multi Monitors are installed in the same apartment, select Inner Call, all the other Monitors will ring at the same time, whichever Monitor answers the call, conversation is started.and the other monitors will stop ringing at the same time.(note:the DIP switches setting of all monitors must be same. ) Call Guard unit : A Monitor can be assigned as Guard Unit Monitor; when the Guard Unit Monitor answers the call, conversation with the guard person is started. 5.Monitor Function When the monitor is in standby mode, press MENU Button to enter main menu page. Use / Button to Monitor > Monitor Doors > move left/right to select the item, then use ▲ / ▼ Monitor Cameras > Button to move upward / downward to select the item Monitor Time > you want, press MENU Button to enter. Monitor : Select it to monitor the view of outside. Monitor Doors :if multi door stations are installed, you can press Monitor Doors ,and then press the door 1/2/3/4 to monitor the door station or CCTV camera you want. Monitor Cameras :if the system connect 2 wire camera via camera controller, you can press Monitor Cameras, and then press the camera 1/2/3/4 to monitor the camera you want. - Page 5 1.Playback : Select it to play the videos/pictures recorded(or when the monitor is in standby mode, press CALL Button to enter the playback function). Note: the playback function will be activated only when the system connect SC6V module, otherwise, this function is unvalid in normal. For more information, please refer to SC6V user instruction in detail. 2.light :Select it to open the staircase light(or press staircase light button), the staircase light will be turned off automatically. Light Option Playback > Turn on Light > Turn on 5 Min Call Transfer > Turn off Exit Note: the staircase light function will be activated only when the system connect light via RT-SC6V/DT-RLC module, otherwise, this function is unvalid in normal. For more information, please refer to DT-SC6V/DT-RLC user instruction in detail. 3.Call Transfer :Select it and press MENU Button to enter the transfer mode.Use ▲ / ▼...
-
Page 6: Basic Setup Instructions
7.Basic Setup Instructions 7.1 How to Enter Main Menu Page Intercom Call > Press MENU Button in standby mode, press Inner Call > MENU Button, main menu page will be showed. Call Guard Unit > 7.2 Language Select Language item on setup page,then press MENU button to enter the language page, and then use ▲ / ▼ Button to move upward / downward to select the language you want. (There are 8 languages c an be chosen for you) 7.3 How to Enter User Setup Page Select item on main menu page to enter setup page,and then use ▲ / ▼ Button to move upward / downward to select the User Setup item, then press MENU Button to enter... -
Page 7: Monitor Parameter Setting
8. Monitor Parameter Setting 8.1 How to enter the installation setting page About Installer Setup Language > H/W : a1.2 User Setup > S/W : V01.01.01 [ 0000 ] About > Addr : 00.00 Video STD : AUTO Exit Exit 1.Select About item on 2.Press UNLOCK button 3.Use... - Page 8 TALK MONITOR TALK MONITOR TALK MONITOR TALK MONITOR MENU MENU MENU MENU 8.5 How to set the unlock parameter Unlock mode: There are two unlock modes: 1.power-on- to-unlock type:unlock mode=0(by default) 2.power-off-to-unlock type:unlock mode=1. The code number of 8010 is used to set the unlock mode to 0 The code number of 8011 is used to set the unlock mode to 1 Unlock time: The unlock time can be changed by yourself at any time.it can be set from 1 to 9 seconds. The code number from 8021 to 8029 are used to set the unlock time to 1~ 9 seconds. Unlock menu: The code of 8014 is used to open the unlock menu . The code of 8015 is used to close the unlock menu . Note: When you input code 8014 to open the unlosk menu, you can release two locks. At this mode, press...
-
Page 9: User Code Setup
8.6 User Code Setup • • • Bit state Setting Bit state Setting ON(1) OFF(0) Monitor not at Monitor at the end of the the end of line. the line. 1 2 3 4 5 1 2 3 4 5 Bit state User Code Bit state... -
Page 10: Basic Connection
9. Basic Connection door station TALK MONITOR MENU BUS(IM) BUS(DS) Doorbell Button 1 2 3 4 5 6 Switch 10.Screen and Volume Adjustment ADJUST MENU During monitoring or talking, press MENU Button,the will be displayed. Use / Button to select the adjustment item; use ▲ / ▼ Button to decrease / increase the value, press MENU Button to confirm 1. The third item is Scene mode selection: Total 4 DS-1 00:15 Normal, screen modes can be selected in sequence:... -
Page 11: Specifications
11. Specifications ● ● Power●supply●for●indoor●monitor:●● ● DC●20~28V● ● ● Power●consumption:● ●● Standby●7.51mA;●Working●status●155mA ● ● Monitor●screen:● ● 3.5●Inch●color●LCD ● ● Display●Resolutions:● ● 320(R,●G,●B)●x●240●pixels ● ● Video●signal:● ● 1Vp-p,●75Ω,●CCIR●standard ● ● Wiring:● ● 2●wires,●non-polarity ● ● Monitor●time:● ● 40●seconds ● ● Talking●time:● ●... - Page 12 TALK MONITOR MENU The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
