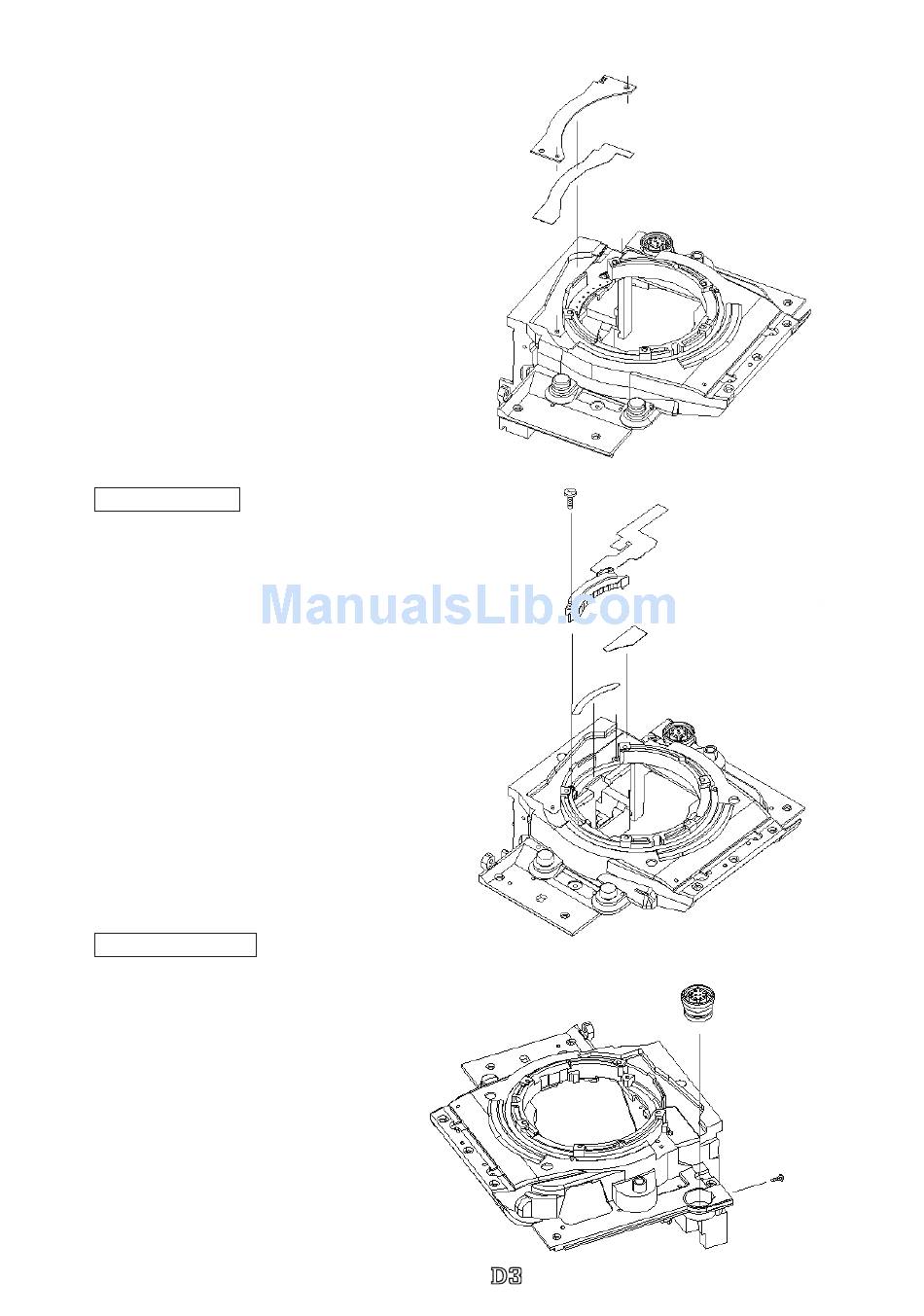

・Remove the F-F0 plate (#5046).
Lens contact unit
・Take out the screw (#1510).
・Remove the lens contacts unit (#B10411).
Remote connector
・Take out the screw (#47).
・Remove the remote connector (#41).
#5046
#409
#1510
#412
- Ｄ ･
-
logo Q0440 forGraphic
070518 Gdesign ito
INC
VBA18001-R.3719.A
#B10411
#408
#41
#47
