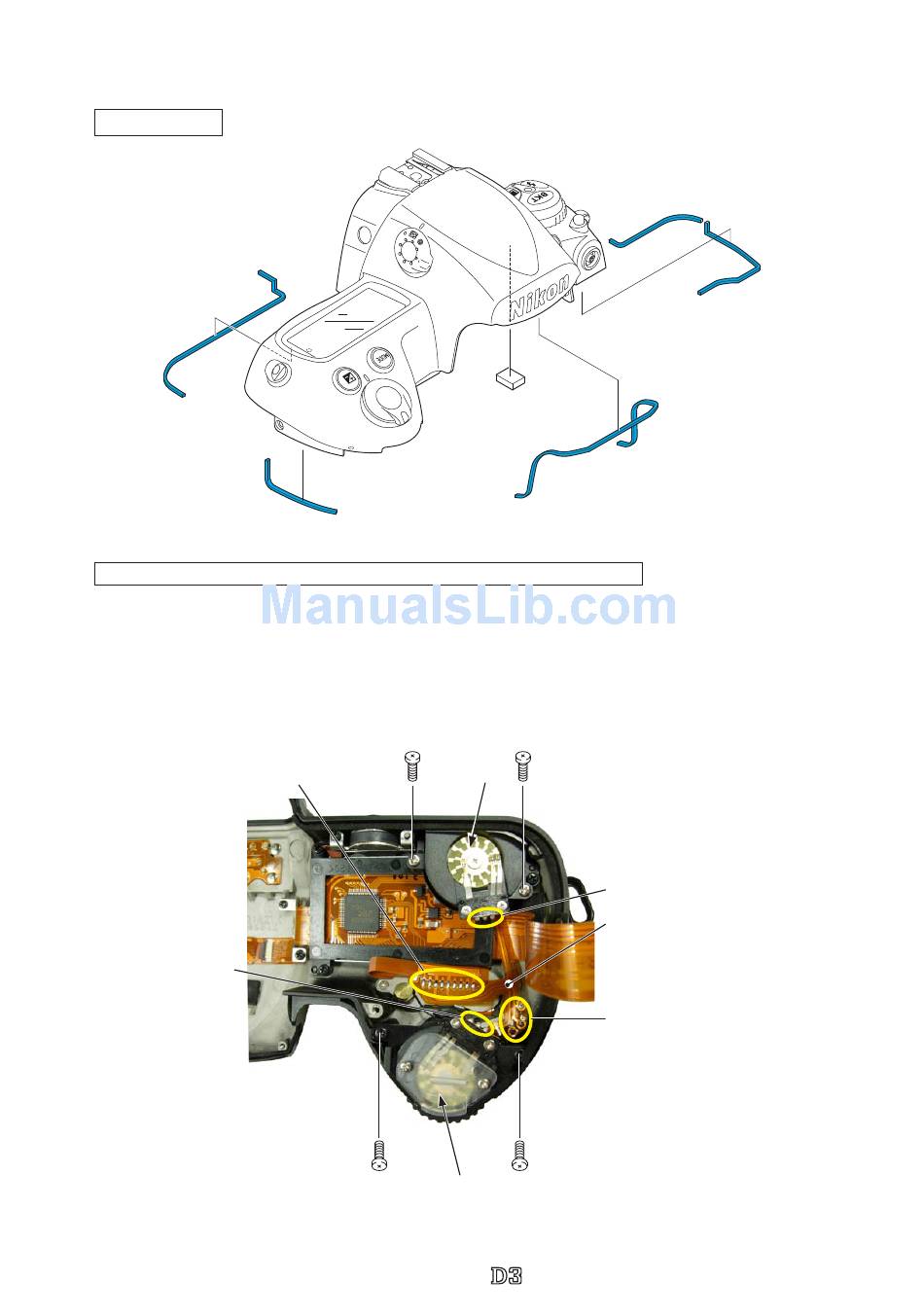

2.Top Cover

Sponge/Rubber
#984
Release-SW FPC / Main command dial unit / Sub-command dial unit
・Remove the three soldering bridges each at three places, and nine soldering bridges.
・Remove the release-SW FPC (#5044).
・Take out the two screws (#1569), and remove the sub-command dial unit (#B725).
・Take out the two screws (#1558), and remove the main command dial unit (#B726).
Soldering bridge×9
Soldering bridge×3
#1195
#985
Main
command
dial unit
(#B726)
Sub-command dial unit
(#B725)
- D  ・
logo Q0440 forGraphic
070518 Gdesign ito
#981
#983
#1558×2
Soldering bridge×3
Release-SW FPC (#5044)
Soldering bridge×3
#1569×2
-
INC
VBA18001-R.3719.A
#982
