Setting the Bus address

Communication within the system takes place via an
eBus. To ensure flawless communication between all the
components it is necessary to allocate a unique address
to the individual mixer circuit. To do this set the value 4,
6, 8, 10, 12 or 14 on the address switch (Fig. 5.3 (3)) de-
pending upon whether the VR 60 mixer module has al-
ready been integrated in the system.
Addresses 0 to 3 are used by the system circuits in the
auroMATIC 620 and VRC 630 controllers or the Vaillant
geoTHERM VW.. .../2 heat pump and are not therefore
available for addressing.
Assignment in the auroMATIC 620/
VRC 630
Addresses to be
set
Heating circuit a
4 HK 4
6 HK 6
8 HK 8
10 HK 10
12 HK 12
14 HK 14
Table 5.1 Bus addresses to be set
VFb AF
2 1 AF 0

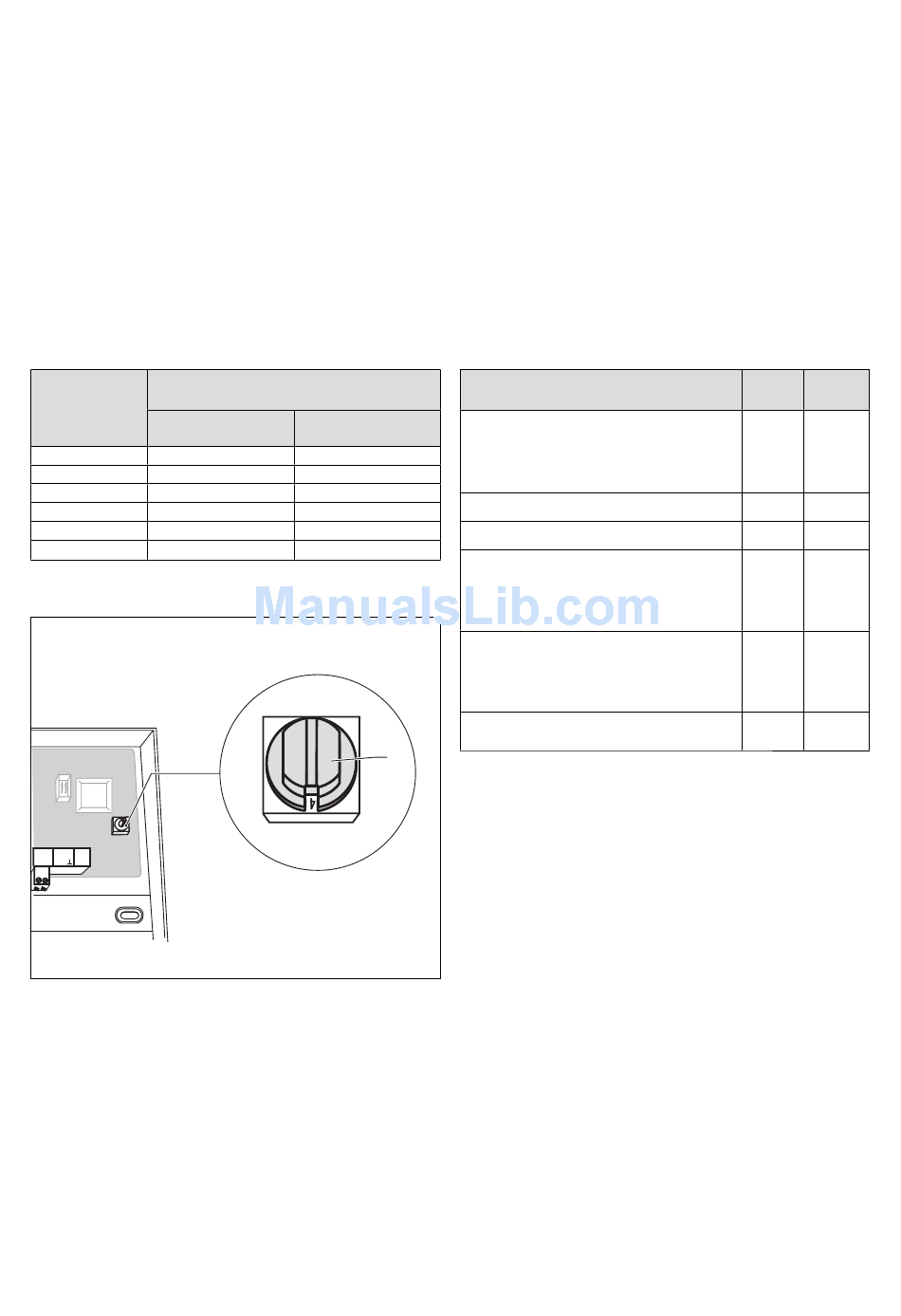

Fig. 5.3 Setting the bus address
After connecting the electrical installation:
• Fix all cables with the accompanying cable clamps
(Fig. 4.2 (2)).
• Insert the casing cover back into the hinges and hinge
the casing cover back up into position.
• Screw the casing cover in position in accordance with
Fig. 4.1.
Installation instructions Mixer module VR 60 0020020171_02
6
Starting up the VR 60 mixer module is carried out in
conjunction with starting up the auroMATIC 620 or
VRC 630 controller or the Vaillant geoTHERM VW.. .../2
heat pump. To do this, proceed in accordance with the
instructions in the manual for the
auroMATIC 620 or VRC 630 controller or the Vaillant
geoTHERM VW.. .../2 heat pump.
7
Operating voltage
Heating circuit b
Power consumption
HK 5
Contact load of the output relays (max.)
HK 7
Maximum total current
HK 9
Maximum permissible ambient temperature
HK 11
HK 13
Operating voltage sensor
HK 15
Minimum cross-section of the sensor cables,
eBUS cables
Minimum cross-section of power cable
(rigid cable, NYM)
Dimensions of wall mounting base
Height
Width
Depth
Level of protection
Protection rating for regulator
3
Table 7.1 Technical data
Electrical installation 5
Start-up
Technical data

Start-up 6

Technical data 7

Unit VR 60
V 230
VA 2
A 2
A 4
°C 40
V 5
mm2 0.75
mm 2 1.5
mm 174
mm 272
mm 52
IP 20
II
