4 Fitting

4 Fitting
The VR 60 mixer module should be mounted on the wall
in a suitable position close to the mixer circuits to be
controlled. Using the VR 60 mixer module, extension of
the heating installation by two mixer circuits is possible.
Up to a maximum of six mixer modules can be connect-
ed.
A unique bus address is set on the VR 60 mixer module
using the rotary switch. Setting the heating programmes
and all the required parameters is done via the
auroMATIC 620 or VRC 630 controller using the eBus or
the operating section of the Vaillant geoTHERM VW...2
heat pump. All heating circuit specific connections (sen-
sors, pumps) are made directly on the mixer module via
ProE connectors.
4.1

Scope of delivery

Before starting the installation, check the scope of deliv-
ery for completeness and lack of damage.
Pos. Amount Component
1 1 Mixer module VR 60
2 2 VR 10 standard sensor
3 1 eBus lead, 3 m long
Table 4.1 Scope of delivery of the mixer module VR 60
4.2

Accessories

VR 90 remote control device
For the first eight heating circuits (HK 1 ... HK 8) its own
remote control unit can be connected. It permits the ad-
justment of the method of operation and the target
room temperature and takes account of the room tem-
perature using the integrated room sensor.
It is also possible to adjust the parameters for the asso-
ciated heating circuit (time programme, heating curve
etc.) and to select the special functions (party etc.). In
addition, it is possible to call up the displays of heating
circuit and maintenance and faults on the boiler. Com-
munication with the heating control unit is via the eBus.
VR 80 remote control device
The VR 80 is a remote control unit for controlling a
heating circuit within a control system with an
auroMATIC 620 or VRC 630 controller or the Vaillant
geoTHERM VW.. .../2 heat pump. Regardless of whether
this remote control unit is used, all the settings for this
heating circuit are possible using the
auroMATIC 620 or VRC 630 controllers, or the operat-
ing section of the Vaillant geoTHERM VW.. .../2 heat
pump.
4.3

Assembling VR 60 mixer module

The connection rails of the mixer module VR 60 are of
the type System ProETechnik. All onsite connections
must be made using these rails.
4 4

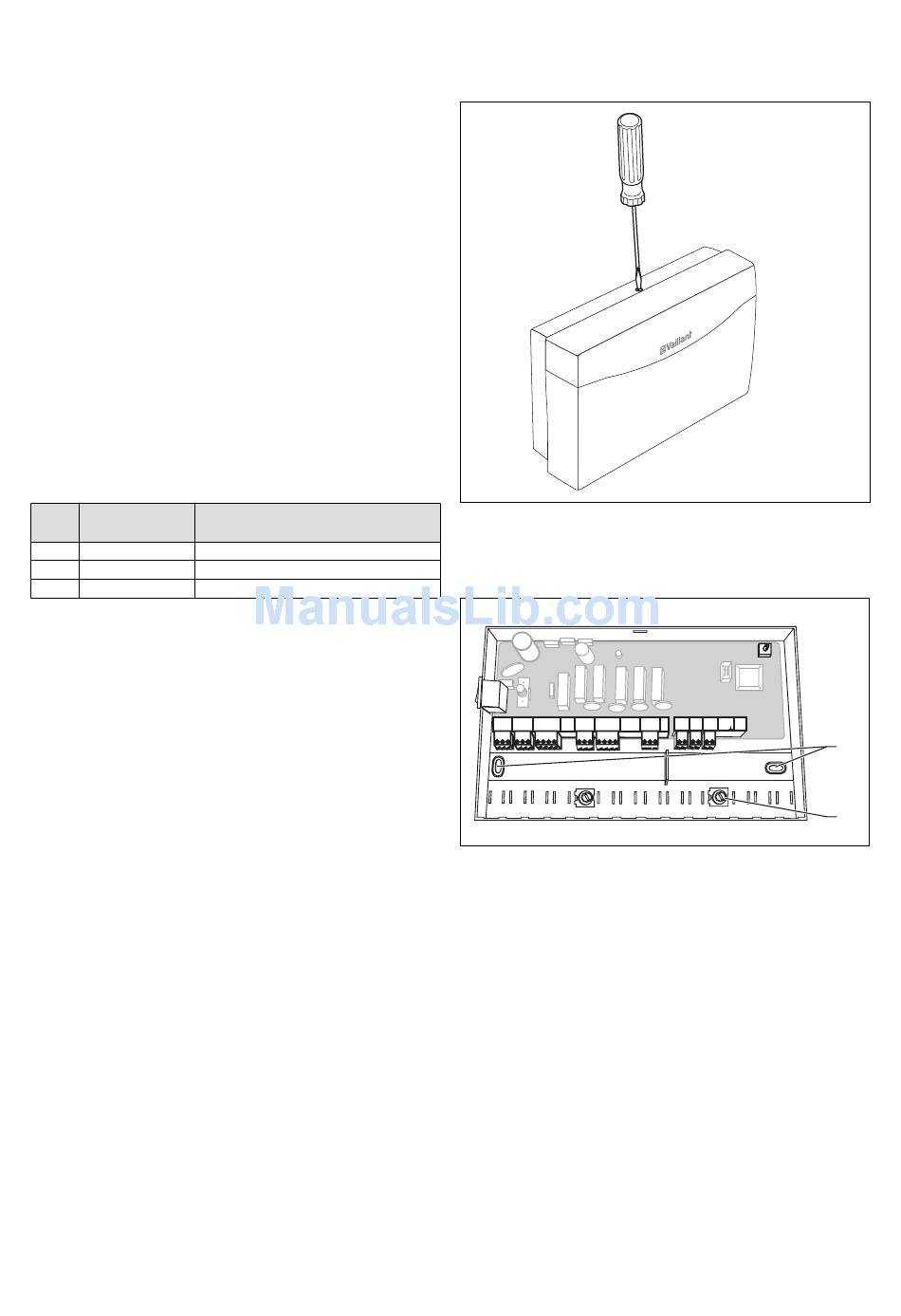

Fig. 4.1 Opening the casing
• Release the screw on the top of the casing.
• Tilt the casing cover forwards slightly and remove.
230 V~ 230 V~ HKa HKa-P HKb
PE N L PE N L PE N Auf Zu PE N L PE N Auf Zu
Fig. 4.2 Fitting the mixer module VR 60
• Mark the two fixing points at a suitable position in ac-
cordance with the fixing openings (1).
• Drill two holes for the suitable plugs and screw the
casing securely in position.
• The electrical installation is carried out as described in
Chapter 5.
• Insert the casing cover back into the hinges and hinge
the casing cover back up into position.
• Screw the casing cover in position in accordance with
Fig. 4.1.
Installation instructions Mixer module VR 60 0020020171_02
HKb-P BUS VFa VFb AF
PE N L + - 2 1 2 1 AF 0
1
2
