QSC AcousticCoverage AC-C6T User Manual page 3

Prepare Ceiling

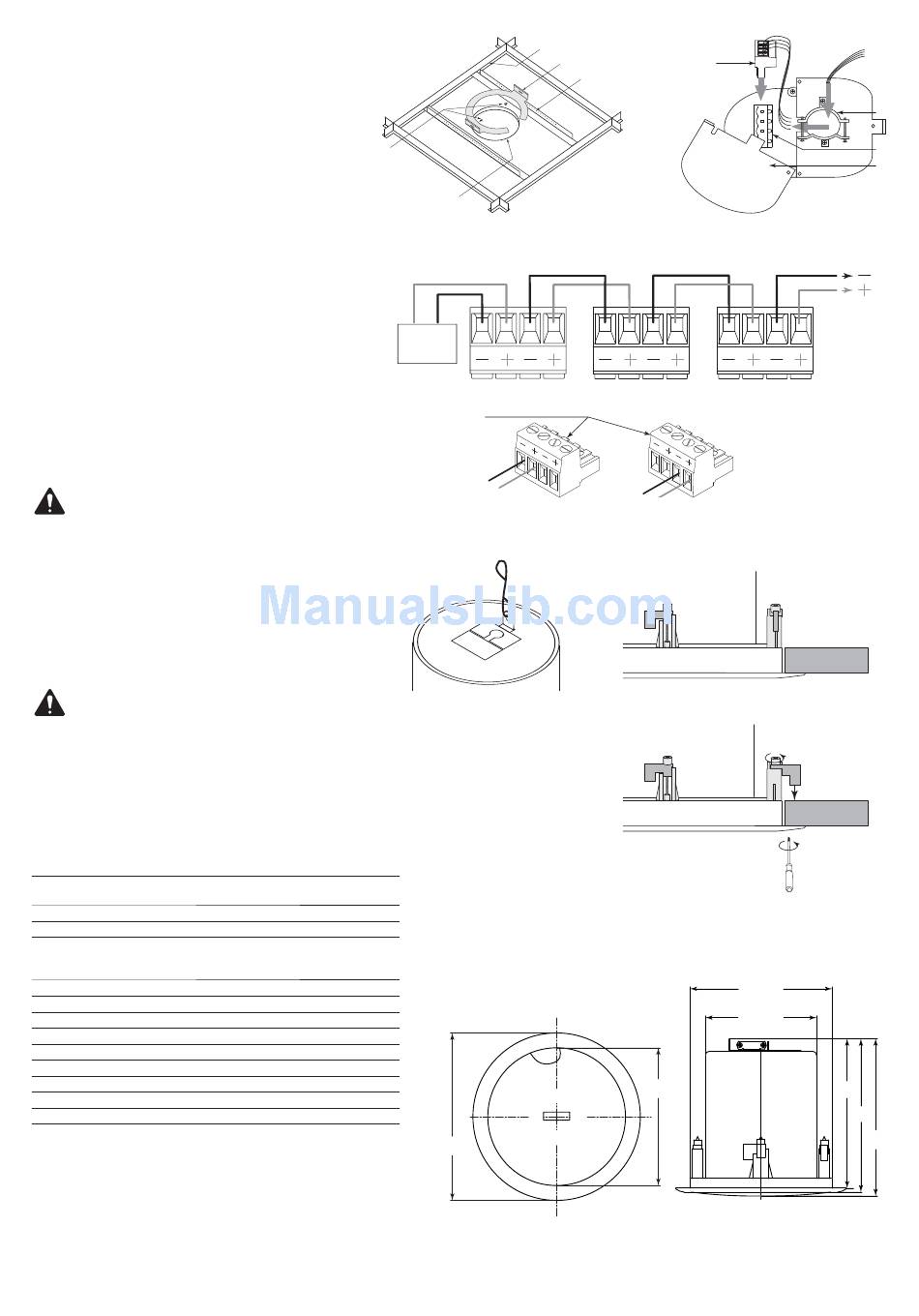

Refer to Figure 1.
1. Use the template provided to mark and cut a hole (1) in the ceiling where the
loudspeaker is to be installed. For frame-construction ceiling, skip to "Wire the
Loudspeakers".
2. Install two V-rails (2), one on each side of the hole, and supported by the
suspended-ceiling support rails (3).
3. Install the C-ring (4) over the hole, using the V-rails as support. Make sure the
clips on the C-ring are properly fi tted over the V-rail.
4. Use sheet-metal screws (5) to secure the C-ring to the V-rails.
Wire the Loudspeakers
Refer to Figure 2.
1. Pass the wires down through the conduit/stress-relief clamp. Leave enough wire for
making connections. Carefully tighten the clamp over the wires, or over the conduit if
it is used.
2. Wire the female Euro-style plug (1) as shown in
3. Plug the connector securely into the receptacle.
4. Slide the cover (4) over the connector and secure with the Phillips screw.
Seismic Safety
Refer to Figure 4.
1. Attach an appropriate safety line to the safety tab on the back of the connector cover,
and to an appropriate part of the structure.
WARNING!: Be sure to check and adhere to local building codes for
seismic requirements. If in doubt, consult an appropriate engineer.
Mount the Loudspeaker
Refer to Figure 5.
1. Make sure all of the dog-ears are up against the side of the metal loudspeaker housing.
2. Slide the Loudspeaker Housing up through the hole into the ceiling.
3. Use a Phillips screwdriver to tighten each of the four dog-ear screws. As you tighten the
screws, the dog-ears swing away from the housing and over the ceiling. Be sure all dog-
ears are properly positioned over the ceiling.
CAUTION!: Do not overtighten the dog-ear screws!
4. Use a fl at-tip screwdriver to set the transformer tap based on the requirements of the
installation.
5. Install the loudspeaker grill.
Specifi cations
AC-C6T Specifi cation
Transducer 152 mm [6 in.] Polypropylene cone with rubber surround
22 mm [0.86 in.] Silk dome tweeter, coaxially mounted
Rated noise power [rms] (1) 30 W
Nominal Impedance 8Ω
Transformer Taps 70V: 30, 15, 7.5, 3.75, 1.875 W
100V: 30, 15, 7.5, 3.75 W
8Ω Bypass
Effective frequency range (2) 65 Hz – 20 kHz
Rated coverage (3)
110° conical
Sensitivity (4) 89 dB
Maximum continuous SPL (5) 104 dB
Maximum peak SPL (5) 110 dB
Net weight 3.42 kg [8 lb]
Product dimensions (Diameter x Height) Ø 260 x 213 mm [Ø 10.24 x 8.4 in.]
Shipping weight 8.85 kg [20 lb] (pair packed)
Shipping dimensions (H x W x D) 305 x 619 x 305 mm [12 x 24.4 x 12 in.]
1 AES2-1984 noise signal for 2 Hrs, 8Ω
2 Half-space, -10 dB from on-axis sensitivity
3 -6 dB from on-axis, 500 Hz–5 kHz
4 Half-space, on-axis, 2.83V, 1 m
5 Calculated from rated noise voltage and sensitivity
TD-000473-00-A
5
Figure 3.
3
4
2
1
— Figure 1 —
Amp
Parallel Wiring Diagram
1
From
Source
— Figure 4 —
Ø 260 mm
[10.24"]
3
2
— Figure 2 —
To Additional
Loudspeakers
— Figure 3 —
1
Dog-ears against loudspeaker
2
Turn the screw clockwise to engage
the dog-ear with the ceiling.
— Figure 5 —
Ø 223 mm
[8.78"]
Ø 189 mm
[7.44"]
Ø 217 mm
[8.54"]
— Figure 6 —
1
3
4
To more
speakers
204 mm
[8.03"]
209 mm
[8.22"]
213 mm
[8.4"]
