Summary of Contents for Olsson CLUB FORTY

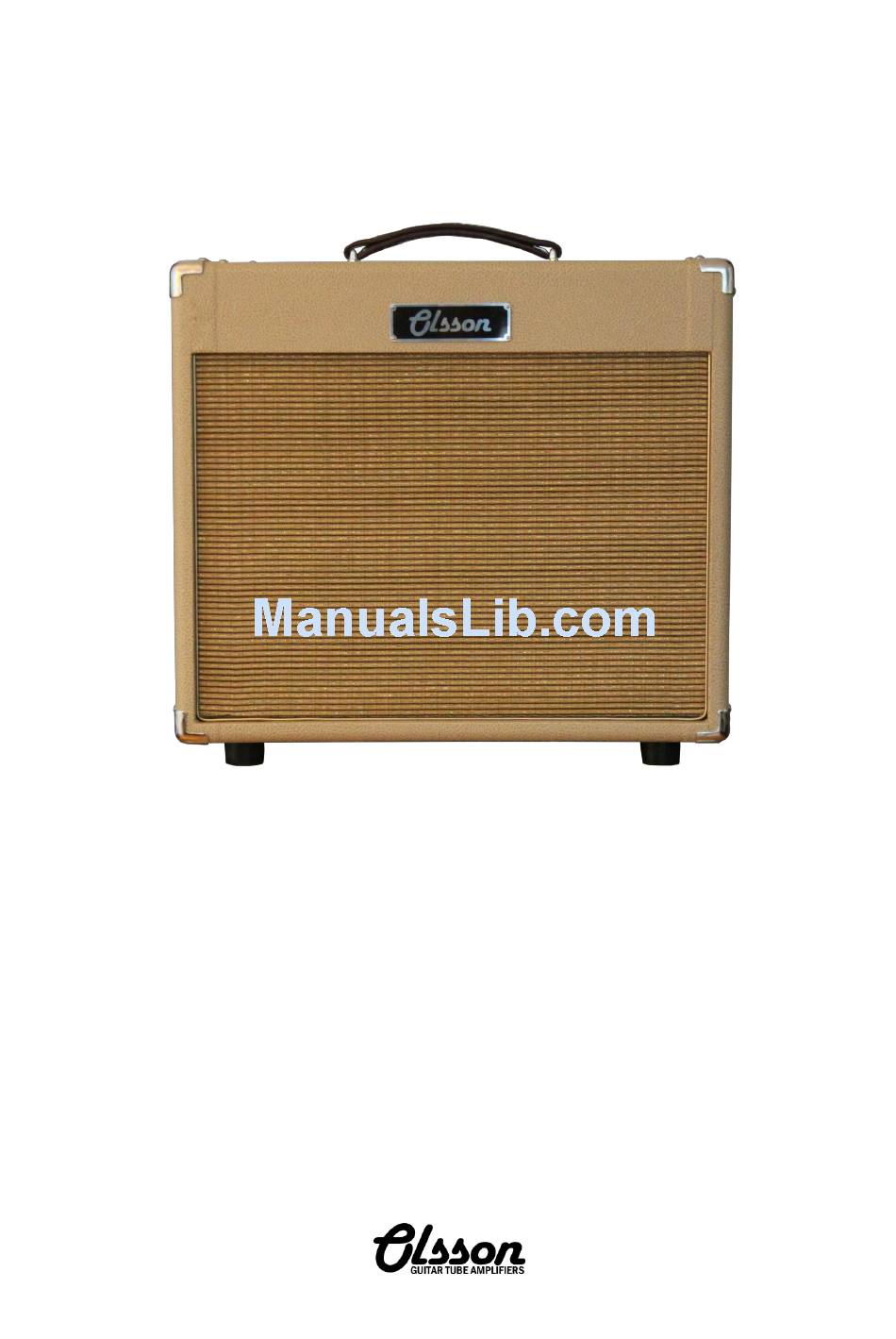

- Page 1 CLUB FORTY Owner’s Manual Olsson Amplifiers 2014 – www.olssonamps.se...
-
Page 2: Important Safety Instructions
CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only. Olsson amplifier and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting... - Page 3 Droppa eller stänk inte vätska på apparaten. Ställ heller inga föremål som innehåller vatten på den. VARSAMHET: Inga delar inuti apparaten kan repareras av användaren, anlita kvalificerad servicepersonal. Förstärkare och högtalarsystem från Olsson Amps kan producera höga ljudnivåer som kan orsaka temporära eller permanenta hörselskador. Var försiktig vid inställning och justering av ljudvolymen.
- Page 4 Club Forty Amp Club Forty is an all-tube hand-wired amp built to meet all modern requirements. The amp has dual channels and is designed to be loved by both single coil and humbucker players. The two channels have different voicing and can be mixed together with the volume controls. Due to the well balanced tone, you don't need anything but a tone control to tune in the sound you like.
-
Page 5: Getting Started
Club Forty 1x12” amp –select 8ohm for the internal speaker External 1x12” Olsson Club 40 speaker cabinet together with the internal speaker - select 4ohm D. FOOTSWITCH JACK – Connect the footswitch to this jack. VACUUM TUBES Replace tubes only with the same type and ratings as specified. -
Page 6: Control Panel
Control panel E. POWER SWITCH – Turns the amplifier on-off as indicated by the jewel unit. STANDBY – When the amplifier is on, Standby will mute all audio output from the amplifier. Use Standby during short breaks to avoid the tube warm up delay. Select Standby for the first 60 seconds when switching the amplifier ON to extend tube life. - Page 7 Different power tubes and rectifier type We deliver the amp with 6L6GC-STR power tubes from Tube Amp Doctor for the classic 6L6 tone and maximum lifetime. 6L6 tubes give you maximum headroom and the highest output power. If you like you can use EL34 instead of 6L6GC tubes.
- Page 8 A PRODUCT OF: OLSSON AMPS STOCKHOLM, SWEDEN 2014 – CLUB FORTY, OWNER’S MANUAL - VERSION 1.0, 050131007...
