Summary of Contents for Olsson The Spell Booster

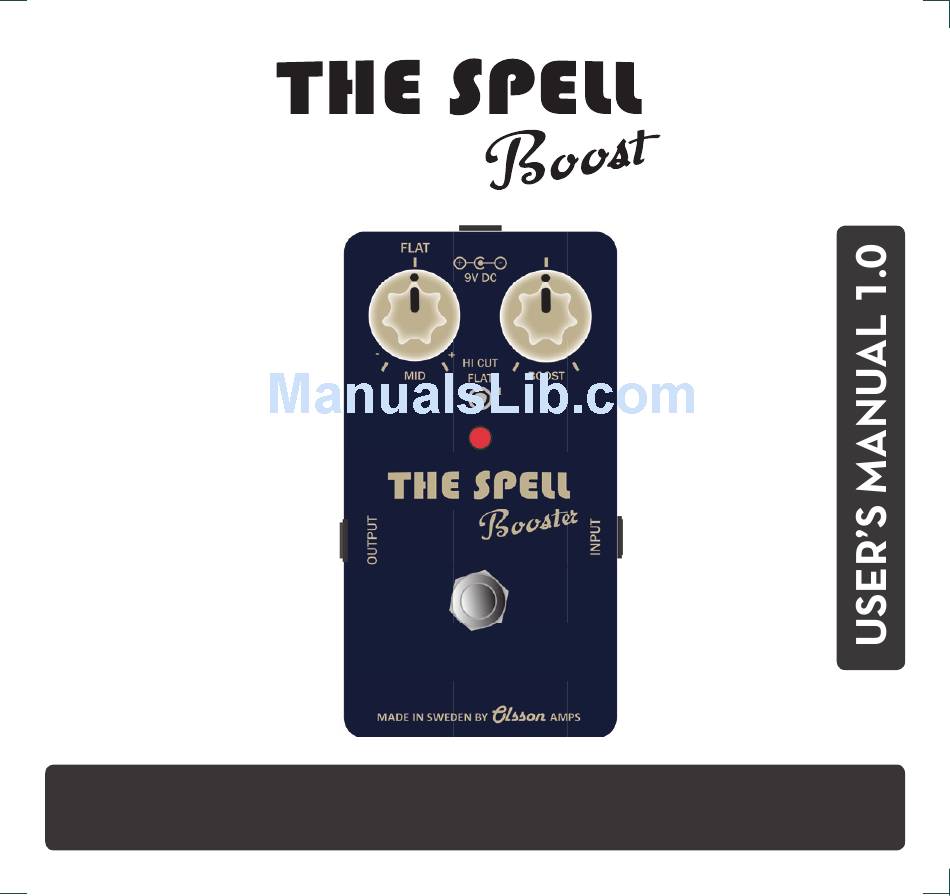

  • Page 1 O lsson...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 Congratulations on your purchase of ”The Spell Booster”, a transparent clean boost pedal with an special designed midrange control. As a clean boost, it can enhance other pedals, such as overdrive and distortion pedals. With it’s mid range and high cut controls you can refine the sound from a harsh pedal or you can get scooped midrange sounds from a non scooped amp.

  • Page 4: The Controls

    The controls Your The Spell Booster has three controls: The Boost knob adjusts the amount of boost from 0-22dB with the mid control in the FLAT position. The Mid knob controls the amount of mid range ( ±12dB). +12dB -12dB The High Cut switch has three positions 2-FLAT-1.
  • Page 5 Connecting Input jack - 1/4 inch mono jack input. If you run the pedal on battery, we recom- mend removing the input jack to preserve battery power when you don’t play. Output jack - 1/4 inch mono jack output for connecting to another pedal or directly into an amp or mixer.

  • Page 6: Specifications

    69mm x 46mm x 112mm / 2.72” x 1.81” x 4.41” Weight excl. battery and 225g / 7.93 lbs packaging Due to continuous development, these specifications are subject to change without notice. EU regulations Olsson Amps follows the regulations and directives issued by EU.

  • Page 7: Warranty Conditions

    Warranty conditions Olsson Amps offers a 3-year warranty on all our pedal products. In the unlikely event of a malfunction, please contact our technical support at service@olssonamps.com before sending us the product for repair. After send- ing us the product at senders cost, we will repair the product and return it back to you as soon as possible.
  • Page 8 Pedal chain order 1 When used after another pedal, the Spell will increase the volume proportionally with the boost and/or mid control. In this scenario you can also use The Spell to change the tone produced by the pedal in front of it. Use the Hi Cut to make this pedal less harsh and the Mid control to adjust its mid range response.

  • Page 9: Unity Gain

    1. Unity gain With this setting you will have unity gain and a clean tone. 2. Just boost Keep the Mid and High Cut in the flat positions and increase the boost control to desired level.

  • Page 10: Mid Boost

    3. Mid boost Increase the Mid control and adjust the boost control to desired level. 4. Mid scoop Decrease the Mid control and adjust the boost control to desired level. Note that you must increase the boost control a bit to get unity gain.
  • Page 11 5. Fix a harsh pedal with to much mid PlaceThe Spell after the harsh pedal. Decrease the mid control and set High Cut to position 2. This will reduce the mid a bit and reduce the harsh sound. 6. Fix a harsh pedal with not enough mid Place The Spell after the harsh pedal.
  • Page 12 About Olsson Amps Based in Stockholm, Sweden, Olsson Amps makes guitar tube amplifiers and effect pedals with highest quality and killer tone. All products are hand made in Sweden. O lsson Olsson Amps Sweden 2016 www.olssonamps.com...
