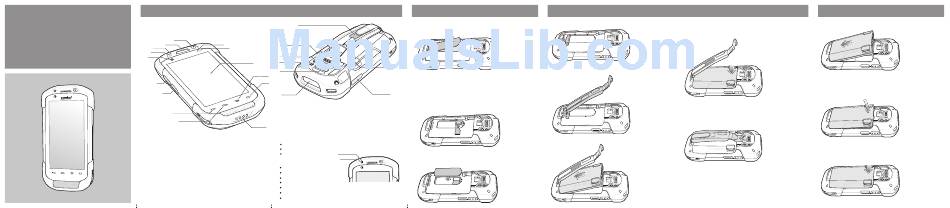

Symbol TC70 Quick Start Manual

FEATURES
TC70
QUICK START
Note: Remove protective shipping film that covers the touch screen, exit
window and camera window before using.
GUIDE
11
12
13
14
15
1
2
3
4
1 PTT Button (programmable)
2 Scan Button
3 Back Button
4 Home Button
5 Power Input
6 Search Button
7 Menu Button
Note 1: To reset the TC70, press and hold the Power button until the menu
appears and then select Reset.
23
10
16
9
17
18
8
22
19
7
6
20
16 Hand Strap Mounting Point 20 Exit Window
17 Camera Flash
21 Volume Button
18 Rear-facing Camera
22 Battery Release Latch
19 Interface Connector
23 Hand Strap
5
Notifications
8 Touch Screen
Data Capture LED:
9 Light Sensor
Green: Good Decode
Red: Data capture in process
10 Proximity Sensor
Charging/Notification
Blue: Application notification
11 Power Button
Data Capture
12 Receiver
Charging\Notification LED:
13 Charging/Notification LED
Slow blinking amber: Battery charging
14 Data Capture LED
Solid green: Fully charged
15 Front-facing Camera
Fast blinking amber: Charging error
Slow blinking red: Charging aged battery
Solid red: Fully charged aged battery
Fast blinking red: Charging error aged battery
Slow blinking blue: Application notification
HANDSTRAP AND BATTERY INSTALLATION
CARD INSTALLATION
MicroSD Card Installation (Optional)
1. Remove hand strap filler plate.
1. Lift the access door.
2. Insert the hand strap plate into the handstrap slot.
2. Insert the microSD card into the card holder. Push the card all the way into the
card holder.
NOTE :
21 Proper position of the microSD card — the card connector (i.e., gold contacts) should
be facing down.
3. Insert the bottom of the battery into the battery compartment.
3. Replace the access door. Ensure that it is properly seated.
4. Rotate the battery down into the battery compartment and press the battery
down until it snaps into position.
2
5. Place the hand strap clip into the hand strap attachment slot and pull down to lock into
place.
3
6. Lift the hand strap ribbon off the hook material.
4
7. Slide the pad and adjust the ribbon for best fit.
8. Press the ribbon down to secure to hand strap.
BATTERY INSTALLATION BATTERY INSTALLATION
1. Insert the bottom of the battery into the battery compartment.
2. Rotate the battery down into the battery compartment.
3. Press the battery down until it snaps into position.
