EnGenius ESR-1221Ext Quick Start Manual

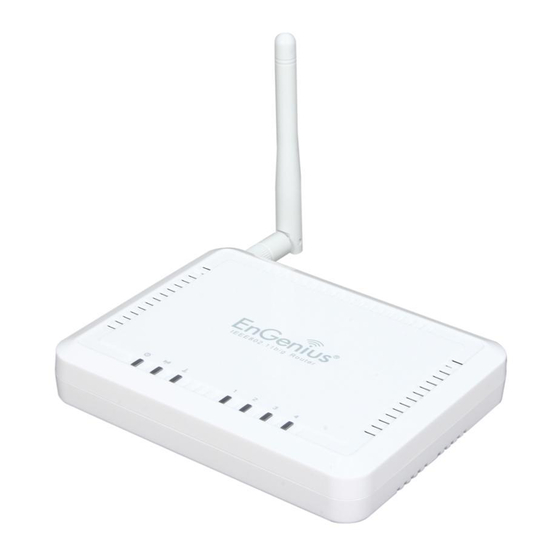

ESR-1221Ext Wireless Broadband Router
Quick Start Guide
------------------------------------------------------------------------------------------------------------------------------------------------
Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. Then, the router
automatically enters the self-test phase. During self-test phase, Power LED will blink briefly, and then will be
lit continuously to indicate that this product is in normal operation.
CHECK

A standard CD-ROM drive

Internet connection should be setup & ready to use (ADSL or cable modem).

Modem must provide RJ45 port to connect with ESR-1221Ext.

Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter

CAT 5 network cable(s), RJ45 port on PC/Notebook.
STEP 1
Connect ESR-1221Ext WAN port & your modem WAN port with RJ45 cable.
STEP 2
Power up ESR-1221Ext.POWER led on front panel lights up & remains stable.
STEP 3
Connect ESR-1221Ext LAN port & PC/Notebook RJ45 port with network cable.
STEP 4

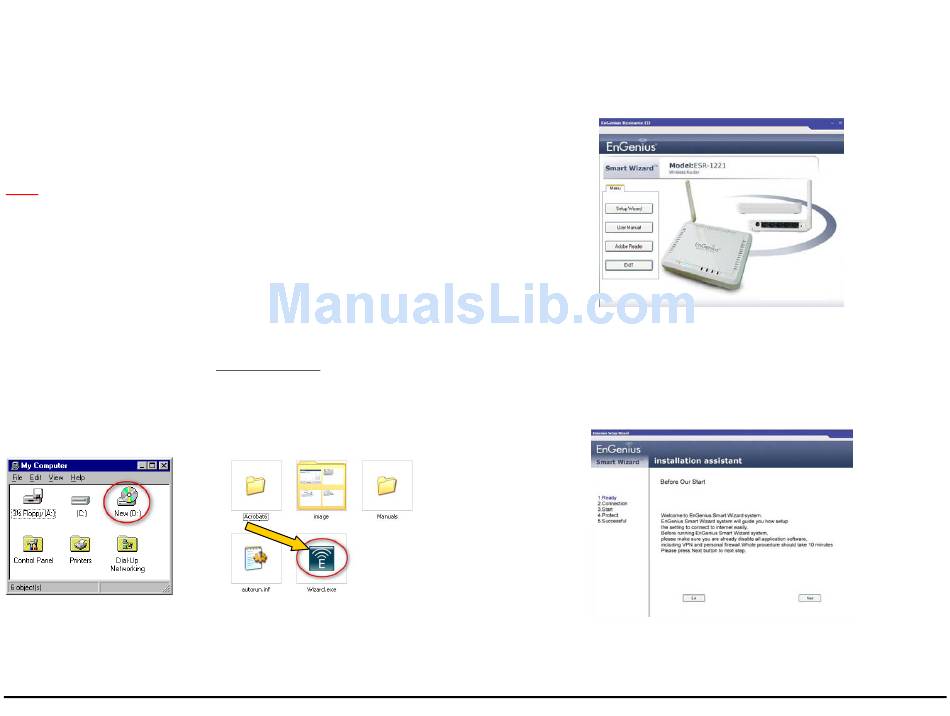

Insert Wizard CD into your CD-ROM drive and browse it with Windows Explorer.
Quick Start Guide – ESR-1221EXT Wireless Broadband Router.
Click on "Wizard.exe" to activate SMART WIZARD.
Step 5
Click on [Setup Wizard] and follow the instruction given on the screen to complete the initial device
configuration.
Step 6
Click Next to Proceed with the wizard on the connection of the router.
