EnGenius ESR-1221EXT Quick Start Manual

EnGenius Quick Start Guide
T
he ESR-1221
seamlessly in the 2.4 GHz frequency spectrum supporting the
802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11g
(2.4GHz, 54Mbpswireless standard. High output power and high
sensitivity can extend range and coverage to reduce the roaming
between APs to get more stability wireless connection. It also can
reduce the expense of equipment in the same environment. To
protect your wireless connectivity, this device can encrypt all
wireless transmissions through 64/128-bit WEP data encryption
and also supports WPA2/WPA/802.1x for powerful security
authentication. The MAC addresses filter let you select exactly
which stations should have access to your network.

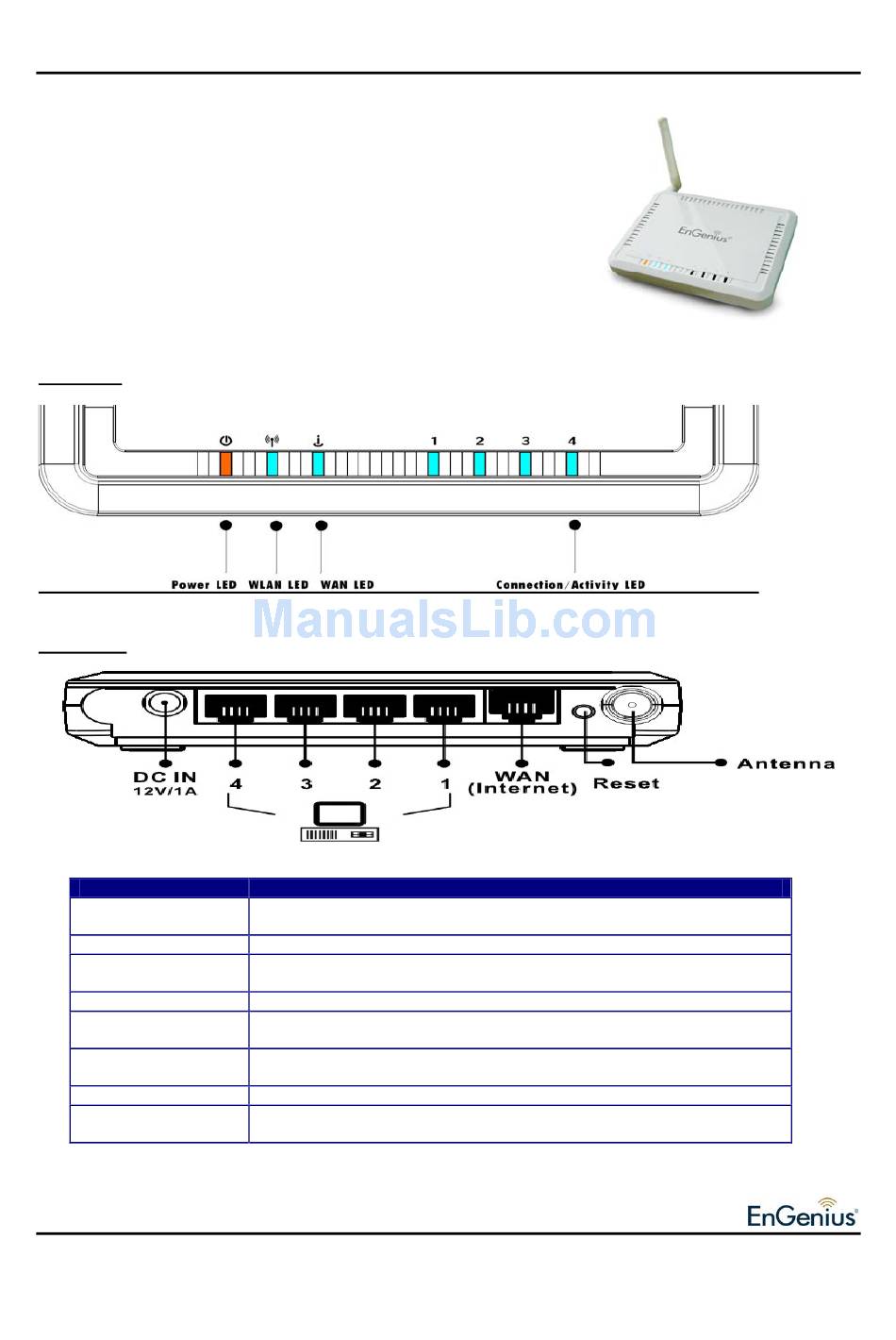

Top Panel
Real Panel
Label
LAN Ports (1 – 4)
WAN Port
DC Connector
Antenna Connector
Connection / Activity
LED
WAN LED
WLAN LED
Power LED
Quick Start Guide v.1.0
Please refer to the User's Manual in the CD-ROM for complete instructions.
Wireless Broadband
Use an Ethernet cable to connect each port to a computer on your Local
Area Network (LAN).
Use an Ethernet cable to connect this port to your WAN router.
Use the power cable and connect the adapter to the power socket on the
wall, and the DC inlet into the DC connector.
Connect the omni-directional antenna to the SMA connector.
This LED will light up once an Ethernet cable is connected to one of the
LAN ports.
This LED will light up once an Ethernet cable is connected to WAN
(Internet) port.
This LED will light up once the RF (wireless LAN) feature is enabled
This LED will light up once the power cable is connected to the DC
connector.
ESR-1221 Wireless Broadband Router
ESR-1221 Wireless Broadband Router
Router operates
Description
1
