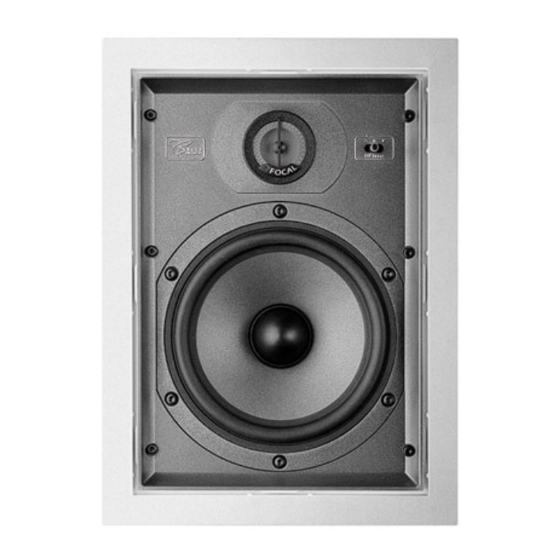

Thank you for choosing Focal-JMlab
Caché 200 loudspeakers. Benefiting from
over 20 years of experience in the
loudspeaker and drive units markets,
the Caché 200 products incorporate
many unique Focal-JMlab technologies.
The cone membranes of the drive units
employed use our Polyglass technology:
hollow microspheres of glass are deposited
onto the cone surface to give a natural
timbre free from coloration.
Combining precision, transient speed
and smoothness the inverted dome tweeter,
with its unrivalled mechanical coupling
between voice coil and dome, uses the latest
generation Tioxid 5 surface treatment to
optimise damping.
Perhaps most importantly of all,
in respect to the Caché 200 products,
is the unique Focal-JMlab wall boost equalization circuit. This equalization corrects the upper bass
boost resulting from in-wall placement that would otherwise cause an effect called "masking". By
correcting this effect, a deep tuneful bass and uncoloured upper bass are resolved.
Caution
To ensure optimal performance from your Caché 200 loudspeakers, we highly recommend that
installation is carried out by a professional. They will be able to advise on the best placement within
your listening environment and adjust your system to achive the highest possible sound quality.
Unpacking
The carton opens from the side where the handle is positioned.
Included inside:
• 1 x Caché 200 loudspeaker
• 1 x removable metal grille in wich a removable driver mask is located
• 1 x wall cut-out template
• 1 x protective mask for use when painting the grille
• 1 x 3mm hexagonal key
Inverted Tioxid 5 Focal dome tweeter
Reinforced ABS frame
T
F
HE
OCAL
APPLIES IF PAGE
10
WITHIN
User manual
-JM
LAB
GUARANTEE
11
IS RETURNED TO US
.
DAYS OF PURCHASE
Focal Polyglass cone
ONLY
Advertisement
Table of Contents
Related Manuals for Focal Cache 200 series
Summary of Contents for Focal Cache 200 series
-
Page 1: User Manual
Perhaps most importantly of all, in respect to the Caché 200 products, is the unique Focal-JMlab wall boost equalization circuit. This equalization corrects the upper bass boost resulting from in-wall placement that would otherwise cause an effect called "masking". By correcting this effect, a deep tuneful bass and uncoloured upper bass are resolved. - Page 2 User manual Positioning Your Caché 200 loudspeakers use an exclusive filtering process known as OPC (Optimum Phase Crossover) guaranteeing a perfect stereo image and outstanding sound definition. Additionally, in order to reduce the "wall effect" inherent to any built in speaker, we have developed a wall boost equalization circuit which corrects this phenomenon and makes it easier to position your speakers to suit your preferences.
-
Page 3: Home Theater Configuration
User manual Home theater configuration The performance of a home theater system is determined by its location and set-up. In a well installed and set-up system sound effects should follow the screen action to give a convincing impression of "being there". To achieve this, you should observe the location diagram as shown in figure 2.3: a - use of in-wall speakers for the surround effects sound b - use of in-ceiling speakers for the surround effects sound Figure 2.3: Example of home cinema configuration... -
Page 4: Installation
User manual Installation 1. This should be carried out after all of the cables have been fitted. We recommend that you use a marked cable in order to conserve the polarity of the speakers (+/-). 2. Existing construction: Cut the dry wall using the template supplied (please see diagram). Be sure to check that this is perfectly vertical using a spirit level before you begin cutting. -
Page 5: Conditions Of Guarantee
T e l . 0 0 3 3 4 7 7 4 3 5 7 0 0 - F a x 0 0 3 3 4 7 7 3 7 6 5 8 7 - w w w . f o c a l - f r . c o m Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product. ©Focal-JMlab-SC-021021/1... -
Page 6: International Guarantee
Record player: CD player: Cassette - D.A.T.: Amp. - Preamp.: Tuner: Other elements: Your decision for purchasing this Focal-JMlab model was made according to: Dealer’s advice Friend’s advice Visit to an exhibition, show Press article Listening in auditorium Already own Focal-JMlab products...
