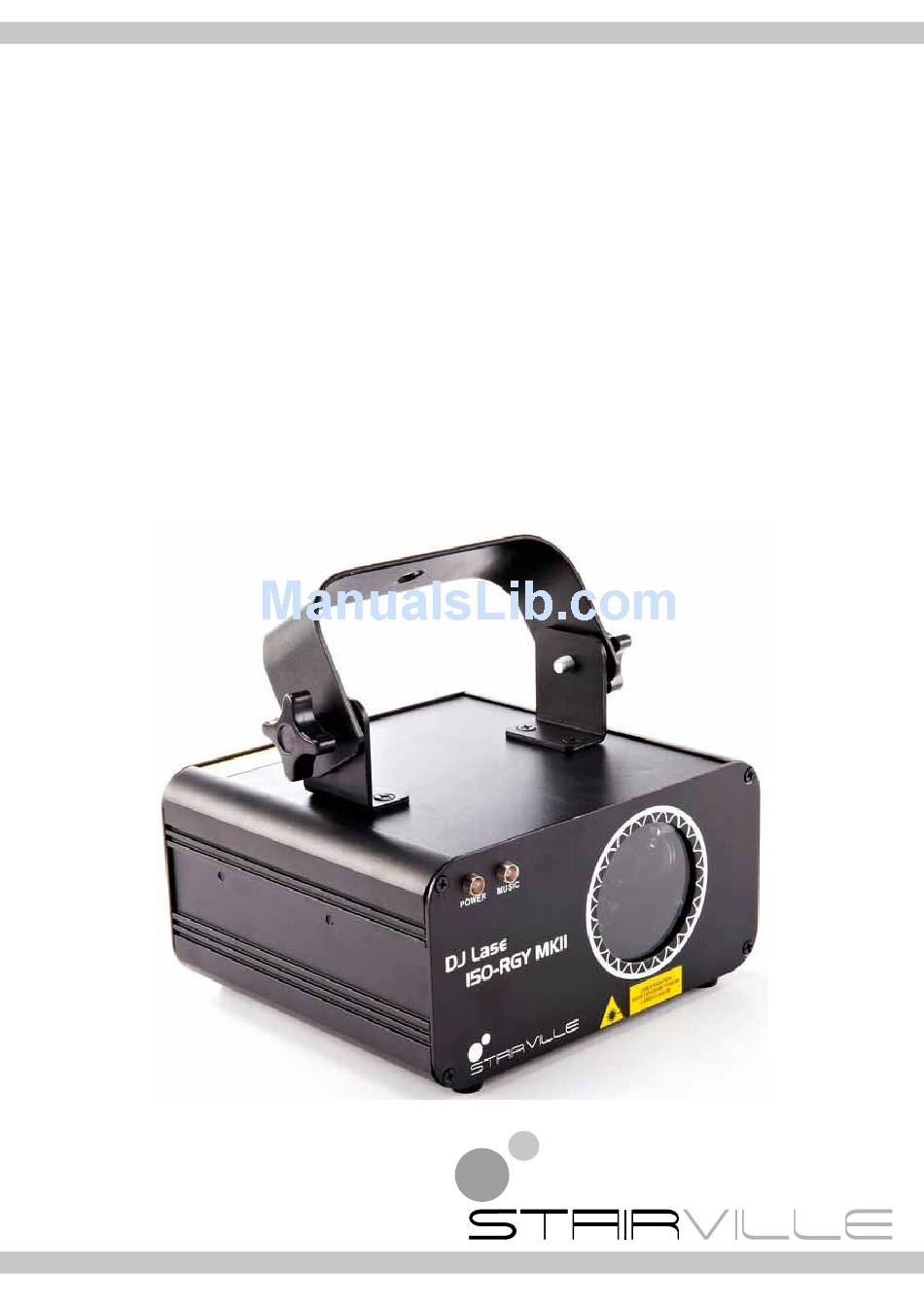

- Page 1 ‘ wner anual DJ l DJ l 150-rGY MKII...
-
Page 2: Table Of Contents
The device does not work, no light and the fan does not work ..........14 No response to the DMX controller ..................14 Cleaning ............................14 Technical data ...........................15 Protecting the environment .......................15 Disposal of the packaging material ..................15 Disposal of your old device ...................... 15 DJ Lase 150-RGY MKII... -
Page 3: General Notes On Safety
General notes on safety Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec- tric shock, fire or serious injury. Save all warnings and instructions for future reference. DANGER Electric shock caused by high voltages inside! Within the unit there are areas where high voltages may be present. -
Page 4: Laser Safety
Laser radiation – fire hazard! Keep the laser area free of flammable objects. Intended use This device has been designed for show applications only. Any compensation claims caused by inappropriate or unintended use are always excluded. DJ Lase 150-RGY MKII... -
Page 5: Installation
Installation DANGER Laser radiation! During installation follow the instructions specified in section “Laser safety” on page 4. DANGER When using additional components! Additional components can cause dangerous laser beam diffusion when they are not properly connected. Notice Safety switch required! We strongly recommend to install a remote manual safety switch to the device. -
Page 6: Setup
Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. DJ Lase 150-RGY MKII... -
Page 7: Components And Functions
Components and functions Front side ö POWER MUSIC DJ Lase 150-RGY MKII LASER RADIATION AVOID EXPOSURE TO BEAM LASER CLASS 3B POWER: Shows that the device is turned on ö MUSIC: Shows that a sound or music signal is being detected Laser aperture www.thomann.de... -
Page 8: Rear Side
FUNC: Opens the main menu UP: Increases the displayed value by one DOWN: Decreases the displayed value by one ENTER: Chooses between the options of the selected mode MIC: Microphone used for the sound mode Display OUTPUT: DMX output DJ Lase 150-RGY MKII... -
Page 9: Operation
Operation Start the device Perform the following steps to start the operation: 1. Verify that all required laser safety precautions have been taken. Make sure that there is no one in the reach of the laser beam. 2. Insert the safety key (8) and turn it to the “OFF” position. 3. -
Page 10: Self Test Mode
1. Turn the safety key (8) to the “OFF” position to turn the laser beam off and remove the key. Keep the safety key under control. 2. Using the main switch (4) turn the device off. 3. Optionally, disconnect the device from the mains (6). DJ Lase 150-RGY MKII... -
Page 11: Functions In Dmx Mode
Functions in DMX mode Channel Value Function Mode selection 0…29 Auto show, red+green+yellow 30…59 Auto show, green 60…89 Auto show, red 90…119 Auto show, yellow 120…149 Sound-controlled show, red+green+yellow 150…179 Sound-controlled show, green 180…209 Sound-controlled show, red 210…239 Sound-controlled show, yellow 240…255 DMX mode;... -
Page 12: Pattern List
Pattern list 0…7 64…71 128…135 190…197 8…15 72…79 136…143 198…205 16…23 80…87 144…151 206…213 24…31 88…95 152…159 214…221 32…39 96…103 160…167 222…229 40…47 104…111 168…175 230…237 48…55 132…119 176…181 238…245 56…63 140…127 182…189 246…255 DJ Lase 150-RGY MKII... -
Page 13: Menu Diagram
Menu diagram Auto show mode Auto show, yellow Auto show, red Auto show, green Auto show, red+green+yellow Sound-controlled show, yellow Sound-controlled show, red Sound-controlled show, green Sound-controlled show, red+green+yellow Sound sensitivity DMX mode Master/slave mode Self test www.thomann.de... -
Page 14: Troubleshooting
• Clean with soft cloth using normal glass cleaning fluid. • Always dry the parts carefully. • Clean the external optics at least every 20 days. DJ Lase 150-RGY MKII... -
Page 15: Technical Data
Technical data The laser emission values shown in the following table were measured according to the IEC measurement conditions for the classification. Laser medium Green: 532 nm, Nd: YVO4 DPSS Red: 650 nm, LD Laser power Green: > 40 mW Red: >... - Page 16 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
