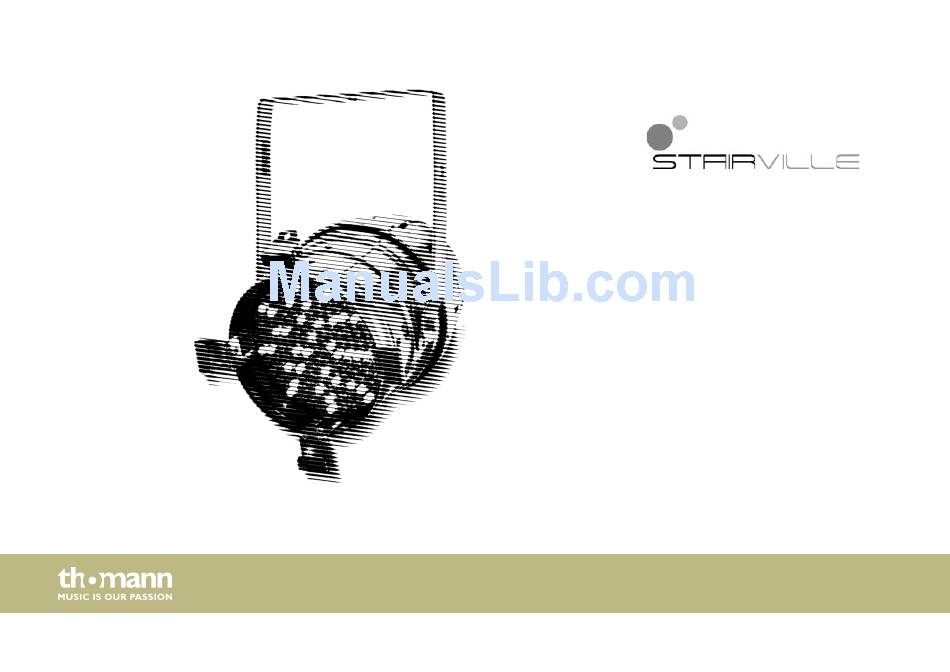

- Page 1 PAR64 MKII RGBW LED PAR user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 03.11.2015, ID: 274650...
-
Page 3: Table Of Contents
7.1 Starting up the device........................23 7.2 Main menu............................23 7.3 Menu overview..........................30 7.4 Functions in 4-channel DMX mode................... 31 7.5 Functions in 6-channel DMX mode................... 31 7.6 Functions in 8-channel DMX mode................... 33 Troubleshooting............................35 PAR64 MKII RGBW... - Page 4 Table of contents Cleaning............................... 37 Technical specifications........................38 Protecting the environment......................39 LED PAR...
-
Page 5: General Notes
Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice. Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. PAR64 MKII RGBW... - Page 6 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 7 General notes Warning signs Type of danger Warning – danger zone. PAR64 MKII RGBW...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. - Page 9 Never let children unattended use electrical devices. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. PAR64 MKII RGBW...
- Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
- Page 11 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. PAR64 MKII RGBW...
- Page 12 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 13: Features
168 × 10 mm LEDs (42 × white, 42 × red, 42 × green, 42 × blue) Control via DMX (3 different modes) and via buttons and display on the unit 41 pre-programmed automatic shows Sound control Master / slave mode Robust metal housing PAR64 MKII RGBW... -
Page 14: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 15 Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. PAR64 MKII RGBW...
- Page 16 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. DMX connections The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input.
-
Page 17: Starting Up
Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. PAR64 MKII RGBW... - Page 18 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 19 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. PAR64 MKII RGBW...
-
Page 20: Components And Functions
Components and functions Components and functions Rear panel LED PAR... - Page 21 To confirm a selected value. 4, 5 To increase or decrease the displayed value by one. To activate the main menu or a submenu. 7 Bracket for hanging or setting up. 8 Locking screw for the bracket. PAR64 MKII RGBW...
- Page 22 Components and functions 9 DMX IN DMX input. 10 DMX OUT DMX output. LED PAR...
-
Page 23: Operating
When the display shows the desired value, press [OK]. If you don't press any button for about a minute, the unit will return to the previous mode. The set values are retained even when the device is disconnected from the power supply. PAR64 MKII RGBW... - Page 24 Operating DMX mode Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MODE’ . Press [OK]. Now use the arrow keys to select one of the following DMX operating modes: ‘4CH’...
- Page 25 To return to the superordinate menu without changes, press [M]. Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the different DMX modes. Mode Highest possible DMX address 4-channel 6-channel 8-channel PAR64 MKII RGBW...
- Page 26 Operating Operating mode ‘Show/Master’ Press [M]. Press one of the arrow keys repeatedly until the display shows ‘LINE’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MA’ . Press [OK]. Now you can select one of the 41 pre-programmed shows. Use the arrow keys to select a value between 1 and 42 (the display shows ‘P-01’...
- Page 27 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and then [M] to return to the superordinate menu. To return to the superordinate menu without changes, press [M]. PAR64 MKII RGBW...
- Page 28 Operating Manual test Press [M]. Press one of the arrow keys repeatedly until the display shows ‘TEST’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘RED’ , ‘GREE’ , ‘BLUE’ , ‘WHIT’ or ‘STRO’ . Press [OK]. Now you can adjust the brightness of the red, green, blue or white LEDs in a range from 0 to 255, or select the flash rate in a range from 0 to 24.
- Page 29 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and return to the main menu. To return to the main menu without changes, press [M]. PAR64 MKII RGBW...
-
Page 30: Menu Overview
Operating 7.3 Menu overview LED PAR... -
Page 31: Functions In 4-Channel Dmx Mode
7.5 Functions in 6-channel DMX mode Channel Value Function Operating mode selection 0…63 Constant colour, colouring is determined by channels 2 to 5 64…127 Automatic colour change with 7 colours, channels 2 to 5 have no function PAR64 MKII RGBW... - Page 32 Operating Channel Value Function 128…191 Automatic colour change with 12 colours, channels 2 to 5 have no function 192…255 Automatic colour change with 4 colours, channels 2 to 5 have no function 0…255 Intensity red (0 % to 100 %), if channel 1 = 0…63 0…255 Intensity green (0 % to 100 %), if channel 1 = 0…63 0…255...
-
Page 33: Functions In 8-Channel Dmx Mode
No fixed colour and movement pattern 16…255 One of 31 pre-programmed automatic shows (macros), channels 6 and 7 without function Strobe effect 0…15 Full brightness, no strobe effect 16…255 Strobe effect, increasing speed if channel 5 = 0…15 Operating mode selection PAR64 MKII RGBW... - Page 34 Operating Channel Value Function 0…31 Constant colour, colouring is determined by channels 1 to 4 32…63 Fade-out effect, speed controlled by channel 6, channels 1 to 5 without function 64…95 Fade-in effect, speed controlled by channel 6, channels 1 to 5 without function 96…127 Fade-in-out effect, speed controlled by channel 6, channels 1 to 5 without function 128…159...
-
Page 35: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: PAR64 MKII RGBW... - Page 36 Troubleshooting Symptom Remedy The unit does not work, no Check the mains connection and the fuse. light. No response to the DMX con‐ 1. Check the DMX ports and cables for proper connection. troller. 2. Check the address settings and the DMX polarity. 3.
-
Page 37: Cleaning
Clean with a soft cloth using normal glass cleaning products. Always dry the parts carefully. PAR64 MKII RGBW... -
Page 38: Technical Specifications
Technical specifications Technical specifications LEDs 168 × 10 mm LEDs (42 × white, 42 × red, 42 × green, 42 × blue) Dispersion 45 ° Number of DMX channels 4, 6, 8 Operating voltage supply 230 V 50/60 Hz Power consumption 16 W Dimensions 260 mm ×... -
Page 39: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. PAR64 MKII RGBW... - Page 40 Notes LED PAR...
- Page 41 Notes PAR64 MKII RGBW...
- Page 42 Notes LED PAR...
- Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
