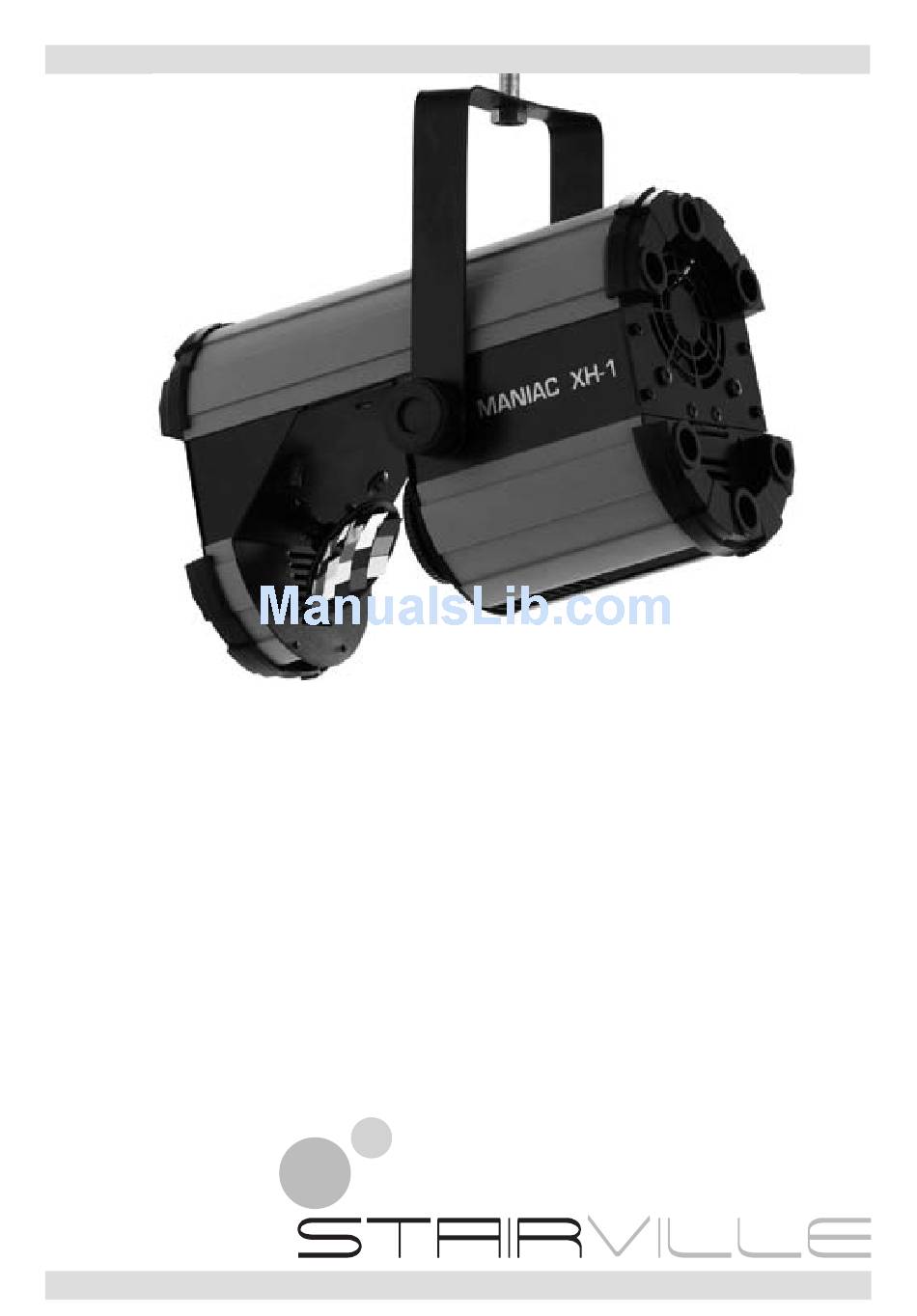

- Page 1 XH-1 XH-2 XH-3 Owner‘s Manual HALLUCINATION DESIGN FASCINATION...
-
Page 2: Table Of Contents
Thanks a lot for purchasing our Stairville effect light. Hallucination is a powerful 250W light, featuring a slow rotating effects wheel and a static effect glass. It projects a beam through effect glasses onto a multicoloured dichroic dish, creating a hallucinatory effect. Design is a powerful 250W effect lights, featuring a gobo wheel and multi- coloured dichroic dish that rotates back and forth, creating dynamic swiv- elling effects. -
Page 3: Safety Instruction
1. Safety Instruction You have to carefully read the instruction, which includes impor- tant information about the installation, usage and maintenance. • Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that he also receives this instruction booklet. •... -
Page 4: Operating Elements
unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance centre. Always use the same type spare parts. • Do not connect the device to any dimmer pack. • Do not look directly at the light while the unit is on. •... -
Page 5: Operation And Technical Specification
6. Selector switch to select between auto, sound activation, or static function. 7. Cooling fan. 8. Gobo flower. 3. Operation and technical Specification • Plugging into the mains power, the fixture starts running. The Hallucina- tion, Fascination, Orbiter runs in automatic or sound activated mode. •... -
Page 6: Beam Angle
5. Beam Angle XH-1 XH-2 XH-3 Distance: 5 m, Distance: 5 m, Distance: 5 m, illuminated area: illuminated area: illuminated area: 8.5 m × 5 m 9 m × 5.2 m 9 m × 5 m Distance: 5 m, Distance: 5 m, Distance: 5 m, luminance: 80 lux luminance: 70 lux... -
Page 7: Disposal
8. Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility. - Page 8 © 2010 Musikhaus Thomann Treppendorf 30 • 96138 Burgebrach Germany • www.thomann.de...
