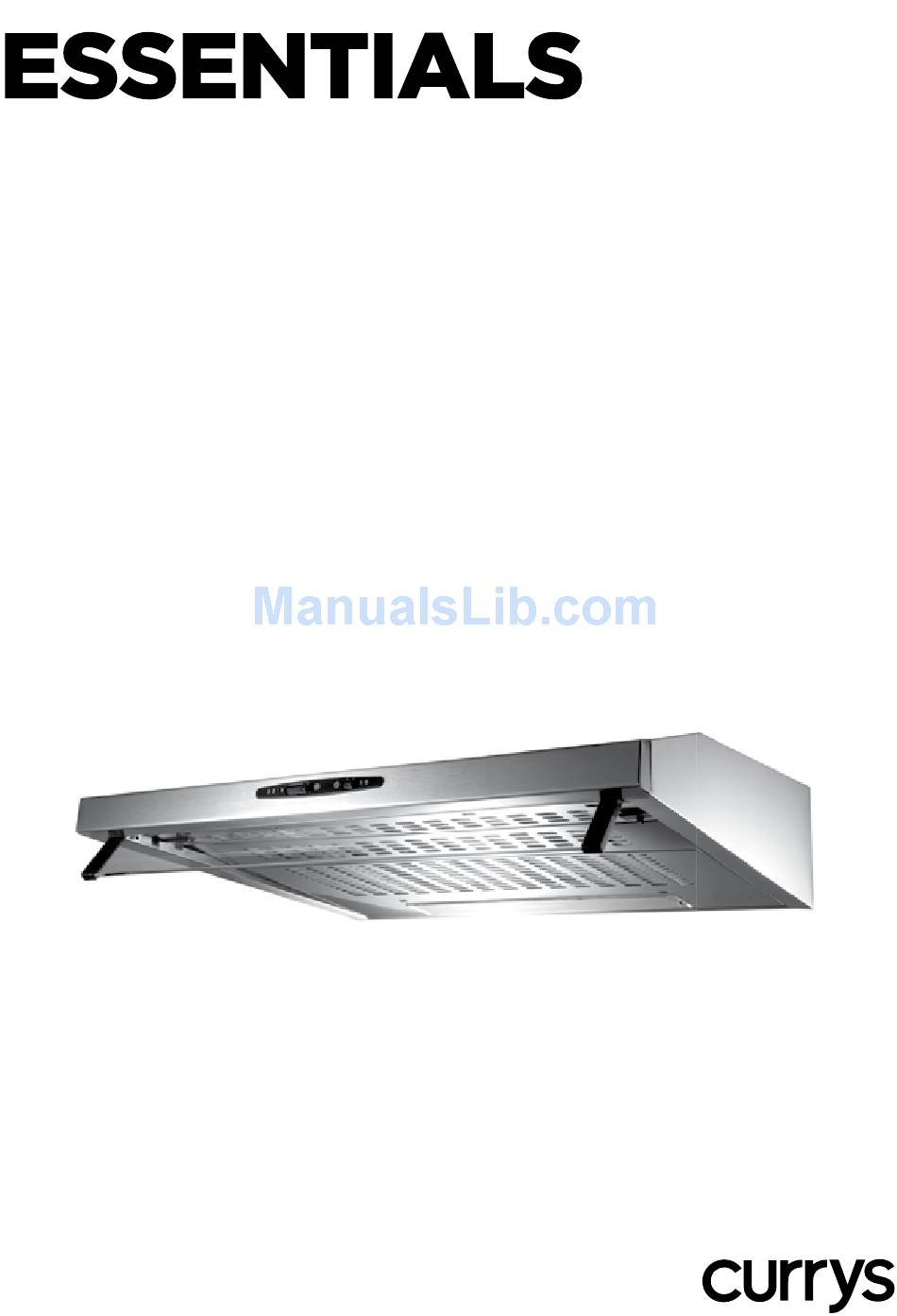

  • Page 1 INSTRUCTION MANUAL 60CM COOKER HOOD C60SHDW10 (White) C60SHDB10 (Black) C60SHDX10 (Stainless Steel)
  • Page 3: Table Of Contents

    Contents Safety Warnings ..........................4 Unpacking ............................. 8 Product Overview ......................... 9 The Main Unit ................................9 Control Panel ................................9 Modes of Operation ........................10 Air Extraction ................................10 Air Recirculation ..............................10 Operation ............................ 10 To Select the Fan Motor Speed ......................... 10 Cooker hood Lighting ............................
  • Page 4: Safety Warnings

    Safety Warnings • Please be careful when unpacking and installing this appliance as sheet metal and sharp metal edges can cause injury if not handled with care. • This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
  • Page 5 • When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time. • Regulate the flame so that it does not burn up the sides of the pan. •...
  • Page 6 • During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when: – it is switched off at the isolator, or – the mains fuse is disconnected, or –...
  • Page 7: Correct Installation

    The overall ventilation condition of the dwelling must be taken into account. If in any doubt, the advice of a competent builder or, for gas, a qualified gas fitter (Gas Safe registered in the UK) must be sought. • If the only way of ensuring adequate ventilation is via an open window, a window contact switch should be fitted to ensure that the cooker hood can only operate when the window is opened sufficiently.
  • Page 8: Unpacking

    Thank you for purchasing your new Currys Essentials Cooker hood. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference.
  • Page 9: Product Overview

    Product Overview The Main Unit Control Panel Illumination Filter Cover Control Panel Motor speed selector Lamp switch...
  • Page 10: Modes Of Operation

    Modes of Operation Air Extraction The air is drawn in and cleaned by the acrylic filters and directed outside. The non-return flap supplied with the appliance must be fitted in the exhaust hole. Having a non-return flap fitted in the ducting ensures that air, once ducted to the outside, cannot get back into the room again.
  • Page 11: Cleaning And Maintenance

    Cleaning and Maintenance • Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply. Ensure that it is switched off at the wall socket and the plug is withdrawn. • The surfaces and controls are susceptible to scratches and abrasions. Please observe the following cleaning instructions.
  • Page 12: Acrylic Filters

    Acrylic Filters The acrylic filters in the appliance remove solid particles (acrylic, dust, etc.) from the kitchen vapours, preventing soiling of the cooker hood. The acrylic filters should be replaced regularly (at least every 3 months) to avoid a build-up of acrylic. Dirty filters are a fire hazard.
  • Page 13: Fitting And Replacing The Carbon Filter

    Fitting and Replacing the Carbon Filter If the cooker hood is connected for recirculation, a carbon filter must be used. Carbon filters are available as an optional extra. Before fitting or replacing a carbon filter, the acrylic filters must first be taken out (see previous section for instructions on how to do this).
  • Page 14: Changing The Internal Light

    Changing the Internal Light Allow the cooker hood to cool for at least 30 minutes after use before changing the light bulb. Slide the acrylic filter cover release buttons off the underside of the cooker hood inwards. The filter cover will be released downwards.
  • Page 15: Hints And Tips

    Be sure that the mains plug is connected to the mains socket and the fuse in the installation is in good condition. Check your cooker hood according to the above table. If the problem continues, contact your retailer or an authorised service agent. Specifications Model C60SHDW10 / C60SHDB10 / C60SHDX10 Rated Voltage 230V~ Rated Frequency 50 Hz...
  • Page 16: Installation

    Installation Product Overview 125 mm 500 mm 600 mm 45 mm 430 mm 500 mm 600 mm Please be careful when unpacking and installing this appliance as sheet metal and sharp metal edges can cause injury if not handled with care.
  • Page 17: Safety Distance Between Hob And Cooker Hood

    Safety Distance Between Hob and Cooker hood When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood is 700mm. • Account should also be taken of the height of the person who will be using the hood most often. The person should have sufficient space to work comfortably at the hob, and also be able to reach the hood controls with ease.
  • Page 18: Connection For Air Extraction

    Connection for Air Extraction • To avoid the danger of toxic fumes, please observe the safety warnings. • This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room. •...
  • Page 19: Mounting The Cooker Hood

    Mounting the Cooker hood The cooker hood can be rear mounted by fitting it to an open area of kitchen wall, as shown in the picture opposite. Min 650 - 750mm Or top mounted by fitting it to the underside of a kitchen 140mm cupboard, as shown in the picture opposite.
  • Page 20 Make a 130mm hole on the top of your cabinet. You will have to use a jigsaw to cut a 130mm diameter hole in the kitchen cupboard. It is recommended that a qualified person, experienced in fitting cooker hoods, is consulted before installation.
  • Page 21 Fit the flexible ducting into the air outlet adaptor. Fit the unit into position. Tighten the screws if necessary. Feed the flexible ducting through the hole into the wall. The carbon filter is designed to remove ‘odours’ from dirty air. As the ‘odours’ are being extracted to the outside air it is not necessary to fit the carbon filter.
  • Page 22: Re-Circulated Air Installation

    Re-circulated Air Installation The cooker hood must be fitted so that it protrudes 140mm from the cupboard it is being fitted to. This is to allow the re-circulated air to escape through the grille in the top of the unit. Turn the valve lever upward to position R, as shown in the picture C.
  • Page 24 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only).
