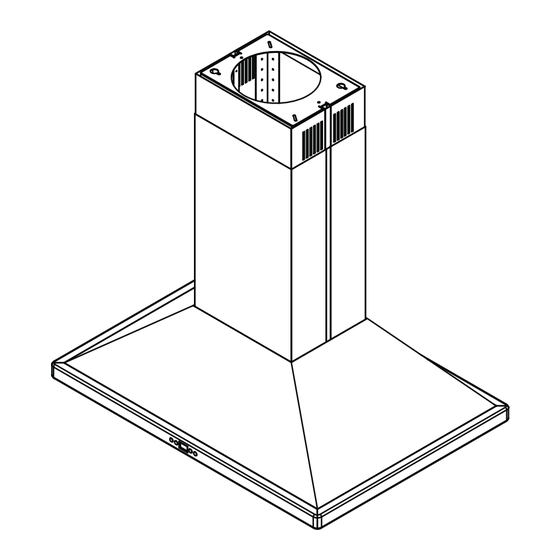

- Page 1 Napoli ZNA-M90BS ZNA-E42BS Model number: Serial Number: Date of Purchase: Sales Dealer: MAY11.0201 © Zephyr Corporation READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Hood 9-10 ............. Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ..........12 User Interface..........13 MAINTENANCE Hood and Filter Cleaning .........
-
Page 4: To Reduce The Risk Of Fire Electric Shock, Or Injury To Persons, Observe The Following
www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. -
Page 5: Operation
15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. ZNA-M90BS, ZNA-E42BS - 215 Watts, 3.5 Amps... -
Page 6: Hardware Package Contents
MODELS: ZNA-M90BS, ZNA-E42BS PARTS SUPPLIED (2) Thick Trim Pieces (2) Top Duct Covers (1) Top Support Frame (2) Thin Trim Pieces (1) Bottom Support Frame (2) Bottom Duct Covers (1) 8” round damper (pre-installed) Front of Hood (1) Hood Body... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
-
Page 8: Damage - Shipment/Installation
www.zephyronline.com ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible. - Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 www.zephyronline.com ” 13/16 ” 13/16 STANDARD min. ducted - 32” min. recirc. - 36 ” max. - 50” Z1C-01NA min. ducted - 49” min. recirc. - 53 ” max. - 80” ”, 41 ” 7/16 15/16 ” 9/16 SIDE FRONT ”...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. Bottom Support Frame (secures to top of blower housing) back Key Holes Ceiling Joists Wood Blocking Top Support Frame front - facing controls FIG. C Support Frame Arm FRONT FIG.
- Page 12 www.zephyronline.com Cable Lock A cable locking connector (not Top Support Frame supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. Top Duct Covers Thick Trim Piece Cable Lock Thin Trim Piece Bottom Duct Covers FIG.
- Page 13 RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED) Kit includes charcoal fi lters, brackets and air diverter plate. Hood Models Part No. Filters & Brackets in pkg. ZNA-M90BS ZRC-00NA ZNA-E42BS ZRC-00NA 1. Purchase recirculating kit per the part number above 2.
- Page 14 www.zephyronline.com Display (speed level, delay off, filter clean/change,clean air) Power / Delay Off clean mesh filter clean air replace charcoal filter Lights On/Dim/Off Adjust 6 Speed Levels 1 Power / Delay Off Button Power Button Function Button will turn power on and off for entire hood (fan and lights). - Hood will remember the last speed and light level it was turned off at.
- Page 15 Mesh Filter Clean Indicator (always enabled) - After 30 hours of fan usage the Graphic and words “ clean mesh filter ” will illuminate indicating it is time to clean the mesh filters. Graphic and words will remain illuminated until reset. - To reset: With hood off, hold the Button for three seconds, after three seconds the Graphic and words “...
-
Page 16: Surface Maintenance
www.zephyronline.com SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. - Page 17 TROUBLESHOOTING PROCEDURES FOR ZNA Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 18 Model: ZNA-M90BS/E42BS Voltage: 120V 60Hz Power consumption Total: Max. 215W @ 3.5A Lamp: Max. 3Wx4 5A 250V Fan: Max. 203W AC-N AC-L THERMALLY PROTECTED ON/OFF DOWN LAMP Blower fan curve AC input: 120V 60Hz Outlet diameter : 8" 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600 625 650 675 700 725 750...
- Page 19 DESCRIPTION PART# Replacement Parts Light Bulb 3W LED (each) Z0B-0032 Aluminum Mesh Filter (each) 50200027 Optional Accessories Recirculating Kit ZRC-00NA Replacement Charcoal Filter (each) Z0F-C002 Extension Duct Cover Z1C-01NA To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 20 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: Three Year Limited Warranty for Parts and LED lamps: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
