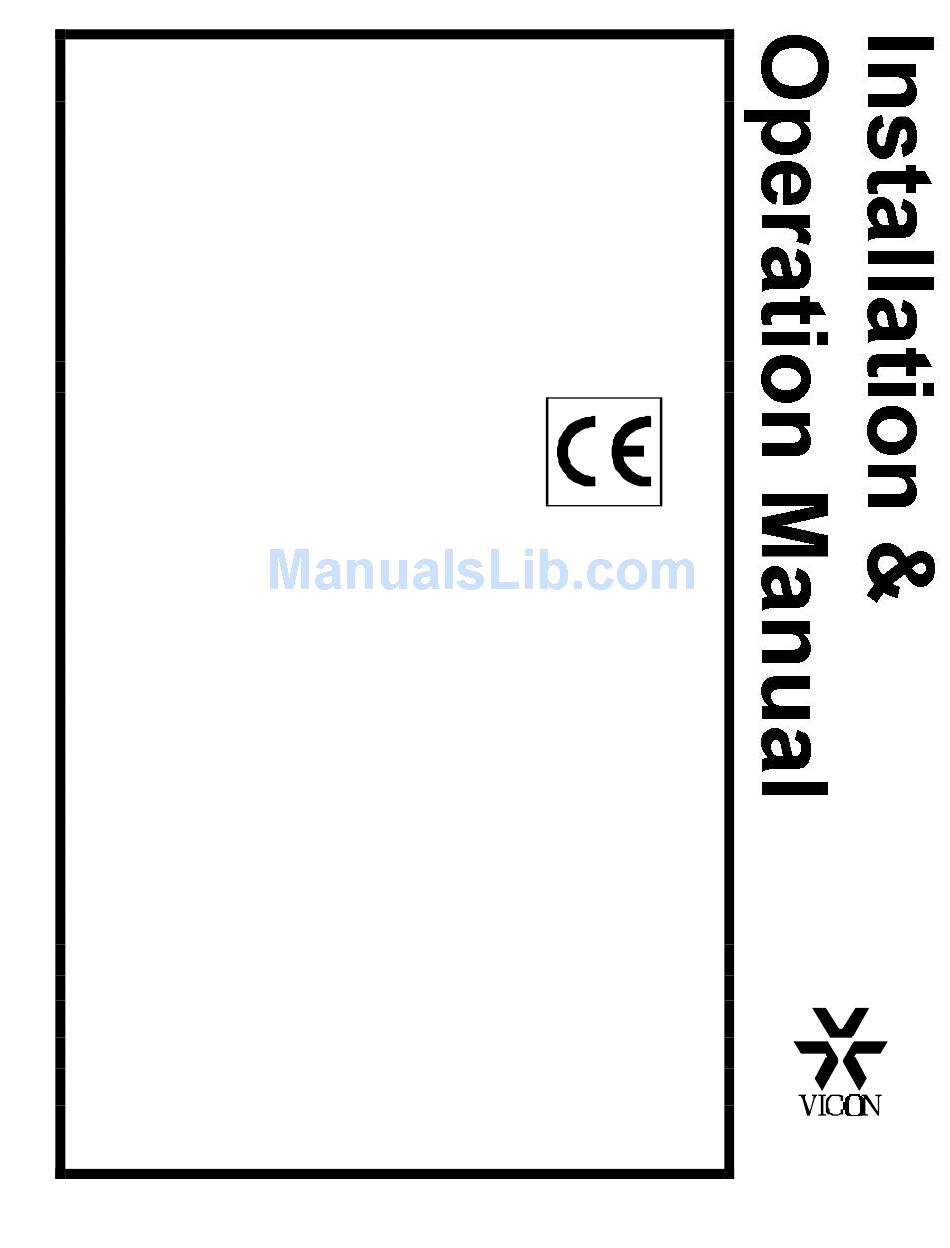

XX063
MODEL V5400MUX
4-CHANNEL DIGITAL COLOR MULTIPLEXER
Copyright © 2001 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8063-00-00
Rev 801 Section 5
Advertisement
Table of Contents
Related Manuals for Vicon V5400MUX
Summary of Contents for Vicon V5400MUX
- Page 1 Copyright © 2001 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com...
- Page 4 FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
- Page 5 Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
- Page 6 Vicon or that have the same characteristics electric light or power circuits, or where it can fall into such as the original part.
-
Page 8: Table Of Contents
CONTENTS Important Safeguards Unpacking ………………………………………………………………………….. Service …………………………………………………………………………….. Description ……………………………………………………………………….. Installation ………………………………………………………………………….. Connections ……………………………………………………………………….. Programming ……………………………………………………………….….. Time/Date ………………………………………………………………………….. 5.1.1 Time Format ……………………………………………………………………….. 5.1.2 Date Format ……………………………………………………………………….. 5.1.3 Time/Date Setup ……………………………………………………………..Camera Setup ………………………………………………………………….. 5.2.1 Camera Titles ……………………………………………………………….. Alarm Setup ………………………………………………………………….. 5.3.1 Alarm On/Off ……………………………………………………………………. -
Page 9: Unpacking
Description The V5400MUX Digital Color Multiplexer provides on-screen display of four camera inputs combined with numerous additional functions. Each quadrant may be sequenced full screen or be displayed in a quad split. The image display is updated at the field rate of 60 field/sec, p roviding genuine real-time video. In addition to the quad screen and PIP (Picture-In-Picture) display, the units offer VCR “ZOOM”... -
Page 10: Installation
Installation Connections camera 4 camera 3 camera 2 DC 5V camera 1 Power Adapter Looping (Automatic Termination) Monitor Output Alarm Y/C(S-Vid) Connection Input Time Lapse VCR Monitor 1 Monitor 2 5. Programming Table 1 Key Functions Key label Operating Function Programming Function Selects to display or delete Title on monitor TITLE... -
Page 11: Time/Date
Programming Function All programming is done with the front panel keys. There are thirteen keys on the front panel. The key named MENU, 1/ , 2/ , 3/ , 4/ , and QUAD/ENTER are used in programming units The TITLE, VCR, ALM, ZOOM, FRZ, PIP and SEQ keys are not used in programming the unit. Functions of each key on the front panel are described in Table 1. -
Page 12: Date Format
TIME FORMAT 24 HOURS (0000-2359) TO EXIT PRESS (ENTER) KEY Press the 1/ and 2/ key to toggle and select the required format. The options are : 12 HOURS (AM/PM) 24 HOURS (0000-2359) Press the Enter key to exit the menu. 5.1.2 Date Format Select DATE FORMAT and press the Enter key. -
Page 13: Camera Setup
Press the 3/ or 4/ key to move the cursor to the required position. Press the 1/ or 2/ key to establish the necessary digit. (Calendars until the year 2099 are in this menu.) Press the Enter key. Camera Setup This menu allows you to adjust the dwell times of the 4 camera video displays and the quad screens. -
Page 14: Alarm On/Off
ALARM SETUP (1) ALARM ON/OFF (2) ALARM DWELL (3) ALARM POLARITY (4) VIDEO LOSS ALERT (5) BUZZER OUT : ON (6) RELAY OUT : ON (7) EXIT 5.3.1 Alarm On/Off You can switch the alarm function ON/OFF for each of the four video input channels. Select ALARM ON/OFF and press the Enter key. -
Page 15: Alarm Polarity
5.3.3 Alarm Polarity The ALARM POLARITY function enables you to define how the alarm is generated for each alarm input, either normally open (NO) or normally closed (NC) contacts. Select ALARM POLARITY and press the Enter key. The following menu is displayed: ALARM POLARITY (1) CHANNEL 1 : NO (2) CHANNEL 2 : NO... -
Page 16: Record Setup
Record Setup The RECORD SETUP defines how the unit’s video output to the Time-Lapse VCR is recorded. Select RECORD SETUP and press the Enter key. The following menu is displayed: RECORD SETUP (1) RECORD TIME ZONE (2) FIELD DELAY : VEXT USED (3) REC MODE : TIME LAPSE (4) ALM REC... -
Page 17: Record Mode Setup
Press the Enter key(or 3/ and 4/ ) to toggle the options. The Options are: REC OFF : R/T is Real-Time FIELD REC(R/T) FRAME REC(R/T) : R/T is Real-Time TIME LAPSE Select EXIT and press the Enter key to exit the menu. 5.4.4 Alarm Record Setup You can set up the recording mode of Alarm. -
Page 18: Pip Mode Setup
5.5.1 PIP Mode Setup The PIP MODE menu allows you to set the size and the position of PIP (Picture-In-Picture) display on monitor. Select PIP MODE SETUP on the DISPLAY SETUP screen. The following menu is displayed: PIP MODE SETUP : •... -
Page 19: Border Line
5.5.3 Border Line You can choose the border line for each of 4 displays on Quad screen. Select BORDER LINE on the DISPLAY SETUP menu. DISPLAY SETUP (1) PIP MODE SETUP (2) COLOR ADJUSTMENT (3) BORDER LINE : WHITE (4) DISPLAY POSIT : TOP (5) TIME DISPLAY : ON (6) TITLE DISPLAY : ON... -
Page 20: Event Log
5. 6 Event Log Record of the events, up to 220 events ( P-ON, PGM, ALM, V/L, A-CLR, ALM RS). Program event is only recorded when the contents are changed. If the event log is full filled with 220 events, recording will be stopped and “ EVENT FULL” message appears until the event log are deleted. -
Page 21: Operation
Normal operating selections are made using the eight front panel keys, and functions are selected with a single key press. The V5400Mux may be controlled remotely by a user-provided dry contact control or by a host computer using a simple RS-232 command set. -
Page 22: Maintenance
Computer Remote Control V5400Mux uses a very simple command set, each command consisting of three characters. The first character in all cases is the slash or virgule(/). The unit looks only for a three-character command, with an initial slash. It ignores all other characters. -
Page 23: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. - Page 24 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom 44/(0) 1489/566300 Fax: 44/(0) 1489/566322 Brussels Office Planet II - Unit E...
