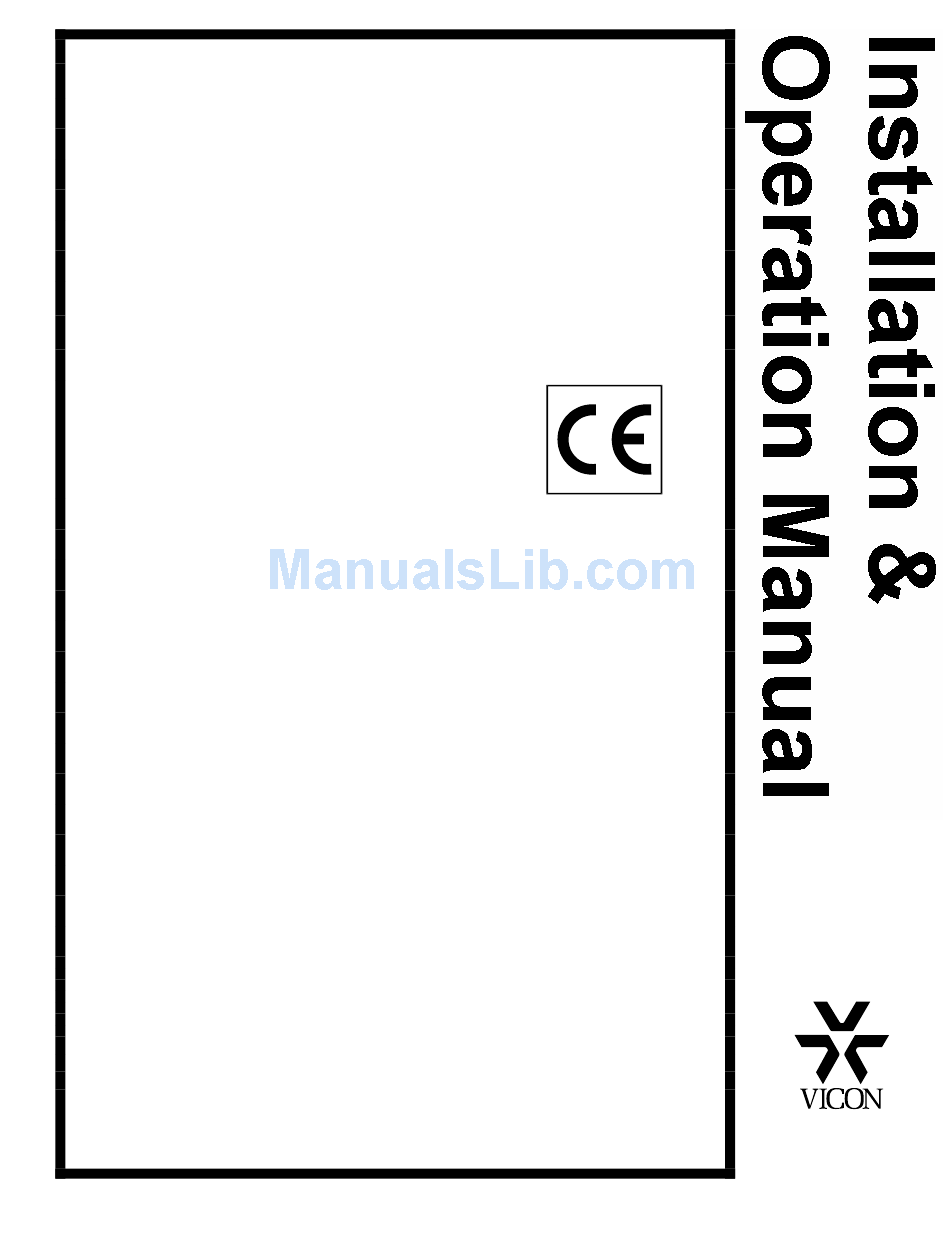

XX064
MODEL V5900MUX
9-CHANNEL DIGITAL COLOR MULTIPLEXER
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8064-01-01
Rev303 Section 5
Advertisement
Table of Contents
Related Manuals for Vicon V5900MUX
Summary of Contents for Vicon V5900MUX
- Page 1 Copyright © 2002 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: +44(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com...
- Page 4 FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
- Page 5 Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
- Page 6 Vicon or that have the same characteristics electric light or power circuits, or where it can fall into such as the original part.
-
Page 8: Table Of Contents
CONTENTS Important Safeguards Unpacking …………………………………………………………………………. 2 Service ………………………………………………………………………….. 2 Description ………………………………………………………………………….. 2 Installation ………………………………………………………………………….. 3 Connections ………………………………………………………………………….. 3 Programming ………………………………………………………………... ……… 3 Time/Date ……………………………………………………………………………. 4 5.1.1 Date Format …………………………………………………………………………. 4 5.1.2 Date Set ………………………………………………………………………………. 4 5.1.3 Time Format ………………………………………………………………………….. 4 5.1.4 Time Set ……………………………………………………………………….. -
Page 9: Unpacking
Description The V5900MUX Digital Color Multiplexer provides on-screen display of nine camera inputs combined with numerous additional functions. The image display is updated at the field rate of 60 field/sec. In addition to multi- screen displays or playback on a single monitor, multiplex recording on a VCR of up to 9 camera images is made possible with this duplex multiplexer as well. -
Page 10: Installation
Installation Connections DC 5V camera 9 Power camera 2 Adapter Alarm Out camera 1 Alarm In RS232 Connector AC-IN Looping (Automatic Termination) Looping (Automatic Termination) RS485 Connector Trig In/Out Spot Monitor Output Monitor Output Time Lapse VCR Monitor 2 Monitor 1 Programming Table 1 Key Functions Key label... -
Page 11: Time/Date
Programming Functions All programming is done with the front panel keys. There are twenty keys on the front panel. The keys named MENU, FREEZE/+, ZOOM/-, △ , SPOT/▽ , SEQ/◁ , CHANGE/▷ , and SHIFT/ENTER are used in programming unit. The TITLE, VCR, and ALARM keys are not used in programming the unit. Functions of each key on the front panel are described in Table 1. -
Page 12: Time Set
Alphabet (26 letters), Number (0~9), Special Characters ([.],[,],[:],[+],[-],[*],[/],[(],[)],[?],[ ]) Press the MENU key to exit the menu. Note: To retain all titling (camera and alarm), the tape must be played back on the same V5900MUX it was recorded on. Dwell Time Setup This menu allows you to adjust the dwell times of the 9 camera video displays. -
Page 13: Alarm Titles
Select ALARM SETUP and press the ENTER key. The following menu is displayed: ALARM SETUP (1) ALARM TITLES (2) ALARM ATTRIBUTE SETUP (3) VD LOSS ALARM SETUP (4) DWELL TIME = 60 SEC (5) BUZZER OUT = ON (6) RELAY OUT = ON (7) TRIG OUT = LOW... -
Page 14: Vd Loss Alarm Setup
Press the ◁ and ▷ key to toggle between ON/OFF and POLARITY. Press the (+) and (-) keys to toggle NO or NC and ON or OFF. Press MENU key to exit screen. 5.4.3 VD Loss Alarm Setup The VIDEO LOSS ALARM function enables you to define if an alarm is generated when any of the video inputs is lost/defective. -
Page 15: Record Setup
Press the (+) and (-) key to toggle HIGH or LOW. Press MENU key to exit screen. Note: The TRIG OUT is tied to the VCR alarm input. The signals (HIGH or LOW) must match the signals on the equipment (i.e., VCR) it is hooked up to. Record Setup Helpful Hints Following are some guideline to follow when programming the multiplexer for Record Setup. -
Page 16: Alarm Speed Setup
Press (+) and (-) keys to toggle the options. The options are: NO CHANGE: Alarm recording remain as set in REC MODE (Time Lapse or Real Time). EXCLUSIVE: Only alarmed camera records. INTERLEAVE: Alarmed camera is interleaved into the pattern more often. Press MENU key to exit screen. -
Page 17: Record Camera Setup
HOLIDAY SETUP MM-DD MM-DD MM-DD MM-DD 01-01 03-13 04-10 05-05 (1) INSERT 01 –01 (2) DELETE Select INSERT and set the required date by pressing (+) or (-) key. Press ▷ to select month or day. Press ENTER key to add the holiday. To remove a certain date from the list, move the cursor to the DELETE position;... -
Page 18: Spot Monitor Setup
Press the ENTER key. The following menu is displayed: DISPLAY SETUP TIME : OFF BY <TITLE> KEY TITLE : OFF BY <TITLE> KEY POSITION : BOTTOM BORDER LINE : WHITE SCREEN COLOR : BLUE Select TIME or TITLE using the △ or ▽ keys. The option is highlighted. Press the (+) or (-) keys to toggle the options. -
Page 19: Time And Title Display
SPOT DWELL SETUP CAMERA 1 = 5 SEC CAMERA 2 = 5 SEC CAMERA 3 = 5 SEC CAMERA 9 = 5 SEC Press the △ or ▽ keys to select the camera number. Press the (+) or (-) keys to select the number of seconds (1~99 or SKIP). Press MENU to exit screen. -
Page 20: System Setup
*P-ON: Power On *C”N” V/L: Channel “N” Video Loss ( ex. C9 V/L : Ch.9 Video Loss) *ALM RS: Alarm Reset *C”N” ALM: Channel “N” Alarm (ex. C4 ALM : Ch.4 Alarm) *PGM: Programming *A-CLR: All Clear *F-SET: Factory Setting System Setup Select SYSTEM SETUP on the MAIN MENU. -
Page 21: Factory Default Setting
To enable a password, select “ENABLE”. Select NEW PASSWORD and press the ENTER key. Confirm password. Press MENU to exit programming screen. If the Password is forgotten, turn the unit off, press and hold TITLE key and turn the unit on again; the unit will now have factory default settings. -
Page 22: Computer Remote Control
7.1 Computer Remote Control The V5900MUX uses a very simple command set, each command consisting of three characters. The first character in all cases is the slash or virgule(/). The unit looks only for a three-character command, with an initial slash. -
Page 23: Maintenance
Numeric 03 Numeric 04 Numeric 05 Numeric 06 Numeric 07 Numeric 08 Numeric 09 8. Maintenance The V5900MUX requires no routine maintenance and is designed for long, trouble-free use under normal operating conditions. Repair should only be attempted by qualified personnel. -
Page 24: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. - Page 25 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44(0) 1489 566300 Fax: +44(0) 1489 566322 Brussels Office Planet II - Unit E...
