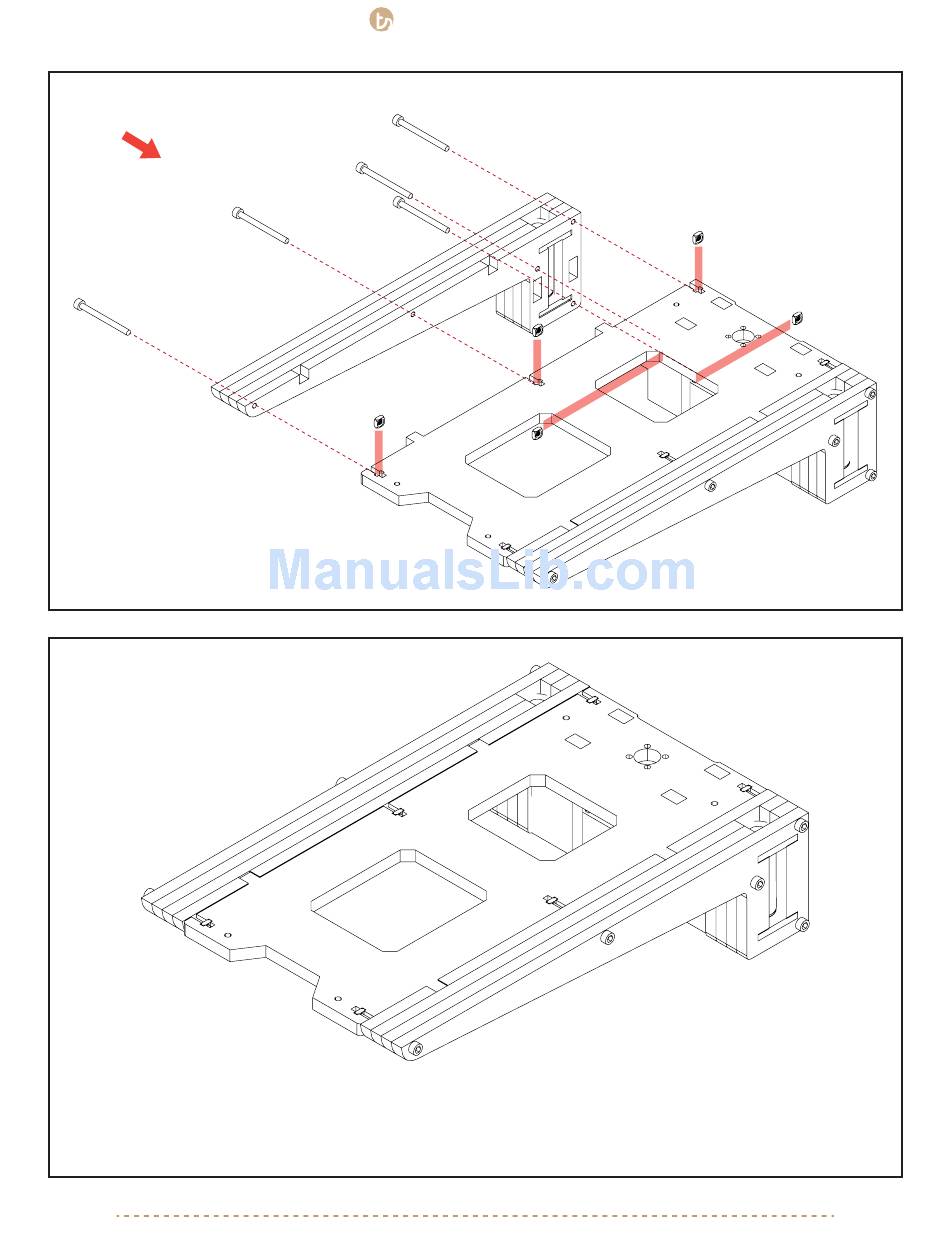

7.
M3x35 (x5)
Arm B
8.
11
TINKERINE
STUDIO
STUDIO
Arm A
During this point, double check to make sure
all panels are properly aligned and the top
side of the bed is leveled with the arms.
Tighten all screws evenly.
support@tinkerines.com | 1-604-288-8778
M3 Nut (x5)
