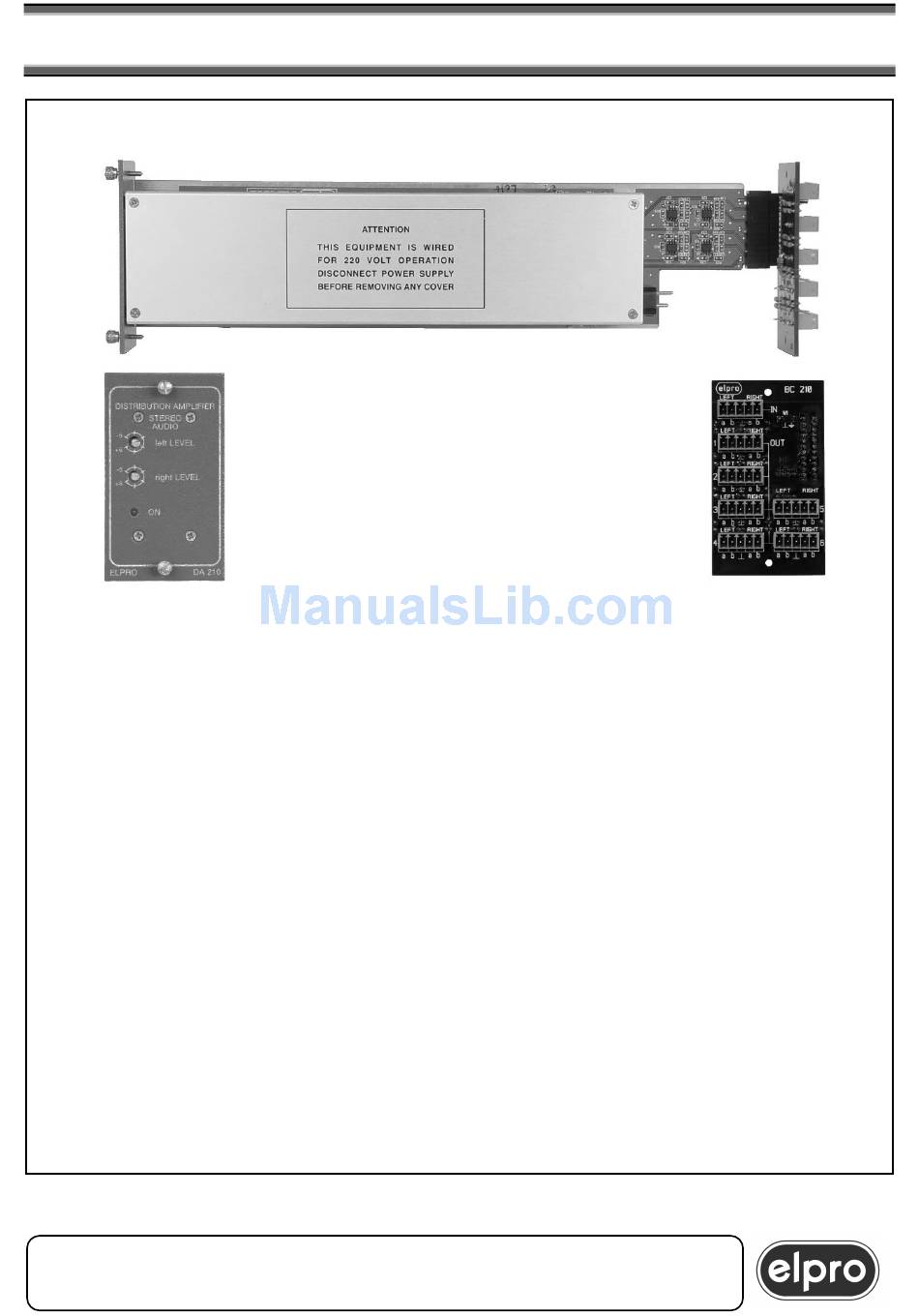

DA210
• 1X6 balanced stereo distribution ampl.
• Front level adj. ± 6 dB each ch.
• Internal gain selection +20, +10, 0 -10dB
• Floating or earth connected ground
• Connections by Phoenix screwtype
• Broadcast quality
• To be fitted in DVR-MV/RK rack
DA204-M 20/01/2005
ELPRO Video Labs s.r.l.
1
Via della Praia, 4/A 10090 Ferriere di Buttigliera Alta (TO) ITALY
Tel.+39 0119348778 – Fax +39 0119348779
STEREO 1X6 AUDIO DISTRIBUTOR AMPLIFIER
Advertisement
Table of Contents
Related Manuals for ELPRO DA210
Summary of Contents for ELPRO DA210
- Page 1 • Floating or earth connected ground • Connections by Phoenix screwtype • Broadcast quality • To be fitted in DVR-MV/RK rack DA204-M 20/01/2005 ELPRO Video Labs s.r.l. Via della Praia, 4/A 10090 Ferriere di Buttigliera Alta (TO) ITALY Tel.+39 0119348778 – Fax +39 0119348779...
- Page 2 The outputs are electronically balanced. The DA210 is complete with a jumper on the rear box for ground connection of the earth. The output level of the LEFT and RIGHT signals is adjustable by ± 6 dB; using an internal jumper type preset, the gain of the distributor can be set to +20, +10, 0 and -10 dB.
- Page 3 3.1 Insert the rear box BC210 in the rear part of the DVR-MV/RK rack, supporting the Phoenix type detachable terminals with the two screws provided. Insert the DA210 plug-in in the front part of the rack fastening it with the two pawls already screwed to the front panel of the plug-in.
- Page 4 In the case of destinations with unbalanced input, terminal b can be used to power a second destination transforming the DA210 into a 1X12 distributor ELPRO Video Labs s.r.l. Via della Praia, 4/A 10090 Ferriere di Buttigliera Alta (TO) ITALY...
- Page 5 DA210 STEREO 1X6 AUDIO DISTRIBUTOR AMPLIFIER 4.0 READ-OUTS AND ADJUSTMENTS If the green light on the front panel of the DA210 is ON, this indicates that the correct power voltage is present inside. 4.1 Output level adjustment The adjustments affect all the output signals.
- Page 6 :230 Vac 50Hz Power consumption :7 VA Operating temp. range :0÷45°C Safety :According to EN60065 :According to EN55103-1 and EN55103-2 Mark ELPRO Video Labs s.r.l. Via della Praia, 4/A 10090 Ferriere di Buttigliera Alta (TO) ITALY Tel.+39 0119348778 – Fax +39 0119348779...
- Page 7 During the warranty period, Elpro will repair the faulty units free of charge. The faulty units must be sent CARRIAGE FREE to the Elpro offices in Turin with a regular accompanying note.
- Page 8 DA210 STEREO 1X6 AUDIO DISTRIBUTOR AMPLIFIER ELPRO Video Labs s.r.l. Via della Praia, 4/A 10090 Ferriere di Buttigliera Alta (TO) ITALY Tel.+39 0119348778 – Fax +39 0119348779...
