Summary of Contents for Greenfire Scan-Line Green 100

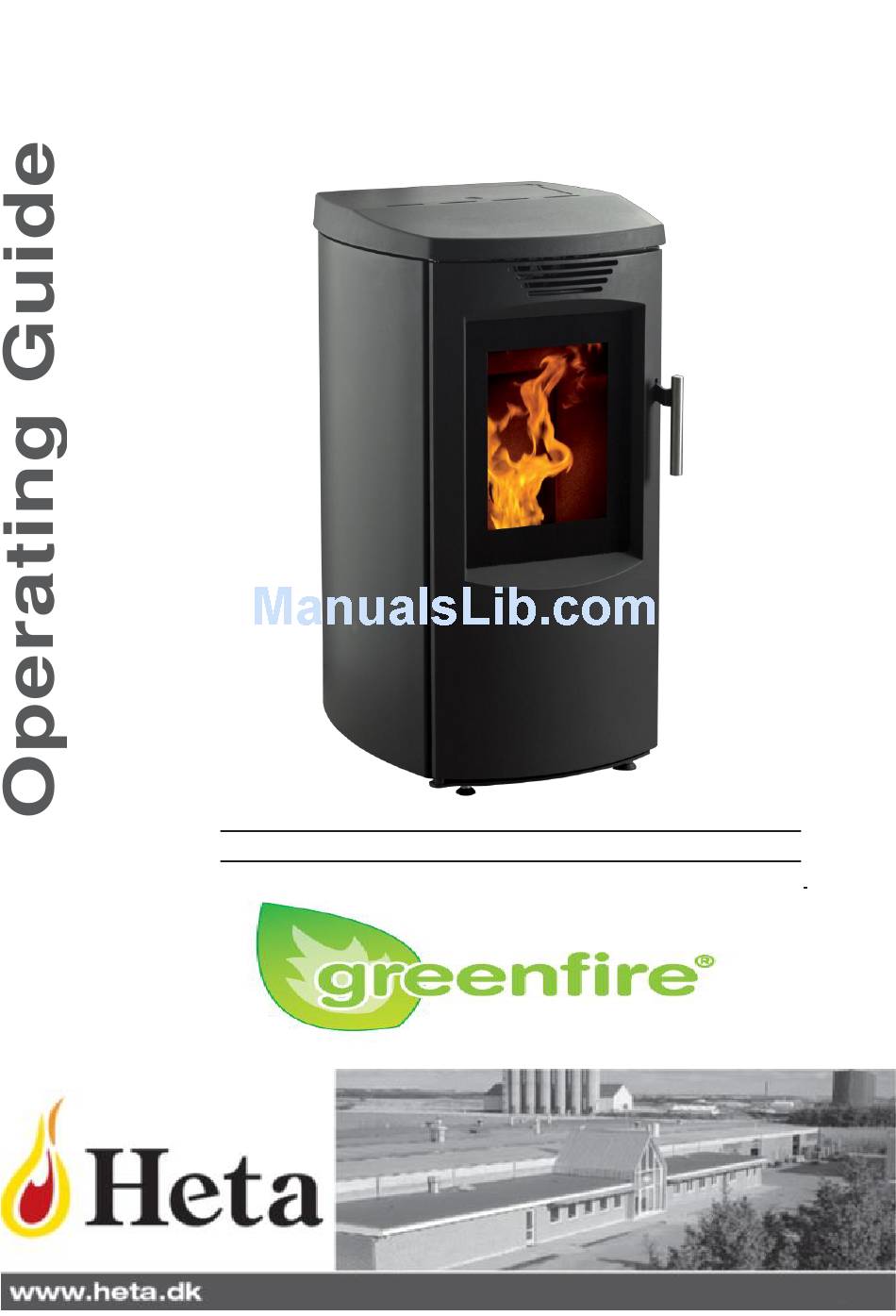

- Page 1 Greenfire Danish Design • Danish Quality • Danish Production www.heta.d...
- Page 2 The Greenfire pellet stove is approved under EN 14785; NS 3058/3059; Austria’s 15a; DIN plus These approvals are your guarantee as a consumer that the pellet stove meets a number of specifications and requirements which confirm that the stove is made of high-quality materials, that it is economical to use, and it is not harmful to the environment.
-
Page 3: Table Of Contents
8.4.2. Setting days 8.5. Explanation overview 8.5.1. Start-up Sequence 8.5.2. Room Temperature Control 8.6. Troubleshooting and error reports for the Greenfire pellet stove 8.6.1. Troubleshooting 8.6.2. Test run of stove 8.6.3. Is the stove not burning cleanly? 8.6.4. Service technician / Description of problem 8.6.5. -
Page 4: Introduction
2. Safety information Your Greenfire pellet stove must be installed by a technician who has been trained by HETA A/S. Please read these instructions regarding use and maintenance carefully before installing and lighting the stove! If you need further information, please contact the dealer from whom you purchased the stove. -
Page 5: General Information
Air flow is used to help keep the glass clean, however it is impossible to avoid the glass becoming sullied after some usage (see the cleaning manual for cleaning instructions). Only pellets 6-8 mm in diameter should be used as fuel in the Greenfire pellet stove. 3.1 Liability By providing these instructions, Heta A/S disclaims all liability, both personal and statutory, for any accidents that may arise due to failure –... -
Page 6: Installation And Ignition
4. Installation and ignition 4.1 Dimensions Air Intake Flue Outlet Reset button... -
Page 7: Installing The Control Panel
4.2. Installing the control panel. a) Remove the four screws labelled A. b) Install the control panel labelled # on the d) Install the communication cable labelled 1 backplate using the four screws labelled A. in the communication port labelled 2... -
Page 8: Placement
4.3. Placement. The position of the stove within the home will have a major impact on heat distribution. Before deciding where to place the stove, it is important to consider the following: The air supply for combustion must come from a ventilated room or an open outdoor area. -
Page 9: Proximity To Combustible Materials
4.7. Chimney draught. Operation of the Greenfire pellet stove is partly independent of the chimney draught, as the flue gas vacuum pump assists in removing smoke from the combustion chamber. However, if there is a strong chimney draught, we recommend a draught stabiliser be installed. Otherwise the chimney will overrun the flue vacuum pump, resulting in too much combustion. -
Page 10: Before The First Ignition
5. Safety systems Greenfire pellet stoves are equipped with advanced safety systems to prevent damage to the stove or residential environment which could arise due to a fault in the appliance or inadequate maintenance, chimney draught, etc. -
Page 11: Temporary Power Failure
The stove has the following four safety systems: 1. Thermal protection shuts down the stove if the temperature in the wood pellet tank becomes too high (85°C). 2. The thermal sensor in the pellet tank activates at 82°C and automatically reduces the heat level. -
Page 12: Filling Wood Pellets
6. Filling wood pellets Before adding wood pellets, remove the lid of the pellet tank (Image 1) To prevent wood pellets from falling into the convection channels, you must cover these channels with the lid while filling as shown (Image 2). Be sure to advance the pellets manually using the control panel (see section 8.2.3.) until pellets appear in the burn pot. -
Page 13: Operation And Timer Etc
8. Operation and Timer etc. 8.1. Control panel The control panel has an audio tone for alarms, etc. Short tone: When buttons are pressed on the control panel. Long deep tone: If something is entered incorrectly on the control panel. ... -
Page 14: Menu Structure
8.1.2. Menu structure Heat Convection Temperature Pellet type Time Settings [ 25° ] [ 1 ] [ 1 ] [ 1 ] [ Hi ] [ Hi ] Current Temp Normal Current Time Keypad Lock Desired Temp [ 2 ] [ 10°... -
Page 15: Menu Navigation
8.2. Menu navigation. 8.2.1. Active touch buttons. Touchbutton: Description: On/Off button Switches the stove On or Off if pressed and held for more than three seconds Menu buttons Used to navigate within the menus Editing buttons Used to navigate and edit within the menus Enter Used to confirm entries and select sub menus Cancel/Back button... -
Page 16: Set The Room Temperature
8.2.4. Set the room temperature Set the room temperature in the Temperature Menu . The current room temperature setting will be shown. Press Enter to set the desired room temperature. The display will flash and you can select the desired room temperature using the + / – buttons. Press Enter to confirm. -
Page 17: Sub-Menus
8.3. Sub-menus 8.3.1. The Settings menu 1: Keypad lock: Off, Lo, Hi (This sub-menu is used to select one of the following options) Off = Unlocked, (You can always choose Keypad Off under this item) Lo = Enter button locked, Hi = Enter button and On/Off button locked 2: Display Lighting: 1, 2, 3, 4, 5 (This sub-menu is used to select one of the following options) 1 = Low 5 = High... -
Page 18: Timer
8.4. Timer 8.4.1. Setting programmes: To set a Programme, go to the Time menu , Sub-menu [3]. Press Enter and the display shows [ P1 ]. Press Enter and the display shows Start time (On, see below), with the hours setting flashing. -
Page 19: Setting Days
8.4.2. Setting days: To set up a day with one or more programmes, go to sub-menu [ 4 ] in the Time Menu Press Enter and [ d1 ] will be displayed. Press Enter and the display will show Off (block A, see below). -
Page 20: Explanation Overview
8.5. Misc. 8.5.1. Start-up sequence Warm-Up Phase Ignition Phase Ignition Test Phase Combustion Phase Press Igniter ON Igniter OFF Igniter ON The stove has completed the Chimney Fan ON Chimney Fan ON correct start Chimney Fan ON process and is Feeder ON Feeder ON Feeder ON... -
Page 21: Troubleshooting And Error Reports For The Greenfire Pellet Stove
8.6. Troubleshooting the Greenfire pellet stove Compared to a conventional wood-burning stove, a pellet stove features a lot more mechanical and electronic systems. As a result, a number of problems may arise that can have a negative influence on both ignition and combustion. -
Page 22: Test Run Of Stove
8.6.2. Test run of stove Start the stove and test all combustion levels (Auto, 4, 3, 2, and 1). During this process, it is important to check that there is sufficient combustion airflow to the stove. The sign of a successful ignition process is that the flames are pale yellow after 15 minutes of operation –... -
Page 23: Service Technician / Description Of Problem
8.6.4. Service technician If the stove burns only poorly – dark flames and black smoke – or does not burn at all, contact your dealer to arrange a visit from a service technician. When calling a service technician, it will really help the technician if you can answer the following four questions. - Page 24 Errorcode: Description: Possible Error: Possible solution: ---- Add pellets to the The Pellet Alarm icon The Pellet tank is empty pellet tank is illuminated constantly E004 Error in communication Contact your dealer Com cable defective with the control system to arrange a solution E106 Pellet Tank Temperature Contact your dealer...
-
Page 25: Warranty
9. Warranty conditions Heta would like to thank you for the confidence you have shown us by purchasing our Greenfire pellet stove, and we encourage you to read: The instructions for installation, use and maintenance The warranty conditions specified below: WARRANTY CONDITIONS... -
Page 26: Eu Declaration Of Conformity
Adresse : Jupitervej 22 7620 Lemvig. Dk. Erklærer hermed at produktet Produktidentifikation : Greenfire 2. Produktnummer. 8202-0001. Rumopvarmer med fjernbetjening. Fyret med træpiller, og beregnet for bolig. Handelsbetegnelse: Greenfire. Er i overensstemmelse med bestemmelserne i følgende EU direktiv(er) (inklusive alle gældende tillæg) Reference nr. -
Page 27: Nameplate
11. Nameplate. 8202-0001-UK SINTEF Heta A/S Jupitervej 22 7620 Lemvig Denmark EC Certifikat Nr. 2006-02 DS/EN 14785/15a B-VG/A2: 2004 DIN PLUS/ NS 3058/3059 12345 Distance to combustible back wall 40 mm Distance to combustible side wall 75 mm Furnishing distance (in front of the stove) 600 mm CO, mean value nominal 0.011 %...
