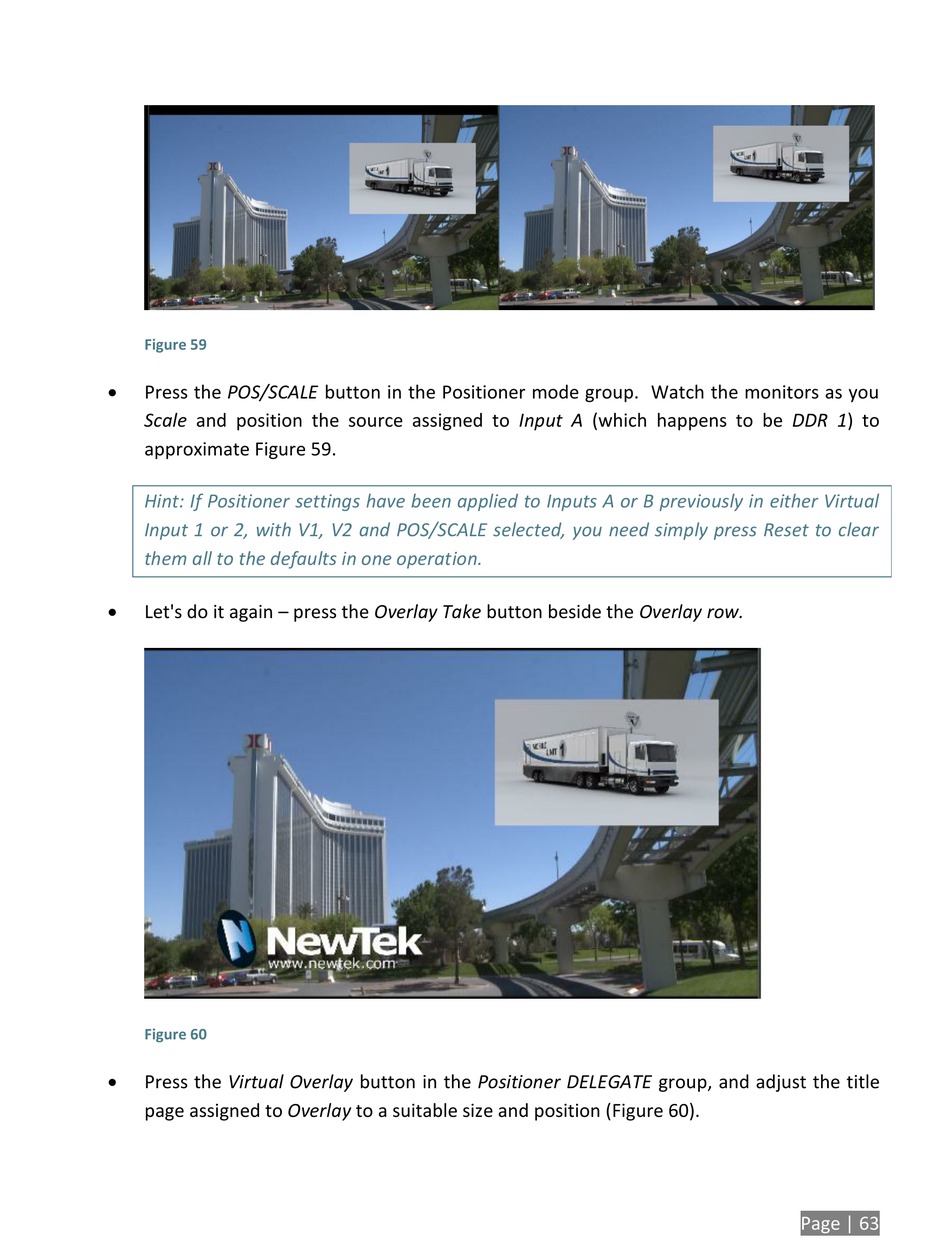

Figure 59

Press the POS/SCALE button in the Positioner mode group. Watch the monitors as you
Scale and position the source assigned to Input A (which happens to be DDR 1) to
approximate Figure 59.
Hint: If Positioner settings have been applied to Inputs A or B previously in either Virtual
Input 1 or 2, with V1, V2 and POS/SCALE selected, you need simply press Reset to clear
them all to the defaults in one operation.

Let's do it again – press the Overlay Take button beside the Overlay row.
Figure 60

Press the Virtual Overlay button in the Positioner DELEGATE group, and adjust the title
page assigned to Overlay to a suitable size and position (Figure 60).
Page | 63
