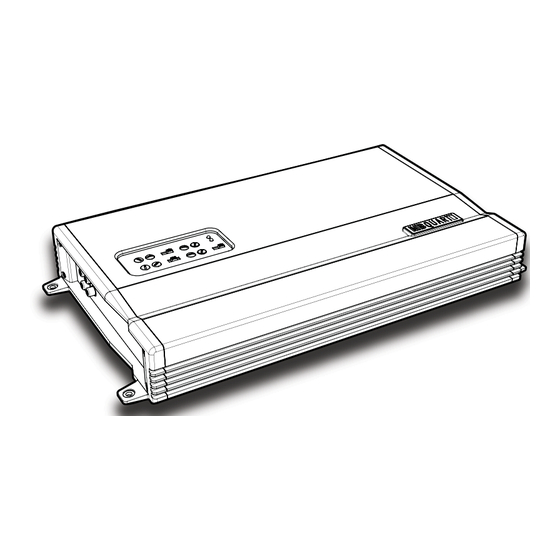

MB QUART ZA1-320.4 Quick Start Installation Manual

Before you start

CAUTION
Many new and factory radios require a reset code when
disconnected from battery power. This is an anti-theft
feature. Before unplugging power, you must determine if
your radio/source unit requires a reset code. Check the
operation manual for your vehicle or contact the dealer.
Model
Power cable size
and fusing
ZA1-320.4
It is critical to use the proper power
ZA1-640.4
and ground cable. Select the size
ZA1-1000.1
listed here for your amplifi er model.
Always use high quality copper
ZA1-1500.1
cable. Visit our website for multi amp
system cable recommendations.
Be sure to use the proper fuse size
for each model. Some models require
an external fuse.

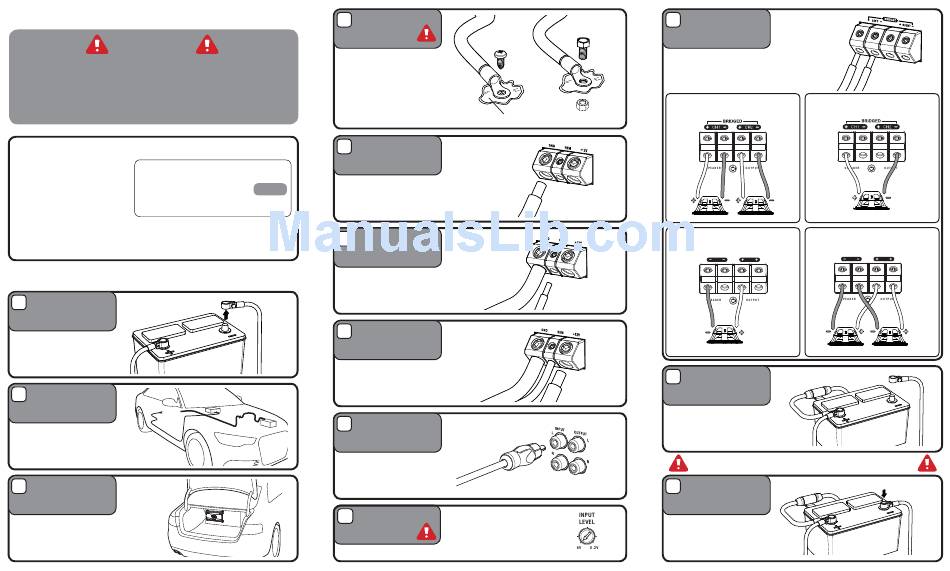

Installation
1
Disconnect
negative battery
terminal
Place terminal in a secure
position so that it won't
accidentally contact the
negative battery post
2
Run Cables
Properly route power,
speaker and RCA cables
through the vehicle.
3
Mount Amplifi er
Choose a mounting location
that will provide adequate air
ventilation. Mount the amplifi er to
a secure surface. Do not mount
the amplifi er upside down.
4
Chassis Ground
The chassis ground connection
is critical to the performance
of the amplifi er. Choose a
location that is close to the
amplifi er. Completely scrape
away the paint and use a nut
and bolt if possible.
DO NOT USE AN EXISTING
FACTORY BOLT!
5
Negative Power
Fuse Size Cable Size
Connection
2-25A atc
2-35A atc Attach the chassis ground
4ga
cable to the amplifi er
2-60A Maxi
negative terminal. It is
important to make sure this
2-70A Maxi
connection is very tight.
6
Remote Turn-on
Connection
Attach the remote turn on
wire to the amplifi er remote
output of the source unit.
7
Positive Power
Connection
Attach the main power cable
to the amplifi er +12V. The
cable must run directly to
the battery and be properly
fused and be very tight.
8
Signal Input
Connection
Connect the RCA cables to
the INPUT connectors. The
OUTPUT can be used to
provide input for a second
amplifi er.
9
Level Control
Bare metal
Turn the LEVEL control completely
counter-clockwise to minimum.
10
Speaker
Connections
Connect the speaker cables to
the speaker output connectors.
Follow the diagram below
that best fi ts your speaker
confi guration.
Stereo Bridged
Monoblock Monoblock
single woofer
11
Positive Battery
Connection
Connect the power cable to the
positive battery terminal. The
power cable must be fused
within 18 inches of the battery
terminal.
Be prepared to disarm your vehicle's alarm and
to enter your radio / source unit code.
12
Re-connect
Negative Battery
Terminal
Re-connect the negative
battery terminal making sure it
is securely tightened.
multiple woofers
