Installation Manual
Congratulations!
By purchasing an amplifier from MB Quart, you have decided on a product
of the highest technical quality. MB Quart wishes you great enjoyment with
your amplifier. Should you have any questions about this system or other
MB Quart products, please email us at info@maxxsonics.com
System Design
The success of any car stereo system relies on several factors, such as
the system design, execution of the installation, and system setup. Please
remember that any system is only as good as its weakest link.
Please remember that higher power systems are not necessarily useful
purely for high sound pressure levels, but also to establish a headroom
capability, to reproduce musical peaks cleanly without distortion.
FX2.60 / FX4.50 / FX4.70 / FX4.100 / FX1.400 / FX1.600
www.mbquart.com
Lower power amplifiers will clip earlier than their more powerful cousins,
and cause loudspeaker failure when overdriven, due to the harmonics
generated by a clipped signal, thus overheating voice coils.
Amplifiers should be mounted with the fins running horizontally for best
convection cooling, to minimize overheating. Purchase the best quality
RCA cables you can afford, for reliability and less engine noise
interference in the audio system.
It is highly recommended that the amplifier be mounted to a board of MDF
or other solid structure using the 4 mounting screws provided. Avoid
mounting the amplifier to metal as this can introduce noise and other
unwanted issues. When mounting the amplifier, ensure that it is mounted

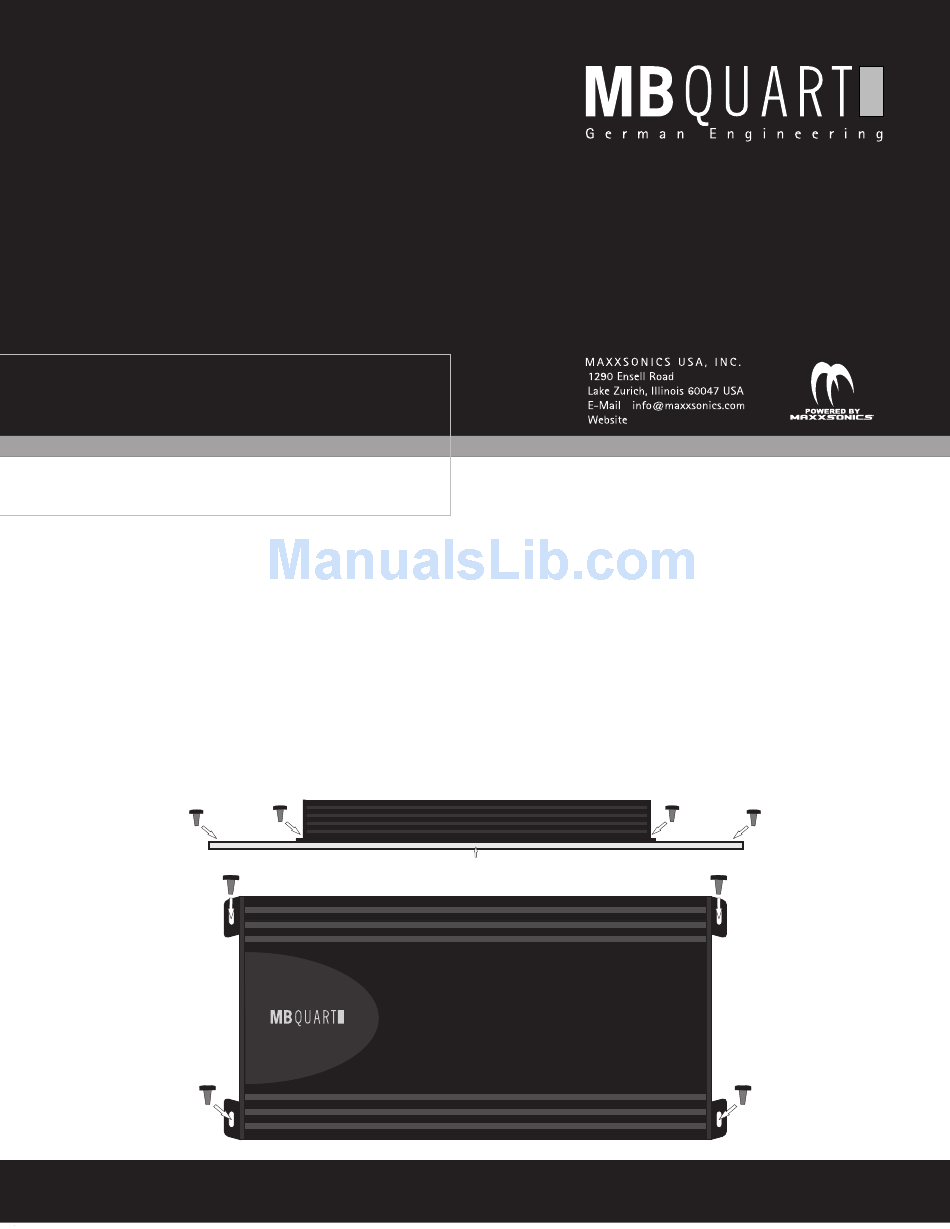

HORIZONTALLY, as shown in the diagram above, for optimal heat
dissipation. Mounting amplifiers to speaker enclosures is not
recommended as this can cause damage to the amplifier components.
When choosing a location for mounting the amplifier, ensure that you
check for clearance from wires, gas tank, electrical devices and brake
lines etc.
WOOD
