Summary of Contents for Peak Beam Systems Maxa Beam

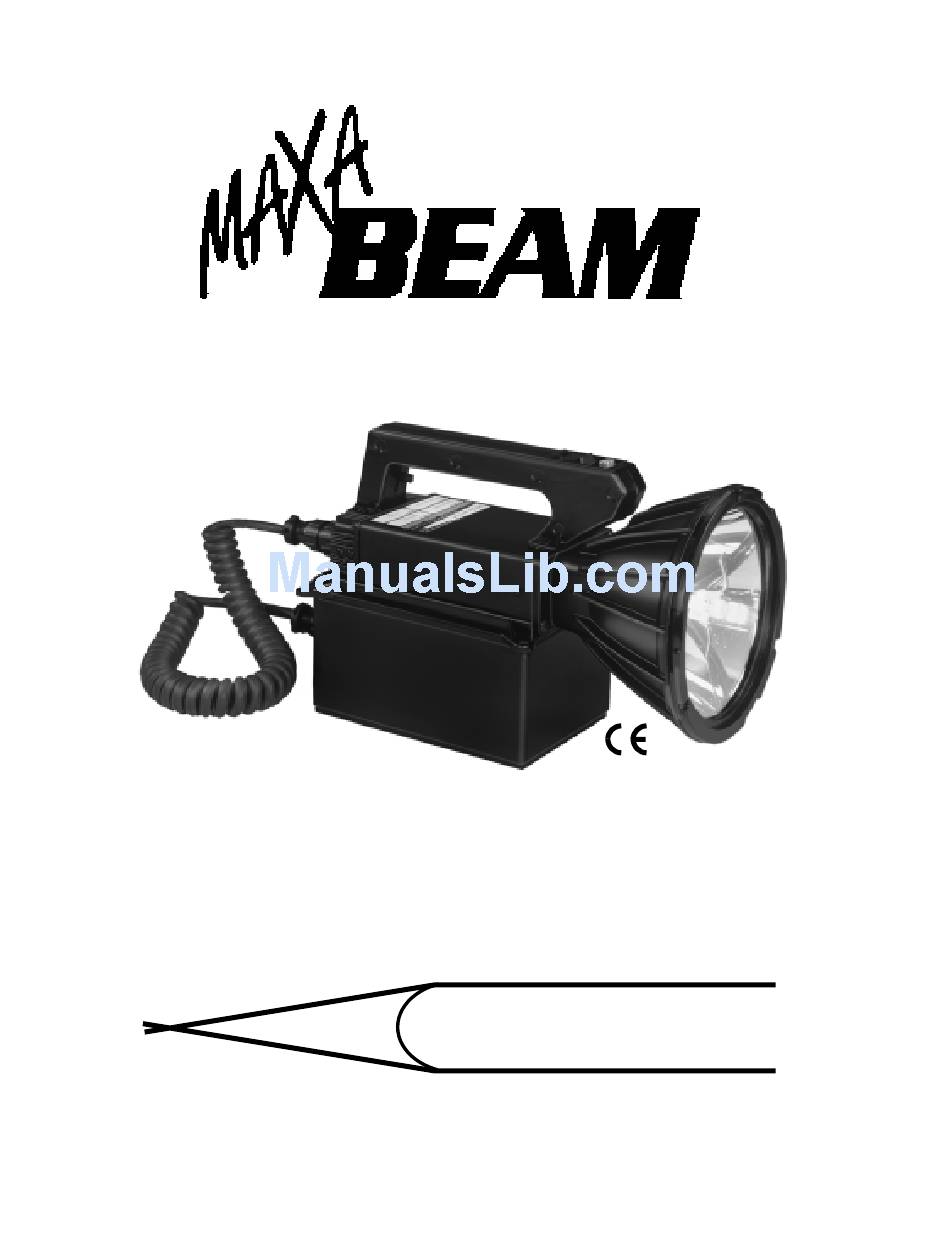

- Page 1 “ Hand Held Xenon Searchligh Operation Manual BEAM PEAK SYSTEMS, INC. High Intensity Searchlights E-mail sales@peakbeam.com Website www.peakbeam.com techsupport@peakbeam.com Copyright ' 2002 by Peak Beam Systems, Inc.
-
Page 2: Table Of Contents
Programming..........................6 Chargers............................8 Batteries............................10 Optical Filters..........................11 Maxa Beam Patterns with Diffusion Filters (Fig. 1)..............13 Relative Spectral Radiation (Xenon Lamp) (Fig. 2)..............13 Internal Transmittance of MBA IR Filters (Fig. 3)..............14 Lamp Focus Access Points (Fig. 4).................... 14 Remote Control Pin Layout (Fig. 5)....................15 Troubleshooting..........................15... -
Page 3: Characteristics

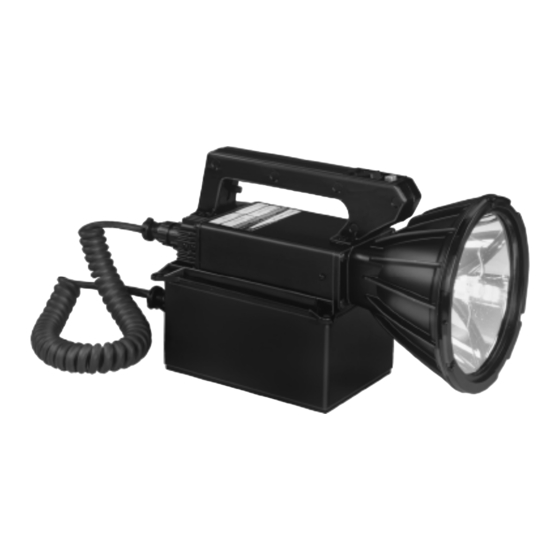

All Rights Reserved. Characteristics The Maxa Beam 400 series handheld searchlights are lightweight, compact, high intensity illuminators which use a field replaceable 75 Watt Xenon short arc lamp and a precision electroformed reflector to provide the ultimate source for long range and wide angle portable illumination. The features of this system include: •... -
Page 4: Theory Of Operation
Do not look directly into the light at close distances. Do not immerse the Maxa Beam in water or allow water to enter the case. While the Maxa Beam is weather resistant, submersion in water will cause permanent damage to the light. -
Page 5: Searchlight Operation
Override low voltage protection 1) The Maxa Beam searchlights automatically shut down before they discharge a battery enough to damage it. At this point, there are usually several minutes of power left in the battery which can be accessed in an emergency by pushing the power button and holding it down. -
Page 6: Operation With Maxa Beam Optical Filters
Operation with Maxa Beam Optical Filters The Maxa Beam optional filters utilize a quick disconnect snap lock feature for ease and speed of installation or removal. There is a small blue indicator located on the top of the light housing just behind the front lens ring. -
Page 7: Lamp Replacement
See instructions provided with MBA-2400 lamp replacement kit. Programming The Maxa Beam Searchlights provide you with a great deal of operational flexibility by allowing you to modify the operational characteristics of the searchlight with some simple programming sequences. This capability allows you to customize the light for the mission at hand. - Page 8 (B) Changing from battery saver mode to momentary and continuous strobe mode Factory default activates battery saver mode. Follow below sequence to change function to momentary strobe mode. To change to continuous strobe mode, repeat the above. Repeating it again will return you to battery saver mode.
-
Page 9: Chargers
MBP-3100 Drop In Charger This device is designed to charge the Maxa Beam MBP-1207 NiCad battery modules only. Do not use this charger to charge any other Maxa Beam batteries or any other device. This model charger may be adjusted for use with either a 110 vac or 220 vac power input supply. - Page 10 This model charger can be powered from any DC supply voltage in the range of 11-36 volts DC. With one of its optional, plug in power supplies, it can also be powered from 120 volts, Hz or 100-240 volts 50/60 Batteries can be charged at either a trickle charge rate by placing them on top of the charger or a quick charge rate of 2.5 hours through the charger’s pigtail output connector.
-
Page 11: Batteries
Pull device Top Latch away from charger. Indicator Light Batteries Maxa Beam 12 Volt batteries are designed for Keeper use with Maxa Beam searchlights only. Do not use these batteries with any other device. MBP-5200 Bottom... -
Page 12: Optical Filters
Maxa Beam 12 Volt batteries consist of 10 NiCad F cells sealed into a weather tight enclosure. As with all NiCad batteries, these batteries should not be stored in a discharged condition and may be permanently damaged if excessively discharged. - Page 13 * Range Calculations are based on imaging produced useing a Watec 902-K camera with various 2.2 speed Rainbow Zoom Lenses with 1 µwatt of IR energy reaching the target. These tests were conducted on a clear moonless night with the Maxa Beam in a 1° spot on its high beam setting.
-
Page 14: Maxa Beam Patterns With Diffusion Filters (Fig. 1)
Maxa Beam Patterns With Diffusion Filters Wide Flood With and Without MBA-3000 MBA-3020 Peripheral Vision Filter Figure 1 Relative Spectral Radiation (Xenon Lamp) Figure 2... -
Page 15: Internal Transmittance Of Mba Ir Filters (Fig. 3)
Internal Transmittance of IR Filters Figure 3 Lamp Focus Access Points Y Axis Access Point X Axis Access Point Figure 4... -
Page 16: Remote Control Pin Layout (Fig. 5)
Remote Control Pin Layout Pin # Function 12 VDC Ground On/Off Hi/Low Beam Focus Narrow Focus Wide Strobe/Battery Saver Mode Servo Input Pins 3, 4, 5, 6, & 7 require a momentary 12 volt input to activate their related function. Consult the factory for utilization of pin 8. - Page 17 The indicator flashes red when Something Other Than a The MBP-5600 is Designed to powered up with something Searchlight is Connected Only Power Maxa Beam connected to the searchlight power Searchlights jack The Red Button is Depressed on Allow the MBP-5600 to Power...
-
Page 18: Returns To The Factory
Reason for return • For service returns, a description of the problem • Method of payment for non-warranty service and freight Peak Beam Systems, Inc. 3938 Miller Road Edgemont, PA 19028 (610) 353-8505 (phone) (610) 353-8411 (fax) Products returned must be sent freight prepaid along with return shipping instructions and a brief description of the problem. -
Page 19: Equipment And Accessories
Equipment and Accessories Searchlights MBS-410 Handheld Searchlight with 5’ coiled power cord MBS-430 Searchlight without handle, with remote port and 5’ coiled power cord MBS-450 Handheld Searchlight with remote port and 5’ coiled power cord Batteries MBP-1107 Gel-Cell Battery Module MBP-1207 NiCad Battery Module MBP-1207-V... - Page 20 Maxa Beam is a Trademark of Peak Beam Systems, Inc. All other Trademarks are the property of their respective owners.
