SOLE SB700 Owner's Manual

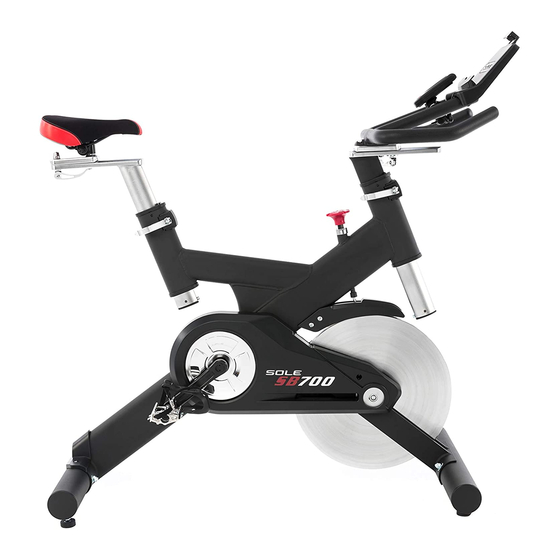

Indoor cycle
Hide thumbs Also See for SB700:

Advertisement

Table of Contents

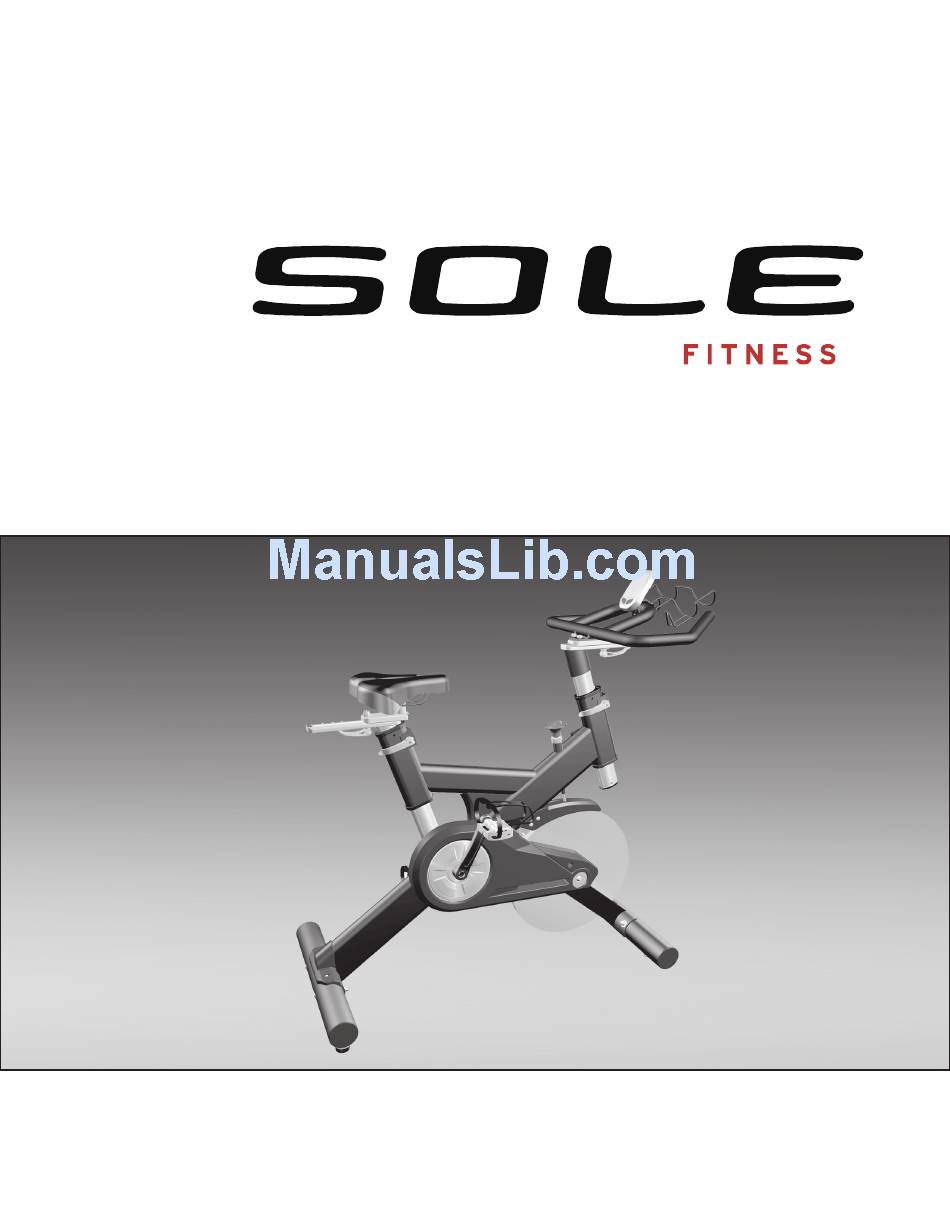

SB700 INDOOR CYCLE OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Indoor cycle
Before returning your Sole product to any retailer, or if you require any assistance with assembly or technical support please call us first
for assistance at 866-697-6531. Thank you for your Sole purchase.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB700 and is the answer not in the manual?

Questions and answers

Related Manuals for SOLE SB700

Summary of Contents for SOLE SB700

  • Page 1 PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Indoor cycle Before returning your Sole product to any retailer, or if you require any assistance with assembly or technical support please call us first for assistance at 866-697-6531. Thank you for your Sole purchase.

  • Page 2: Table Of Contents

    THIS INDOOR CYCLE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY. Before returning your Sole product to any retailer, or if you require any assistance with assembly or technical support please call us first for...

  • Page 4: Product Registration

    Please take a moment at this time to record below the name of the dealer, their telephone number, and the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new indoor cycle.

  • Page 5: Important Safety Instructions

    Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! SB700 INDOOR CYCLE...

  • Page 6: Important Operation Instructions

    5. Proper installation and regular maintenance are required to ensure user’s safety. Maintenance is the sole responsibility of the owner. SB700 INDOOR CYCLE...

  • Page 7: Hardware Step

    SB700 ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #82. 3/8” #81. 3/8” x 3-1/2” #83. 3/8” x 23mm Nut (4 pcs) Button Head Socket Bolt (4 pcs) Curved Washer (4 pcs) HARDWARE STEP 2 #91. M5 x 10mm Screw (2 pcs) HARDWARE STEP 4 #49.

  • Page 8: Sb700 Assembly Instructions

    SB700 ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift Box over the unit and unpack. Carefully remove all parts from carton and inspect for any damage or missing parts.
  • Page 9 Attach the Rear Stabilizer cover with two Screws (91). Tighten using the Combination M5 Allen Wrench & Phillips Head Screw Driver (86). CONSOLE 1 – Console 2 – Mounting Clamp 3 – Clamp mounting screw 4 – Clamping thumb screw 5 – Velcro 6 – Speed transmitter SB700 INDOOR CYCLE...
  • Page 10 Sole Indoor Cycling Console Battery Installation: Remove the battery cover from the back of the computer. Insert 2 AAA batteries into the battery compartment and reinstall the battery cover. When Battery working voltage is too low, The “Low battery” indicator will show up on the console display indicating it is time to change the batteries.
  • Page 11 Attach the handlebars (make sure they are oriented as in the illustration) with four Screws (88), four Split Washers (49), and four Flat Washers (48). Tighten firmly using the Combination M5 Allen Wrench & Phillips Head Screw Driver (86). SB700 INDOOR CYCLE...
  • Page 12 Tighten each pedal as firmly as possible with the Wrench (85) provided. If you here a thumping sound when you are pedaling, this usually means one or both pedals are loose. You may need to retighten them after use. SB700 INDOOR CYCLE...

  • Page 13: Operation Of Your New Indoor Cycle

    SB700 CONSOLE PLEASE NOTE: The Sole Indoor Cycling Console system is designed as a sealed unit and not meant to be opened other than for the sole purpose of installing batteries. Any opened units will void the warranty. To clean the Sole Indoor Cycling Console use a clean damp cloth. Use of any caustic cleaning solutions will void the warranty.

  • Page 14: Console Operation

    DISTANCE Distance is the measurement of the virtual distance traveled on the bike. This distance is based on the user riding a bike with tires that are the same size as the Sole group bike’s flywheel. KCAL Kcal is the approximation of calories burned during your work out. The calories are an estimate only.
  • Page 15 2. Press the right hand key to increase maxi- mum heart rate limit. After setting the max- imum heart rate, press the left hand key to adjust the minimum heart rate limit. SB700 INDOOR CYCLE...
  • Page 16 2. Press the left hand key to set the measuring value for weight (Lb or Kg); press the right hand key to select. 3. BODYWEIGHT: Press the left hand key to set the bodyweight. Press the right hand key to increase the weight. Press and hold the right hand key for rapid advance. SB700 INDOOR CYCLE...
  • Page 17 Loosen the quick release under the handlebar and slide the handlebar forward or backward as desired. A suitable forward/aft position should allow the rider to comfortably grasp the handlebar with a slight bend at the elbow. Tighten the quick release to secure the handlebar assembly. SB700 INDOOR CYCLE...
  • Page 18 If it is too loose or to tighten the strap, depress the spring loaded clasp, then pull on the open end of the nylon strap until the strap is snug around each foot. SB700 INDOOR CYCLE...
  • Page 19 2. To apply the brake, press down on the tension knob. 3. Before dismounting, apply the brake to stop flywheel, or increase resistance and let flywheel come to a stop. SB700 INDOOR CYCLE...
  • Page 20 1. Do not service internal parts of pedals. If they are found to be worn internally, we recommend replacing the pedal. 2. Use of lubricants or cleaning solutions other than those so specified will result in diminished performance and a shorter life span for that part. SB700 INDOOR CYCLE...

  • Page 21: Manufacturer's Limited Warranty

    Effective January 1, 2011 SOLE warrants all its indoor cycles’ parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. SOLE’s responsibilities include providing new or remanufactured parts, at SOLE’s option, and technical support to our independent dealers and servicing organizations.
