Slim USB 3.0 to HDMI® External Video Card

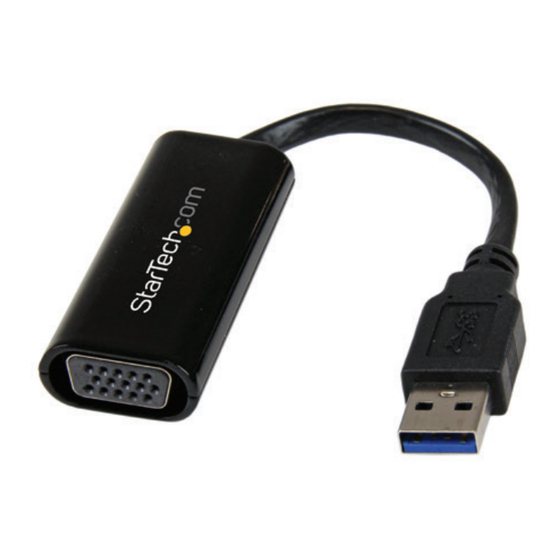

Slim USB 3.0 to VGA External Video Card
USB32HDES
USB32VGAES
Please ensure that the latest
drivers from the StarTech.com
website are installed before
plugging in the USB 3.0 Video
Adapter
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/07/2015
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32HDES
Summary of Contents for StarTech.com USB32HDES
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/07/2015...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Driver Installation Windows ........................2 Multiple USB Video Adapter Installation ..................3 Verifying Installation ..........................3 Supported Resolutions .................4 Configuring the USB Video Adapter ............5 Windows ............................... -
Page 4: Introduction
• 1 x Driver CD • 1 x Instruction Manual System Requirements • (USB32HDES) HDMI enabled display device (e.g. monitor, projector, HTDV, etc) (USB32VGAES) VGA enabled display device (e.g. monitor, projector, HTDV, etc) • (USB32HDES) HDMI male to male video cable (USB32VGAES) VGA male to male video cable •... -
Page 5: Installation
(plugging in) of the USB 3.0 Video Adapter Driver Installation Windows 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. 2. Locate the Setup.exe application. This file will be located in the root directory of the Driver CD (e.g. -
Page 6: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps, up to when you plug in the first USB Video Adapter. -
Page 7: Supported Resolutions
USB32HDES: An audio device will also be listed under the “Sound, video and game controllers” category in Device Manager. As Windows will only support one audio output at a time, this will override the default sound card on the computer (if any), resulting in no audio from the computer speakers. -
Page 8: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Look for the USB Video Adapter icon ( ) on your Windows System Tray (next to clock). Right-click this icon to access the variety of functions associated to the adapter. Windows The USB Video Adapter drivers allow for all adjustments through the built-in Display Settings window. -
Page 9: Multi-Display Control Panel
Multi-Display Control Panel A unique feature to allow quicker and simpler management of a multi-display environment. A series of hotkeys to quickly move the active program window to the desired display (either on-board or each USB Video Adapter). The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display Control Panel”. -
Page 10: Specifications
Specifications USB32HDE USB32VGAE Video Signal HDMI 1.2 VGA (RGBHV) Host Interface USB 3.0 1 x DE-15 VGA 1 x HDMI female female Connectors 1 x USB 3.0 type A 1 x USB 3.0 type A male male 2-channel LPCM Audio Support (48KHz) Maximum Video Resolution 1920 x 1200... - Page 11 Instruction Manual...
-
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
