Opening/Closing The Top Cover; Loading Print Ribbon - Creative LabelTac 4 PRO Quick Start Manual

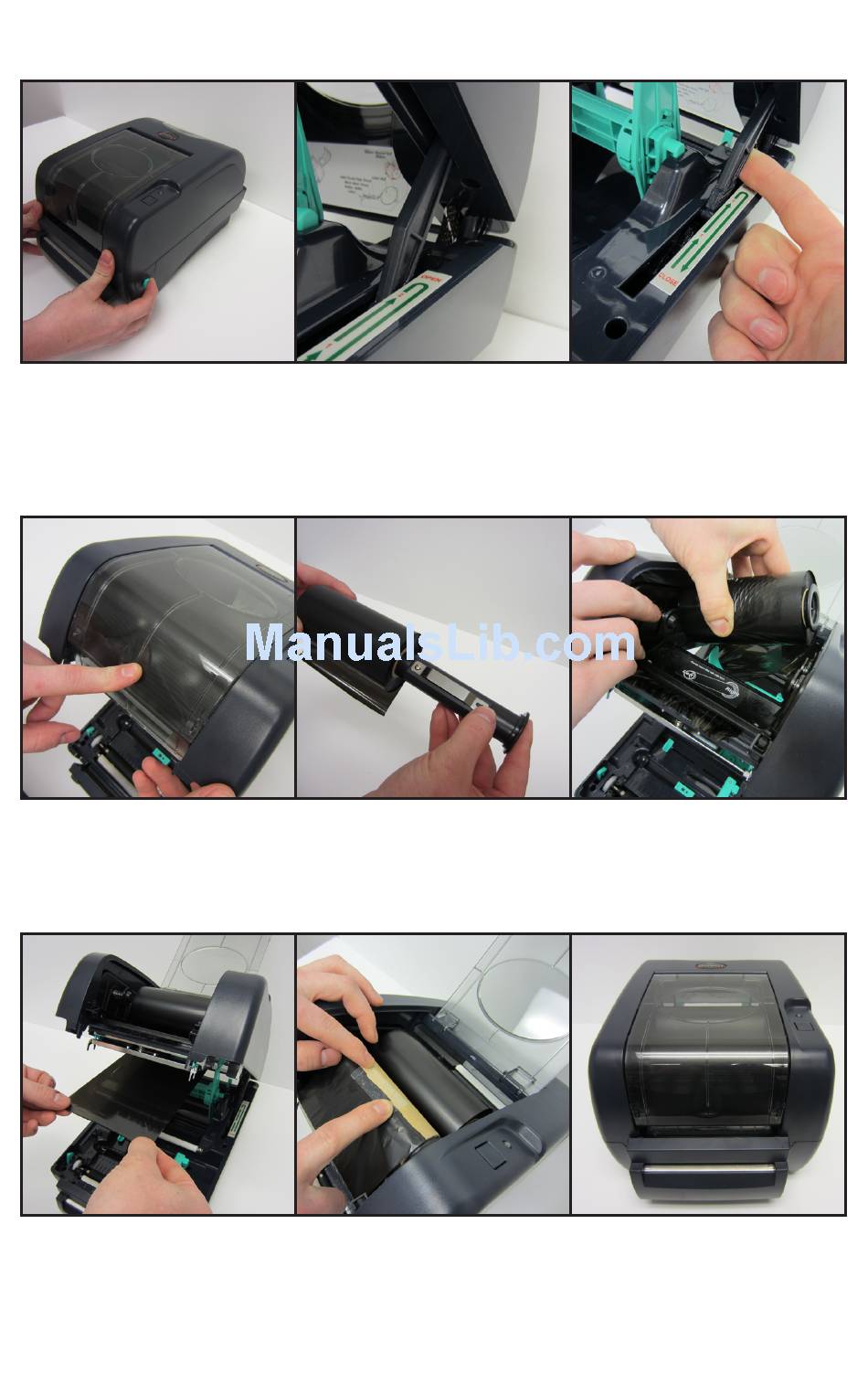

A) OPENING/CLOSING THE TOP COVER
1) To open cover, pull both
blue cover release tabs
straight towards you. Lift
cover.
B) LOADING PRINT RIBBON
1) Open cover using both
blue cover release tabs.
Open ribbon access cover
by pressing on the indent.
4) Pull ribbon (dull side
down) up and over the print-
head. Insert the carboard
core into the rewind spool.
2) The cover support will
engage to hold the cover
open.
(Video available on LabelTac 4 Install Disc)
2) Remove ribbon sup-
ply and rewind spools and
insert ribbon into the supply
spool.
5) Insert rewind spool into
the rewind hub (front), and
tape the ribbon to the the
cardboard core lengthwise.
3
3) To close cover, lift cover
support from rear, pull to-
wards you, and close cover
gently.
3) Insert supply spool into
the supply hub (rear), left
side first, and snap into
place.
6) Close the ribbon access
cover, disengage the cover
support and gently close the
top cover.
