QUICK START GUIDE

IMPORTANT:
Please read this manual carefully.
Use this manual when you need quick reference help for the printer.

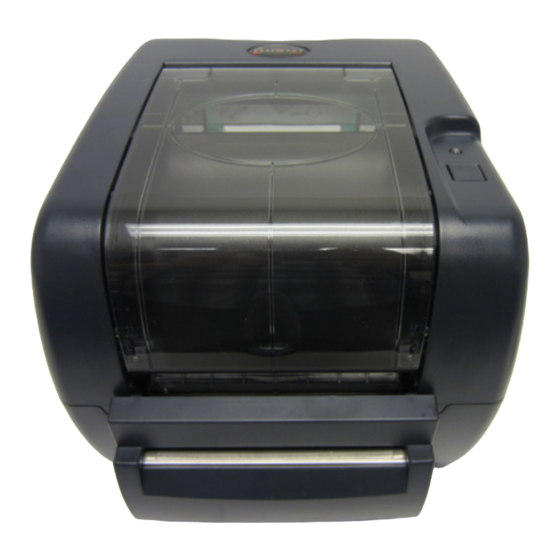

LABELTAC 4 PRO
THERMAL TRANSFER PRINTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LabelTac 4 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Creative LabelTac 4 PRO

  • Page 1: Quick Start Guide

    CREATIVE SAFETY SUPPLY (866) 777-1360 www.creativesafetysupply.com QUICK START GUIDE LABELTAC 4 PRO THERMAL TRANSFER PRINTER IMPORTANT: Please read this manual carefully. Use this manual when you need quick reference help for the printer.

  • Page 2: Packing List

    LabelTac 4 PRO Thermal Transfer Printer b) USB Transfer Cable c) Power Cable d) Software/Driver Install CD e) This Quickstart Manual GETTING STARTED Here are the main components of your LabelTac 4 PRO printer. Used ribbon rewind spool/hub Ribbon supply spool/ Printhead Media holder...

  • Page 3: Opening/Closing The Top Cover

    A) OPENING/CLOSING THE TOP COVER 1) To open cover, pull both 2) The cover support will 3) To close cover, lift cover blue cover release tabs engage to hold the cover support from rear, pull to- straight towards you. Lift open.
  • Page 4 C) LOADING MEDIA SUPPLY (Video available on LabelTac 4 Install Disc) 1) Open cover using both 2) Remove blue media 3) Replace media holder, blue cover release tabs. holder and place media on ensuring the media can turn holder, closing each end freely.
  • Page 5 INSTALLING PRINTER DRIVERS (Windows Only) 1) Insert the LabelTac 4 PRO Install Disc. The disc will autorun and pop up the Install Menu. Select “Install LabelTac Drivers” from the menu options. Depending on your account settings, a popup box may appear asking if you want to allow the software to make changes to your computer- Select “Yes”...
  • Page 6 INSTALLING PRINTER DRIVERS (continued) 3) By default, “Install a driver for a Plug and Play printer” is selected. The LabelTac 4 (TSC TTP-343C) should be the only printer in this list. Click the next button. 4) Rename the printer from “TSC_TTP-343C” to “LabelTac4” for easy reference. Click Next to continue.
  • Page 7 INSTALLING PRINTER DRIVERS (continued) 5) Click Finish to complete the installation. 6) If the dialog box above pops up, select “Install this driver software anyways” to continue.
  • Page 8 INSTALLING PRINTER DRIVERS (continued) 7) The LabelTac 4 PRO drivers will now install. 8) When the drivers are finished installing, select Close to continue.

  • Page 9: Installing Templates & Symbols

    INSTALLING TEMPLATES & SYMBOLS 1) Select “Install Templates and Symbols” to begin the installation process. 2) Choose the folder you would like to install the templates and symbols to. The default is the currently logged-in user’s desktop. We recommend installing the folder to the desktop for easy access.
  • Page 10 INSTALLING PRINTER DRIVERS (continued) 3) When installation is complete, click the Close button to finish installation. 4) The Templates and Symbols will install to a folder called “LabelTac 4 Templates” and are broken into folders based on the width of the label stock they are to be printed on. There is also a folder for OpenOffice templates, and another for Symbols and Images.

  • Page 11: Led And Button Functions

    LED AND BUTTON FUNCTIONS The LabelTac 4 PRO has one button and one 3-color LED indicator. By indicating the LED with different color and pressing the button, the printer can perform several func- tions, including feed labels, pause printing, selecting and claibrating the medai sensor, resetting the printer, and more.

  • Page 12: Troubleshooting

    TROUBLESHOOTING • POOR PRINT QUALITY If you are having issues with poor print quality from your LabelTac 4 PRO printer, do not hesitate to give us a call at (866) 777-1360, and one of our support representatives would be glad to help get your printer functioning optimally.
  • Page 13 Gaps”. Leave the other settings as is. 2) Turn off the LabelTac 4 PRO printer. Load the die-cut supply in the printer. Hold the top button down, and while holding it down, turn the printer back on. The LED will blink amber once, blink green once, and then begin flashing red rapidly 5 times.
  • Page 14 QUESTIONS? CREATIVE SAFETY SUPPLY (866) 777-1360 www.creativesafetysupply.com...
