Summary of Contents for TV Ears 3.0 System

  • Page 1 TV Ears 3.0 System Installation Guide Doctor Recommended...
  • Page 2: Important Safety Instructions

    Warning: To reduce the risk of fire or electric shock, do not expose the TV Ears product to rain or moisture. The TV Ears product should not be exposed to dripping or splashing liquids.
  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions Included in Box Ideal TV Ears Set Up Installation instructions Step 1 Connect the Transmitter to Your TV Step 2 Place and Power the Transmitter Step 3 Charging the Headset Using the System | Using the Headset...
  • Page 4: Included In Box

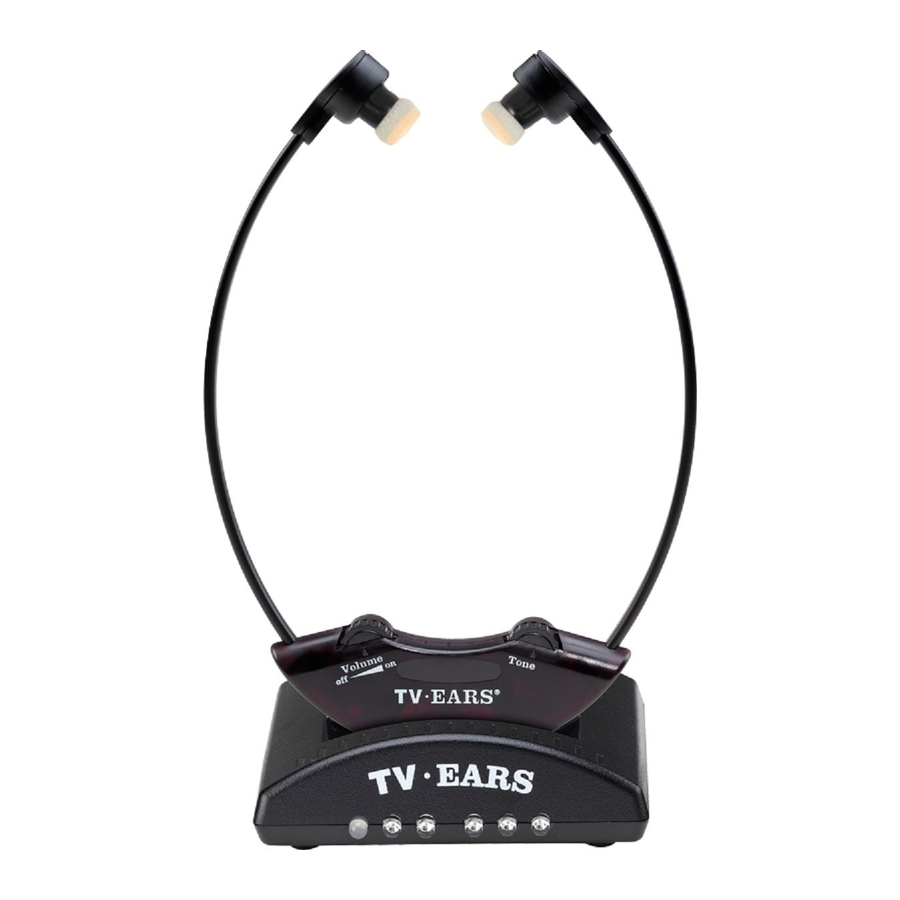

    Included in Box TV Ears 3.0 Transmitter TV Ears 3.0 Headset AC Adapter Audio Cord...
  • Page 5: Ideal Tv Ears Set Up

    Ideal TV Ears Set Up The infrared diodes must be in direct line of sight with the headset so the headset can receive the infrared signal. transmitter should be placed on a flat surface 3 to 5 feet off the ground and should be pointed towards the area where the headset will be used.
  • Page 6: Installation Instructions Step

    2. Plug the single end of the audio cord into the port labeled Analog Audio In on the back of the TV Ears transmitter. 1. Ports on the front of TVs are usually audio in ports and will not send sound to your TV Ears.
  • Page 7: Step 2 | Place And Power The Transmitter

    Installation | Step 2 Place and Power the Transmitter The infrared diodes must be in direct line of sight with the headset so the headset can receive the infrared signal. 1. Place the transmitter on a flat surface 3 - 5 feet off the ground.
  • Page 8: Step 3 | Charging The Headset

    Installation | Step 3 Charging the Headset Each headset comes pre-charged with enough battery power for at least 10 minutes of use. The headset will last around 6 - 8 hours on a full charge, but will decrease as the volume reaches higher levels. A fully exhausted battery will take between 8 - 10 hours to charge completely.
  • Page 9: Using The System | Using The Headset

    Using the System Using the Headset Put on the Headset: Using both hands, gently separate the bow arms at the top by the ear tips and place earpieces into each ear. ON/OFF and Volume To turn the headset ON, rotate the volume dial and set the volume to your comfort level.
  • Page 10: Frequently Asked Questions

    (consult your television manual or manufacturer). When the TV is set to a “Variable” audio out setting, the volume of the TV Ears headset will be the same volume as the TV. Why do I hear a television station when I’m watching a DVD/video?
  • Page 11: Warranty Information | Contact Information

    Also if the TV Ears product is taken outside of Canada the warranty becomes void. This warranty is provided at the discretion of TV Ears Canada and does not cover cosmetic damage or damage due to acts of nature, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the product.
  • Page 12: Manufacturer Declarations

    TV•EARS® Inc. TV•EARS® Inc. reserves the right to change product content and product specifications without notice. CE Declaration of Conformity TV Ears is in compliance with the essential safety requirements and other relevant provisions of Standard IEC 60065:2001 + Ammd 1:2005 / EN 60065:2002 and Directive 2004/108/EC; 2006/95/EC, 89/336/EEC, 92/31/ EC, 93/68/ EEC.
  • Page 13: Technical Specifications

    Technical Specifications Specifications System Modulation Infrared, Mono Carrier frequencies 2.3 MHz Range 600 sq. ft (55 m Audio frequency 100-16,000 Hz response < 1% Headset Max SPL 120 dB NiMH (Nickel Metal Hydride) Power Supply rechargeable battery Operating Time Up to 6 hours (depending on use). Weight 1.6 oz (45g) Height...
  • Page 14: Headset Battery

    TV Ears 3.0 Accessories 3.0 Transmitter Kit Since 1998 MSRP $79.95 Item # 11311 TV Ears has 3.0 Transmitter, Audio Cord, and AC Adapter. been helping people hear TV. Backed by the 3.0 Headset Battery recommendation MSRP $24.95 Item # 40809...
