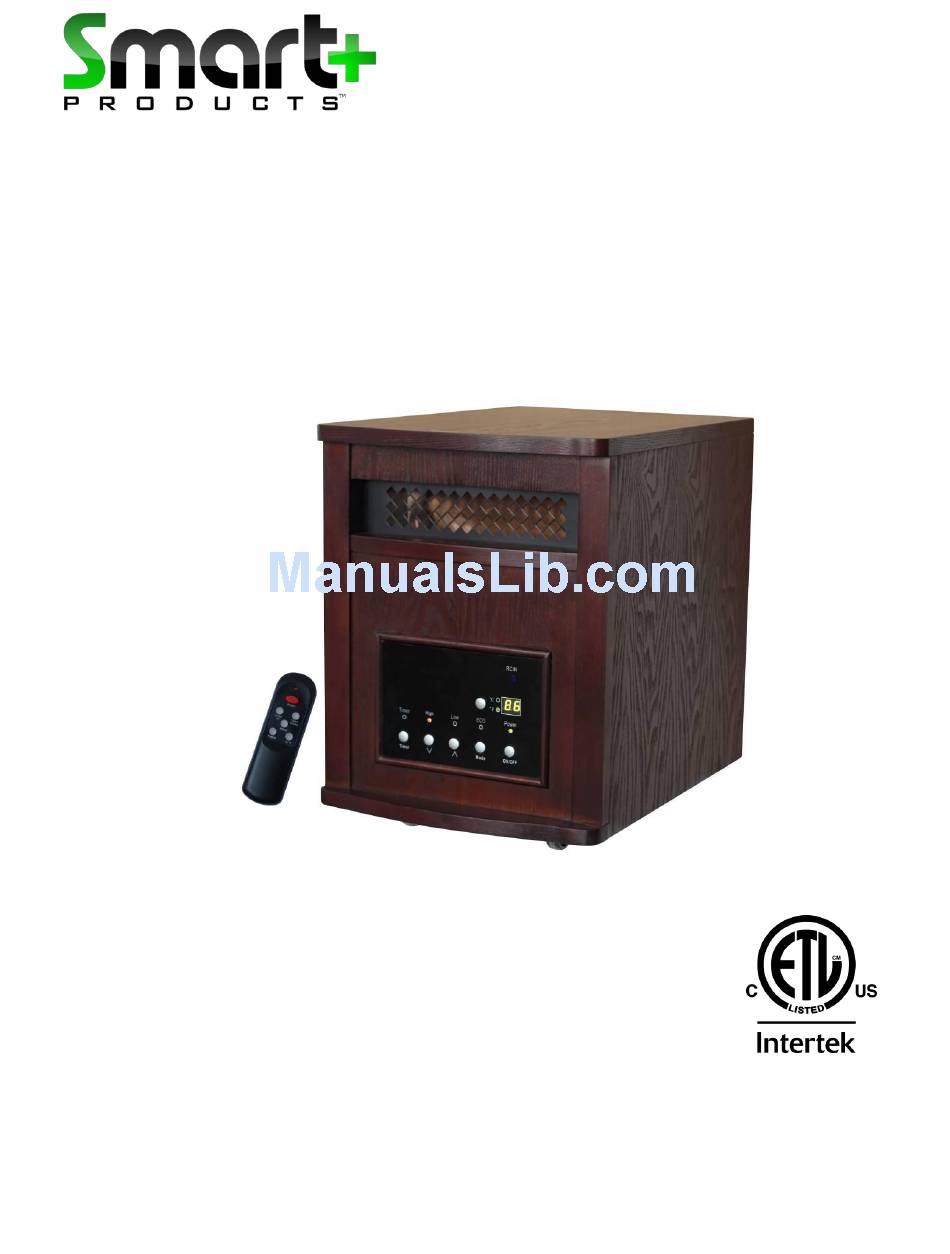

- Page 1 INFRARED ZONE HEATING SYSTEM OWNER’S MANUAL Model No. SPP-1800-6WC WARNING: READ THIS ENTIRE OWNER’S MANUAL CAREFULLY BEFORE USE.
- Page 2 Thank you for choosing a SMART+ PRODUCTS Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS, AND FAQ’s BEFORE USING THE HEATER WARNING! ! POTENTIAL FOR ELECTRICAL HAZARD IF NOT ADHERED TO! When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. - Page 4 9. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations, nor any locations that use GFCI outlets. 10. Never place heater where it may fall into a bathtub or other water receptacles. 11. Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings.
-
Page 5: Frequently Asked Questions (Faqs)
(unless you are a certified heater technician or authorized directly by SGH). All parts may be purchased through SMART+ PRODUCTS if your product is out of warranty. Note: If you feel that the elements are definitely faulty right out of the box, contact SMART+ PRODUCTS Tech Support first (for troubleshooting). - Page 6 Why doesn’t the temperature on my heater match the temperature display on my wall, or external thermostat This is completely normal. The temperature display on your heater may vary from the temperature display on another thermostat (like the one mounted to your wall or a purchased external thermostat).
- Page 7 I purchased my heater so that it could cut my heating costs, but my electric bill has gone up. Why? The compact SMART+ PRODUCTS heater can definitely save you on heating costs, when compared to the existing central heating system in place in your home, and when used as directed.
-
Page 8: Specifications
SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 1500W Unit Size in. (W) x 20 in. (D) x 17 in. (H) Unit Weight 40 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. -
Page 9: Product Diagram
IN THE BOX INFRARED ZONE HEATING INSTRUCTION BOOKLET SYSTEM REMOTE CONTROL (2 AAA Batteries Sold Separately) PRODUCT DIAGRAM Remote Control Wooden Cabinet Power Mode Temp. Up Temp. Down Air Outlet Timer Power Mode Cord Clamp Control Panel Temp. - Page 10 Control Panel Designation (Ref Fig. 1) 1. Remote control signal sensor 2. Digital display: Indicates set desired room temperature 3. Power Indicator Light: Indicates that the heater is receiving power from outlet. 4. ON/OFF button: Powers the display on and off 5.
-
Page 11: Remote Control
Remote Control Temp up button: To increase desired temperature ON/OFF button: Powers the display on and off Temp down button: To decrease desired temperature Botón Mode: se utiliza para seleccionar el modo. ℃/℉ button: For alternating between Fahrenheit and Celsius Timer button: Used to engage timer mode and to set hour value for the timer Battery compartment (rear of remote) Battery compartment cover... - Page 12 PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. Heater to be operated only in upright position with caster wheels attached. Turn on the main power switch in the rear of the unit. Press the On/Off button on the display to power up the heater’s display. You may also use the ON/OFF button on the remote as well, but you will need to insert 2 AAA batteries into the remote control battery compartment before using (Batteries Sold Separately) Rear of...
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS 1. Power the Display On/Off and Select Desired Mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Turn the heater off by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. - Page 14 The Fahrenheit indicator LED will light, when the temperature is displayed in Fahrenheit. The Celsius LED will light, when the temperature is displayed in Celsius. POWER-OFF TIMER 3. Setting the Function Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can only be set while the heater’s display is in the “On”...
- Page 15 5. Setting Electro Lock The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking mechanism can be set in both the display ON and OFF modes. Press Temp Up and Temp Down buttons at the same time for 3 seconds.
-
Page 16: Maintenance
MAINTENANCE Unplug the unit and let it cool completely. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. -
Page 17: Basic Troubleshooting
Re-install cover Slide battery cover off Remove Batteries STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. BASIC TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair advice: 1.
