  • Page 1: User Manual

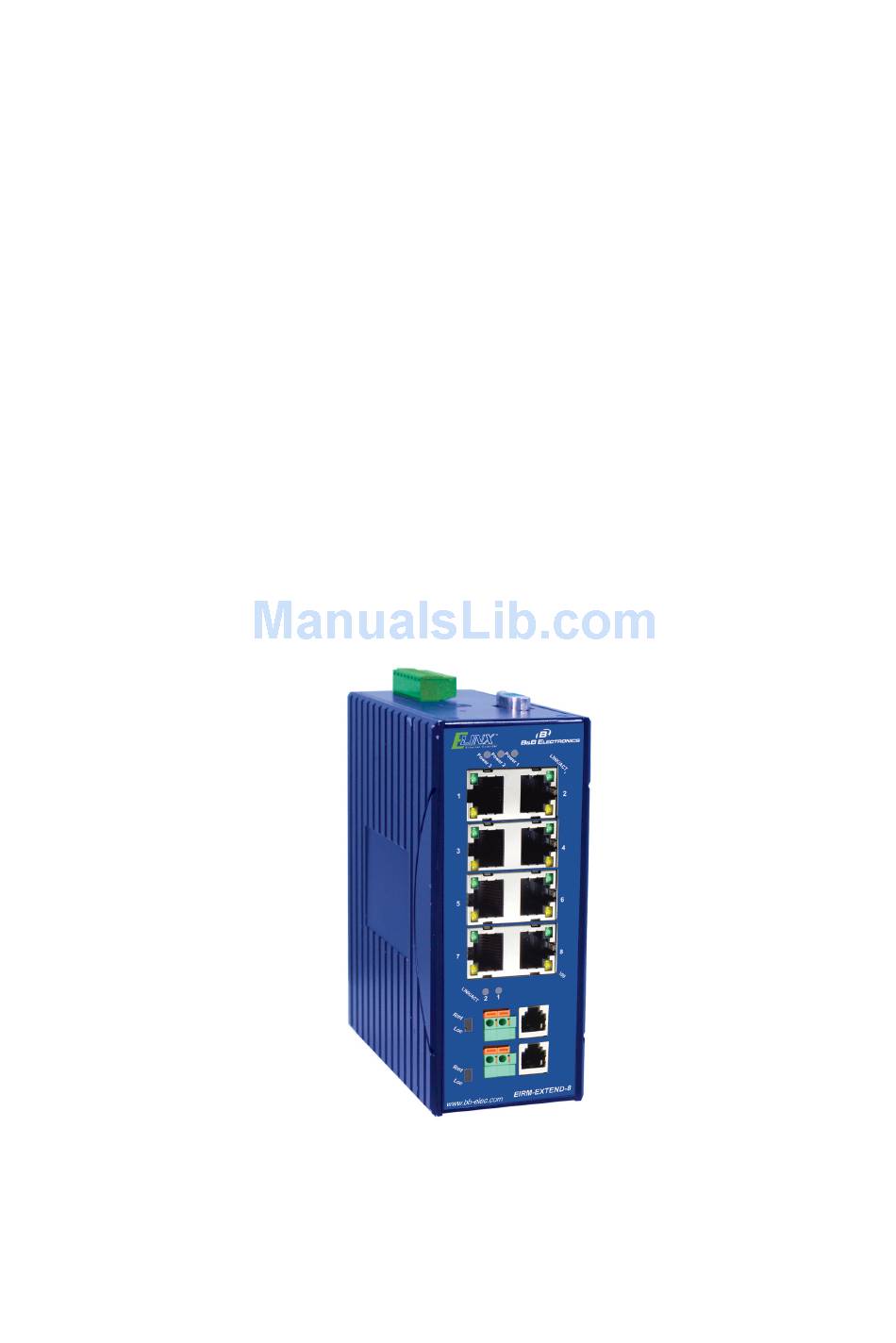

    User Manual Elinx EIRM-EXTEND-8 Managed Hardened 8 port 10/100BASE-TX Ethernet Extender...
  • Page 2 Model EIRM-EXTEND-8 Documentation Number EIRM-EXTEND-8- 707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.bb-elec.com Sales e-mail: orders@bb-elec.com -- Fax (815) 433-5109 Technical Support e-mail: support@bb.elec.com -- Fax (815) 433-5104 European Headquarters B&B Electronics Westlink Commercial Park -- Oranmore, Co.

  • Page 3: Specifications

    Preface The manual describes how to install and use the Hardened Managed Ethernet Extender Switch. This Ethernet Extender Switch is designed to deliver full scalability with SNMP/RMON web-based management functions. To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

  • Page 4: Table Of Contents

    Table of Contents Preface Chapter 1 – Introduction ................1 RODUCT VERVIEW ................1 ACKAGE ONTENTS ................2 RODUCT IGHLIGHTS Basic Features ..................2 Management Support ................2 Front Panel Display Physical Ports Ethernet Extender Switch Management Web-based browser interface .............. 7 Administration console via RS-232 serial port (CLI) ......
  • Page 5 Web-Based Browser Management ......19 OGGING ON TO THE THERNET XTENDER WITCH .......... 20 NDERSTANDING THE ROWSER NTERFACE ....................22 YSTEM ................23 YSTEM NFORMATION ..............23 YSTEM ASSWORD IP A .................... 24 DDRESS ARP T .................... 25 ABLE ..................26 OUTE ABLE ................
  • Page 6 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...

  • Page 7: Chapter 1 - Introduction

    Chapter 1 – Introduction Product Overview Hardened Managed Ethernet Extender Switch Front View Package Contents Please inspect the contents, and report any apparent damage or missing items immediately to B&B Electronics.. • The Hardened Managed Ethernet Extender Switch • User’s Manual •...

  • Page 8: Product Highlights

    Product Highlights Basic Features  Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment.  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  Manageable via SNMP, Web-based, Telnet, and RS-232 console port. ...
  • Page 9 QoS (IEEE802.1p Quality of Service)  4 priority queues INTERNETWORKING PROTOCOLS  Bridging: IEEE802.1s Multiple Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1D Spanning Tree compatible IEEE802.1Q – GVRP Ring  IP Multicast: IGMP Snooping  Rate Control  NETWORK MANAGEMENT METHODS ...

  • Page 10: Front Panel Display

    Front Panel Display POWER The LED will be in an ON condition what power is properly connected to power. Port Status LEDs State Indication Power 1 Steady Power on. Power 2 Power off. Power 3 10/100Base-TX Port valid network connection Steady established.

  • Page 11: Physical Ports

    Physical Ports The Hardened Managed Ethernet Extender Switch provides: Number of ports 10/100Base-TX Ethernet Extender Port Connectivity • RJ-45 connectors on TX ports • RJ-11 and Terminal Block connector on Ethernet Extender ports Mode Selection • 10/100Base-TX ports: • 10Base-T full-duplex mode •...

  • Page 12: Ethernet Extender Mode Settings

    The Ethernet Extender Connection Pin 3: Tip, Pin 4: Ring. Use a telephone line to connect two RJ-11 or Terminal Block ports between two Tip Ring Hardened Ethernet Extenders. Connections are straight through or crossover. Warning: Impropriate operation might cause the damage of Terminal Block.

  • Page 13: Ethernet Extender Switch Management

    Ethernet Extender Switch Management Web-based browser interface The Ethernet Extender has a browser-based interface that allows user access to the Ethernet Extender Switch configuration and functionality. The web server will support Netscape or Internet Explorer browser. Administration console via RS-232 serial port (CLI) The Ethernet Extender Switch provides an onboard serial port, which allows the Ethernet Extender Switch to be configured via a directly connected terminal.

  • Page 14: Installation

    Installation Selecting a Site for the Ethernet Extender Switch Ethernet Extender Switch should be installed in a location the meets the following requirements: The ambient temperature should be between -40°C to 75℃ (-40℉ to 167℉). -The relative humidity should be less than 95 percent, non-condensing. -Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.

  • Page 15: Connecting To Power

    Connecting to Power Redundant DC Terminal Block Power Inputs or 12VDC DC Jack: 12VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the Ethernet Extender Switch. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage.

  • Page 16: Alarms For Power Failure

    Top View Alarms for Power Failure Step 1: There are two pins on the terminal block used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.

  • Page 17: Reset Button

    Special note: The relay output is normal open position when there is no power to the Ethernet Extender Switch. Please do not connect any power source to this terminal to prevent shorting your power supply. Reset Button Press reset button for over 10 seconds to reset the Hardened Managed Ethernet Extender Switch back to default password.

  • Page 18: Cabling

    Cabling Step 1: Always ensure the power is off before beginning installation. Step 2: Prepare cables with corresponding connectors for each port. Step 3: Consult Cable Specifications Table on previous page for cabling requirements based on connectors and speed. Step 4: Connect one end of the cable to the Ethernet Extender Switch and the other end to a desired device.

  • Page 19: Administration Console (Cli)

    Administration Console (CLI) The administration console is an internal, character-oriented, Command Line Interface (CLI) for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal, personal computer, Apple Macintosh, or workstation connected to the Ethernet Extender Switch’s console port.

  • Page 20: Modem Access

    Modem Access You can access the Ethernet Extender Switch’s administration console from a PC or Macintosh using an external modem attached to the console port. The Ethernet Extender Switch management program provides Console Port screen, accessible from the Basic Management screen that lets you configure parameters for modem access.

  • Page 21: Protocols

    Protocols The Ethernet Extender Switch supports the following protocols: VIRTUAL TERMINAL PROTOCOLS, SUCH AS TELNET A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a Macintosh, a PC, or a UNIX workstation.

  • Page 22: Snmp & Rmon Management

    SNMP & RMON Management This chapter describes the Ethernet Extender Switch’s Simple Network Management Protocol (SNMP) and Remote Monitoring (RMON) capabilities. Overview RMON is an abbreviation for the Remote Monitoring MIB (Management Information Base). RMON is a system defined by the Internet Engineering Task Force (IETF) document RFC 2819, which defines how networks can be monitored remotely.

  • Page 23: Snmp Agent And Mib-2 (Rfc 1213)

    SNMP Agent and MIB-2 (RFC 1213) The SNMP Agent running on the Ethernet Extender Switch manager CPU is responsible for: - Retrieving MIB counters from various layers of software modules according to the SNMP GET/GET NEXT frame messages. - Setting MIB variables according to the SNMP SET frame message. - Generating an SNMP TRAP frame message to the Network Management Station if the threshold of a certain MIB counter is reached or if other trap conditions (such as the following) are met:...

  • Page 24: Bridge Groups Supported

    - RMON History Group – gathers and stores periodic statistical samples from the previous Statistics Group. - RMON Alarm Group – allows a network administrator to define alarm thresholds for any MIB variable. An alarm can be associated with Low Threshold, High Threshold, or both.

  • Page 25: Web-Based Browser Management

    Web-Based Browser Management The Ethernet Extender Switch provides a web-based browser interface for configuring and managing the Ethernet Extender Switch. This interface allows you to access the Ethernet Extender Switch using a preferred web browser. This chapter explains how to configure the Ethernet Extender Switch using its web-based browser interface Logging on to the Ethernet Extender Switch ETHERNET EXTENDER SWITCH IP ADDRESS...

  • Page 26: Understanding The Browser Interface

    LOGIN Enter the factory default login ID: root. PASSWORD Factory default password (Default: no password). Or enter a user-defined password – See the instructions under System Information section. Then Select on the “Login” button to log on to the Ethernet Extender Switch.
  • Page 27 System System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout Port Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities, Port Security Switching Bridging, Static MAC Entry, Port Mirroring Trunking Port Trunking STP / Ring...

  • Page 28: System

    OTHER PROTOCOLS GVRP, IGMP Snooping, NTP System Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...

  • Page 29: System Information

    System Information View System information, VLAN ID, IP Address, and IP Subnet Mask of the Ethernet Extender Switch. System Name/Password System Name: Select “System Name” text box. Type a system name if it is blank, or replace the current system name with a new one. Updating setting: Select “Updating setting”...

  • Page 30: Ip Address

    IP Address IP Address: Select “IP Address” text box and type a new address to change the IP Address. IP Subnet Mask: Select “IP Subnet Mask” text box and type a new address to change the IP Subnet Mask. Submit: Select “Submit” button when you finished these selections. You need to enter the new IP address on the browser and reconnect to the Ethernet Extender Switch after IP or subnet mask are changed.

  • Page 31: Arp Table

    ARP Table Select ARP Table in side menu Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...

  • Page 32: Route Table

    Route Table Click Route Table to view Route Table. Save Configuration Load config from TFTP server: Select “TFTP Server” text box and type the TFTP server IP address from where the file will be obtained. Select “FILE” text box and type the name of the file that will be obtained.

  • Page 33: Firmware Upgrade

    Save Configuration: Select “Save Configuration” button to save your configuration settings. Restore Default: Select “Restore Default” button to restore the default settings of the Ethernet Extender Switch. Auto save: Select “Auto save” drop-down menu to choose “Disable” or “Enable” from the “Auto save” drop-down list to disable or enable Auto save for the Ethernet Extender Switch.
  • Page 34 functions during this period of time. Reboot the Ethernet Extender Switch after completing the upgrade process. Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time.
  • Page 35 Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 36 Firmware has been upgraded successfully to the Ethernet Extender Switch. Reboot the switch after completing the upgrade process. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 37 Alarm Setting Name: Select “Name” drop-down menu to choose “fe1~fe8”, “vdsl1~vdsl2”, or “Power1~Power3” from the “Name” drop-down list. Trigger Enabled: Select “Trigger Enabled” drop-down menu to choose “YES” or “NO” from the “Trigger Enabled” drop-down list to enable or disable Trigger. Update Setting: Select “Update Setting”...
  • Page 38 Reboot Reboot: Select “Reboot” button to restart the Ethernet Extender Switch. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 39 Logout Logout: Select “Logout” button to logout of the Ethernet Extender Switch. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 40: Port

    Port Configuration Admin Setting: Select “Admin Setting” drop-down menu to choose “Link down” or “Link up” from the “Admin Setting” drop-down list to disable or enable Admin Setting for the port. Speed: Select “Speed” drop-down menu to change the line speed and duplex settings from the “Speed”...

  • Page 41: Port Status

    Port Status View the Link Status, Speed, Duplex, and Flow control status for all ports. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 42: Rate Control

    Rate Control Ingress: Select “Ingress” text box and type a new Rate to change the Ingress Rate Control for the port. Rate Values: 64kbps, 128kbps, 192kbps, … , 1792kbps. 2Mbps, 3Mbps, 4Mbps, … , 100Mbps. <Note>: M = 1024k. Egress: Select “Egress” text box and type a new Rate to change the Egress Rate Control for the port.
  • Page 43 RMON Statistics Select Port 1 ~ Port 10 to view corresponding RMON Statistics. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 44 Per port Vlan activities Select Port 1 ~ Port 10 to view corresponding Vlan activities. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 45: Port Security

    Port Security Mode: Select “Mode” drop-down menu to Choose “Enable” or “Disable” from “Mode” drop-down list to enable or disable Port Security for the port. Add MAC address: Select “Add MAC address” text box and type a MAC address for the port. Delete MAC address: Select “Delete MAC address”...

  • Page 46: Switching

    Switching Bridging Aging Time (seconds): Select the text box and type a decimal number as Bridging Aging Time in seconds. Update setting: Select “update setting” button when you finished Aging Time settings. Threshold level (0-100): Select “Level” text box and type a decimal number for the port.
  • Page 47 Static MAC Entry Static-MAC-Entry Forward: Add MAC address: Select “Add MAC address” text box and type a locked forwarding MAC address for the port. VLAN ID: Select “VLAN ID” drop-down menu and choose a VLAN ID from the “VLAN ID” drop-down list. Delete MAC address: Select “Delete MAC address”...
  • Page 48 Submit: Select “Submit” button when you finished Static-MAC-Entry Discard settings. Port Mirroring Mirror From: Choose Mirror From port from Port 1 ~ Port 10. Mirror To: Select “Mirror To” drop-down menu to Choose Mirror To port (Port 1 ~ Port 10) from “Mirror To” drop-down list. Mirror Mode: Select “Mirror Mode”...

  • Page 49: Trunking

    Trunking Port Trunking Static Channel Group: 1. Trunk 1: Select Port 1 ~ Port 8 to assign ports to Trunk 1. (Maximum 4 ports in Trunk 1.) VDSL Trunking: 1. Trunk 3: Select “Static” or “Disable” for Trunk 3. 2. Submit: Select “Submit” button when you finished Port Trunking settings.

  • Page 50: Stp/Ring

    STP/Ring Global Configuration Spanning Tree Protocol: Select “Spanning Tree Protocol” drop-down menu to Choose “Enable” or “Disable” from “Spanning Tree Protocol” drop-down list to enable or disable Spanning Tree Protocol. Bridge Priority (0..61440): Select “Bridge Priority” text box and type a decimal number between 0 and 61440.
  • Page 51 Update setting: Select “Update setting” button when you finished Global Configuration. RSTP Port Setting STP Version: Select “STP Version” drop-down menu to choose “RSTP” from “STP Version” drop-down list. Port: Select “Port” drop-down menu to Choose Port 1 ~ Port 10 from “Port”...
  • Page 52 Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 53 MSTP Properties STP Version: Select “STP Version” drop-down menu to choose “MSTP” from “STP Version” drop-down list. Region Name: Select “Region Name” text box to create an MST region and specify a name to it. MST bridges of a region form different spanning trees for different VLANs.
  • Page 54 Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 55 MSTP Instance Setting VLAN Instance Configuration VLAN Instance Configuration: Select “VLAN Instance Configuration” button. The “VLAN Instance Configuration” window appears. VLAN ID: Select “VLAN ID” drop-down menu to choose VLAN from “VLAN ID” drop-down list to simultaneously add multiple VLANs for the corresponding instance of a bridge. Instance ID (1..15): Select “Instance ID”...
  • Page 56 Update setting: Select “Update setting” button when you finished VLAN Instance Configuration. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 57 MSTP Port Setting Port Instance Configuration Instance ID: Select “Instance ID” drop-down menu to choose instance ID from “Instance ID” drop-down list. Select Port 1 ~ Port 8 to assign ports to the corresponding instance ID. Update setting: Select “Update setting” button when you finished Port Instance Configuration.
  • Page 58 root port for an instance. A lower value implies a better priority. In the case of the same priority, the interface index will serve as the tiebreaker, with the lower-numbered interface being preferred over others. The permitted range is 0-240. The priority values can only be set in increments of 16.

  • Page 59: Vlan

    Set ring port Ring port 1: Select “Ring port 1” drop-down menu to choose Ring port 1 from “Ring port 1” drop-down list. Ring port 2: Select “Ring port 2” drop-down menu to choose Ring port 2 from “Ring port 2” drop-down list. Update setting: Select “Update setting”...
  • Page 60 Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 61 802.1Q VLAN setting Add VLAN: VLAN setting: Select “VLAN setting”. The “VLAN Setting” window appears. Add VLAN: Select “Add VLAN” button to create a new VLAN from “VLAN Setting” window. VLAN ID(2-4094): Select the “VLAN ID” textbox and specify a new VLAN ID number from 2 ~ 4094.
  • Page 62 Delete VLAN: VLAN setting: Select “VLAN setting”. The “VLAN Setting” window appears. Delete VLAN: Select “Delete VLAN” button. Select a VLAN ID: Select “Select a VLAN ID” drop-down menu from “Select a VLAN ID” drop-down list to choose the VLAN to be deleted. Submit: Select “Submit”...

  • Page 63: Port Based Vlan

    Port Based VLAN VLAN: Choose the port to be added to or deleted from the VLAN. Select all: Select “select all” button to choose Port 1 ~ Port 10 all to be added to the VLAN. Delete all: Select “delete all” button to choose Port 1 ~ Port 10 all to be deleted from the VLAN.

  • Page 64: Qos

    Global Configuration QoS: Select “QoS” drop-down menu from “QoS” drop-down list to choose “Enable” or “Disable” to enable or disable QoS. Trust: Enable or disable the Ethernet Extender Switch port to trust the CoS (Class of Service) labels of all traffic received on that port. Enable or disable a routed port to trust the DSCP (Differentiated Service Code Point) labels of all traffic received on that port.
  • Page 65 802.1p Priority Priority: Select “Priority” drop-down menu from “Priority” drop-down list to choose 0 ~ 3 for VLAN Priority 0 ~ 7. Submit: Select “Submit” button when you finished 802.1p priority. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 66 DSCP Priority: Select “Priority” drop-down menu from “Priority” drop-down list to choose 0 ~ 3 for DSCP Priority 0 ~ 63. Submit: Select “Submit” button when you finished DSCP. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 67: Snmp

    SNMP SNMP General Setting SNMP Status: Select “SNMP Status” drop-down menu from “SNMP Status” drop-down list to choose “Enable” or “Disable” to enable or disable SNMP. Description: Select the “Description” textbox and specify a new description for SNMP. Location: Select the “Location” textbox and specify a new location for SNMP.
  • Page 68 Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 69 SNMP v1/v2c Get Community Name: Select the “Get Community Name” textbox and specify a get community name. Set Community Name: Select the “Set Community Name” textbox and specify a set community name. Update Setting: Select “Update Setting” button when you finished SNMP V1/V2c Setting.
  • Page 70 SNMP v3 Add User: Add User: Select “Add User” button. The “SNMP V3 Setting” window appears. SNMP Version: Select “SNMP Version” drop-down menu from “SNMP Version” drop-down list to choose “SNMPv3 No-Auth”, “SNMPv3 Auth-MD5”, “SNMPv3 Auth-SHA”, “SNMPv3 Priv Auth- MD5”, or “SNMPv3 Priv Auth-SHA”. ...
  • Page 71 User Name: Select the “User Name” textbox and specify a user name for user using SNMP v3. Access Mode: Select “Access Mode” drop-down menu from “Access Mode” drop-down list to choose “Read Only” or “Read/Write”.  Read Only: Add a user using SNMP v3 with read-only access mode. ...
  • Page 72 Delete User: Delete User: Select “Delete User” button. The “Select User Name” window appears. Select User Name: Select “Select User Name” drop-down menu from “Select User Name” drop-down list to choose the user to be deleted from using SNMP v3. Sumit: Select “Sumit”...
  • Page 73 802.1x Radius Configuration Radius Status: Select “Radius Status” drop-down menu from “Radius Status” drop-down list to choose “Enable” or “Disable” to globally enable or disable authentication. Update Setting: Select “Update Setting” button when you finished Radius Status Setting. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc –...
  • Page 74 Add Radius: Add Radius: Select “Add Radius” button. The “Radius Server Setting” window appears. Radius Server IP: Select the “Radius Server IP” textbox and specify the IP address of the remote radius server host. Radius Server Port: Select the “Radius Server Port” textbox and specify the UDP destination port for authentication requests.
  • Page 75 Delete Radius: Delete Radius: Select “Delete Radius” button. The “Select Radius Server IP” window appears. Select Radius Server IP: Select “Select Radius Server IP” drop-down menu from “Select Radius Server IP” drop-down list to choose the IP address of the remote radius server host to be deleted. Sumit: Select “Sumit”...
  • Page 76 Port Authentication Interface: Select “Interface” drop-down menu from “Interface” drop- down list to choose the port to be set port-based authentication. Authentication State: Select “Authentication State” drop-down menu from “Authentication State” drop-down list to choose “Enable” or “Disable” to enable or disable authentication state. Port Control: Select “Port Control”...

  • Page 77: Vdsl

    VDSL VDSL Ports: Interface: Select “Interface” drop-down menu from “Interface” drop- down list to choose vdsl1 or vdsl2 port. VDSL Retrain: Select “VDSL Retrain” button to try to get a higher link speed for Ethernet Extender port. VDSL Configuration VDSL Settings: Enable Asymmetric Mode: Asymmetric Mode: Check “Enable”...
  • Page 78 Fixed Rate: Select “Fixed Rate” drop-down menu to disable fixed speed rate or select a fixed speed rate for Ethernet Extender port from the “Fixed Rate” drop-down list. Fixed Rate: bps Disable 59M / 52M / 47M / 42M / 8M 35M / 6M 28M / 5M 25M / 2M...

  • Page 79: Vdsl Status

    Fixed Rate: Select “Fixed Rate” drop-down menu to disable fixed speed rate or select a fixed speed rate for Ethernet Extender port from the “Fixed Rate” drop-down list. Fixed Rate: bps Disable Update Setting: Select “Update Setting” button to finish Max. Speed and Fixed Rate settings.
  • Page 80 Select vdsl1 or vdsl2 to view Interface vdsl1 or vdsl2 status. VDSL Counters Select vdsl1 or vdsl2 to view Interface vdsl1 or vdsl2 counters. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 81: Other Protocols

    Other Protocols GVRP GVRP Global Setting: GVRP: Select “GVRP” drop-down menu from “GVRP” drop-down list to choose “Enable” or “Disable” to enable or disable GVRP (GARP VLAN Registration Protocol). Dynamic VLAN creation: Select “Dynamic VLAN creation” drop-down menu from “Dynamic VLAN creation” drop-down list to choose “Enable” or “Disable”...
  • Page 82 compliant VLAN pruning and dynamic VLAN creation on IEEE802.1Q trunk ports. Update Setting: Select “Update Setting” button when you finished GVRP Global Setting. Per port setting (include LAG): 1. GVRP: Select “GVRP” drop-down menu from “GVRP” drop-down list to choose “Enable” or “Disable” to enable or disable GVRP for the port.
  • Page 83 IGMP Snooping IGMP mode: Select “IGMP mode” drop-down menu from “IGMP mode” drop-down list to choose “Disable”, “Passive”, or “querier” for the Ethernet Extender Switch. Disable: Disable IGMP on the Ethernet Extender Switch. Passive: The Ethernet Extender Switch with only multicast-data-forwarding capability.
  • Page 84 IGMP querier: Query-interval: Select the “query-interval” textbox and specify a new number from 1 ~ 18000. The query-interval field is used to set the time (in seconds) between transmitting IGMP queries. Entries between 1 and 18000 seconds are allowed. Default = 125. Max-response-time: Select the “max-response-time”...
  • Page 85 NTP Setting: NTP Status: Select “NTP Status” drop-down menu from “NTP Status” drop-down list to choose “Enable” or “Disable” to enable or disable NTP for the Ethernet Extender Switch. NTP Server (IP Address or Domain name): Select the “NTP Server” textbox and specify the IP address or Domain name of NTP server.
  • Page 86 Daylight Saving Setting: 1. Daylight Saving Mode: Select "Daylight Saving Mode" drop-down menu from "Daylight Saving Mode" drop-down list to choose "Disable", "Weekday", or "Date" to choose disable, weekday, or date daylight saving for the Ethernet Extender Switch. 2. Time Set Offset (1-1440 min): Select the "Time Set Offset" textbox and specify the offset time of daylight saving.

  • Page 87: Command Line Console Management

    Command Line Console Management The Ethernet Extender Switch provides a command line console interface for configuration purposes. The Ethernet Extender Switch can be configured either locally through its RS-232 port or remotely via a Telnet session. For the later, you must specify an IP address for the Ethernet Extender Switch first.

  • Page 88: Exec Mode (View Mode)

    Exec Mode (View Mode) Logon to Exec Mode (View Mode) At the switch_a login: prompt just type in “root” and press <Enter> to logon to Exec Mode (or View Mode). switch_a login: root Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 89 Basic commands Exec Mode (or View Mode) is the base mode from where users can perform basic commands like: clear, debug, disable, enable, exit, help, logout, no, quit, show, terminal The CLI contains a text-based help facility. Access this help by typing in the full or partial command string then typing a question mark “?”.
  • Page 90 Login timed out The login session to Exec Mode (or View Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen. Logon back to Exec Mode (View Mode) At the switch_a login: prompt just type in “root”...
  • Page 91 switch_a login: root Exit from Exec Mode (View Mode) At the switch_a> prompt just type in “exit” and press <Enter> to exit from Exec Mode (or View Mode). switch_a>exit Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 92: Privileged Exec Mode (Enable Mode)

    Privileged Exec Mode (Enable Mode) Logon to Privileged Exec Mode (Enable Mode) At the switch_a> prompt just type in “enable” and press <Enter> to logon to Privileged Exec Mode (or Enable Mode). And the switch_a# prompt will show on the screen. switch_a>enable Commands Privileged Exec Mode (or Enable Mode) allows users to run commands as...
  • Page 93 At the switch_a# prompt just type in the full or partial command string then typing a question mark “?” to display the command keywords or parameters along with a short description. switch_a#show ? Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 94 Login timed out The login session to Privileged Exec Mode (or Enable Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen. Logon back to Exec Mode (View Mode) At the switch_a login: prompt just type in “root”...
  • Page 95 switch_a login: root Exit from Privileged Exec Mode (or Enable Mode) At the switch_a# prompt just type in “exit” and press <Enter> to exit from Privileged Exec Mode (or Enable Mode). switch_a#exit Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 96: Configure Mode (Configure Terminal Mode)

    Configure Mode (Configure Terminal Mode) Logon to Configure Mode (Configure Terminal Mode) At the switch_a# prompt just type in “configure terminal” and press <Enter> to logon to Configure Mode (or Configure Terminal Mode). And the switch_a(config)# prompt will show on the screen. switch_a#configure terminal Commands Configure Mode (or Configure Terminal Mode) serves as a gateway into...
  • Page 97 At the switch_a(config)# prompt just type in the full or partial command string then typing a question mark “?” to display the command keywords or parameters along with a short description. switch_a(config)#show ? Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 98 Login timed out The login session to Configure Mode (or Configure Terminal Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen. Logon back to Exec Mode (View Mode) At the switch_a login: prompt just type in “root”...
  • Page 99 Exit from Configure Mode (or Configure Terminal Mode) At the switch_a(config)# prompt just type in “exit” and press <Enter> to exit from Configure Mode (or Configure Terminal Mode). switch_a(config)#exit Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 100: System

    System System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout System Name/Password System Name: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use hostname command to set or change the network server name.
  • Page 101 Example: The following example sets the new password mypasswd to Ethernet Extender Switch: switch_a(config)#enable password mypasswd switch_a(config)# IP Address IP Address/IP Subnet Mask: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen.
  • Page 102 switch_a(config)# Usage: Use ip default-gateway command to set the IP address of the default gateway. Use the no ip default-gateway command to remove the IP address of the default gateway. Command Syntax: ip default-gateway IP-ADDRESS no ip default-gateway IP-ADDRESS A.B.C.D specifies the IP address of the default gateway. Example: The following example sets the default gateway 192.168.1.254 to Ethernet Extender Switch:...
  • Page 103 ARP Table Command Mode: Privileged Exec mode Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen. switch_a(config)# Usage: Use show arp-table command to view ARP Table. Command Syntax: show arp-table Example: The following example shows the ARP Table of switch: Route Table Command Mode: Privileged Exec mode Logon to Privileged Exec Mode (Enable Mode).
  • Page 104 Command Syntax: install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server. WORD specifies the file name to be loaded to Ethernet Extender Switch. Example: The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to Ethernet Extender Switch: switch_a#install image 192.168.1.100 flash.tgz switch_a# Load config to TFTP server:...
  • Page 105 copy running-config startup-config Example: The following example specifies writing configurations to the file to be used at startup to Ethernet Extender Switch: switch_a#copy running-config startup-config switch_a# Restore Default: Command Mode: Privileged Exec mode Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.
  • Page 106 no service auto-config enable Example: The following example enables or disables auto save configuration to Ethernet Extender Switch: switch_a(config)#service auto-config enable switch_a(config)#no service auto-config enable switch_a(config)# Auto Save Interval (5~65536 sec): Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.
  • Page 107 install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server. WORD specifies the file name to be upgraded to Ethernet Extender Switch. Example: The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to Ethernet Extender Switch: switch_a#install image 192.168.1.100 flash.tgz switch_a# Please follow the message on the screen during the firmware upgrade...
  • Page 108 At the “switch_a#” prompt just type in “reload” and press <Enter> to reboot the Ethernet Extender Switch after completing the upgrade process. Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 109 Alarm Setting Alarm-trigger if: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to enable or disable alarm trigger on interface. Command Syntax: (no) alarm-trigger if INTERFACE INTERFACE specifies the interface.
  • Page 110 Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen. switch_a# Usage: Use reload command to restart Ethernet Extender Switch. Command Syntax: reload Example: The following example specifies restarting Ethernet Extender Switch: switch_a#reload switch_a login: Logout Command Mode: Exec mode or Privileged Exec mode Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable...

  • Page 111: Port

    Port Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities, Port Security Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities, Port Security Configuration Admin Setting: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 112 Use duplex command to specify the duplex mode to be used for each interface. Use the no duplex to disable this function. Command Syntax: (no) duplex MODE MODE specifies the duplex mode: auto, full, half. Example: The following example shows the use of duplex MODE (full) to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if)#duplex full...
  • Page 113 Port Status Command Mode: Exec mode or Privileged Exec mode Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen. switch_a> switch_a# Usage: Use the show interface command to display interface configuration and status.
  • Page 114 1g for 1 giga bits. Example: The following example shows the use of rate-control ingress VALUE (10 mega bits) to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if)#rate-control ingress 10m switch_a(config-if)# RMON Statistics Command Mode: Exec mode or Privileged Exec mode Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode).
  • Page 115 Usage: Use show vlan command to display information about a particular VLAN by specifying the VLAN ID. Command Syntax: show vlan <2-4094> <2-4094> VLAN ID. Example: The following is an output of show vlan command displaying information about VLAN 2: switch_a>show vlan 2 Port Security Mode:...
  • Page 116 Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use this command to add MAC addresses to be allowed to access the port. Use the no parameter with this command to delete MAC addresses to be allowed to access the port.

  • Page 117: Switching

    Switching Bridging, Static MAC Entry, Port Mirroring Bridging Aging Time (seconds): Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to specify an ageing-out time for a learned MAC address.
  • Page 118 LEVEL <0-100> specifies the percentage of the threshold; percentage of the maximum speed (pps) of the interface. Example: The following example shows setting storm-control level LEVEL (30) to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if)#storm-control level 30 switch_a(config-if)# Broadcast: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode).
  • Page 119 switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use storm-control multicast enable command to enable multicast traffic. Use no storm-control multicast command to disable multicast traffic. Command Syntax: storm-control multicast enable no storm-control multicast Example: The following example shows setting storm-control multicast enable to the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if)#storm-control multicast enable...
  • Page 120 switch_a(config-if)# Static MAC Entry Static-MAC-Entry Forward: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to statically configure a bridge entry to forward matching frames. Command Syntax: bridge GROUP address MAC forward IFNAME VLANID no bridge GROUP address MAC forward IFNAME VLANID...
  • Page 121 Command Syntax: bridge GROUP address MAC discard vlan VLANID no bridge GROUP address MAC discard vlan VLANID GROUP <1-1> Bridge-group ID used for bridging. Media Access Control (MAC) address HHHH.HHHH.HHHH format. VLANID The VID of the VLAN on the bridge <1-4094>. Example: The following example configures a bridge GROUP (1) to discard matching frames (MAC address 2222.2222.2222) in vlan VLANID (1):...

  • Page 122: Trunking

    Trunking Port Trunking Port Trunking Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use static-channel-group command to create a static aggregator, or add a member port to an already-existing static aggregator.
  • Page 123 STP / Ring Global Configuration, RSTP Port Setting, MSTP Properties, MSTP Instance Setting, MSTP Port Setting, Ring Setting Global Configuration STP Version: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to choose the Spanning Tree protocol, Rapid Spanning...
  • Page 124 bridge GROUP multiple-spanning-tree enable no bridge GROUP multiple-spanning-tree enable BRIDGE-FORWARD GROUP <1-1> Bridge group name used for bridging. BRIDGE-FORWARD Puts all ports of the specified bridge into the forwarding state. Example: The following example enables or disables the multiple-spanning-tree on bridge GROUP (1): switch_a(config)#bridge 1 multiple-spanning-tree enable switch_a(config)#no bridge 1 multiple-spanning-tree enable bridge-...
  • Page 125 Spanning Tree Protocol: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to enable the Spanning Tree protocol on a bridge. Use the no form of the command to disable the Spanning Tree protocol on a bridge.
  • Page 126 The following example sets the priority PRIORITY (4096) of bridge GROUP (1): switch_a(config)#bridge 1 priority 4096 switch_a(config)# Hello Time (sec) (1..9): Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to set the hello-time, the time in seconds after which (if...
  • Page 127 Command Syntax: bridge GROUP max-age MAXAGE no bridge GROUP max-age GROUP <1-1> The ID of the bridge group to which this maximum age time is assigned. MAXAGE <6-28> The maximum time, in seconds, to listen for the root bridge. Example: The following example sets the max-age MAXAGE (28) of bridge GROUP (1): switch_a(config)#bridge 1 max-age 28...
  • Page 128 Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use this command to set the port priority for a bridge. The lower priority indicates a greater likelihood of the bridge becoming root.
  • Page 129 Example: The following example sets the cost (123) of the interface fe1 (port 1) of bridge GROUP (1): switch_a(config)#interface fe1 switch_a(config-if)#bridge 1 path-cost 123 switch_a(config-if)# Point to Point Link: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 130 The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use spanning-tree autoedge command to assist in automatic identification of the edge port. Use the no spanning-tree autoedge command to disable this feature. Command Syntax: (no) spanning-tree autoedge Example: The following example enables the spanning-tree autoedge of the interface fe1 (port 1):...
  • Page 131 switch_a(config-if)# MSTP Properties Region Name: Command Mode: MST Configuration mode Logon to Configure Mode (Configure Terminal Mode). Then logon to MST Configuration mode. The switch_a(config-mst)# prompt will show on the screen. switch_a(config)#spanning-tree mst configuration switch_a(config-mst)# Usage: Use this command to create an MST region and specify a name to it. MST bridges of a region form different spanning trees for different VLANs.
  • Page 132 Use this command to specify the number for configuration information. The default value of revision number is 0. Command Syntax: bridge GROUP revision REVISION_NUM GROUP <1-1> Specify the bridge-group ID. REVISION_NUM <0-255> Revision number. Example: The following example specifies a revision number (25) of MST configuration in bridge GROUP (1): switch_a(config)#spanning-tree mst configuration switch_a(config-mst)#bridge 1 revision 25...
  • Page 133 MSTP Instance Setting Bridge Instance VLAN: Command Mode: MST Configuration mode Logon to Configure Mode (Configure Terminal Mode). Then logon to MST Configuration mode. The switch_a(config-mst)# prompt will show on the screen. switch_a(config)#spanning-tree mst configuration switch_a(config-mst)# Usage: Use this command to simultaneously add multiple VLANs for the corresponding instance of a bridge.
  • Page 134 bridge for the LAN. The priority values can be set only in increments of 4096. Command Syntax: bridge GROUP instance INSTANCE_ID priority BRIDGE_PRIORITY no bridge GROUP instance INSTANCE_ID priority GROUP <1-1> Specify the bridge-group ID. INSTANCE_ID Specify the instance ID. BRIDGE_PRIORITY <0-61440>...
  • Page 135 switch_a(config-if)# Bridge-Group Instance Priority: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use this command to set the port priority for a bridge group. The Multiple Spanning Tree Protocol uses port priority as a tiebreaker to determine which port should forward frames for a particular instance on a LAN, or which port should be the root port for an instance.
  • Page 136 switch_a(config-if)# Usage: Use this command to set the cost of a path associated with an interface. Use the no parameter with this command to restore the default cost value of the path. A lower path-cost indicates a greater likelihood of the specific interface becoming a root.
  • Page 137 switch_a(config)#bridge 1 protocol ring switch_a(config)# Set ring port: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to set Ring port 1 and Ring port 2. Command Syntax: ring set-port RING_PORT_1 RING_PORT_2 RING_PORT_1 Specify the Ring port 1.

  • Page 138: Vlan

    VLAN VLAN Mode Setting, 802.1Q VLAN Setting, 802.1Q Port Setting, Port Based VLAN 802.1Q VLAN Setting VLAN Database: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use vlan database command to enter the VLAN configuration mode. Command Syntax: vlan database Example:...
  • Page 139 VLANID The VID of the VLAN that will be enabled or disabled on the bridge <2-4094>. GROUP <1-1> The ID of the bridge-group on which the VLAN will be affected. VLAN_NAME The ASCII name of the VLAN. Maximum length: 16 characters.
  • Page 140 Switchport mode hybrid: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use switchport mode hybrid command to set the switching characteristics of the Layer-2 interface as hybrid, and classify both tagged and untagged frames.
  • Page 141 Use switchport mode trunk command to set the switching characteristics of the Layer-2 interface as trunk, and specify only tagged frames. Use the no switchport trunk command to reset the mode of the Layer-2 interface to access (default). Command Syntax: switchport mode trunk no switchport trunk Example:...
  • Page 142 VLANID <2-4094> The ID of the VLAN or VLANs that will be added to, or removed from, the Layer-2 interface. For a VLAN range, specify two VLAN numbers: lowest, then highest number in the range, separated by a hyphen. For a VLAN list, specify the VLAN numbers separated by commas. egress-tagged enable Enable the egress tagging for the outgoing frames.
  • Page 143 no switchport trunk vlan all Allow all VLANs to transmit and receive through the Layer-2 interface. none Allow no VLANs to transmit and receive through the Layer-2 interface. add Add a VLAN to transmit and receive through the Layer-2 interface. remove Remove a VLAN from transmit and receive through the Layer-2 interface.
  • Page 144 The following example specifies to add the interface fe1 (port 1) to VLANID (2): switch_a(config)#interface fe1 switch_a(config-if)#switchport portbase add vlan 2 switch_a(config-if)# Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 145: Qos

    Global Configuration, 802.1p Priority, DSCP Global Configuration QoS: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use mls qos enable command to globally enable QoS. Use the no mls qos command to globally disable QoS. Command Syntax: mls qos enable (no) mls qos...
  • Page 146 switch_a(config)#mls qos trust cos switch_a(config)# Strict Priority: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use priority-queue out command to enable the egress expedite queue. Use the no priority-queue out command to disable the egress expedite queue.
  • Page 147 The following example specifies the bandwidth ratios of the transmit queues on the Ethernet Extender Switch: switch_a(config)#wrr-queue bandwidth 1 2 4 8 switch_a(config)# 802.1p Priority Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use wrr-queue cos-map command to specify CoS values for a queue.
  • Page 148 Example: The following example shows mapping DSCP values 0 to 3 to queue 1 on the Ethernet Extender Switch: switch_a(config)#mls qos map dscp-queue 0 1 2 3 to 1 switch_a(config)# Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

  • Page 149: Snmp

    SNMP SNMP General Setting, SNMP v1/v2c, SNMP v3 SNMP General Setting SNMP Status: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use snmp-server enable command to enable and no snmp-server enable command to disable SNMP to the Ethernet Extender Switch.
  • Page 150 Location: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use snmp-server location command to specify and no snmp-server location command to remove location for SNMP. Command Syntax: snmp-server location LOCATION no snmp-server location LOCATION The location for SNMP.
  • Page 151 Trap Community Name: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to specify trap community name for SNMP. Use the no parameter with this command to remove trap community name for SNMP.
  • Page 152 The following example specifies trap host 1 IP address (192.168.1.20) for SNMP: switch_a(config)#snmp-server trap-ipaddress 1 192.168.1.20 switch_a(config)# Link Down Trap: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use snmp-server trap-type enable linkDown command to enable link down trap for SNMP.
  • Page 153 Example: The following example enables link up trap for SNMP: switch_a(config)#snmp-server trap-type enable linkUp switch_a(config)# SNMP v1/v2c Get Community Name: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use snmp-server community get command to specify and no snmp- server community get command to remove get community name for...
  • Page 154 NAME The set community name for SNMP. Example: The following example specifies set community name (name) for SNMP: switch_a(config)#snmp-server community set name switch_a(config)# SNMP v3 SNMPv3 No-Auth: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Add a user using snmp v3 with read-only or read-write access mode and...
  • Page 155 Add a user using snmp v3 with read-only or read-write access mode and with MD5 or SHA authentication. Use the no form of the command to delete this user. Command Syntax: (no) snmp-server v3-user USERNAME (ro｜rw) auth (md5｜sha) AUTH_PASSWORD USERNAME Specify a user name. ro read-only access mode rw read-write access mode md5 authentication method...
  • Page 156 Example: The following example adds a user (myuser) using snmp v3 with read- write access mode, MD5 authentication (mypassword), and encryption pass phrase (mypassphrase): switch_a(config)#snmp-server v3-user myuser priv mypassword des mypassphrase switch_a(config)# Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 157 802.1x Radius Configuration, Port Authentication Radius Configuration Radius Status: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use dot1x system-auth-ctrl command to globally enable authentication. dot1x system-auth-ctrl command globally disable...
  • Page 158 The following example specifies the IP address (192.168.1.100) of the remote radius server host and assigns authentication and accounting destination port number (1812): switch_a(config)#radius-server host 192.168.1.100 auth-port 1812 switch_a(config)# Secret Key: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.
  • Page 159 Command Syntax: radius-server timeout SEC no radius-server timeout SEC <1-1000> The number of seconds for a Ethernet Extender Switch to wait for a server host to reply before timing out. Enter a value in the range 1 to 1000. Example: The following example specifies 20 seconds for the Ethernet Extender Switch to wait for a server host to reply before timing out: switch_a(config)#radius-server timeout 20...
  • Page 160 Usage: Use dot1x reauthetication command to enable reauthentication on a port. Use no dot1x reauthetication command to disable reauthentication on a port. Command Syntax: (no) dot1x reauthentication Example: The following example specifies to enable reauthetication on the interface fe1 (port 1): switch_a(config)#interface fe1 switch_a(config-if)#dot1x reauthentication switch_a(config-if)#...
  • Page 161 switch_a(config-if)#dot1x port-control auto switch_a(config-if)# Periodic Reauthentication: Reauthentication Period: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface fe1 switch_a(config-if)# Usage: Use this command to set the interval between reauthorization attempts.

  • Page 162: Vdsl

    VDSL VDSL Configuration, VDSL Status, VDSL Counters VDSL Configuration VDSL Ports: VDSL Retrain: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vdsl1 means Ethernet Extender port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface vdsl1 switch_a(config-if)# Usage:...
  • Page 163 Command Syntax: (no) vdsl asymmetric-mode Example: The following example specifies to enable the asymmetric mode for Ethernet Extender port 1 (vdsl1): switch_a(config)#interface vdsl1 switch_a(config-if)#vdsl asymmetric-mode switch_a(config-if)# Asymmetric Mode Fixed Rate: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 164 The following example specifies to set fixed rate bandwidth settings (59) in the asymmetric mode for Ethernet Extender port 1 (vdsl1): switch_a(config)#interface vdsl1 switch_a(config-if)#vdsl asym-fixedrate 59 switch_a(config-if)# Symmetric Mode Max. Speed: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode.
  • Page 165 Symmetric Mode Fixed Rate: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vdsl1 means Ethernet Extender port 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface vdsl1 switch_a(config-if)# Usage: Use this command to set fixed rate bandwidth settings in the symmetric mode for Ethernet Extender port.
  • Page 166 Usage: Use this command to show Ethernet Extender port status. Command Syntax: show vdsl status interface IFNAME IFNAME Interface name. Example: The following example shows Ethernet Extender port (vdsl1) status: switch_a>show vdsl status interface vdsl1 VDSL Counters Command Mode: Exec mode Logon to Exec Mode (View Mode).

  • Page 167: Other Protocols

    Other Protocols GVRP, IGMP Snooping, NTP GVRP GVRP: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use set gvrp enable bridge command to enable (set) and set gvrp disable bridge command to disable (reset) GVRP globally for the bridge instance.
  • Page 168 Example: The following example enables dynamic VLAN creation for bridge GROUP (1): switch_a(config)#set gvrp dynamic-vlan-creation enable bridge 1 switch_a(config)# Per port setting: GVRP: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use set port gvrp enable command to enable and set port gvrp disable...
  • Page 169 set gvrp applicant state active/normal IFNAME active Active state normal Normal state IFNAME Name of the interface. Example: The following example sets GVRP applicant state to active on the interface fe1 (port 1): switch_a(config)#set gvrp applicant state active fe1 switch_a(config)# Per port setting: GVRP registration: Command Mode: Configure mode...
  • Page 170 IGMP Snooping IGMP mode: Querier: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use ip igmp snooping querier command to enable IGMP querier operation on a subnet (VLAN) when no multicast routing protocol is configured in the subnet (VLAN).
  • Page 171 (no) ip igmp snooping enable Example: The following example enables IGMP snooping on the Ethernet Extender Switch: switch_a(config)# ip igmp snooping enable switch_a(config)# IGMP version: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1.
  • Page 172 Usage: Use ip igmp snooping fast-leave command to enable IGMP Snooping fast- leave processing. Fast-leave processing is analogous to immediate leave processing; the IGMP group-membership is removed, as soon as an IGMP leave group message is received without sending out a group-specific query.
  • Page 173 The following example changes the frequency of sending IGMP host-query messages to 2 minutes on vlan1.1: switch_a(config)#interface vlan1.1 switch_a(config-if)#ip igmp query-interval 120 switch_a(config-if)# IGMP querier: Max-response-time: Command Mode: Interface mode Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1.
  • Page 174 vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen. switch_a(config)#interface vlan1.1 switch_a(config-if)# Usage: Use ip igmp snooping mrouter interface command to statically configure the specified VLAN constituent interface as a multicast router interface for IGMP Snooping in that VLAN. Use the no ip igmp snooping mrouter interface command to remove the static configuration of the interface as a multicast router interface.
  • Page 175 Example: The following example enables report suppression for IGMPv2 reports on vlan1.1: switch_a(config)#interface vlan1.1 switch_a(config-if)#ip igmp version 2 switch_a(config-if)#ip igmp snooping report-suppression switch_a(config-if)# NTP Status: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use ntp enable command to enable NTP for the Ethernet Extender Switch.
  • Page 176 DOMAIN-NAME Specifies the Domain name of NTP server. Example: The following example specifies the IP address (192.168.1.100) of NTP server: switch_a(config)#ntp server 192.168.1.100 switch_a(config)# Sync Time: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use ntp sync-time command to synchronize time with NTP server.
  • Page 177 switch_a(config)#clock timezone YST9YDT switch_a(config)# Polling Interval: Command Mode: Configure mode Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen. switch_a(config)# Usage: Use this command to specify the polling interval. Command Syntax: ntp polling-interval MINUTE MINUTE <1-10080>...
  • Page 178 OFFSET <1-1440> Specifies from 1 to 1440 minutes. clock summer-time TIMEZONE date DAY MONTH HOUR MINUTE DAY MONTH HOUR MINUTE OFFSET TIMEZONE Specifies the daylight saving timezone. DAY <1-31> Specifies from 1 to 31. MONTH <1-12> Specifies from January to December. HOUR <0-23>...

  • Page 179: Specifications

    Specifications Applicable IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX Standards Ethernet over VDSL Store-and-Forward Switching Method Forwarding Rate 10Base-T 10 / 20Mbps half / full-duplex 100Base-TX 100 / 200Mbps half / full-duplex Ethernet Extender Asymmetic: 1/1, 14/1, 22/1, 25/2, 28/5, 35/6, 42/8, 47/14, 52/24, 59/31Mbps Symmetric: 1, 3, 5, 10, 15, 20, 25, 30, 40, 50Mbps 14,880pps for 10Mbps...
  • Page 180 Storage -40°C to 85℃ (-40℉ to 185℉) Temperature 5%-95% non-condensing Humidity FCC Part 15, Class A EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3 EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) IEC60068-2-6 Fc (Vibration Resistance) Environmental Test...

  • Page 181: Appendix B: Time Zones

    Appendix B: Time Zones Time Zone Country and City Lists Europe MEZ-1MESZ Europe/Vienna, Europe/Berlin, Europe/Zurich MET-1METDST Africa/Tunis, CET, MET, Europe/Tirane, Europe/Andorra, Europe/Brussels, Europe/Prague, Europe/Copenhagen, Europe/Paris, Europe/Gibraltar, Europe/Budapest, Europe/Rome, Europe/Vaduz, Europe/Luxembourg, Europe/Malta, Europe/Monaco, Europe/Amsterdam, Europe/Oslo, Europe/Warsaw, Europe/Belgrade, Europe/Madrid, Africa/Ceuta, Europe/Stockholm, Europe/Vatican, Europe/San_Marino, Arctic/Longyearbyen, Atlantic/Jan_Mayen, Europe/Ljubljana,...
  • Page 182 RFT-2RFTDST Europe/Kaliningrad RFT-3RFTDST Europe/Moscow RFT-4RFTDST Asia/Yerevan, Asia/Baku, Asia/Oral, Asia/Ashkhabad RFT-5RFTDST Asia/Aqtobe, Asia/Aqtau, Asia/Bishkek, Asia/Yekaterinburg RFT-6RFTDST Asia/Omsk, Asia/Novosibirsk RFT-7RFTDST Asia/Hovd, Asia/Krasnoyarsk RFT-8RFTDST Asia/Irkutsk, Asia/Chungking, Asia/Ulan_Bator RFT-9RFTDST Asia/Choibalsan, Asia/Yakutsk RFT-10RFTDST Asia/Vladivostok RFT-11RFTDST Asia/Sakhalin, Asia/Magadan RFT-12RFTDST Asia/Kamchatka, Asia/Anadyr North America PST8PDT America/Los_Angeles, US/Pacific-New, PST8PDT, US/Pacific, SystemV/PST8PDT MST7MDT...
  • Page 183 US/Aleutian YST9YDT Canada/Yukon NST3:30NDT America/St_Johns, Canada/Newfoundland NAST3NADT America/Godthab, America/Miquelon NAST9NADT Pacific/Pitcairn, America/Juneau, America/Yakutat, America/Anchorage, America/Nome, US/Alaska, SystemV/YST9YDT, SystemV/PST8 South America & Central America TTST4 America/Port_of_Spain SAT3 America/Argentina/Buenos_Aires, America/Argentina/Cordoba, America/Argentina/Tucuman, America/Argentina/La_Rioja, America/Argentina/San_Juan, America/Argentina/Jujuy, America/Argentina/Catamarca, America/Argentina/Mendoza, America/Argentina/Rio_Gallegos, America/Argentina/Ushuaia, America/Argentina/ComodRivadavia, America/Buenos_Aires, America/Cordoba, America/Jujuy, America/Mendoza EBST3EBDT America/Fortaleza, America/Recife, America/Araguaina, America/Maceio,...
  • Page 184 PRC, ROC Oceania CST-9:30CDT Australia/Adelaide, Australia/Broken_Hill, Australia/South, Australia/Yancowinna EST-10EDT Australia/Brisbane, Australia/Lindeman, Australia/Currie, Australia/Melbourne, Australia/Sydney, Australia/ACT, Australia/Canberra, Australia/NSW, Australia/Queensland, Australia/Tasmania, Australia/Victoria LHT-10:30LHDT Australia/Lord_Howe, Australia/LHI TST-10TDT Australia/Hobart NZST-12NZDT Antarctica/McMurdo, Pacific/Auckland, Antarctica/South_Pole, NZ CIST-12:45CIDT Pacific/Chatham, NZ-CHAT Africa SAST-2 Africa/Maseru, Africa/Johannesburg, Africa/Mbabane EST-2EDT Africa/Cairo, Egypt UAEST-4 Asia/Dubai IST-3IDT...
  • Page 185 UCT4 America/Anguilla, America/Antigua, America/Barbados, America/Dominica, America/Grenada, America/Guadeloupe, America/Martinique, America/Montserrat, America/Puerto_Rico, America/St_Kitts, America/St_Lucia, America/St_Vincent, America/Tortola, America/St_Thomas, America/Aruba, America/La_Paz, America/Porto_Velho, America/Curacao, America/Caracas, America/Guyana, Etc/GMT+4, America/Virgin, SystemV/AST4 UCT5 America/Guayaquil, America/Eirunepe, America/Lima, Etc/GMT+5 UCT6 America/Belize, America/El_Salvador, America/Tegucigalpa, Pacific/Galapagos, Etc/GMT+6 UCT7 Etc/GMT+7 UCT8 Etc/GMT+8 UCT9 Pacific/Gambier, Etc/GMT+9, SystemV/YST9 UCT10...
  • Page 186 Africa/Kampala, Antarctica/Syowa, Asia/Bahrain, Asia/Kuwait, Asia/Qatar, Asia/Riyadh, Asia/Aden, Etc/GMT-3 UCT-4 Indian/Mauritius, Indian/Reunion, Indian/Mahe, Asia/Muscat, Etc/GMT-4 UCT-5 Indian/Kerguelen, Indian/Maldives, Asia/Karachi, Asia/Dushanbe, Asia/Ashgabat, Asia/Samarkand, Asia/Tashkent, Etc/GMT-5 UCT-5:45 Asia/Katmandu UCT-6 Antarctica/Mawson, Antarctica/Vostok, Asia/Dhaka, Asia/Thimphu, Indian/Chagos, Asia/Colombo, Etc/GMT- 6, Asia/Dacca, Asia/Thimbu UCT-6:30 Asia/Rangoon, Indian/Cocos UCT-7 Antarctica/Davis, Asia/Phnom_Penh, Asia/Jakarta, Asia/Pontianak, Asia/Vientiane, Asia/Bangkok,...
  • Page 187 UCT-3:30 Asia/Tehran, Iran UCT-4:30 Asia/Kabul IST-2IDT Asia/Jerusalem, Asia/Gaza, Asia/Tel_Aviv, Israel CST6MEX America/Cancun, America/Merida, America/Monterrey, America/Mexico_City, America/Lima, Mexico/General CST6 America/Regina, America/Swift_Current, Canada/East-Saskatchewan, Canada/Saskatchewan, SystemV/CST6 EET-2EETDST2 Europe/Bucharest EET-2EETDST3 Europe/Tallinn, Europe/Helsinki, Europe/Riga, Europe/Mariehamn EET-2EETDST2W2K Europe/Istanbul UCT-14 Pacific/Kiritimati, Etc/GMT-14 UCT9:30 Pacific/Marquesas UCT12 Etc/GMT+12 North America (Canada) PST8PDT_CA America/Vancouver, America/Dawson_Creek,...
  • Page 188 North America (Turks and Caicos) EST5EDT_TC America/Grand_Turk Additions Since 10g RTM EST5EDT_INDIANA America/Indiana/Indianapolis, America/Indiana/Marengo, America/Indiana/Vevay, America/Fort_Wayne, America/Indianapolis, America/Indiana/Knox, America/Knox_IN, US/Indiana-Starke, US/East-Indiana UCT-8_WA Australia/Perth, Australia/West Manual Documentation Number: EIRM-EXTEND-8-1 B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...

Table of Contents
