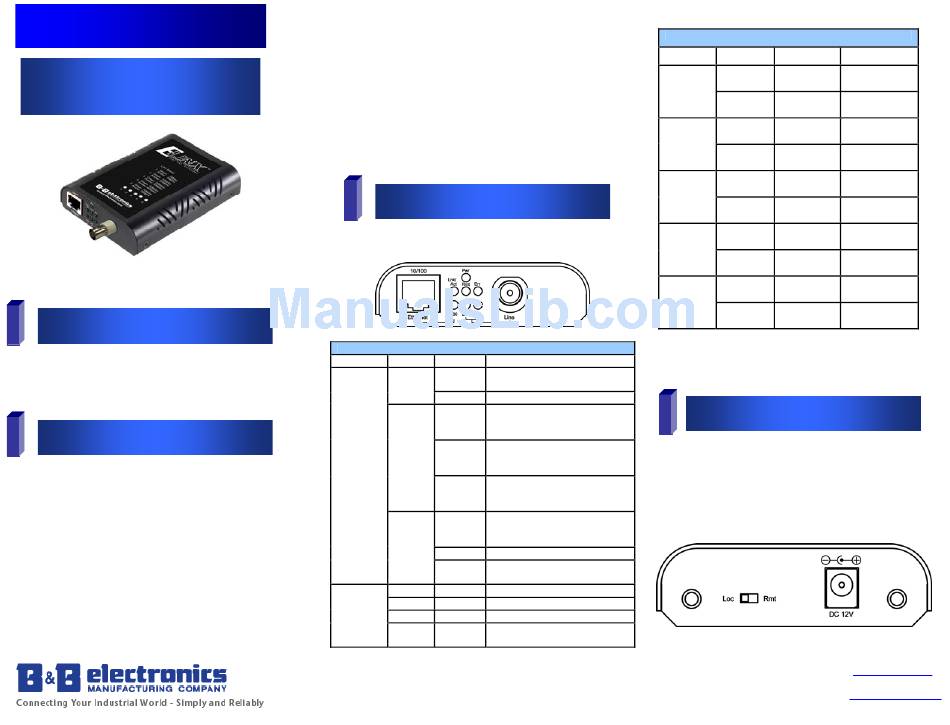

B&B Electronics EIS-EXTEND-C Quick Start Manual

Quick Start Guide
EIS-EXTEND-C
Ethernet Coaxial Extender
The EIS-EXTEND-C provides one channel for
Ethernet over existing coaxial cable.
1
Items Included
Ethernet Coaxial Extender
o
AC to DC Power Adaptor
o
This Quick Start Guide
o
Rubber Feet
o
BNC to F-Type Adaptor
o
2

Hardware Installation

1. Apply Rubber feet to bottom of media converter and
select a suitable mounting location. Can be wall
mounted using slots on the bottom of case.
2. Do not locate in areas subject to high moisture or
potentially wet conditions. Locate where the
temperature range does not exceed -10 to 60° C.
Make sure unit receives adequate ventilation.
3. This Ethernet Extender is a plug-and-play device.
Connect the supplied AC to DC power adaptor to the
receptacle on the rear panel of the Ethernet Extender,
and then attach the plug into a standard AC outlet.
4. Set the DIP switch located on the rear of the Ethernet
Extender to Loc (Local) or Rmt (Remote). Ethernet
Extenders work in pairs and must have one unit set as
Loc, the other as Rmt.
5. Connect the Ethernet cable to the RJ-45 port on the
front of Ethernet Extender.
6. Connect the coaxial cable to the BNC port on the front
of the Ethernet Extender. Opposite end connects with
paired Ethernet Extender located elsewhere. Coax
cable must be terminated with male BNC or F
connectors. BNC to F-Type adaptor required for F
style connector (included).
3
Front Panel & LED Chart
The LED indicators give you instant feedback on status of
the Ethernet Extender. Both port speeds are auto sensed.
Front Panel LED's (Ethernet and Line Connections)
Port LEDs Status Description
Ethernet Pwr Steady
(RJ-45) (Pwr stands for POWER)
Off
Lnk/Act Steady Valid Ethernet connection
(Lnk stands for LINK)
Flashing Transmitting or receiving
(Act stands for ACTIVITY)
Off No valid Ethernet connection
nor transmitting/receiving
Fdx Steady Ethernet connection in full
(Fdx stands for FULL-DUPLEX)
Flashing
Off Ethernet connection in half-
Line Rmt Steady Operating in remote mode
(BNC)
Loc Steady Operating in local mode
Err Steady
Lnk Steady A valid connection established
between local & remote
LEDs
1
2
3
4
5
Note: Distance and speed may vary. The above table
represents the maximum performance which can be
Power on expected under ideal conditions.
Power off
4
established
Ethernet Extender mode settings are made very simple by
Ethernet data
means of a switch at the rear panel of the Ethernet
Extender. One device must be set to local (Loc) and the
other to remote (Rmt) before devices are connected.
Ethernet data
It makes no difference which unit is designated local and
remote as long as they are not both set the same.
duplex mode
Collision occurred
duplex mode
Error occurred
International Headquarters: 815-433-5100
European Headquarters: +353 91 792444
EIS-EXTEND-C-5009qsg
Top LEDs (BNC Line Connections)
Status Speed Distance
Green 1~ 5Mbps up to 2600M
Amber 6~10Mbps up to 2400M
Green 11~16Mbps up to 2000M
Amber 17~20Mbps up to 1800M
Green 21~29Mbps up to 1600M
Amber 30~43Mbps up to 1400M
Green 44~54Mbps up to 1200M
Amber 55~63Mbps up to 1000M
Green 64~74Mbps up to 600M
Amber 75~85Mbps up to 200M

DIP Switch Settings
