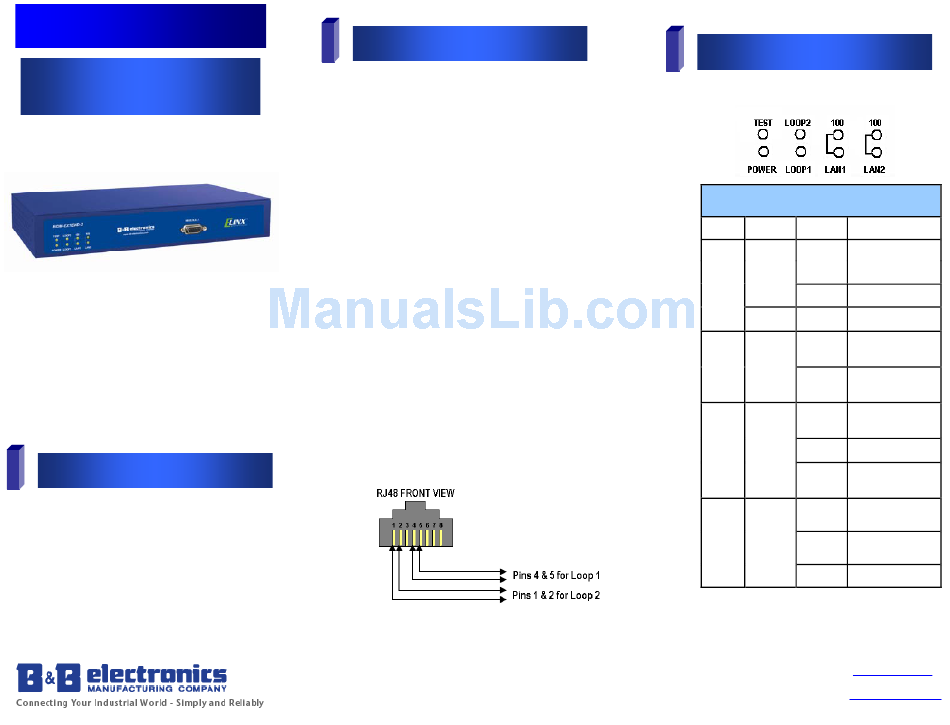

B&B Electronics EIDM-EXTEND-2 Quick Start Manual

Quick Start Guide
EIDM-EXTEND-2
Long Range Ethernet Extender
The EIDM-EXTEND-2 provides G.SHDSL (Single-pair
High-bit-rate Digital Subscriber Line) broadband full-duplex
transmission with bandwidth aggregation up to 10.8 Mbps
over two pairs of copper line for point-to-point LAN
connectivity between two Ethernet networks. This is
enough speed to support VoIP, Web hosting, and
teleconferencing. The EIDM-EXTEND-2 conforms to the
ITU-T Rec. G.991.2, to meet G.shdsl.bis network
requirements.
1
Items Included
Long Range Ethernet Extender
o
This Quick Start Guide
o
Power Cord
o
Cat 5 Ethernet Cable
o
RS232 Cable
o
Rack Mount Brackets
o
Manual on CD
o
Rubber Feet
o
2

Hardware Installation

1. The extender is rack mountable and can be located in
environments with temperatures ranging from 0 to
50°C. Relative humidity should be between 5% and
95%, non-condensing.
2. To mount the extender on a 19" rack, fasten the
brackets on the extender by placing the shortest sides
next to extender. Mounting the longer sides next to
extender will result in a 12" wide mount opening. You
may also choose to apply the supplied rubber feet to
the bottom of the unit and place extender on a flat
level surface.
3. Provide AC power to unit, between 100 and 240 volts,
depending on your country's voltage, using the
supplied power cord.
Replacement fuse: 250V, 2 Amp, 5 x 20mm.
4. Connect the Ethernet cable to the RJ-45 port on the
back of Ethernet Extender marked LAN1. LAN2 is
available for connecting a second separate LAN over
the same G.SHDSL link.
5. Connect a RJ-48 cable to the line port on the back of
the Ethernet Extender. The opposite end connects
with paired Ethernet Extender located elsewhere.
The cable must be terminated with an RJ-48 or RJ-45
connector and may be 1 or 2 pairs (loops). Pins 4 & 5
for loop 1 and pins 1 & 2 for loop 2. Maximum speed
is achieved using both loops. Single pair operation will
achieve the same distance but at half the speed.
Note: 8-pin RJ48 and RJ45
connectors are identical. Cable
is straight through.
EIDM-EXTEND-2-3510qsg
3
Front Panel & LED Chart
The 8 LED indicators on the front of the Extender display
product status as described below.
Front Panel LEDs
Port LEDs Status
Steady
Green
POWER
Off
TEST Yellow
Steady
LAN1 Green
100
LAN2
(RJ45)
Off
Steady
LAN1
LAN1
LAN2 Flashing
LAN2
(RJ45)
Off
Steady
Green
Line Loop 1
Flashing
(RJ48) Loop 2
Green
Off
International Headquarters: 815-433-5100
European Headquarters: +353 91 792444
Description
Power on
Power off
Self testing after
powered on
Ethernet
connection at 100
Mbps
Ethernet
connection at 10
Mbps
Valid Ethernet
connection
established
Ethernet data
activity on port
No valid Ethernet
connection or
activity
Loop connection
established
Loop connection
in progress
Not connected
