- Page 1 OmniSight 7088 Winchester Cir Boulder, CO 80301 www.brunton.com...
- Page 2 Nous vous remercions de l'achat de votre inclinomètre Brunton OmniSight. Intégrant plus de 100 ans d'expérience de l'instrument, l'inclinomètre est construit pour les professionnels les plus exigeants. S'il vous plaît comprendre l'utilisation de ce produit avant de s'en servir dans le domaine.
- Page 3 Gracias por la compra de su inclinómetro Brunton OmniSight. La incorporación de más de 100 años de experiencia del instrumento, este inclinómetro se construye para los profesionales más exigentes. Por favor, comprenda el uso de este producto antes de confiar en ella en el campo.
-
Page 4: Owner's Purchase Record
Model Please register your OmniSight by visiting www.brunton.com/ Date of Purchase register. Brunton has taken every e ort to ensure years of trouble-free use from your new product. This product is guaranteed Dealer Purchased From to be free of defect in material and workmanship for 12 months according to local regulatory requirements. -
Page 5: Specifications

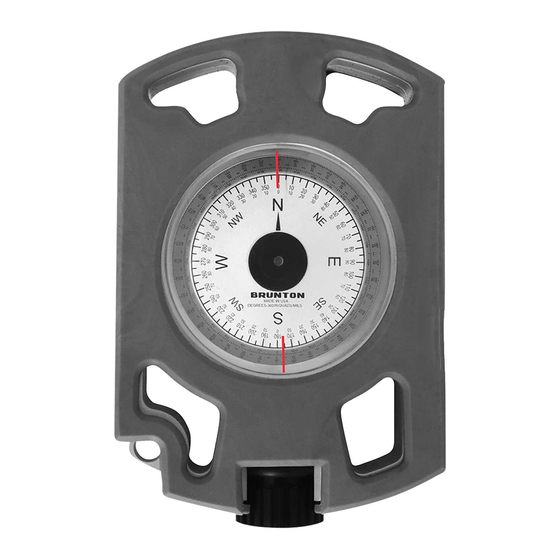

OmniSight SPECIFICATIONS User Manual - Anodized aluminum housing with rubber bump cover and leather case. - Aluminum card with 360 degree azimuth, reciprocal bearing, quadrants, and MILS - 10x magnification adjustable lens. - 1/2° accuracy - Sapphire jewel with anti static dampening fluid. OUR STORY INSTRUCTIONS FOR USE PLOTTING LOCATION... - Page 6 INDESTRUCTABLE SINCE 1894 At Brunton, we come to work with a clear vision: remove any Front Dial Face obstacles that stand between our customers and their passion to w/ 360 AZ & Quadrants stay outdoors. It’s been this way since 1894, when D.W. Brunton created the now legendary Pocket Transit a compact, precision compass that continues to give outdoorsman the confidence to...
- Page 7 INSTRUCTIONS FOR USE BALANCE | INCLINATION Earth’s vertical magnetic field has a tendency to incline compasses View through the optical lens and aim at your target object or and therefore instruments are balanced against the magnetic direction of travel. With both eyes open, the hairline can be seen inclination for the location of use.
- Page 8 PLOTTING LOCATION FIGURE 1 Aim at two fixed landmarks that likewise are distinguishable on a map/chart for example the lighthouse at direction 20° and landmark at 330° (as pictured in figure 2). Then draw straight lines along the reverse bearings of 20° and 330° (200° and 150°) from Mils the lighthouse and the landmark on the chart.
