Atlantis NetFly AP4 WN Manual

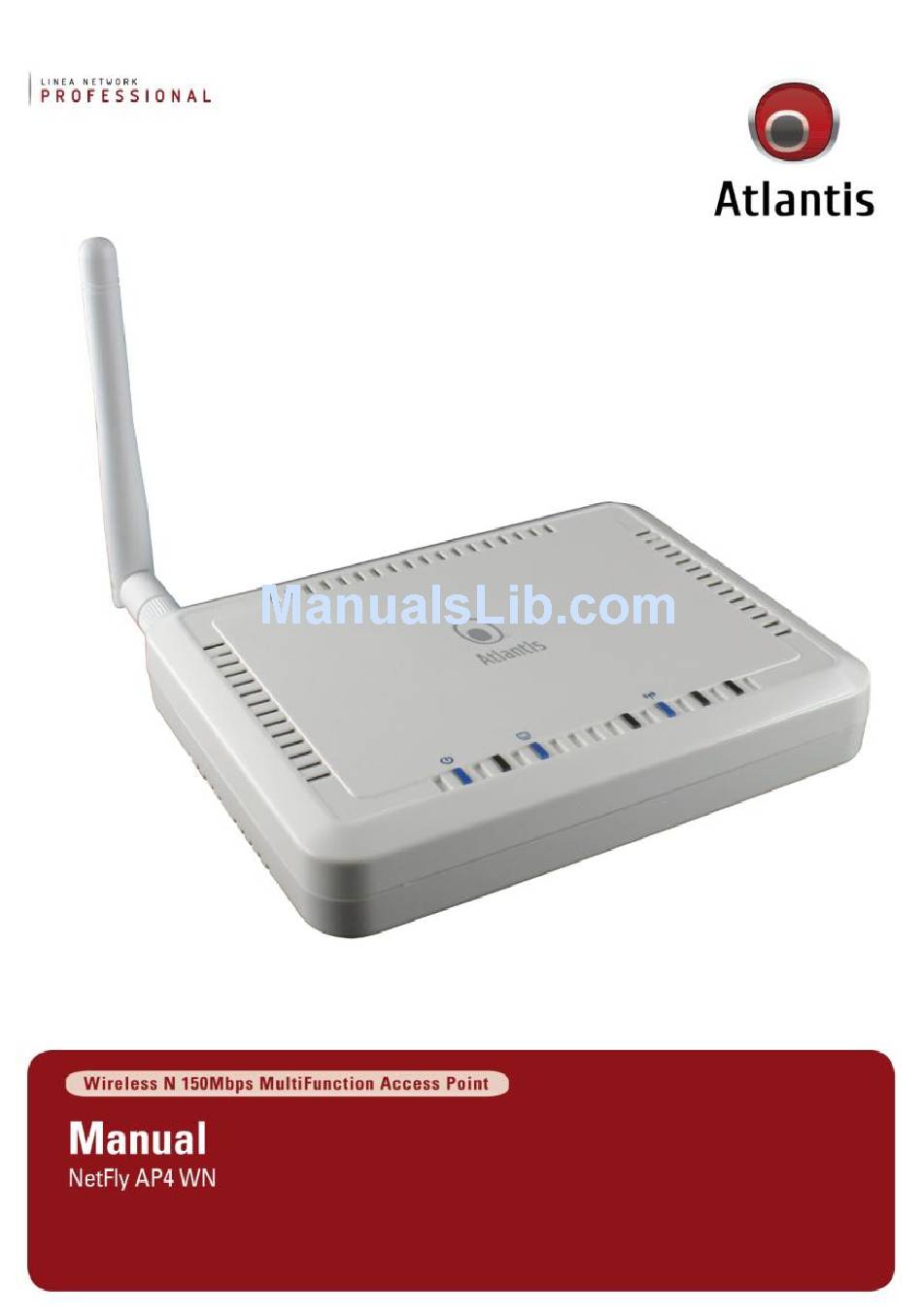

Atlantis netfly ap4 wn wireless n 150mbps multifunction access point
Hide thumbs Also See for NetFly AP4 WN:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetFly AP4 WN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantis NetFly AP4 WN

Summary of Contents for Atlantis NetFly AP4 WN

  • Page 2 ITALIANO Questo prodotto è coperto da garanzia Atlantis della durata di 2 anni. Per maggiori dettagli in merito o per accedere alla documentazione completa in Italiano fare riferimento al sito www.atlantis-land.com. ENGLISH This product is covered by Atlantis 2 years warranty. For more detailed informations please refer to the web site www.atlantis-land.com.

  • Page 3: Table Of Contents

    INDEX 1. Product Overview ................10 1.1 System Requirements ..............11 1.2 Package contents ............... 11 1.3 Front LEDs ................11 1.4 Rear panel and ports ..............12 1.5 Cabling ..............13 1.6 Factory Default Settings ............. 13 1.7 TCP/IP Configuration..............14 Windows 2000.................
  • Page 4 3.1.4.2.8 WMM (Wireless Multimedia) ......... 43 3.1.4.3 Client Bridge Operating Mode ........44 3.1.4.3.1 Status ................. 45 3.1.4.3.2 Basic ................45 3.1.4.3.3 Advanced ..............47 3.1.4.3.4 AP Profile ..............48 3.1.4.3.4.1 Manage AP Profile ............48 3.1.4.3.5 WMM (Wireless Multimedia) ......... 49 3.1.4.4 WDS Operating Mode ..........
  • Page 5 3.4.1 Time Setting ............... 77 3.4.2 Diagnosis ..............78 4. Support .................... 79 APPENDIX APPENDIX A: Troubleshooting ............... 80 A.1 Using LEDs to diagnose problems ..........80 A.1.1 Power LED ................80 A.1.2 LAN LED ................. 80 A.2 WEB Configurator ..............80 A.4 Login Username e Password ............
  • Page 6 Windows™ 98SE/2000/ME/XP/VISTA are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis logo is a registered trademark of Atlantis. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.
  • Page 7 CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels. CE/EMC Restriction of Liability The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.
  • Page 8 “Electromagnetic Compatibility” and 1999/5/CE within CE Marking Requirememnt. CE Declaration is available on the web site www.atlantis-land.com. Important information for the correct recycle/treatment procedures of this equipment The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately.
  • Page 9 2002/96/CE, which requires a separate collection system and specific treatment and disposal procedures for the waste of electric and electronic equipments (WEEE). For further and more detailed information, we invite you to visit our website at www.atlantis-land.com CE Logo with attention Mark ( ) aren‟t fully...

  • Page 10: Product Overview

    Thank You for choosing an Atlantis Product. For more detailed instructions on configuring and using the NetFly AP4, please refer to the online manual into CD. 1. Product Overview IEEE 802.11n Wireless Thanks to its embedded Access Point, based on the most recently 802.11n specifications, is possible to create high performance WLANs with extended coverage.

  • Page 11: System Requirements

    1.1 System Requirements Before installing Router, your PC should meet the following: TCP/IP protocol must be installed on each PC  Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape  Navigator 6.0 or later 1.2 Package contents Unpack the package and check all the items carefully.

  • Page 12: Rear Panel And Ports

    Lit when connected to Ethernet device (Blue for 10/100Mbps) Blinking when data transmit/received. Flashes when sending/receiving data. Lit blue when the WLAN wireless connection is established 1.4 Rear panel and ports PORT MEANING Connect the supplied power adapter to this jack. DC-IN Connect an UTP Ethernet cable to one of the four LAN ports when connecting to a PC or an office/home network...

  • Page 13: Cabling

    1.5 Cabling First you must connect the product to the RJ45 ports the PCs of your Lan or others Switch. In the end connect the DC Adapter to the socket then to the NetFly AP4. Once you‟ve done all the connections the product will carry on immediately a autotest (120 seconds).

  • Page 14: Tcp/Ip Configuration

    Ethernet network adapter must be installed. If not, please refer to MS Windows related manuals. Before you configure this Wireless Multi-Function Access Point, you need to know the following default settings: Username:admin  Password: atlantis  IP LAN address: (192.168.1.2), Subnet Mask (255.255.255.0)  DHCP Server: disable ...

  • Page 15: Windows Xp

    Windows XP Go to Start / Control Panel (in Classic View). In the Control Panel,  double-click on Network Connections. Double-click LAN Area Connection.  In the LAN Area Connection Status window, click Properties.  Select Internet Protocol (TCP/IP) and click Properties. ...

  • Page 16: Configuring Netfly Ap4

    Open the web browser, enter the local port IP address of this NetFly AP4, which default at 192.168.1.2, and click Go to get the login page. The default username is admin, password atlantis and click OK to continue. At the configuration homepage, the left navigation pane where bookmarks are...

  • Page 17: Switching Between Operating Modes

    2.2 Switching between Operating Modes Click on the System link on the navigation drop-down menu. You will then see five options: Operation Mode, Status, Schedule, Event Log, and Monitor. Click on Operation Mode. A dialog box will appear to notify you that the system will restart in order for the change to take effect.
  • Page 18 A dialog box will appear to notify you that the system will restart in order for the change to take effect. Click on the OK button to continue For more detailed instructions on configuring and using the NetFly AP4, please refer to the online manual into CD.

  • Page 19: Web Configuration

    3. WEB Configuration 3.1 System Click on the System link on  the navigation drop-down menu. You will then see five options: Operation Mode, Status, Schedule, Event Log, and Monitor. Each option is described in detail below.

  • Page 20: Status

    3.1.1 Status Click on the Status link under the System drop-down menu. The status  page displays a summary of current system settings. Information such as operating mode, system up time, firmware version, serial number, kernel version and application version are displayed in the „System‟ section.

  • Page 21: Schedule

    3.1.2 Schedule Click on the Schedule link in the navigation menu. Prior to setting  schedule, time zone must be set in the Tools menu. Schedules can be created to specify the occasions to enforce the rules. For example, if you want enable power saving on Mon-Fri from 3pm to ...

  • Page 22: Event Log

    3.1.3 Event Log Click on the Event Log link on the navigation menu. The device  automatically records important events in its internal memory. Order records will be over-written by the latest ones when it is out of internal memory. Save: Click on the Save button to save the log into a text file on your ...

  • Page 23: Monitor

    3.1.4 Monitor Click on the Monitor link in the navigation drop-down menu. This page  displays the transmitted and received packet statistics of the wired (LAN & WAN) and wireless interface. You may change the auto-refresh time by selecting the number of seconds from the drop-down list. Click to view the history records.

  • Page 25: Switching Between Operating Modes

    3.1.4.1 Switching between Operating Modes Each of the operating modes offers different features. In order to switch  the operating mode, select it from the System >> Operation Mode A dialog box will appear to notify you that the system will restart in ...

  • Page 26: Access Point Operating Mode

    3.1.4.2 Access Point Operating Mode In order to configure the  device as an Access Point, select Access Point from the Operating Mode drop-down list. A dialog box will appear to  notify you that the system will restart in order for the change to take effect. Click on the OK button to continue.

  • Page 27: Status

    3.1.4.2.1 Status Click on the Status link under the Wireless drop-down menu. This  page will display the current wireless settings such as SSID, Channel, Security and BSSID (MAC address)

  • Page 28: Basic

    3.1.4.2.2 Basic Click on the Basic link under the Wireless drop-down menu. This page  will display the current wireless settings such as SSID, Channel, Security and BSSID (MAC address).  Radio: Choose to Enable or Disable the wireless radio. ...
  • Page 29 ESSID: The SSID is a unique named shared amongst all the points of  the wireless network. The SSID must be identical on all points of the wireless network and cannot exceed 32 characters. Auto Channel: The device can automatically select the clearest channel ...

  • Page 30: Advanced

    3.1.4.2.3 Advanced Click on Advanced link under the Wireless drop-down menu. This  page allows you to configure the fragmentation threshold, RTS threshold, beacon period, transmit power, DTIM Period, etc. Fragment Threshold: Packets over the specified size will be  fragmented in order to improve performance on noisy networks.
  • Page 31 Wireless clients detect the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. Valid settings are between 1 and 10. Data Rate: You may select a data rate from the drop-down list,  however, it is recommended to select auto. This is also known as auto- fallback.

  • Page 32: Wireless Security Mode

    3.1.4.2.4 Wireless Security Mode Click on the Security link under the Wireless drop-down menu. To  protect your privacy this mode supports several types of wireless security: WEP WPA, WPA2, and 802.1x RADIUS. WEP is the original wireless encryption standard. WPA provides a higher level of security. The following section describes the security configuration in detail.
  • Page 33 established the necessary credentials before attempting to authenticate to the Server through this Gateway. Furthermore, it may be necessary to configure the RADIUS Server to allow this Gateway to authenticate users. You will then be required to specify the RADIUS Server‟s IP address, port, and password.

  • Page 34: Wep (Wired Equivalent Privacy)

    3.1.4.2.4.2 WEP (Wired Equivalent Privacy) Click on the Security link under the Wireless drop-down menu.  WEP is an acronym for Wired Equivalent Privacy, and is a security  protocol that provides the same level of security for wireless networks as for a wired network.
  • Page 35 Broadcast SSID: Select Enable or Disable from the drop-down list.  This is the SSID broadcast feature. When this option is set to Enable, your wireless network name is broadcast to anyone within the range of your signal. If you're not using encryption then they could connect to your network.
  • Page 36 Click on the Apply button to save the changes. ...

  • Page 37: Wpa (Wi-Fi Protected Access) / Pre-Shared Key

    3.1.4.2.4.3 WPA (Wi-Fi Protected Access) / Pre-shared Key Click on the Security link under the Wireless drop-down menu.  WPA (Wi-Fi Protected Access) is designed to improve upon the security  features of WEP (Wired Equivalent Privacy). The technology is designed to work with existing Wi-Fi products that have been enabled with WEP.
  • Page 38 Pre-shared Key Type:: The Key Type can be passphrase or Hex  format. Pre-Shared Key: The key is entered as a pass-phrase of up to 63  alphanumeric characters in ASCII (American Standard Code for Information Interchange) format at both ends of the wireless connection.

  • Page 39: Wpa Radius (802.1X)

    3.1.4.2.4.4 WPA RADIUS (802.1x) Click on the Security link under the Wireless drop-down menu.  WPA encryption. WPA (Wi-Fi Protected Access) was designed to improve  upon the security features of WEP (Wired Equivalent Privacy). The technology is designed to work with existing Wi-Fi products that have been enabled with WEP.
  • Page 40 WPA Type: Select TKIP, AES, or WPA2 Mixed. The encryption algorithm  used to secure the data communication. TKIP (Temporal Key Integrity Protocol) provides per-packet key generation and is based on WEP. AES (Advanced Encryption Standard) is a very secure block based encryption. Note that, if the bridge uses the AES option, the bridge can associate with the access point only if the access point is also set to use only AES.

  • Page 41: Filter

    3.1.4.2.5 Filter You will be able to block out connections from unauthorized MAC Address by setting filter policy. Check on the Enable Wireless MAC Filtering  Type in Description as a note for your own reference  Enter the MAC address that you allow for accessing to your device ...

  • Page 42: Client List

    3.1.4.2.6 Client List Click on the Client List link under the Wireless drop-down menu. This  page displays the list of Clients that are associated to the Access Point. The MAC address and signal strength for each client is displayed. Click ...

  • Page 43: Vlan

    3.1.4.2.7 VLAN Click on the VLAN link under the Wireless drop-down menu. A VLAN  (Virtual LAN) is a group of hosts with a common set of requirements that communicate as if they were attached to the same wire, regardless of their physical location.

  • Page 44: Client Bridge Operating Mode

    3.1.4.3 Client Bridge Operating Mode In order to configure the device as an Access Point, select Client  Bridge from the Operating Mode drop-down list. A dialog box will appear to notify you that the system will restart in  order for the change to take effect.

  • Page 45: Status

    3.1.4.3.1 Status Click on the Status link under the Wireless drop-down menu. This  page will display the current wireless settings such as SSID, Channel, Security and BSSID (MAC address) 3.1.4.3.2 Basic Click on the Basic link under the Wireless drop-down menu. This page ...
  • Page 46  Band: Select the IEEE 802.11 mode from the drop-down list. For example, if you are sure that the wireless network will be using only IEEE 802.11g clients, then it is recommended to select 802.11g only instead of 2.4 GHz B+G which will reduce the performance of the wireless network.

  • Page 47: Advanced

    3.1.4.3.3 Advanced Click on Advanced link under the Wireless drop-down menu. This  page allows you to configure the fragmentation threshold, RTS threshold, beacon period, transmit power, DTIM Period, etc. Fragment Threshold: Packets over the specified size will be  fragmented in order to improve performance on noisy networks.

  • Page 48: Ap Profile

    N Data Rate: You may select a data rate for 802.11n from the drop-  down list, however, it is recommended to select auto. This is also known as auto-fallback. Preamble Type: Select a short or long preamble. For optimum ...

  • Page 49: Wmm (Wireless Multimedia)

    Delete Selected to delete the SSID on check. Delete All to delete all SSID from the table Connect to configure your device using the SSID on check 3.1.4.3.5 WMM (Wireless Multimedia) Click on the WMM link under the Wireless drop-down menu. WMM is ...

  • Page 50: Wds Operating Mode

    3.1.4.4 WDS Operating Mode In order to configure the device as an Access Point, select WDS from  the Operating Mode drop-down list. A dialog box will appear to notify you that the system will restart in  order for the change to take effect. Click on the OK button to continue. Please wait while the device counts down and restarts into the new ...

  • Page 51: Status

    3.1.4.4.1 Status Click on the Status link under the Wireless drop-down menu. This  page will display the current wireless settings such as SSID, Channel, Security and BSSID (MAC address) 3.1.4.4.2 Basic Click on the Basic link under the Wireless drop-down menu. This page ...
  • Page 52  Radio: Choose to Enable or Disable the wireless radio.  Mode: This drop-down list is fixed to WDS as this is the Wireless Distribution operating mode.  Band: Select the IEEE 802.11 mode from the drop-down list. For example, if you are sure that the wireless network will be using only IEEE 802.11g clients, then it is recommended to select 802.11g only instead of 2.4 GHz B+G which will reduce the performance of the wireless network.
  • Page 53  MAC Address #: Specify the MAC address (BSSID) of up to four devices within the WDS. Set Security: Setting data encryption type. (See 3.2.4.2.4.2 to  3.2.4.2.4.4) Click on the Apply button to save the changes. ...

  • Page 54: Advanced

    3.1.4.4.3 Advanced Click on Advanced link under the Wireless drop-down menu. This  page allows you to configure the fragmentation threshold, RTS threshold, beacon period, transmit power, DTIM Period, etc. Fragment Threshold: Packets over the specified size will be  fragmented in order to improve performance on noisy networks.

  • Page 55: Wmm (Wireless Multimedia)

    Data Rate: You may select a data rate from the drop-down list,  however, it is recommended to select auto. This is also known as auto- fallback. N Data Rate: You may select a data rate for 802.11n from the drop- ...

  • Page 57: Repeater Operating Mode

    3.1.4.5 Repeater Operating Mode order  configure the device as an Access Point, select Repeater from Operating Mode drop- down list. dialog box  will appear to notify you that the system will restart in order for the change to take effect.

  • Page 58: Status

    3.1.4.5.1 Status Click on the Status link under the Wireless drop-down menu. This  page will display the current wireless settings such as SSID, Channel, Security and BSSID (MAC address) 3.1.4.5.2 Basic Click on the Basic link under the Wireless drop-down menu. This page ...
  • Page 59 mode.  ESSID#: This device allows up for four SSIDs, select the SSID# that you would like to configure from the drop-down list. ESSID: The SSID is a unique named shared amongst all the points of  the wireless network. The SSID must be identical on all points of the wireless network and cannot exceed 32 characters.
  • Page 60  Site Survey: Click on the Site Survey button to view a list of Access Points in the area. The Site Survey page displays information about devices within the 802.11b/g/n frequency. Information such as channel, SSID, BSSID, encryption, authentication, signal strength, and operating mode are displayed.

  • Page 61: Advanced

    3.1.4.5.3 Advanced Click on Advanced link under the Wireless drop-down menu. This  page allows you to configure the fragmentation threshold, RTS threshold, beacon period, transmit power, DTIM Period, etc. Fragment Threshold: Packets over the specified size will be  fragmented in order to improve performance on noisy networks.
  • Page 62 and multicast messages. The default value is 1. Valid settings are between 1 and 10. Data Rate: You may select a data rate from the drop-down list,  however, it is recommended to select auto. This is also known as auto- fallback.

  • Page 63: Wireless Security Mode

    3.1.4.5.4 Wireless Security Mode Click on the Security link under the Wireless drop-down menu. To  protect your privacy this mode supports several types of wireless security: WEP WPA, WPA2, and 802.1x RADIUS. WEP is the original wireless encryption standard. WPA provides a higher level of security. The following section describes the security configuration in detail.

  • Page 64: Wep (Wired Equivalent Privacy)

    3.1.4.5.4.2 WEP (Wired Equivalent Privacy) Click on the Security link under the Wireless drop-down menu.  WEP is an acronym for Wired Equivalent Privacy, and is a security  protocol that provides the same level of security for wireless networks as for a wired network.
  • Page 65 your wireless network name is broadcast to anyone within the range of your signal. If you're not using encryption then they could connect to your network. When this is disabled, you must enter the Wireless Network Name (SSID) on the client manually to connect to the network. WMM: Choose to Enable or Disable WMM.

  • Page 66: Wpa (Wi-Fi Protected Access) / Pre-Shared Key

    3.1.4.5.4.3 WPA (Wi-Fi Protected Access) / Pre-shared Key Click on the Security link under the Wireless drop-down menu.  WPA (Wi-Fi Protected Access) is designed to improve upon the security  features of WEP (Wired Equivalent Privacy). The technology is designed to work with existing Wi-Fi products that have been enabled with WEP.
  • Page 67 Pre-shared Key Type:: The Key Type can be passphrase or Hex  format. Pre-Shared Key: The key is entered as a pass-phrase of up to 63  alphanumeric characters in ASCII (American Standard Code for Information Interchange) format at both ends of the wireless connection.

  • Page 68: Filter

    3.1.4.5.5 Filter You will be able to block out connections from unauthorized MAC Address by setting filter policy. Check on the Enable Wireless MAC Filtering  Type in Description as a note for your own reference  Enter the MAC address that you allow for accessing to your device ...

  • Page 69: Client List

    3.1.4.5.6 Client List Click on the Client List link under the Wireless drop-down menu. This  page displays the list of Clients that are associated to the device. The MAC address and signal strength for each client is displayed. Click ...

  • Page 70: Network

    Network Click on the Network link on the navigation drop-down menu. You will  then see three options: Status, LAN, and WAN. Each option is described in detail below. 3.2.1 Status Click on the Status link on the Network navigation drop-down menu. ...
  • Page 71 and subnet mask. If Dynamic IP is selected, then the IP address is received automatically from the external DHCP server. IP Address: Specify an IP address.  IP Subnet Mask: Specify a subnet mask for the IP address.  802.1d Spanning Tree: Select Enable or Disable from the drop- ...

  • Page 72: Management

    Management Click on the Management link on the navigation drop-down menu. You  will then see four options: Admin, SNMP, Firmware, and Configure. Each option is described in detail below. 3.3.1 Admin Click on the Admin link on the Management navigation drop-down ...

  • Page 73: Snmp

    3.3.2 SNMP Click on the SNMP link on the Management navigation drop-down  menu. This option allows you to assign the contact details, location, community name and trap settings for SNMP. This is a networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of a network.

  • Page 74: Firmware Upgrade

    Trap Active: Choose to enable or disable the SNMP trapping feature.  Trap Manager IP: Specify the password for the SNMP trap community.  Click on the Apply button to save the changes.  3.3.3 Firmware Upgrade Click on the Firmware link in the navigation menu. This page allows ...

  • Page 75: Restore To Factory Default

    3.3.4 Restore to Factory Default Click on the Configure link in the navigation menu  Click on the Reset button to reset the device to the factory default  settings. Once the dialog box appears, click on the OK button to confirm the ...

  • Page 76: Backup Settings

    3.3.5 Backup Settings Click on the Configure link in the navigation menu  Click on the Save button you will be provided with download link  Click on download link to save file to your local disk.  3.3.6 Restore Settings Click on the Configure link in the navigation menu ...

  • Page 77: Tools

    Tools Click on the Tools link on the navigation drop-down menu. You will then  see four options: Time zone, power saving, diagnosis, and reset. Each option is described in detail below. 3.4.1 Time Setting Click on the Time Setting link in the navigation menu. This feature ...

  • Page 78: Diagnosis

    3.4.2 Diagnosis Click on the Diagnosis link in the navigation menu. This page allows to  Ping a device to check if it is active. Address to Ping: Specify the IP address to ping and then click on the  Start button.

  • Page 79: Support

    For technical questions and support, please contact our help-desk by ticket on http://www.atlantis-land.com/ita/supporto.php. For generic informations, please send an e-mail to info@atlantis-land.com For presales informations, please send an e-mail to prevendite@atlantis-land.com. Atlantis SpA Via S. Antonio, 8/10 20020 Lainate (MI) Fax: +39.02.78.62.64.39...

  • Page 80: Appendix A: Troubleshooting

    Corrective Action Make sure you are using the correct IP address of the device. Check the IP address of the NetFly AP4 WN. Make sure that there is not an console session running. Check that you have enabled web service access. If you have configured a secured client IP address, your computer‟s IP...

  • Page 81: Login Username E Password

    Press the RESET button for 10 seconds, and then release it. The default username is “admin”. The default password is “atlantis”. The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing.

  • Page 82: Frequently Asked Question

    by wireless, and have TCP/IP installed and configured with a fixed IP address that must be in the same subnet of the Wireless Multi- Function Access Point. The default IP address of the Wireless Multi- Function Access Point is 192.168.1.2 and subnet mask is 255.255.255.0.
  • Page 83 to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered.
  • Page 84 is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe. Question What is the IEEE 802.11g standard? Answer Approved in June, 2003 as an IEEE standard for wireless local area networks (WLANs), 802.11g offers wireless transmission over relatively short distances at up to 54 megabits per second (Mbps)

  • Page 85: Appendix B: Country Channel List

    APPENDIX B: Country Channel List For some European Country, it may have its own domain; users are responsible for ensuring that the channel set configuration is in compliance with the regulatory standards of these countries. Country Name Classification Range Argentina, Bahrain, Brazil, Canada, Chile, CH1~11 Croatia, Ecuador, Hong Kong, Malaysia, Mexico, Panama , Peru, Philippines, Puerto...

  • Page 86: Appendix C: Technical Features

    APPENDIX C: Technical Features Technical Specs Product Code A02-AP4-WN Standards IEEE 802.11b/g/n ® Chipset RaLink RT3050 (MIPS 24KEc 320MHz with 32KB I- cache/16KB D cache) Memory 32MB/4MB Flash Interface 1 x Fast Ethernet (LAN) 3 (LAN, WLAN, Power) WPS/Reset ND/Yes Antenna 1x 2 dBi R-SMA external Antenna Virtual AP...
  • Page 87 Firewall & Security  (Router Mode) SOHO Firewall Security with NAT Technology and  Packet Filtering SPI, DoS, URL and Application Filter  QoS (Router Mode) Bandwith Allocation  Priority Queue  Frequency Band 2412 ~ 2472MHz Radio Technology IEEE 802.11g/n: Orthogonal Frequency Division ...
  • Page 88 Microsoft Internet  Explorer 5.0 or later, Netscape Navigator 6.0 or later Package Contents NetFly AP4 WN  Power Adapter AC-DC (12V, 1A)  UTP cat. 5 cable (RJ-45 connector), 2 dBi  Antenna Quick Start Guide (English, Italian and French) ...
  • Page 90 Atlantis SpA Via S. Antonio, 8/10 20020 Lainate (MI) info@atlantis-land.com...
