Page 1: Access Point

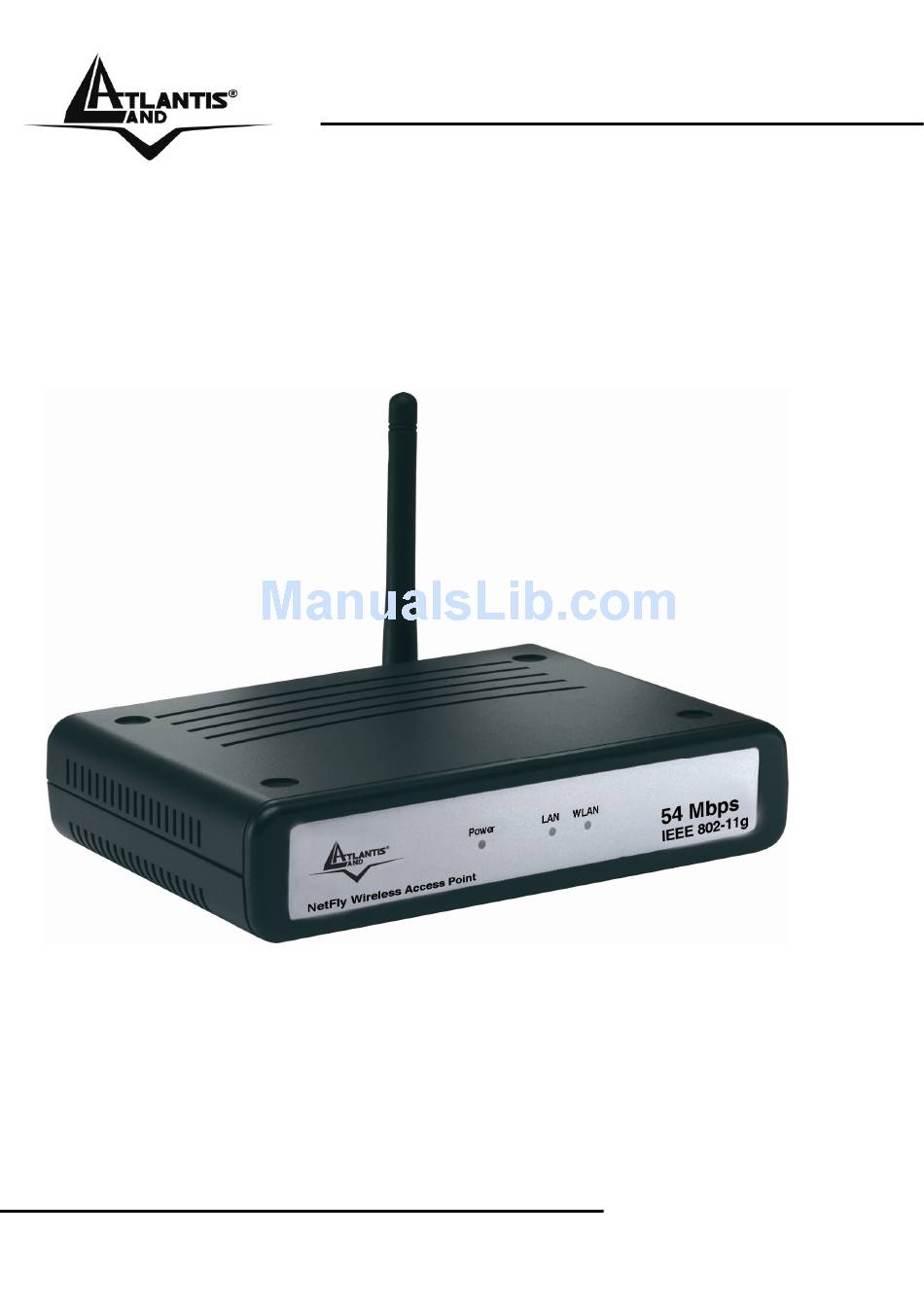

NetFly AP1-54 Wireless Multi-Function Access Point A02-AP1-W54 QUICK START GUIDE A02-AP1-W54_GE01 Where solutions begin... - Page 2 Italiano fare riferimento al sito www.atlantis-land.com. ENGLISH This product is covered by Atlantis Land 3 years Fast Swap warranty. For more detailed informations please refer to the web site www.atlantis-land.com. For more detailed instructions on configuring and using this device, please refer to the online manual.
- Page 3 WARRANTY. Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice.
-
Page 4: Table Of Contents
NetFly AP1-54 INDEX 1.1 Package contents ..........5 1.2 The Front Panel LEDs ........5 1.3 The Rear Ports............. 6 1.4 Cabling ..............7 1.5 Default Settings............ 7 1.6 IE Configuration ........... 8 1.7 TCP/IP Configuration .......... 9 Configuring PC (Windows 95/98/ME) ...... 9 Configuring PC (Windows NT4.0) ...... -
Page 5: Package Contents
For more detailed instructions on configuring and using the Wireless Multi-Function Access Point, please refer to the online manual. 1.1 Package contents Atlantis Land WirelessMulti-Function Access Point, CDRom with manual, Quick Start Guide, External 2 dBi Antenna, Power Adapter AC-DC (7.5V, 1A). 1.2 The Front Panel LEDs... -
Page 6: The Rear Ports
NetFly AP1-54 1.3 The Rear Ports PORT MEANING Connect supplied power POWER Jack adapter to this jack. Connect an UTP Ethernet cable to one of the four LAN ports when connecting office/home network of 10Mbps or 100Mbps. After the device has turned on, Reset press it to reset the device or restore to factory default settings. -
Page 7: Cabling
NetFly AP1-54 1.4 Cabling Connect to the Switch/Hub Plug in one end of the RJ45 network cable to the Switch/Hub port, Plug in the other end of the RJ45 network cable to the Wireless Access Point. Check the installation The LEDs of the Access Point are clearly visible and the status of the network link can be seen instantly: •... -
Page 8: Ie Configuration
NetFly AP1-54 Before Configuration This section describes the configuration required by LAN- attached PCs that communicate with the Wireless Multi- Function Access Point, either to configure the device or for network access. These PCs must have an Ethernet interface (or wireless adapter) installed properly, be connected to the Wireless Multi-Function Access Point either directly or through an external repeater hub or by wireless, and have TCP/IP installed and configured with a fixed IP address that... -
Page 9: Tcp/Ip Configuration
NetFly AP1-54 • Never use remote connection • remote connection another network connection isn’t available 1.7 TCP/IP Configuration Configuring PC (Windows 95/98/ME) Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. -
Page 10: Configuring Pc (Windows 2000)
NetFly AP1-54 Select the IP Address tab. In this page, click the Specify address radio button IP=192.168.1.2 and subnet Mask=255.255.255.0). Configuring PC (Windows 2000) Go to Start / Settings / Control Panel. In the Control Panel, double-click Network Dial-up Connections. Double-click LAN Area Connection. -
Page 11: Browser Configuration
NetFly AP1-54 Select Internet Protocol (TCP/IP) click Properties. Select the Use the following IP address radio buttons IP=192.168.1.2 subnet Mask=255.255.255.0). Click OK to finish the configuration 1.8 Browser configuration Open the web browser, enter the local port IP address of this Wireless Multi-Function Access Point, which default at 192.168.1.1, and click Go to get the login page. - Page 12 NetFly AP1-54 Step 1: Set Password You can change the password as you like and then click Next to continue. Step 2: Set Wireless LAN connection Please type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting communication to the router.
- Page 13 NetFly AP1-54 Step 3: Set WEP Encryption If user wants to enable WEP, please click Enabled. Then, select the key size of WEP encryption and enter the key value in the key text box. Please click Next to continue. Step 4: Restart The Setup wizard is now completed.
- Page 14 NetFly AP1-54 restarted. Please click Restart to reboot the router. If you do not want to make any changes, please click exit to quit without any changes. You also can go back to modify the setting by clicking Back. Then relaunch your Web browser, to link to your favorite Web site to test your Internet connection.
